Presentation Transcript

  1. BCAM AND SURVEY FOR THE EC AND JD MOVEMENTS EXAMPLE: SUPPORTS USED FOR THE CMS BARREL CLOSURE PRINCIPLE CMS ‘GROUND VIEW’ AND SU. CORRIDORS: SU CORRIDORS POLAR BCAM ON CENTRAL BARREL REFLECTORS ON ±1 & ±2 BARREL SU CORRIDORS BCAM AND REFLECTOR APPLICATION - ATLAS R.GOUDARD; F.LACKNER; C.LASSEUR

  2. BCAM & REFLECTOR SUPPORTS FOR THE CMS CLOSURE MONITORING POLAR BCAM ON CENTRAL BARREL REFLECTORS ON ±1 & ±2 BARREL FRONT VIEW BCAM AND REFLECTOR APPLICATION – ATLAS; May 29, 2006 R.GOUDARD; F.LACKNER; C.LASSEUR

  3. BCAM & REFLECTOR SUPPORTS FOR THE CMS CLOSURE MONITORING THE BCAM BASEPLATE WAS DESIGNED FOR THE ALICE SPACEFRAME MONITORING SYSTEM AND THE ITS MONITORING. BCAM AND REFLECTOR APPLICATION – ATLAS; May 29, 2006 R.GOUDARD; F.LACKNER; C.LASSEUR

  4. BCAM & REFLECTOR SUPPORTS FOR THE CMS CLOSURE MONITORING M8 SCREW FIXATION STAINLESS STEEL (1) Upper fixation CORRIDOR ALUMINIUM ALLOY CORRIDOR (1) WELDING - THIS SOLUTION OFFERS MORE STABILITY BCAM AND REFLECTOR APPLICATION – ATLAS; May 29, 2006 R.GOUDARD; F.LACKNER; C.LASSEUR

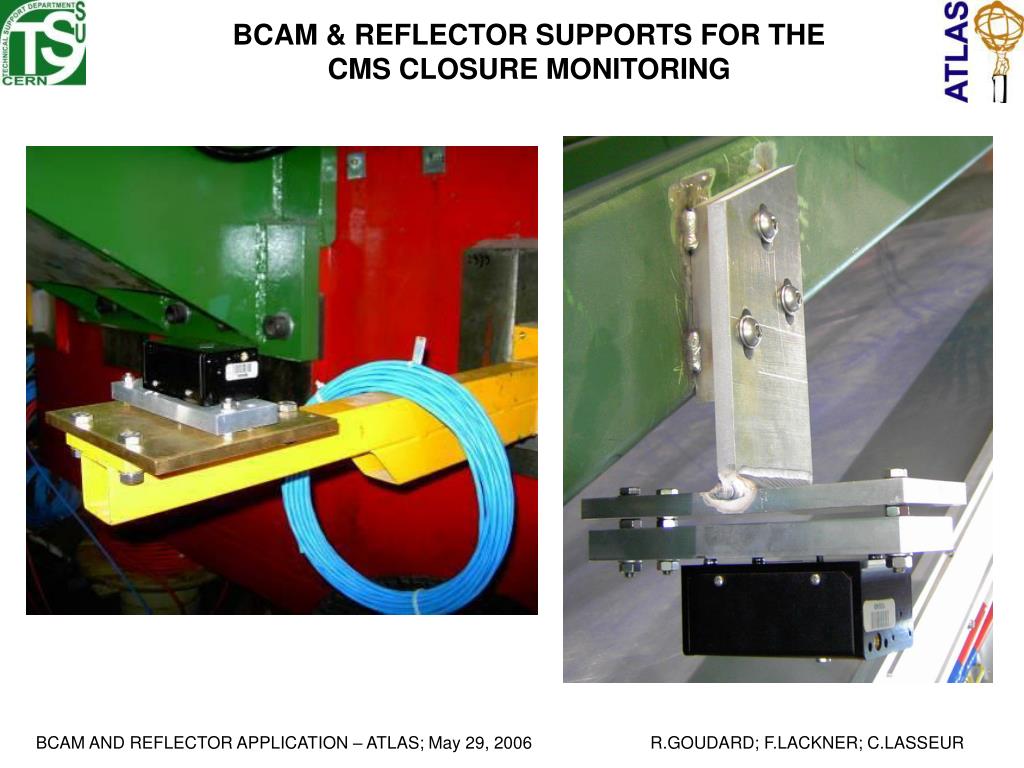

  5. BCAM & REFLECTOR SUPPORTS FOR THE CMS CLOSURE MONITORING BCAM AND REFLECTOR APPLICATION – ATLAS; May 29, 2006 R.GOUDARD; F.LACKNER; C.LASSEUR

  6. REFLECTOR SUPPORT 26mm SPHERICAL TARGET FIXATION RING TARGET HOLDER BCAM AND REFLECTOR APPLICATION – ATLAS; May 29, 2006 R.GOUDARD; F.LACKNER; C.LASSEUR

  7. BCAM & REFLECTOR SUPPORTS FOR THE CMS CLOSURE MONITORING CORNER CUBES: http://www.wzw.ch/ UNIT PRICE: € 266.00 PART.NO.: SOTD15HE MATERIAL: BK7 DIAMETER: 15mm HEIGHT: 11.3mm BCAM AND REFLECTOR APPLICATION – ATLAS; May 29, 2006 R.GOUDARD; F.LACKNER; C.LASSEUR
