  1. Chapter 14 Waves Types Characteristics Interactions

  2. Types of Waves Dr. B-Z

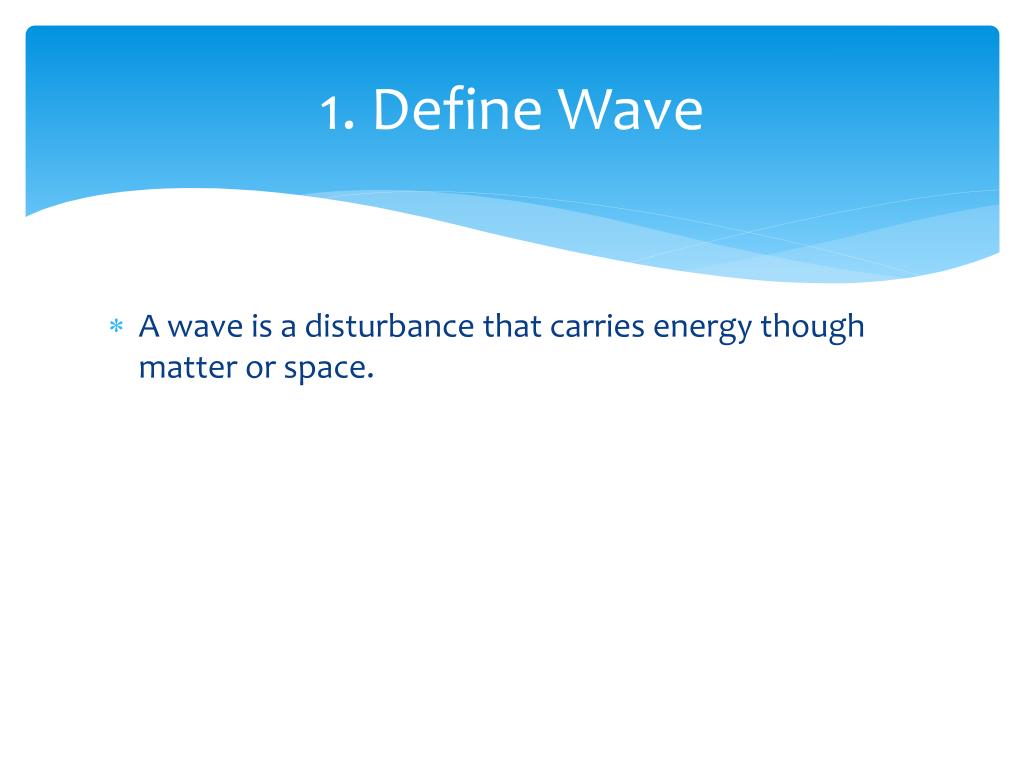

  3. 1. Define Wave • A wave is a disturbance that carries energy though matter or space.

  4. 2. The matter through which a wave travels is called a _. • Medium • Examples • Pond • Air • Earth

  5. 3. Define Mechanical Waves • Waves that require a medium are called mechanical waves • Nearly all waves are mechanical waves except for electromagnetic waves.

  6. 4. • The type of wave that consists of changing electric and magnetic fields in space is called electromagnetic waves.

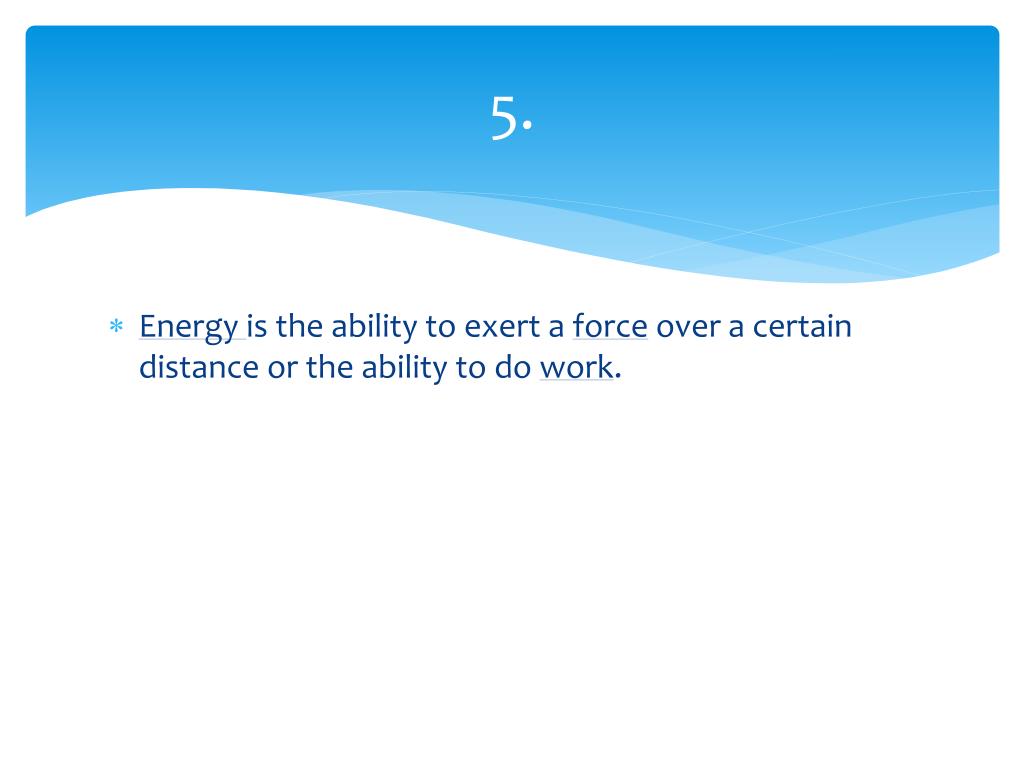

  7. 5. • Energy is the ability to exert a force over a certain distance or the ability to do work.

  8. 6. What is a tsunami? • Huge ocean wave caused by an underwater earthquake • It is NOT a tidal wave.

  9. Tsunami Flooding

  10. Destructive tsunamis originate primarily in subduction zones around the Pacific Rim. Not every earthquake generates a tsunami. Model simulations combined with real-time tsunami measurements will help assess the hazard. A simulated tsunami generated by a large subduction earthquake (Mw = 8.5) in Alaska-Aleutian Subduction Zone. Time = 0

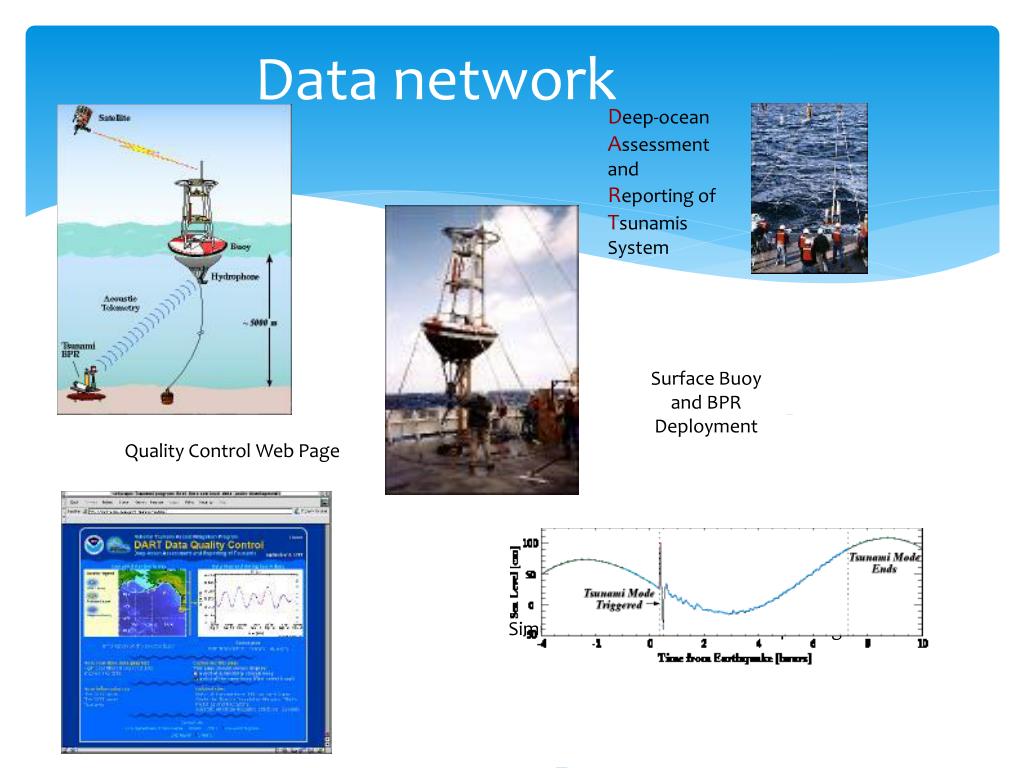

  11. Deep-oceanAssessment andReporting ofTsunamisSystem Surface Buoy and BPR Deployment Quality Control Web Page Simulated Tsunami and DART Reporting Modes Data network

  12. Computer Models allow scientists to figure out where tsunamis are most likely to strike and that is supposed to help officials find ways to put evacuation plans in place.

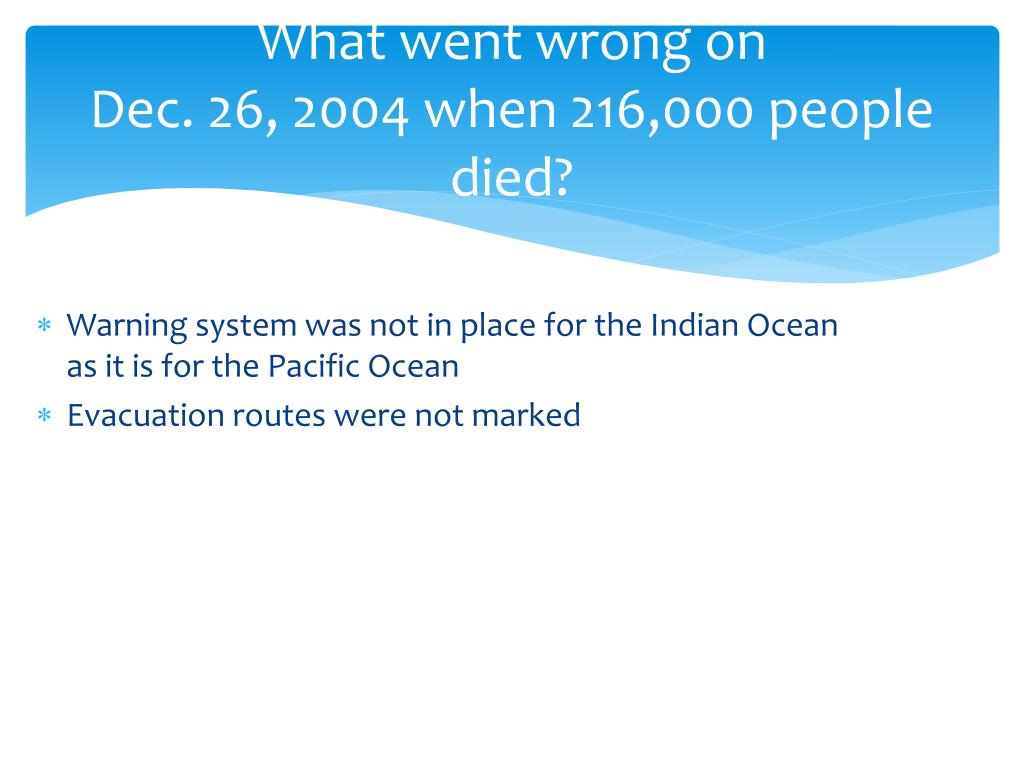

  13. What went wrong on Dec. 26, 2004 when 216,000 people died? • Warning system was not in place for the Indian Ocean as it is for the Pacific Ocean • Evacuation routes were not marked

  14. 7. Why do speakers need to amplify sound? • Although each wave has the same energy, but as the waves get spread out over a larger area, the energy also gets spread out over a larger area.

  15. 8. Most waves are caused by • Vibrations of matter • Even EM waves which do not require a medium are caused by the vibrating of charged particles

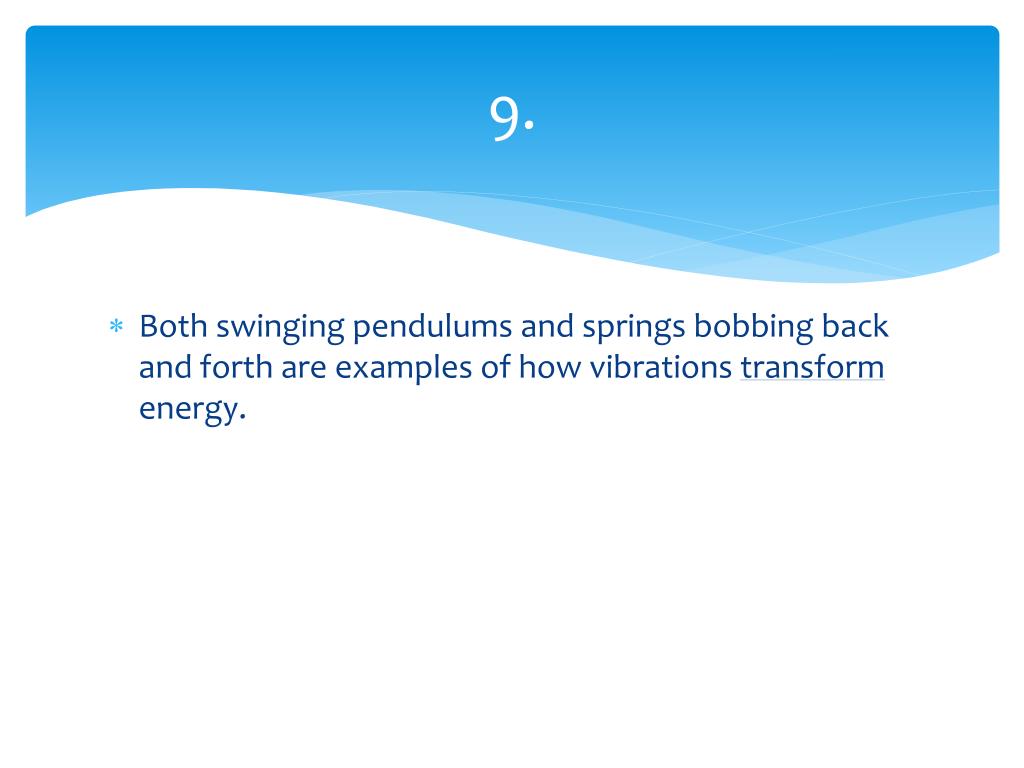

  16. 9. • Both swinging pendulums and springs bobbing back and forth are examples of how vibrations transform energy.

  17. 10. What is simple harmonic motion in a spring? • When a spring is expanded or compressed, it is exerting a force that pushes the mass back almost to the original resting position. As a result, the mass will continue to bounce up and down which is an example of simple harmonic motion.

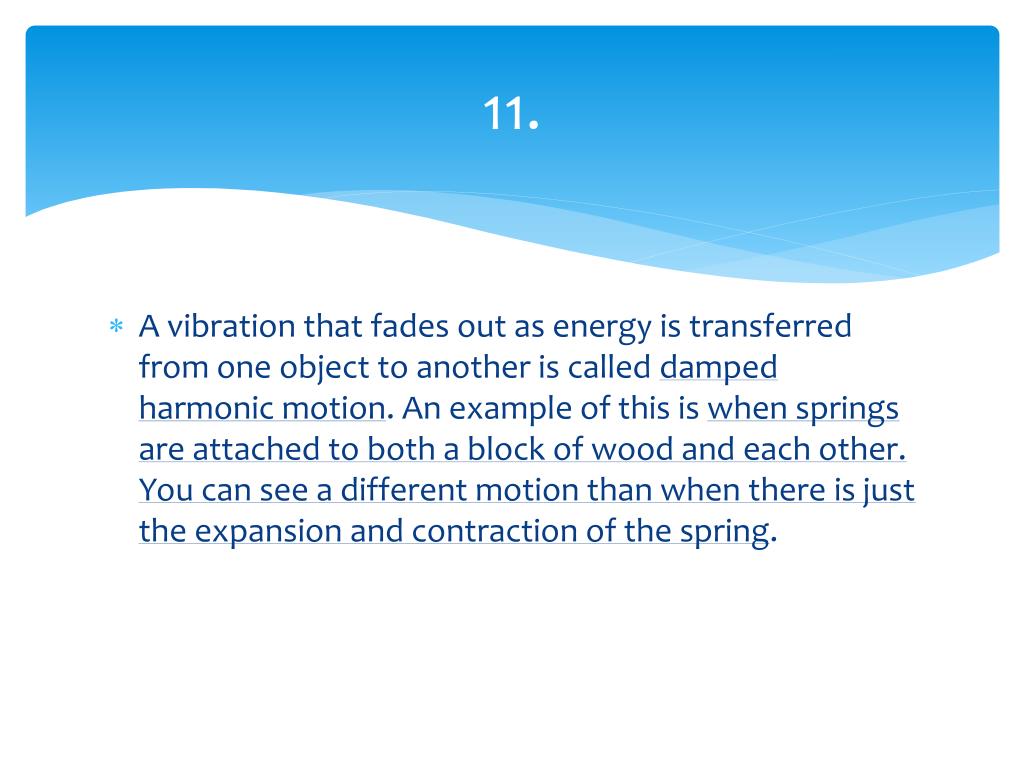

  18. 11. • A vibration that fades out as energy is transferred from one object to another is called damped harmonic motion. An example of this is when springs are attached to both a block of wood and each other. You can see a different motion than when there is just the expansion and contraction of the spring.

  19. 12. List the two ways that a wave can move. • Back and forth (horizontally) • Up and down (vertically)

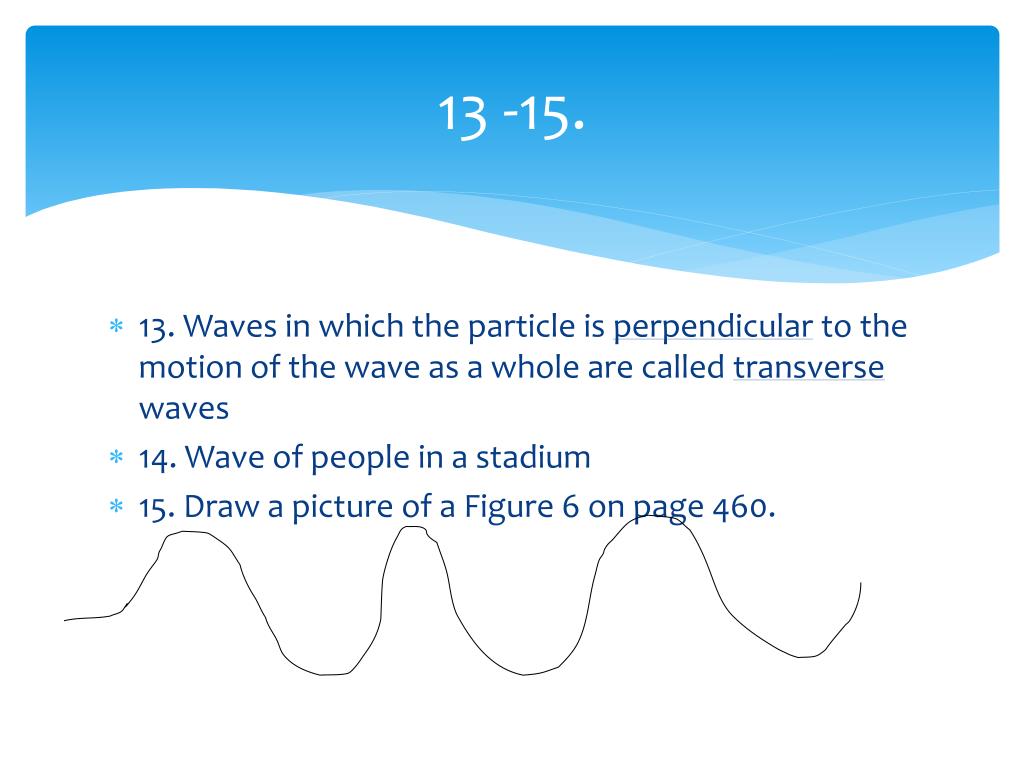

  20. 13 -15. • 13. Waves in which the particle is perpendicular to the motion of the wave as a whole are called transverse waves • 14. Wave of people in a stadium • 15. Draw a picture of a Figure 6 on page 460.

  21. 16-18

  22. #16-18 • 16. Waves that cause the medium to vibrate parallel to the direction of the wave motion are called longitudinal waves. • 17. Examples: spring moved horizontally • 18. Particle motion Wave motion

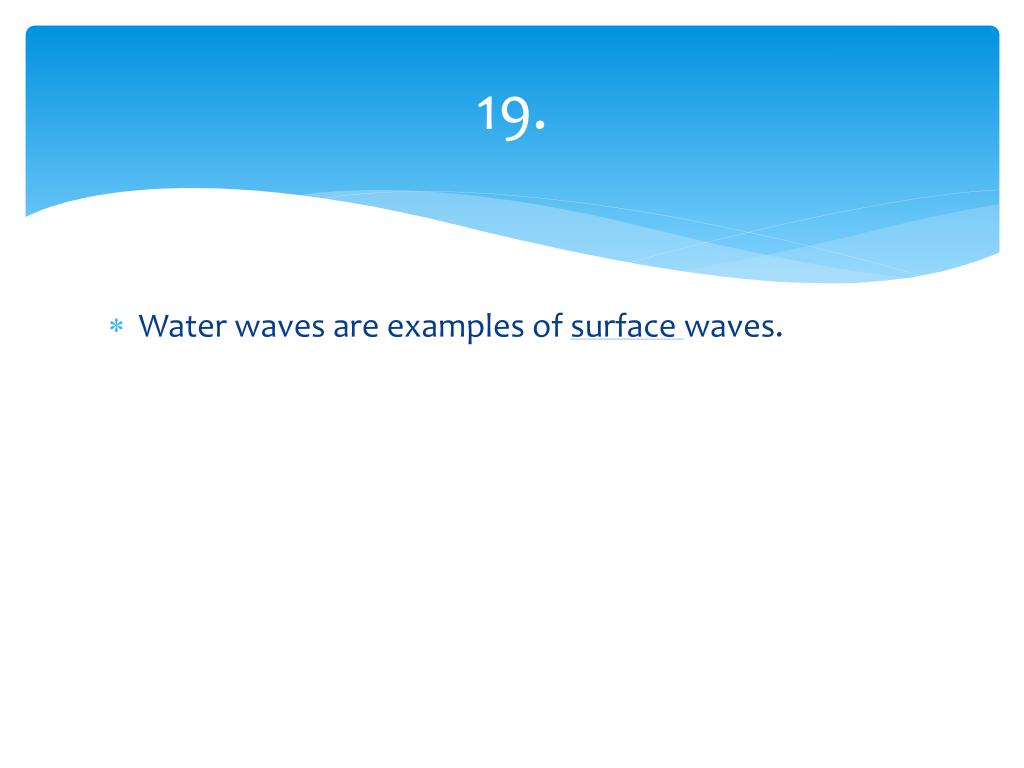

  23. 19. • Water waves are examples of surface waves.

  24. 20. • This type of wave occurs on the boundary between two different mediums.

  25. 21. • The particles in surface waves move both perpendicularly and parallel. *

  26. Waves Pre-Assessment Characteristics of Waves

  27. 1 and 2. Draw & label a sine curve. Crests amplitude Di spl a c e ment Wavelength Trough

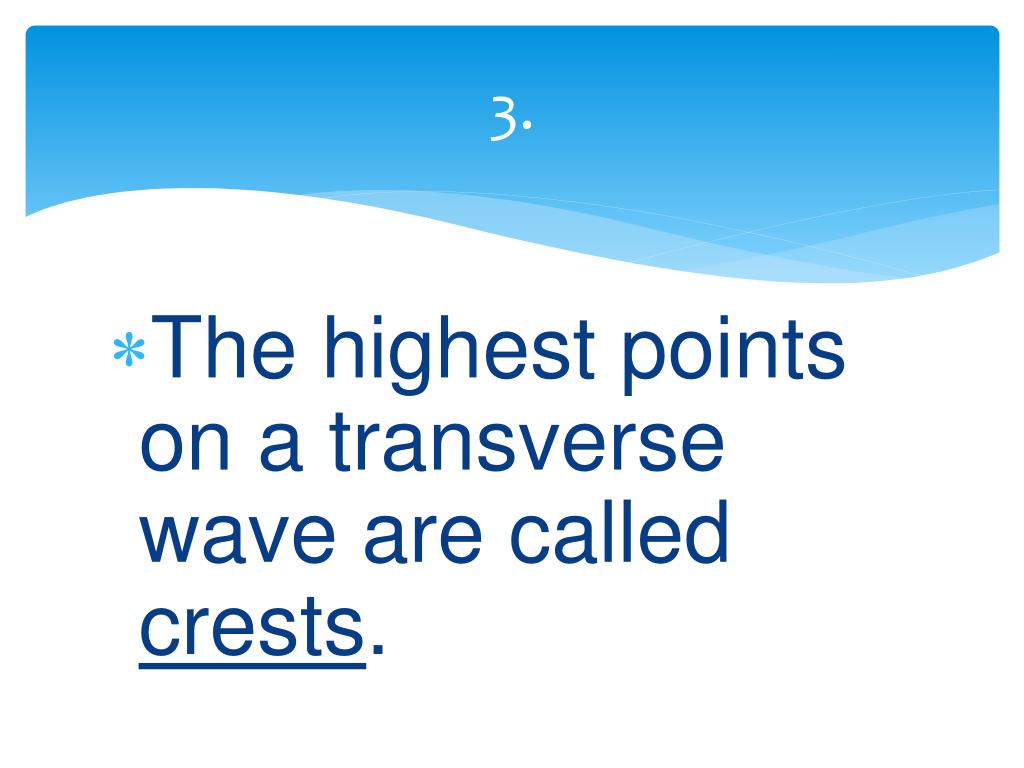

  28. 3. • The highest points on a transverse wave are called crests.

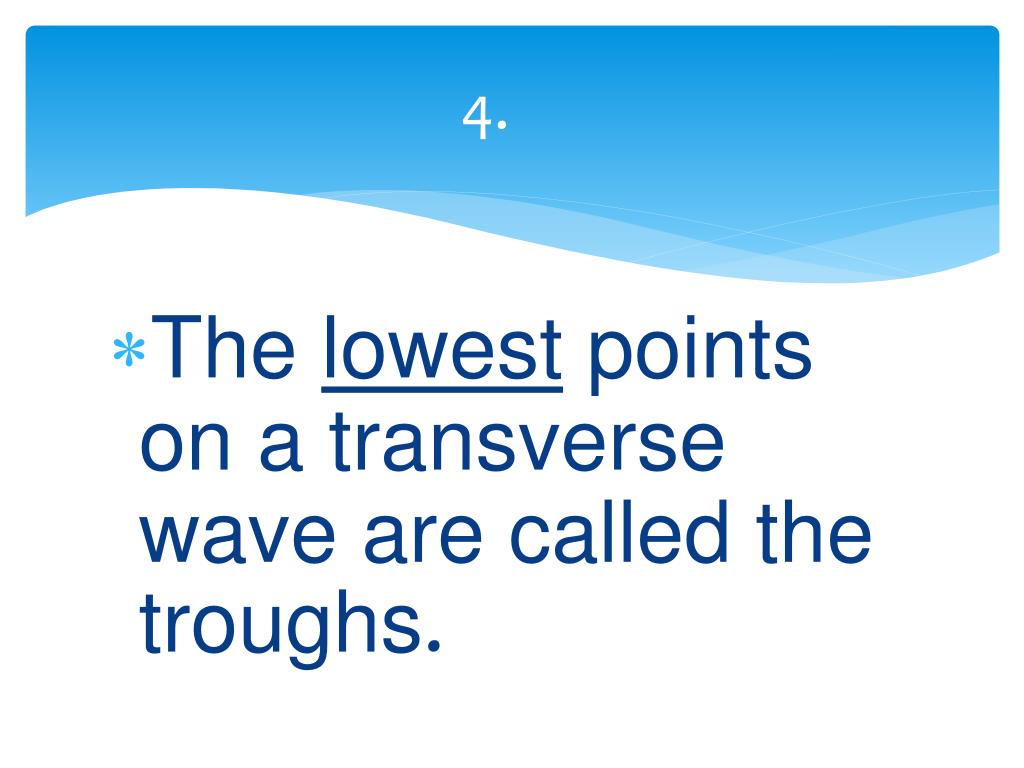

  29. 4. • The lowest points on a transverse wave are called the troughs.

  30. 5. • The greatest distance that particles are displaced from their normal resting positions because of a wave is called the amplitude.

  31. 6. Define compression • Compression is crowded coiled areas on a spring. Area of compression

  32. 7. Define rarefaction • Stretched out areas on a spring. Area of rarefaction

  33. 8. • The distance from one crest of a wave to the crest of the next wave is called the wavelength.

  34. 9. • The time required for one full wavelength of a wave to pass a certain point is called the period.

  35. 10. • The frequency of a wave is the number of full wavelengths that pass a point in a given time interval.

  36. 11. Write the frequency-period equation. • Frequency (f) = 1/period or 1/T • Frequency is measured in Hertz and period is measured in seconds.

  37. 12. The full range of light at different frequencies is called the • EM spectrum .

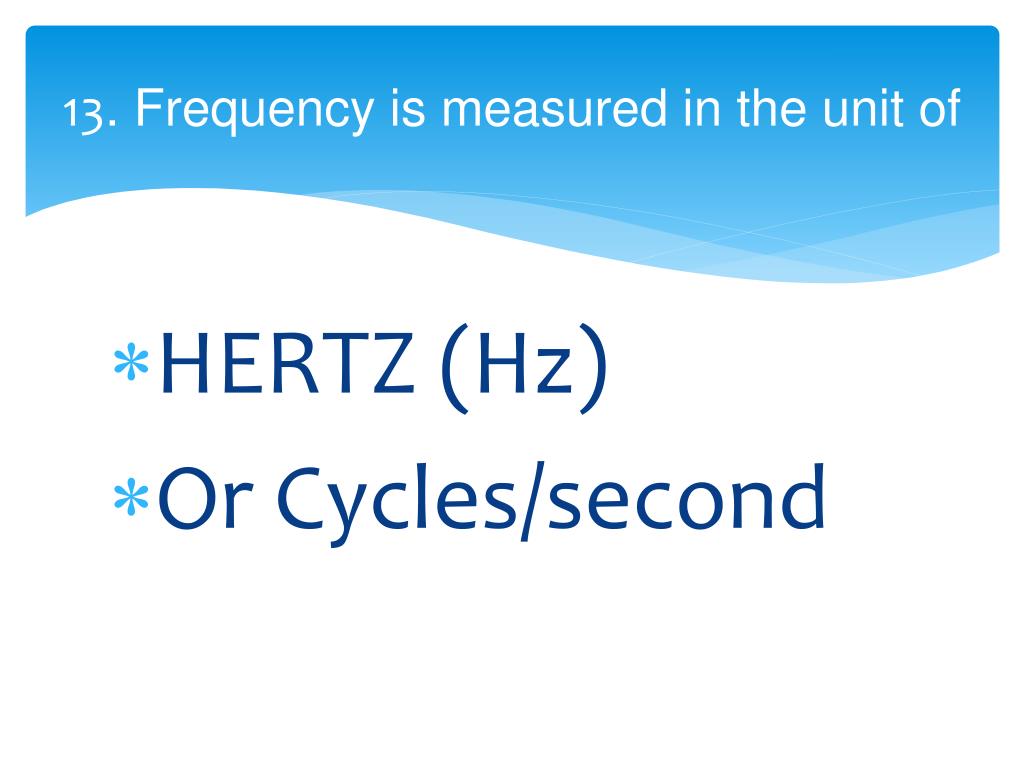

  38. 13. Frequency is measured in the unit of • HERTZ (Hz) • Or Cycles/second

  39. 14. Wavelength is measured in the unit of • LENGTH (meter) • It could also be in nm, cm, or mm.

  40. 15. Speed = • Wavelength (l) / period (T) • The Greek letter lamda (l) is the symbol for wavelength

  41. 16. Speed = • Frequency (f) / wavelength (l) • Or f / l

  42. 17. The symbol for frequency is • f • What unit is used to measure frequency? • Hertz (Hz)

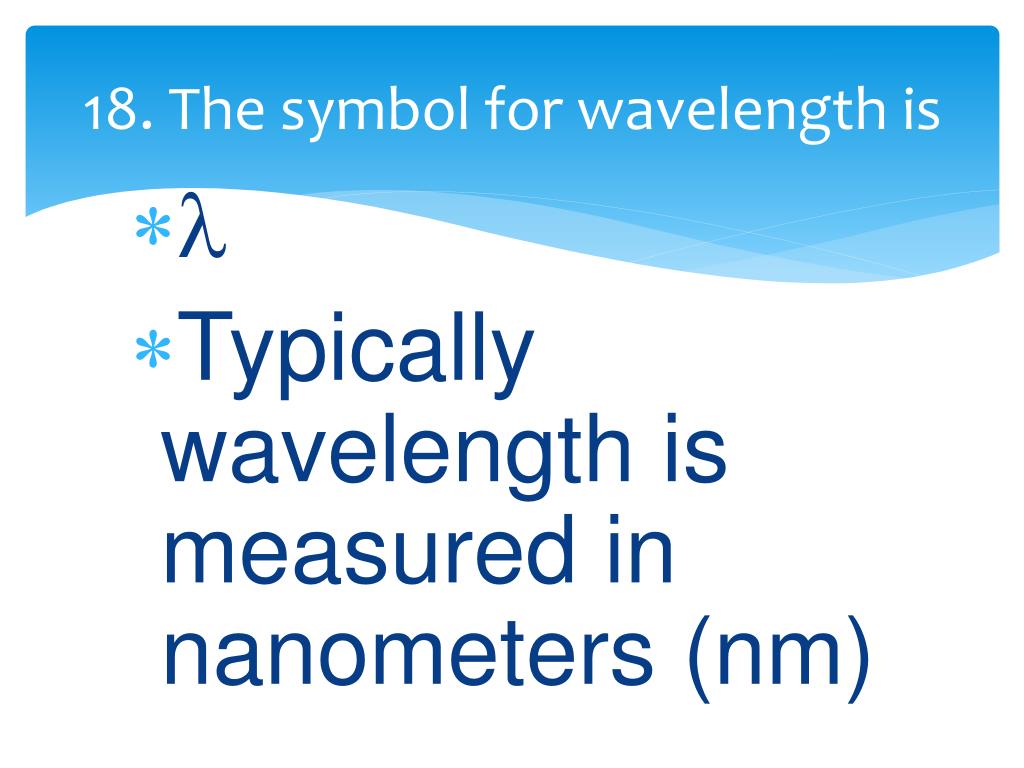

  43. 18. The symbol for wavelength is • l • Typically wavelength is measured in nanometers (nm)

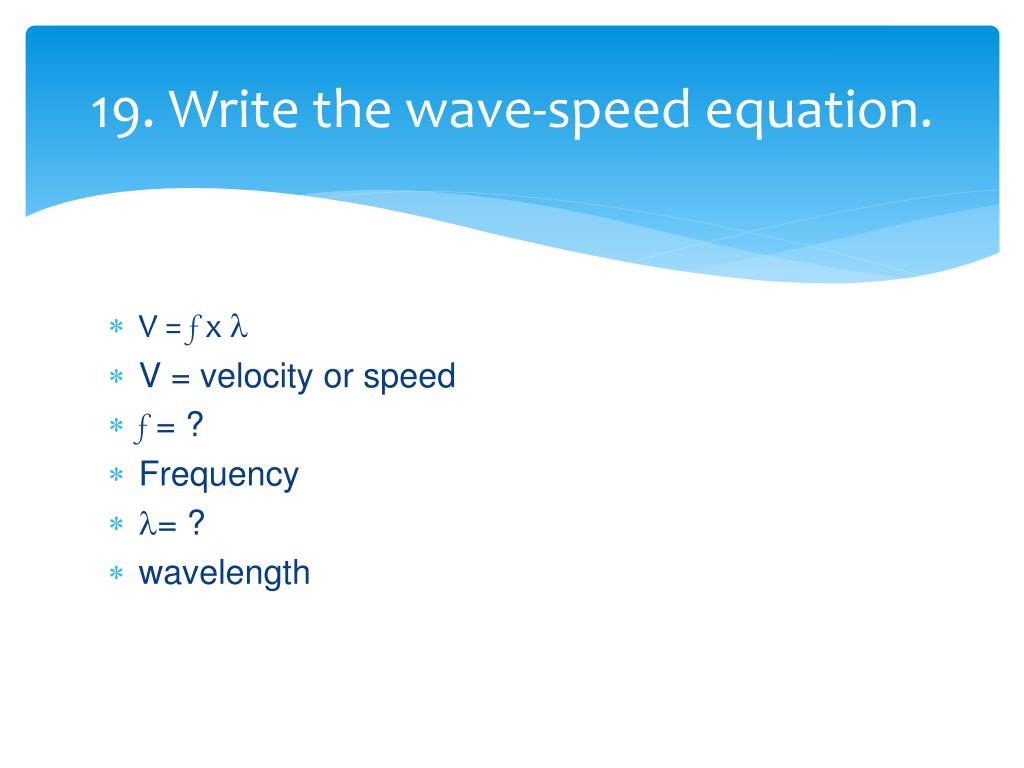

  44. 19. Write the wave-speed equation. • V = f x l • V = velocity or speed • f = ? • Frequency • l= ? • wavelength

  45. 20. Sound travels better and faster in • water

  46. 21. • Sound waves travel faster in solids than in air or water. (air and water can be in either order)

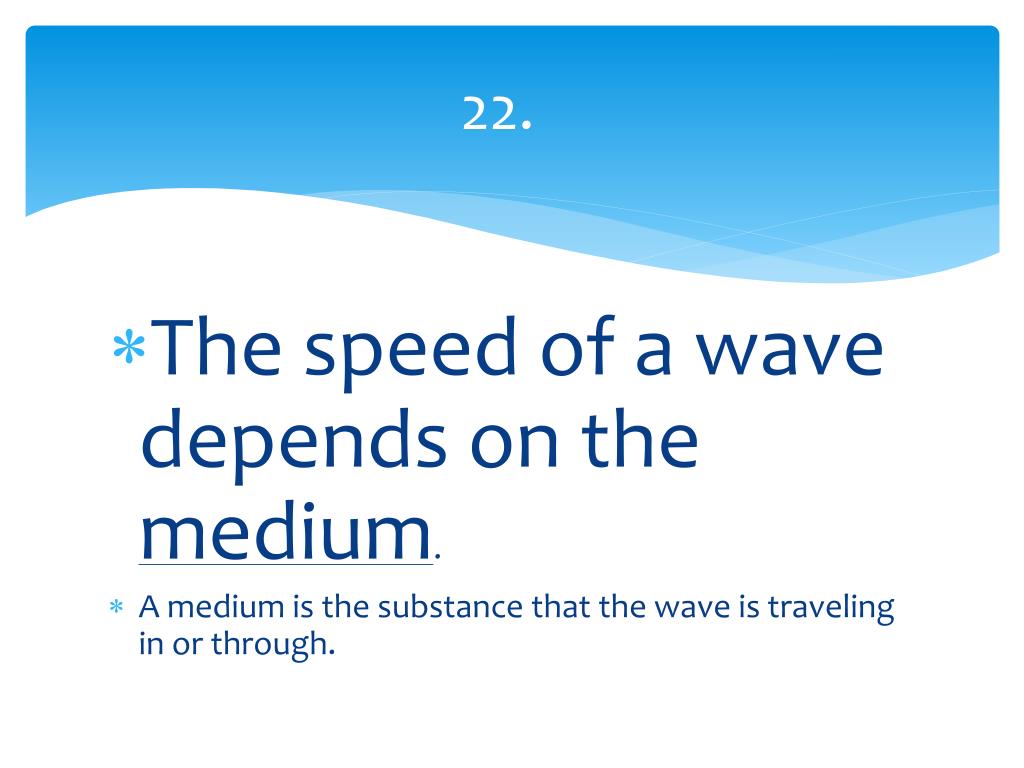

  47. 22. • The speed of a wave depends on themedium. • A medium is the substance that the wave is traveling in or through.

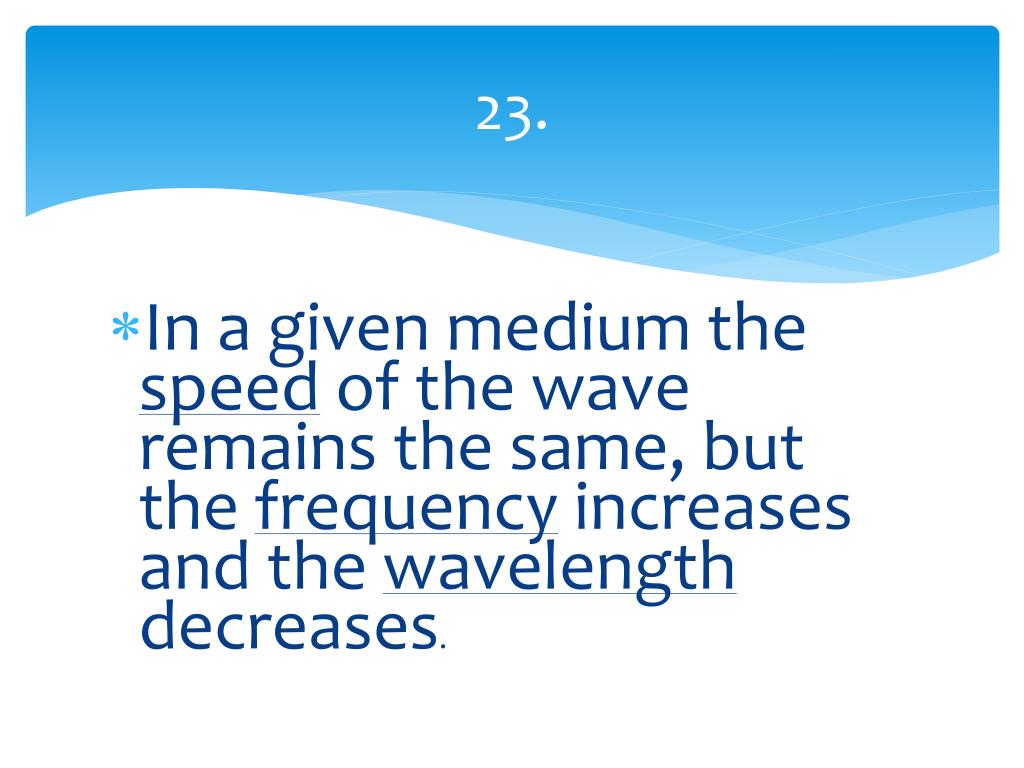

  48. 23. • In a given medium the speed of the wave remains the same, but the frequency increases and the wavelength decreases.

  49. 24. • Electromagnetic waves (such as visible light) do NOT need a medium.

  50. 25. • The symbol c stands for the speed of light which is known to be equal to 3 x 108 m/s.
