1. Code Red Worm Propagation Modeling and Analysis Cliff Changchun Zou, Weibo Gong, Don Towsley

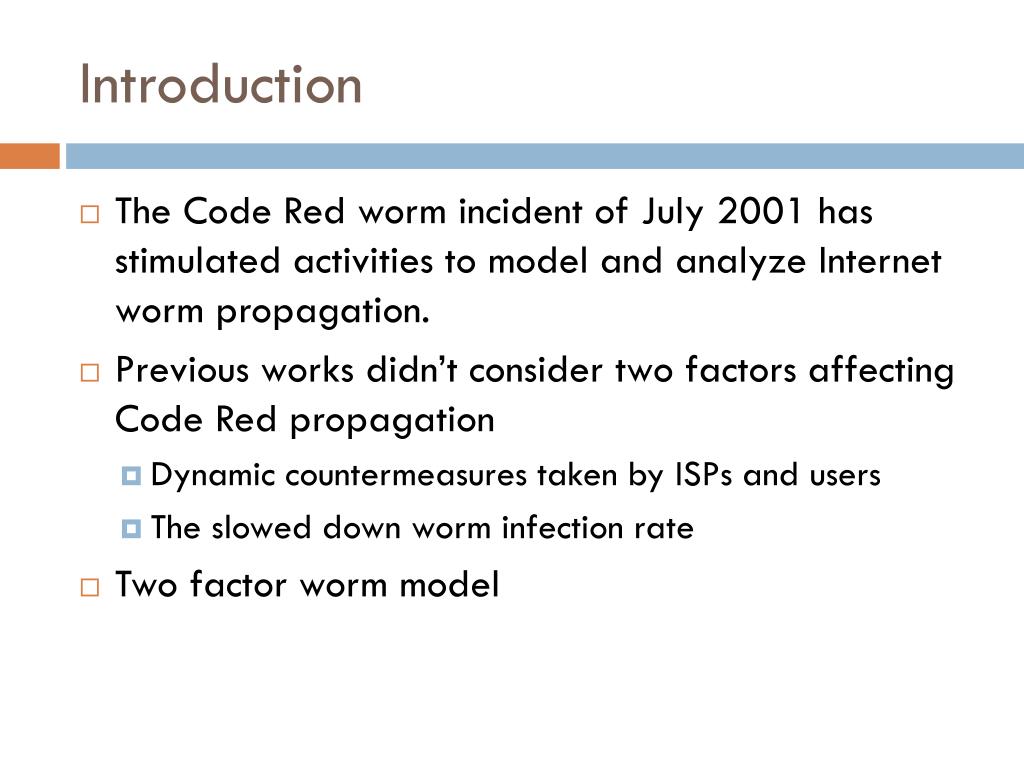

2. Introduction • The Code Red worm incident of July 2001 has stimulated activities to model and analyze Internet worm propagation. • Previous works didn’t considertwo factors affecting Code Red propagation • Dynamic countermeasures taken by ISPs and users • The slowed down worm infection rate • Two factor worm model

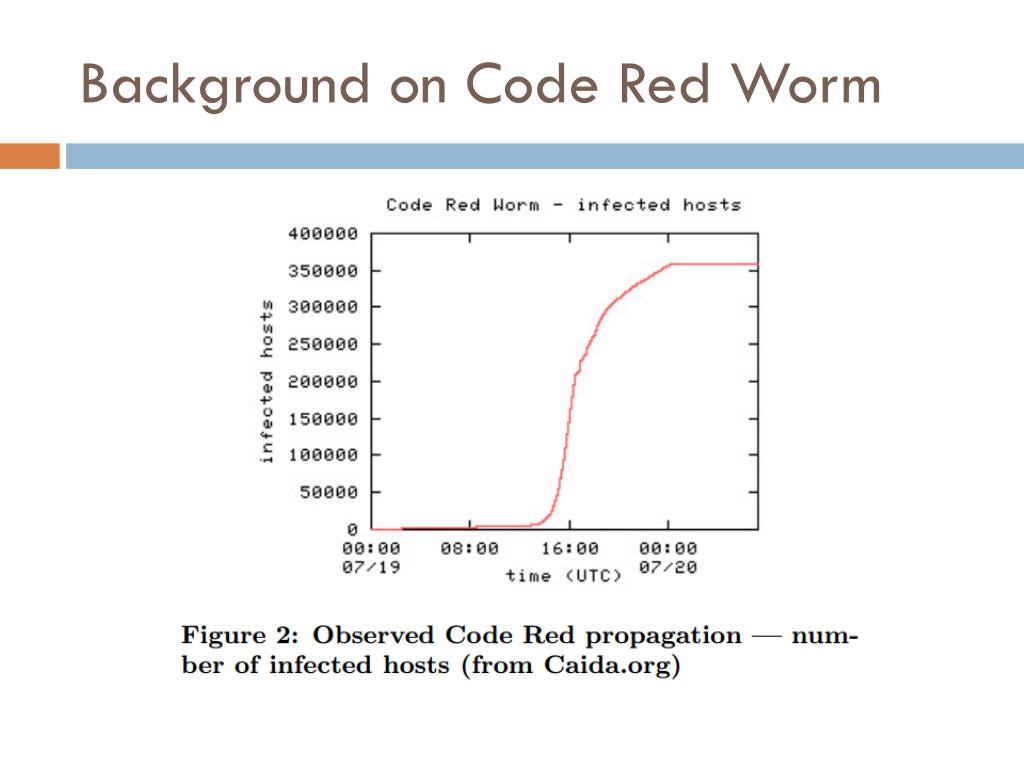

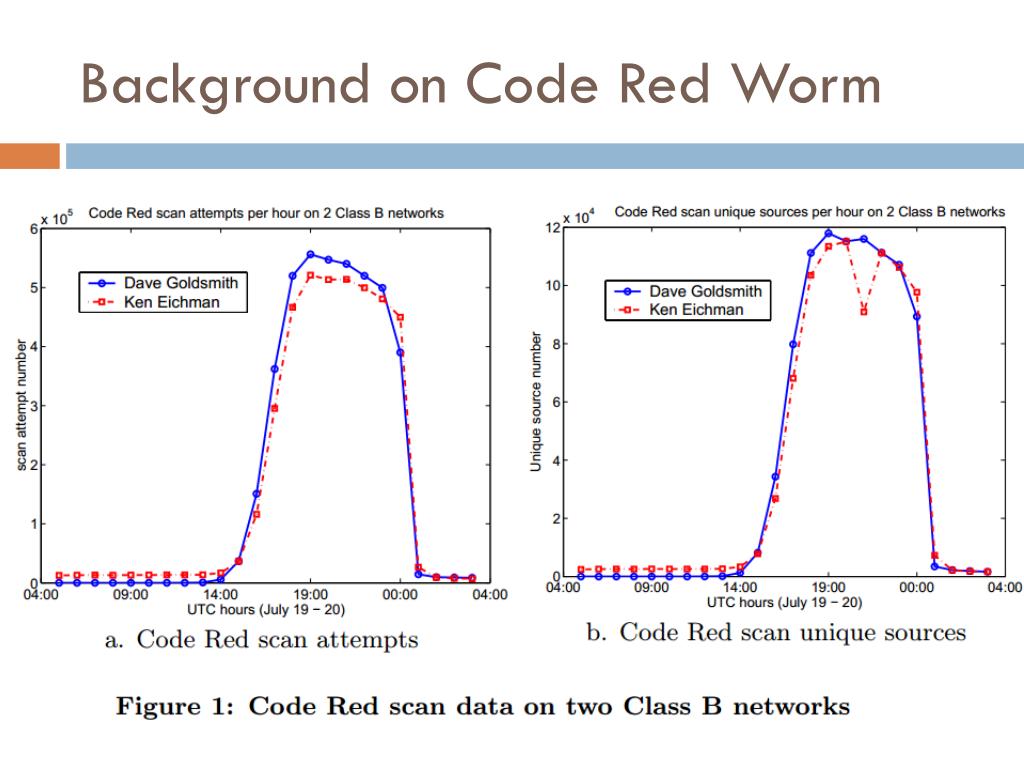

3. Background on Code Red Worm • Code Red worm exploited Windows IIS vulnerability on Windows 2000 • Each worm copy generated 100 threads • 99 threads randomly chose one IP address to attack • Timeout: 21 seconds

4. Background on Code Red Worm

5. Background on Code Red Worm

6. Background on Code Red Worm

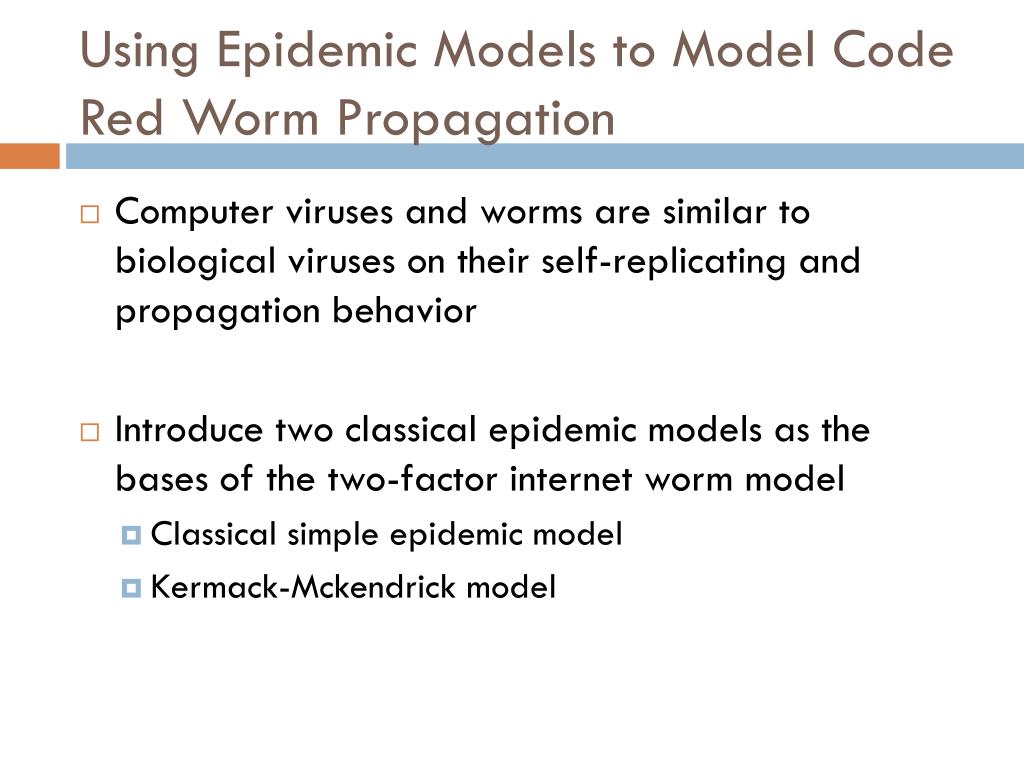

7. Using Epidemic Models to Model Code Red Worm Propagation • Computer viruses and worms are similar to biological viruseson their self-replicating and propagation behavior • Introduce two classical epidemic models as the bases of the two-factor internet worm model • Classical simple epidemic model • Kermack-Mckendrickmodel

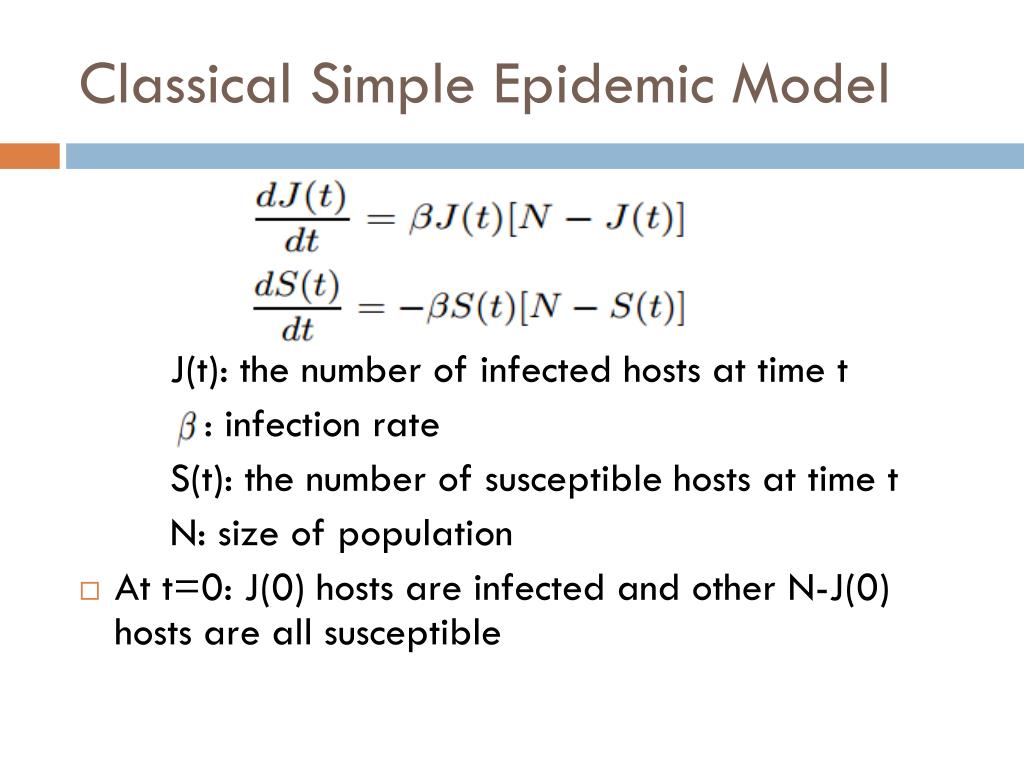

8. Classical Simple Epidemic Model J(t): the number of infected hosts at time t :infection rate S(t): the number of susceptible hosts at time t N: size of population • At t=0: J(0) hosts are infected and other N-J(0) hosts are all susceptible

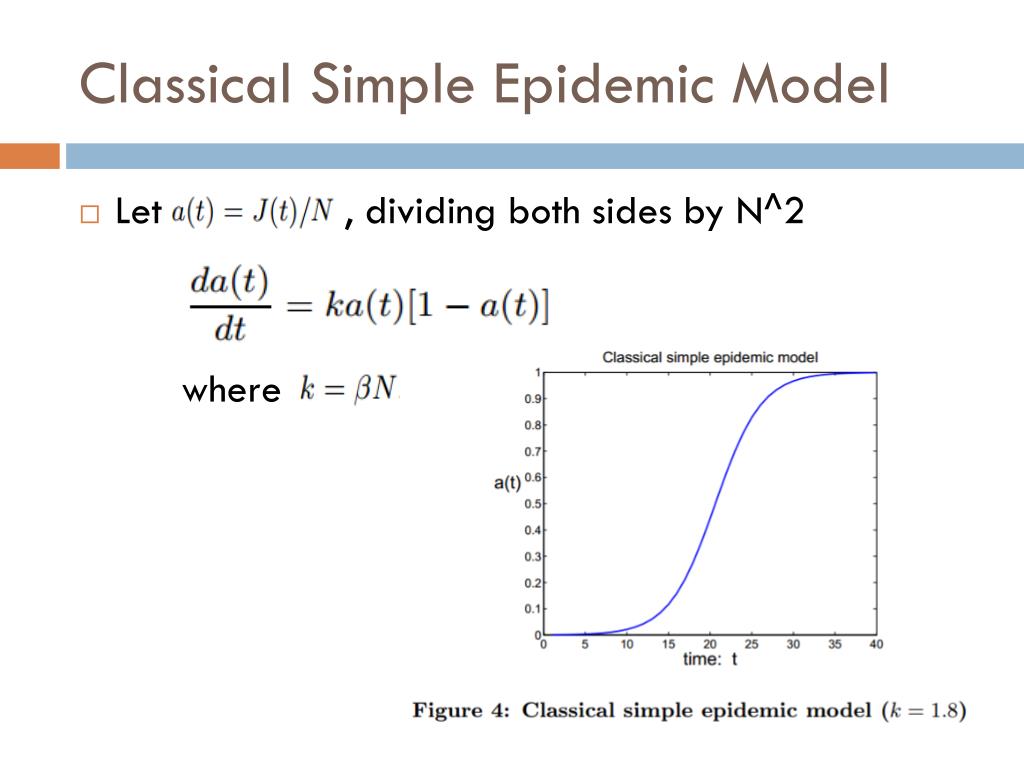

9. Classical Simple Epidemic Model • Let , dividing both sides by N^2 where

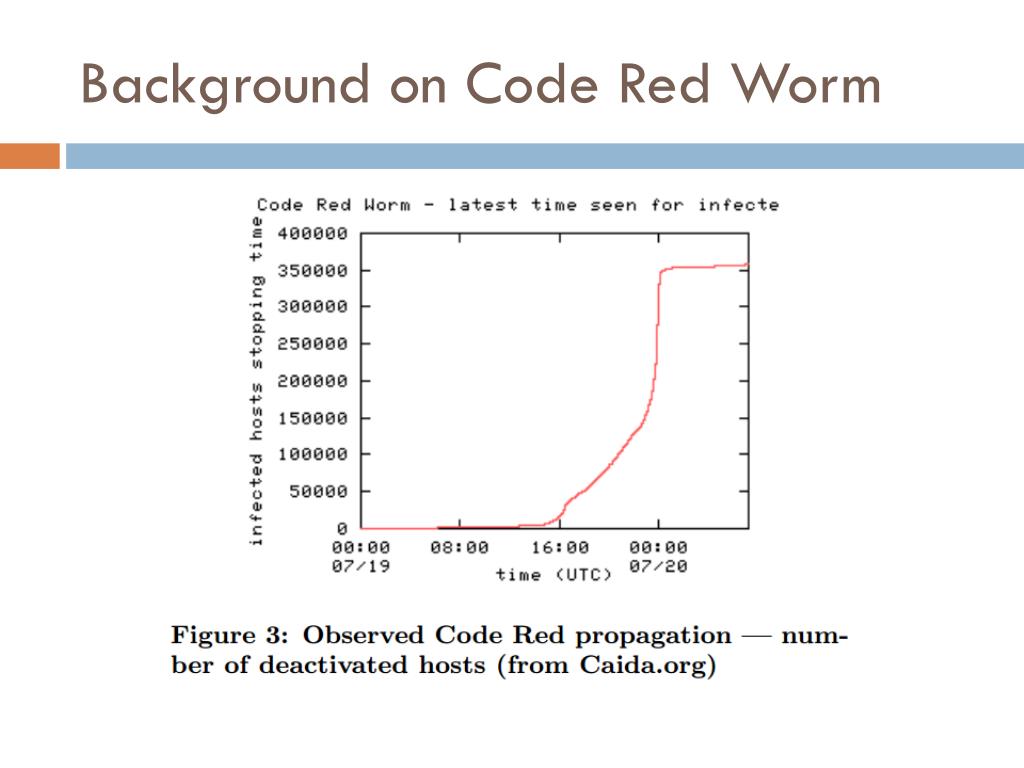

10. Classical Simple Epidemic Model • The classical epidemic model can match the beginning phase of Code Red spreading, it can’t explain the later part of Code Red propagation: during the last five hours from 20:00 to 00:00 UTC, the worm scans kept decreasing

11. Kermack-Mckendrick Model • Considers the removal process of infectious hosts • Once a host recovers from the disease, it will be immune to the disease forever – “removed” state I(t): the number of infections hosts at time t R(t): the number of removed hosts from previously infectious hosts at time t

12. Kermack-Mckendrick Model • Base on the simple epidemic model, Kermack-MckendrickModel is: J(t): the number of infected hosts at time t : removal rate of infectious hosts : infection rate N: size of population

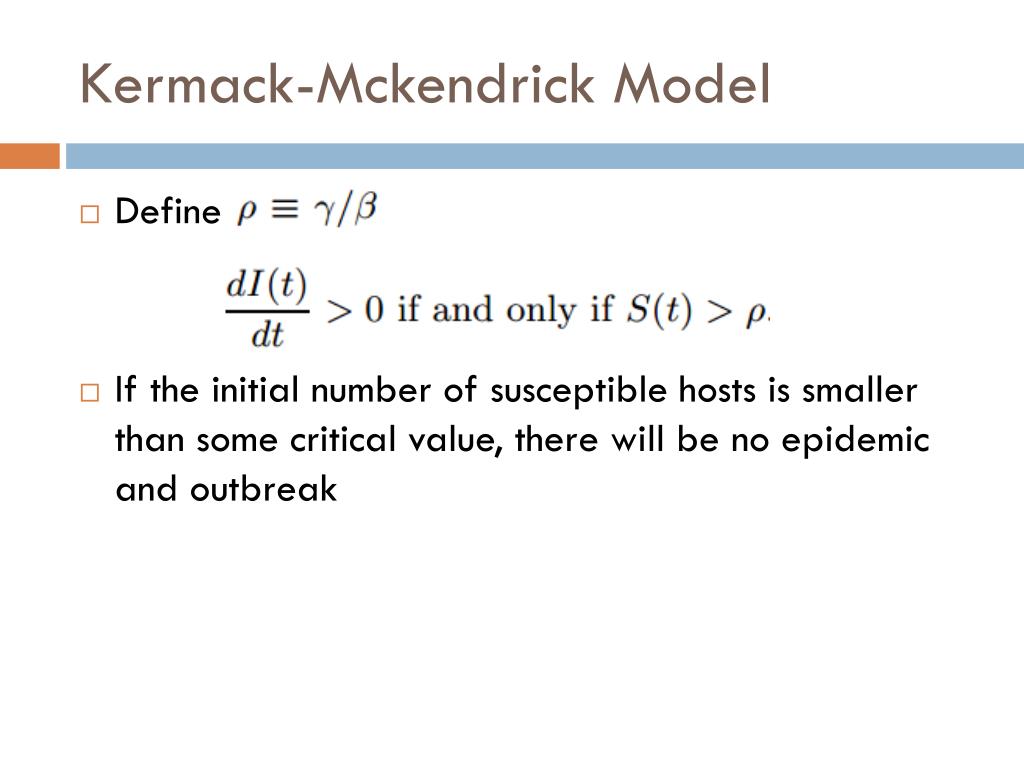

13. Kermack-Mckendrick Model • Define • If the initial number of susceptible hosts is smaller than some critical value, there will be no epidemic and outbreak

14. Kermack-Mckendrick Model • The Kermack-Mckendrickmodel improves the classical simple epidemic model by considering that some infectious hosts either recover or die after some time, but still not suitable for modeling Internet worm propagation • Removal only from the infectious hosts • Assume infection rate to be constant

15. A NEWINTERNET WORMMODEL: TWO-FACTOR WORM MODEL • Two factors affecting Code Red worm propagation • Human countermeasures • Decreased infection rate

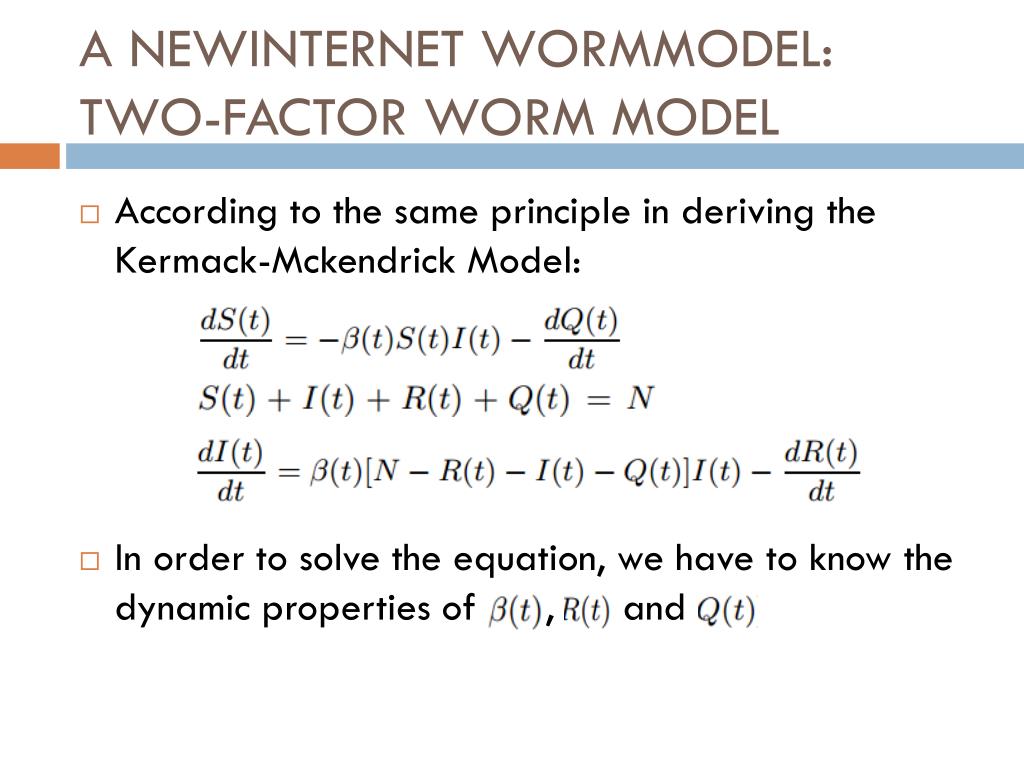

16. A NEWINTERNET WORMMODEL: TWO-FACTOR WORM MODEL • According to the same principle in deriving the Kermack-MckendrickModel: • In order to solve the equation, we have to know the dynamic properties of , and

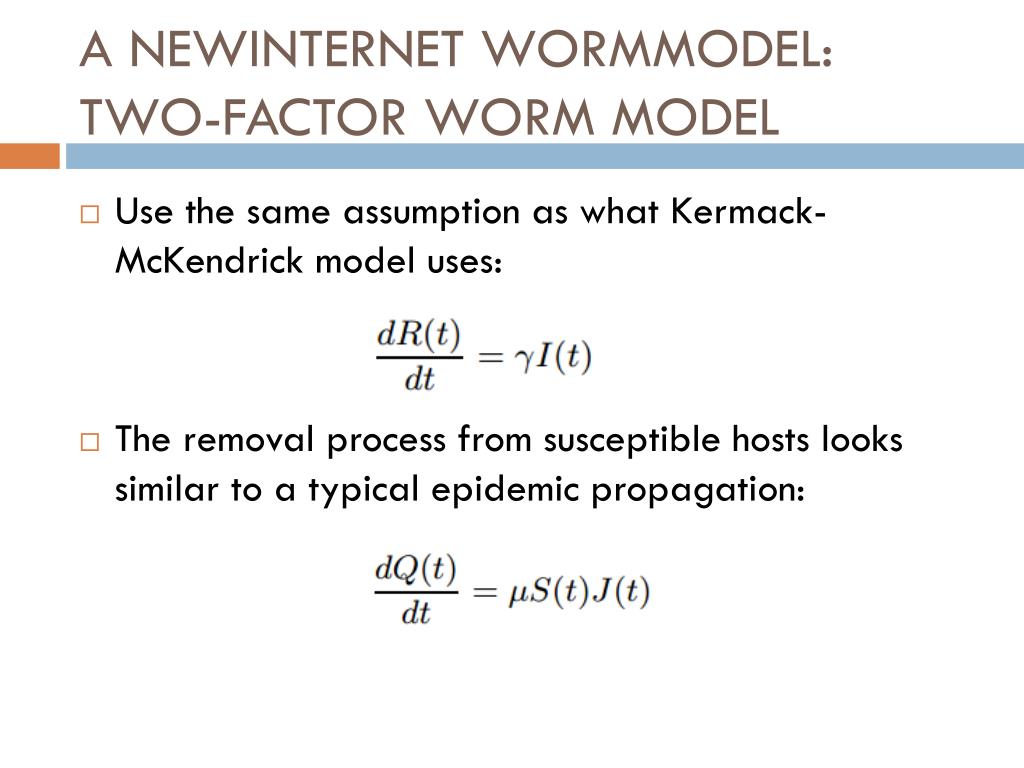

17. A NEWINTERNET WORMMODEL: TWO-FACTOR WORM MODEL • Use the same assumption as what Kermack-McKendrickmodel uses: • The removal process from susceptible hosts looks similar to a typical epidemic propagation:

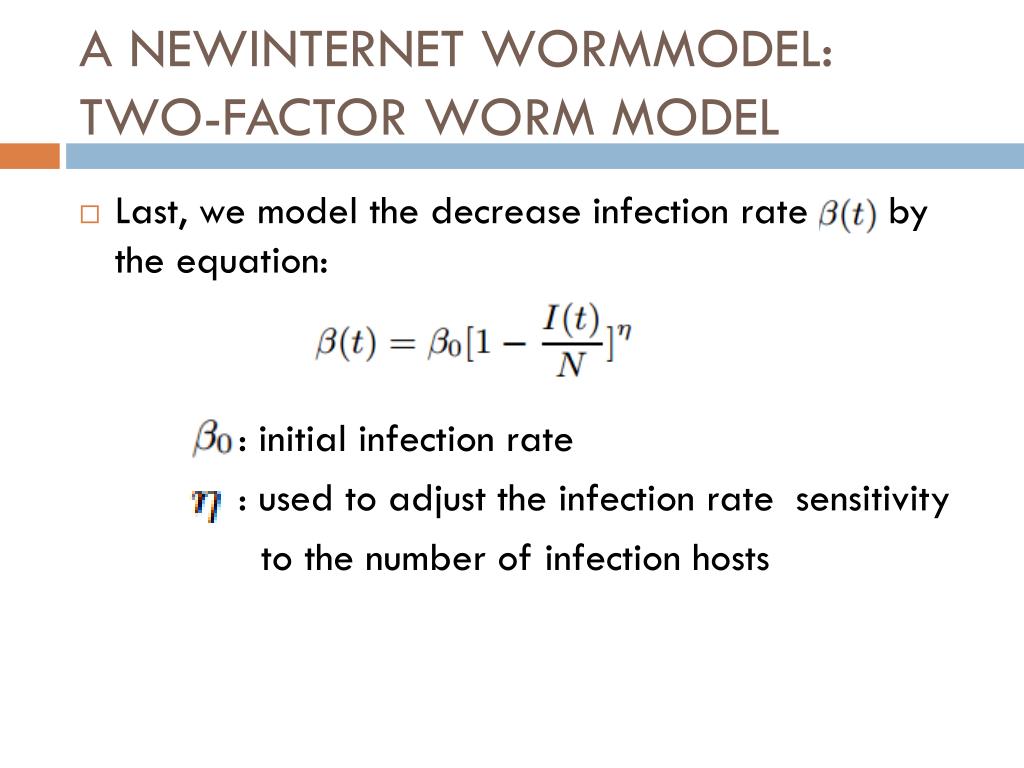

18. A NEWINTERNET WORMMODEL: TWO-FACTOR WORM MODEL • Last, we model the decrease infection rate by the equation: : initial infection rate : used to adjust the infection rate sensitivity to the number of infection hosts

19. A NEWINTERNET WORMMODEL: TWO-FACTOR WORM MODEL • For parameters N=1000000, I(0)=1, =3, r=0.05, u=0.06/N, =0.8/N

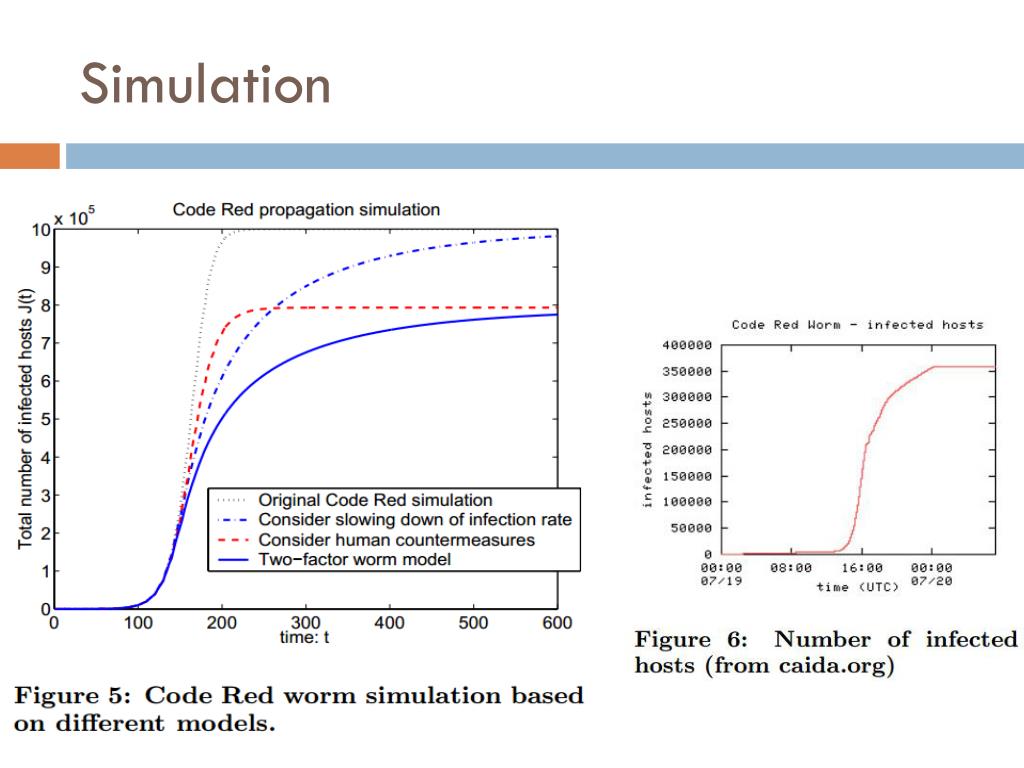

20. Simulation

21. Simulation

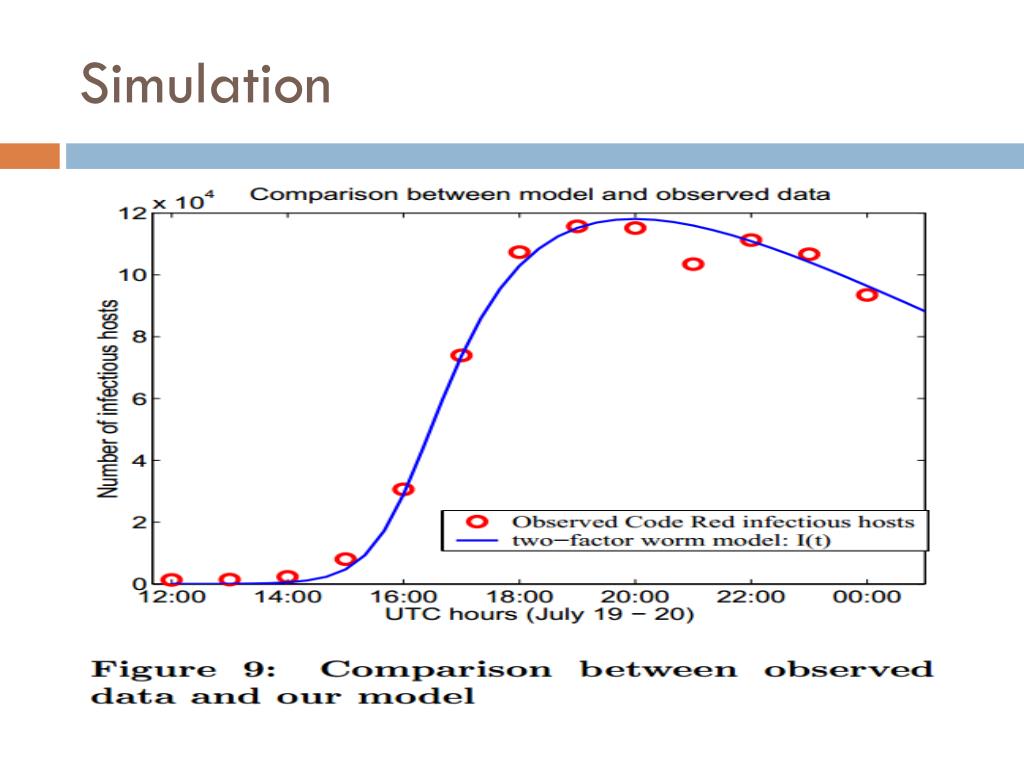

22. Simulation

23. Conclusion • Considering human countermeasures taken by ISPs and users and the slowed down worm infection rate, two-factor worm model match the observed data better than previous models do • The two-factor worm model is a general Internet worm model for modeling worms by adjusting different parameters
