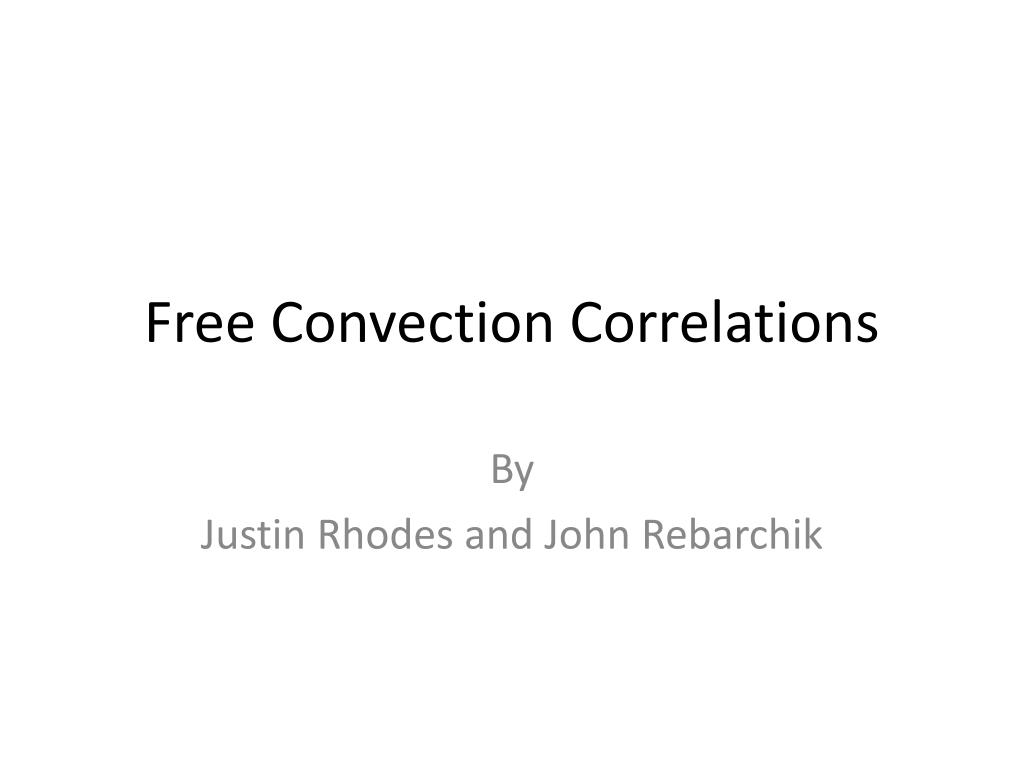

  1. Free Convection Correlations By Justin Rhodes and John Rebarchik

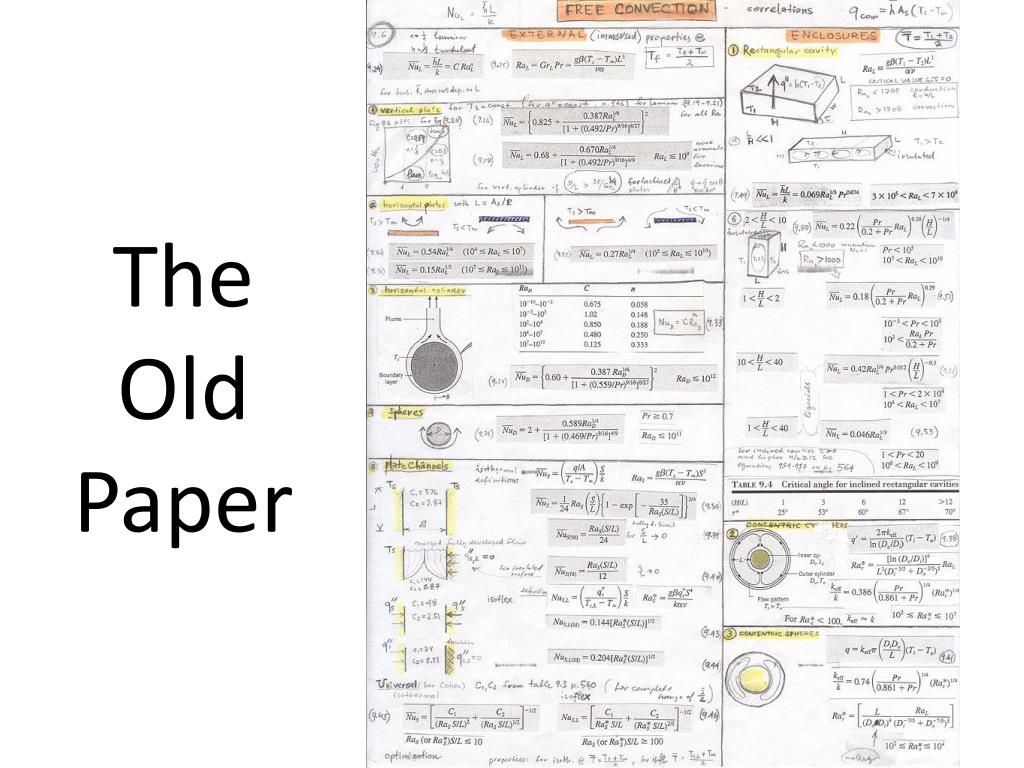

  2. The Old Paper

  3. And The New Papers

  4. Calculations Vertical Plate Horizontal Plate Horizontal Cylinder Sphere

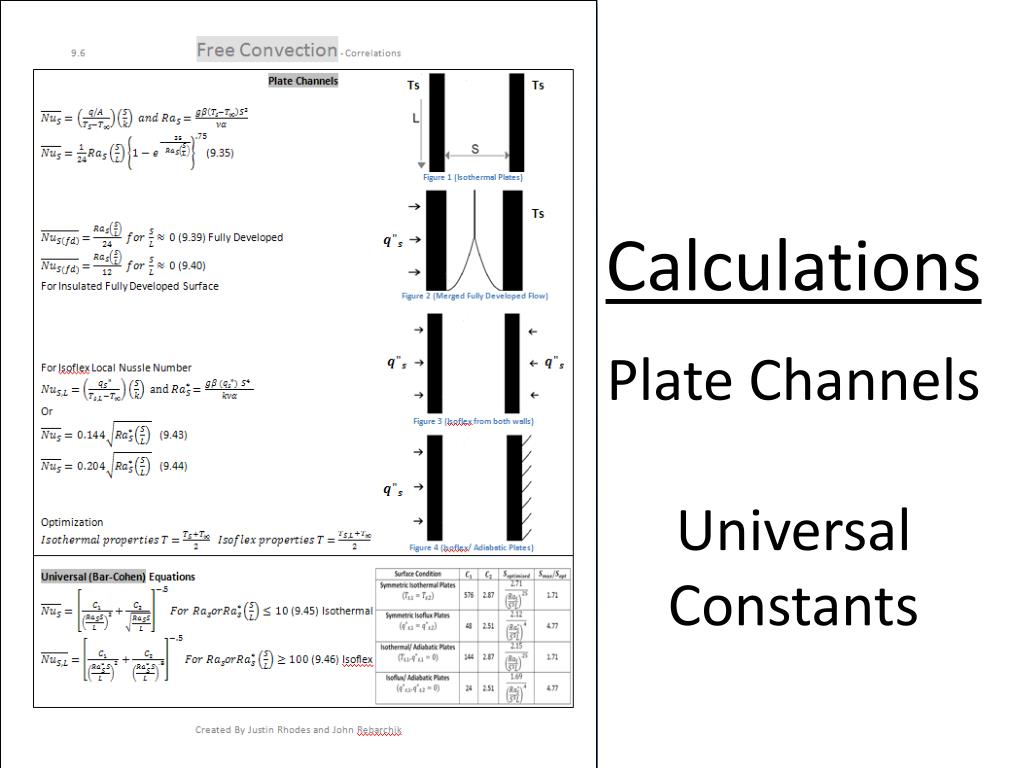

  5. Calculations Plate Channels Universal Constants

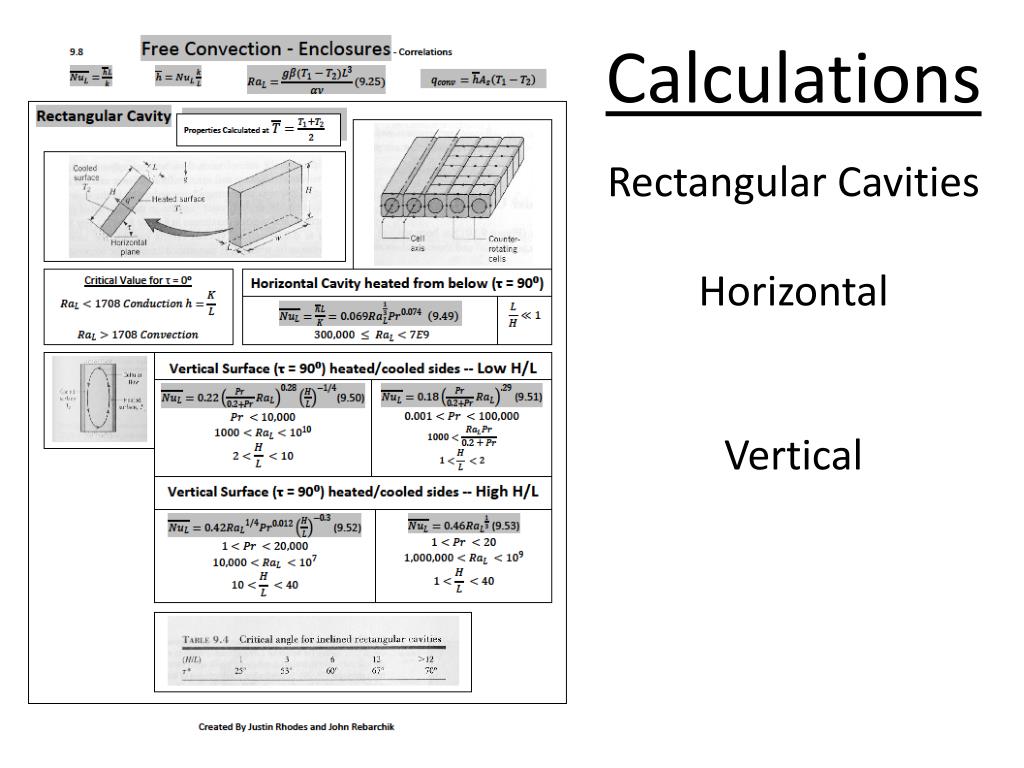

  6. Calculations • Rectangular Cavities • Horizontal • Vertical

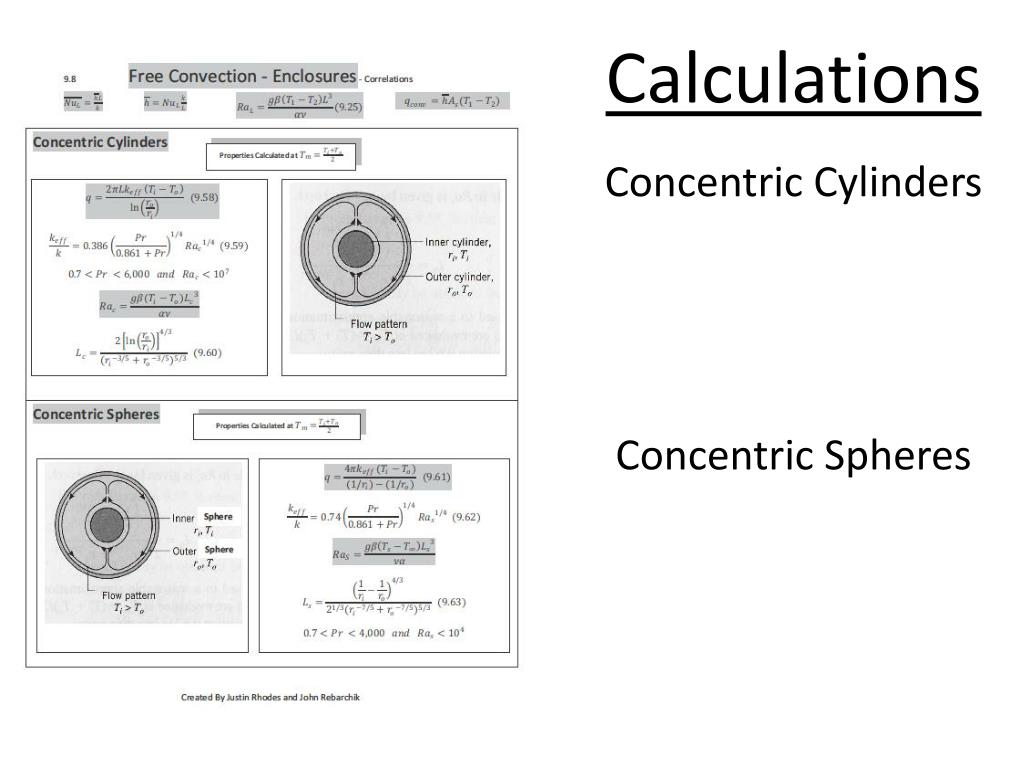

  7. Calculations • Concentric Cylinders • Concentric Spheres

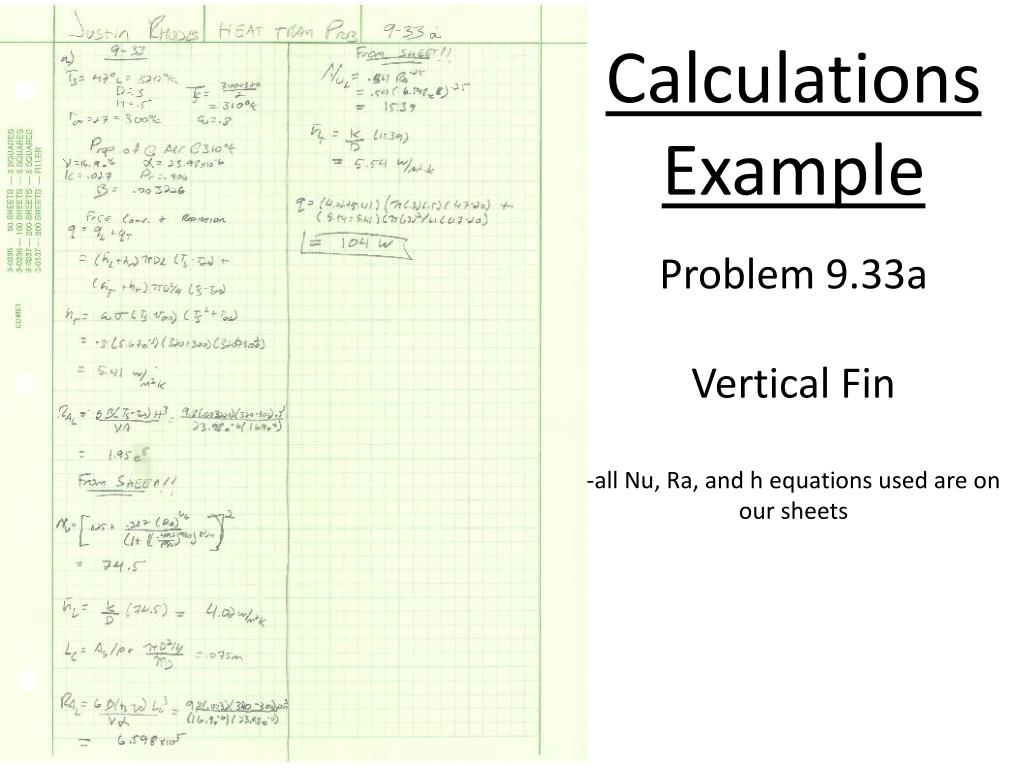

  8. Calculations Example Problem 9.33a Vertical Fin -all Nu, Ra, and h equations used are on our sheets

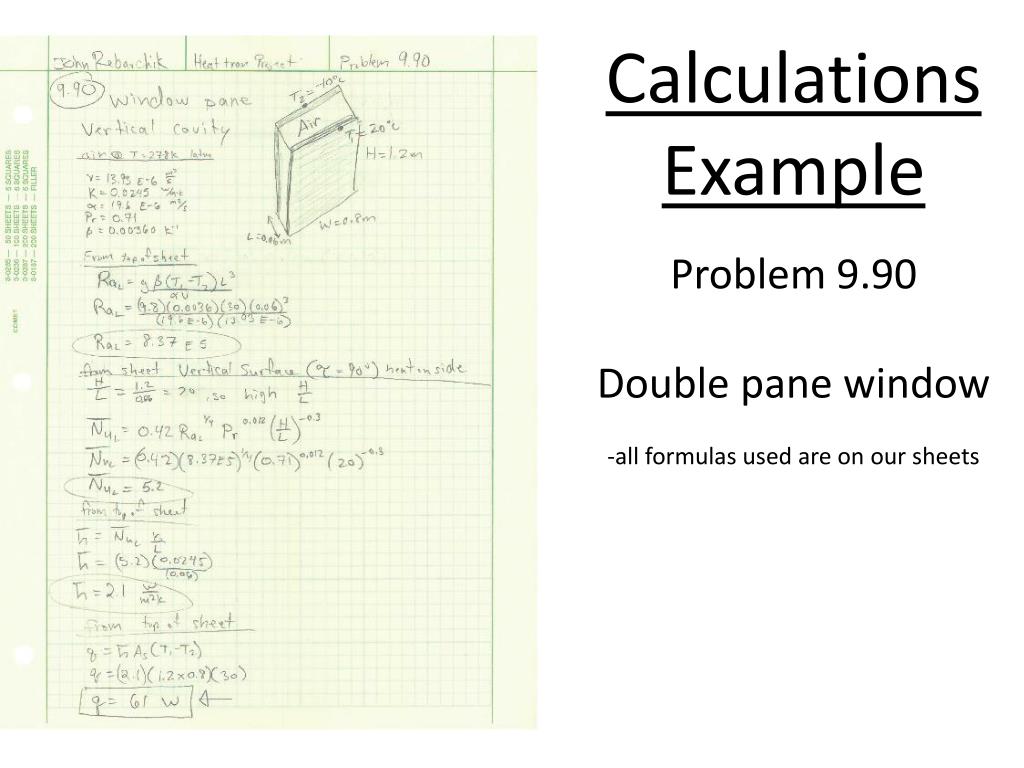

  9. Calculations Example • Problem 9.90 • Double pane window • -all formulas used are on our sheets
