High Power Diode Laser System for SHR

High Power Diode Laser System for SHR D.Cheever, M.Farkhondeh, B.Franklin, E.Tsentalovich , T.Zwart MIT-Bates Linear Accelerator Center Middleton, MA 01949, USA. Requirements. CW TiSa laser: - any time structure can be tailored, - tunable, - moderate stability - peak power 3.5 W.

floyd
Télécharger la présentation

High Power Diode Laser System for SHR

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

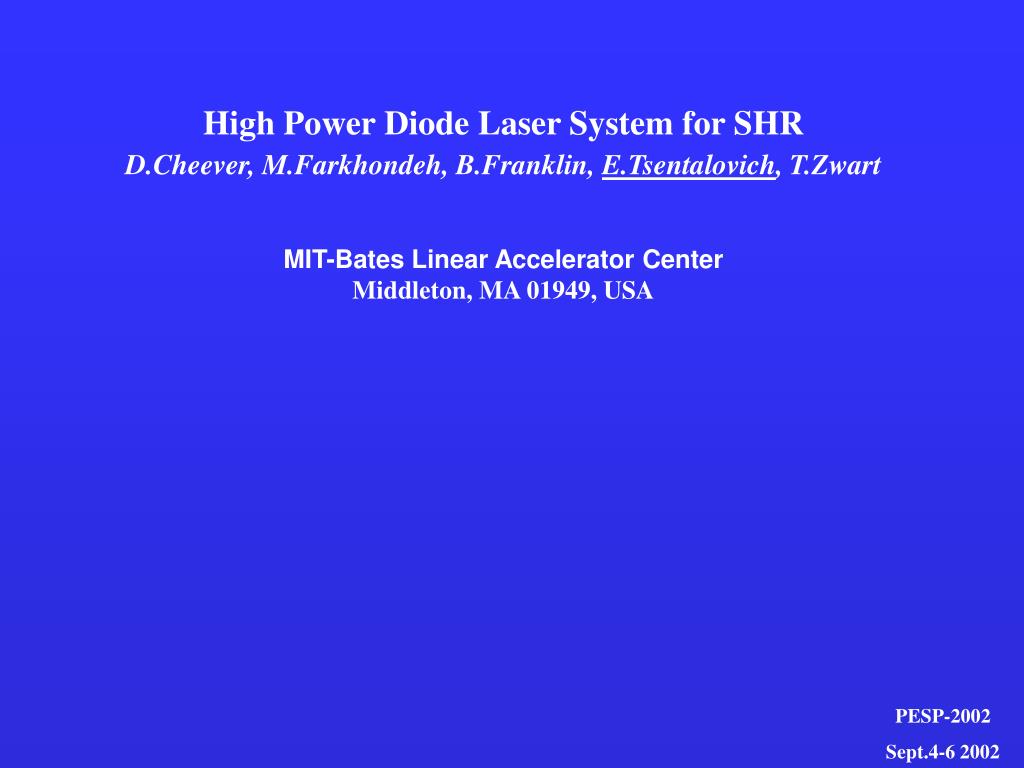

  1. High Power Diode Laser System for SHR • D.Cheever, M.Farkhondeh, B.Franklin, E.Tsentalovich, T.Zwart • MIT-Bates Linear Accelerator Center • Middleton, MA 01949, USA

  2. Requirements CW TiSa laser: - any time structure can be tailored, - tunable, - moderate stability - peak power 3.5 W Pulsed TiSa laser: - peak power - hundreds Watts, - tunable - low stability - max rep. rate  10 Hz Fiber-based laser: - doesn’t work (power limitations) Diode array laser !!!

  3. Diode array laser Power: CW mode up to 50-60 W, Pulsed mode up to 200 W Not tunable ( = 808 nm) “Emmitance” ~ 200 mm mrad Very high stability (For Gaussian-limited beam “emmitance” ~  ~ 1 mm mrad ) Very convenient in operation No maintenance needed

  4. Matching wavelength St. Petersburg crystal (Bates data) St. Petersburg crystal SLAC crystal (at =808 nm) : QE ~ 0.2 - 0.3 %, P ~ 80 %

  5. MIT-Bates Polarized Source

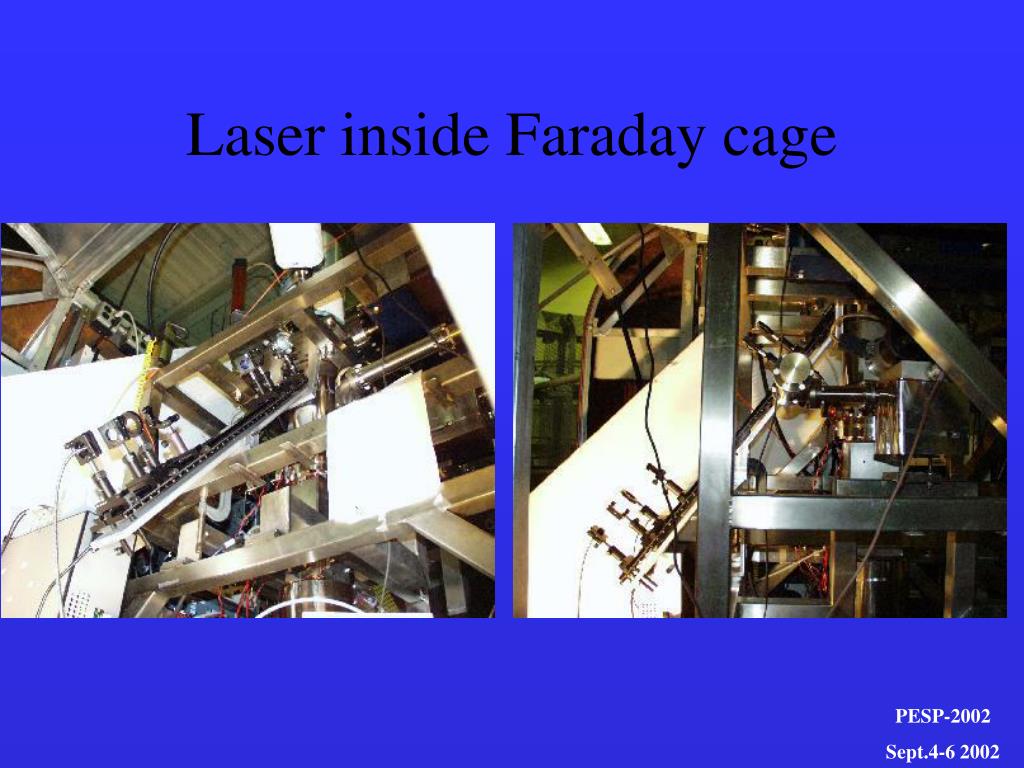

  6. Laser inside Faraday cage

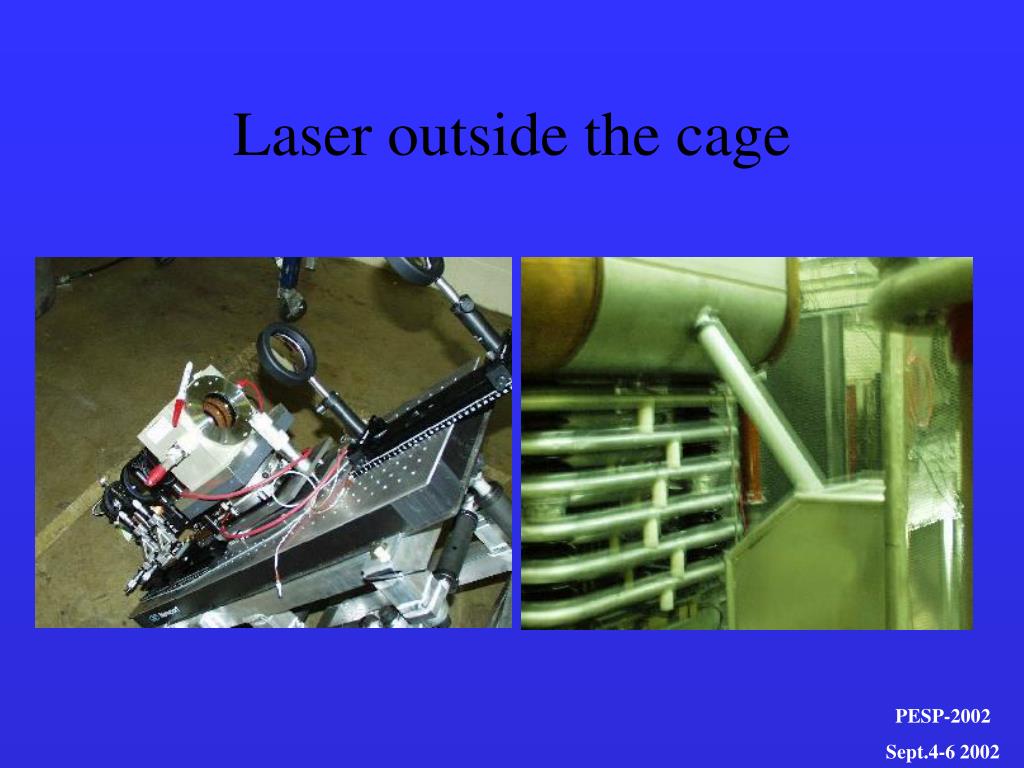

  7. Laser outside the cage

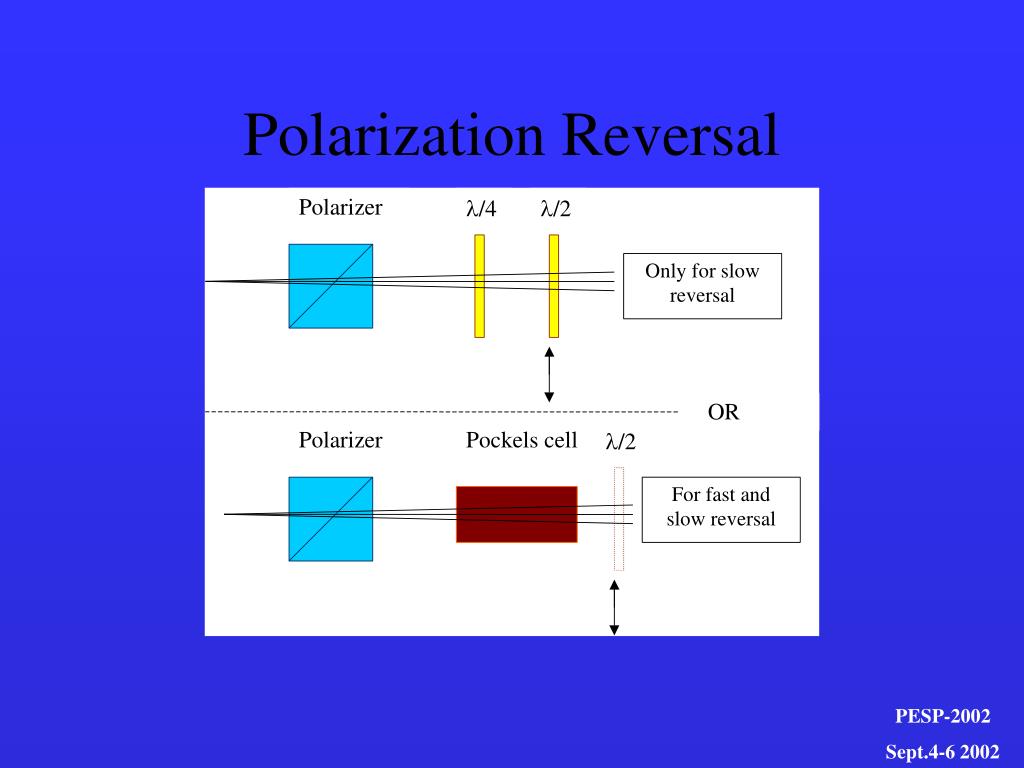

  8. Polarization Reversal

  9. Optics for “monster” Pockels cell HPC /2 Extinction ratio ~ 135 (~ 200 for Gaussian beam). P > 99 %

  10. Driver for the diode laser 1  10  laser Feedback PITA

  11. Pulse from the fast driver Rise time ~ 0.2 usec Droop ~ 5 %

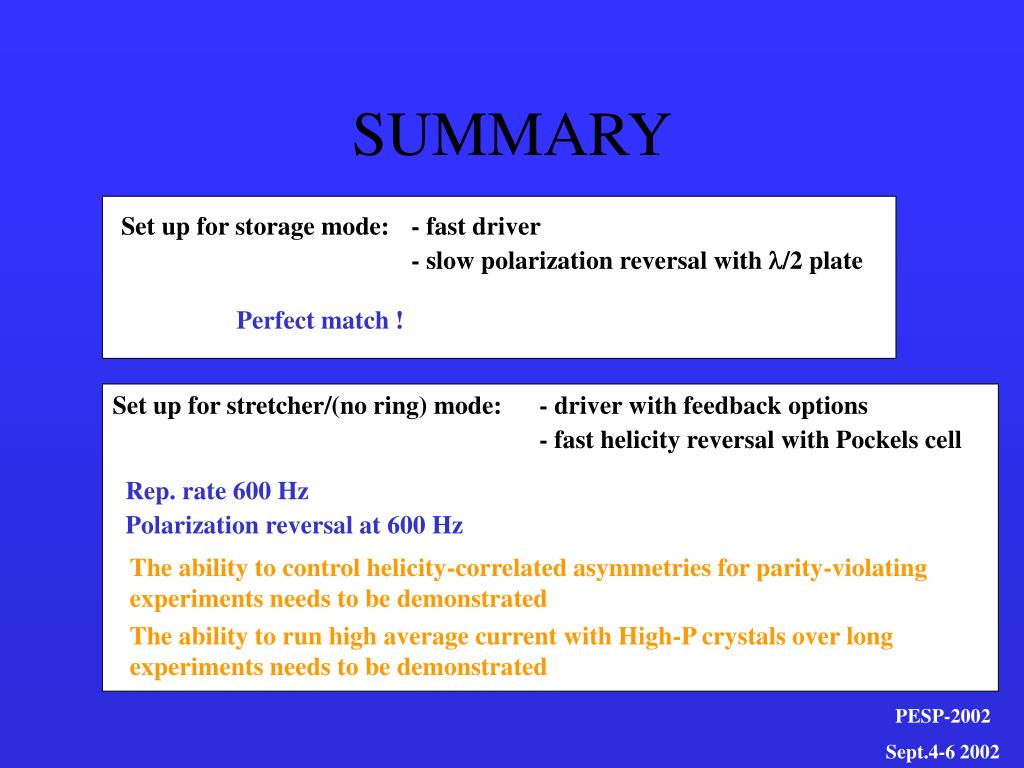

  12. Set up for storage mode: - fast driver - slow polarization reversal with /2 plate Perfect match ! SUMMARY Set up for stretcher/(no ring) mode: - driver with feedback options - fast helicity reversal with Pockels cell Rep. rate 600 Hz Polarization reversal at 600 Hz The ability to control helicity-correlated asymmetries for parity-violating experiments needs to be demonstrated The ability to run high average current with High-P crystals over long experiments needs to be demonstrated
