Validation tests of CSC production siteA at FNAL include HV scan, gas gain uniformity, dead channels check, wire groups efficiency, noise rate, and gas gain non-uniformity measurements with Cs137 source and Cosmic Rays. Results show good parameters with minimal surprises, uniform gas gain, and low noise rates.

1 / 10

Télécharger la présentation

Summary of CSC Validation at FNAL Production SiteA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SUMMARY of CSC VALIDATION at FNAL Production SiteA. Petrunin, Y. Pischalnikov, N.TerentievPNPI UCLA CMU FNAL:G. Apollinari , O. Prokofiev CMU: N. Bondar, N. Terentiev,UCLA: Y. Pischalnikov, PNPI: A. Petrunin, V. Sulimov Purdue:A.Bujak, G.Zilizi, L.Gutay

  2. CSC VALIDATION Tests • 1. HV scan of all 6 planes with/without Cs137 (dark&source currents) (checked at MP9) • 2. Gas gain uniformity with Cs137 source (HV=3700V) • 3. ZERO DEAD channels (checked at MP9) • 4. Anode wire groups (64group/plane) efficiency • 5. Single wire (group) noise rate (TDC) • 6. Gas gain non-uniformity with Cosmic Rays measurements (CFEB) Nikolai’s Anode Analysis Webpage http://www-hep.phys.cmu.edu/cms/valid/test.html

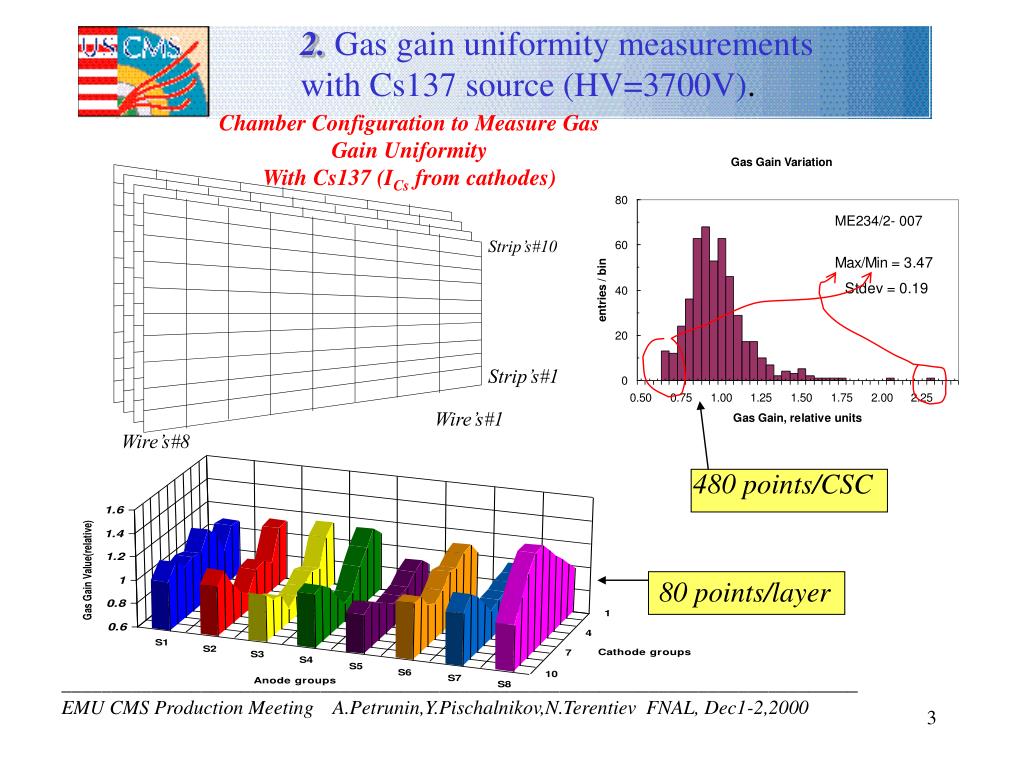

  3. 2. Gas gain uniformity measurementswith Cs137 source (HV=3700V). Chamber Configuration to Measure Gas Gain Uniformity With Cs137 (ICs from cathodes) Strip’s#10 Strip’s#1 Wire’s#1 Wire’s#8 480 points/CSC 80 points/layer

  4. GAS Gain UniformityCs137 measurements

  5. Gas Gain Uniformity

  6. 4. Anode wire groups (64group/layer) efficiency measurements

  7. Cs137 .vs. Anode eff.50%

  8. Anode Noise

  9. Computer Control Cs137 scanvs.manual Cs137 scan

  10. Summaryfor 9 CSC validated at LAB7 • Overall parameters of 9 CSC “good” • no big surprises. • Gas Gain Uniformity (with Cs137) for 9 CSC • 6 CSC Gmax/Gmin < 3 • 3 CSC Gmax/Gmin < 3 • Layer#1 mainly contributed into several small “hot gain spots” • Anode noise rate for all 9 CSC less than 25 Hz.
