1. ECG Monitoring in Anesthesia Kasana Raksamani Siriraj Hospital, Mahidol University

2. ECG, EKG, Electrocardiogram The ECG is easy to understand The abnormalities happen for a reason

3. CONSTANT VIGILANCE !!!

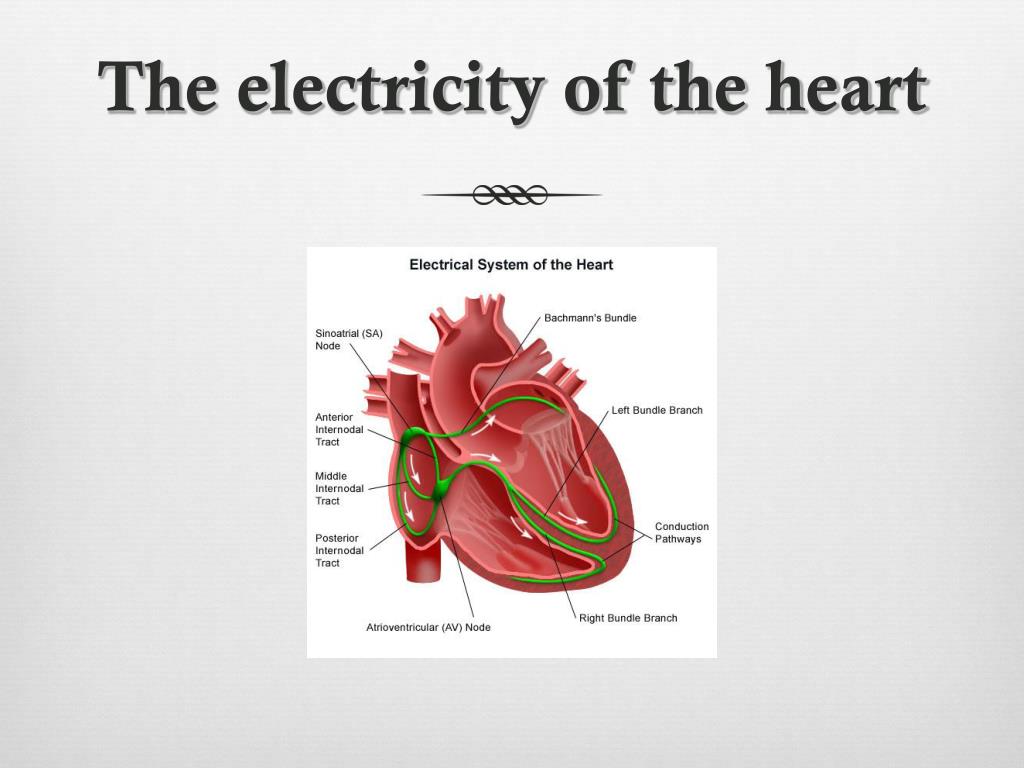

4. The electricity of the heart

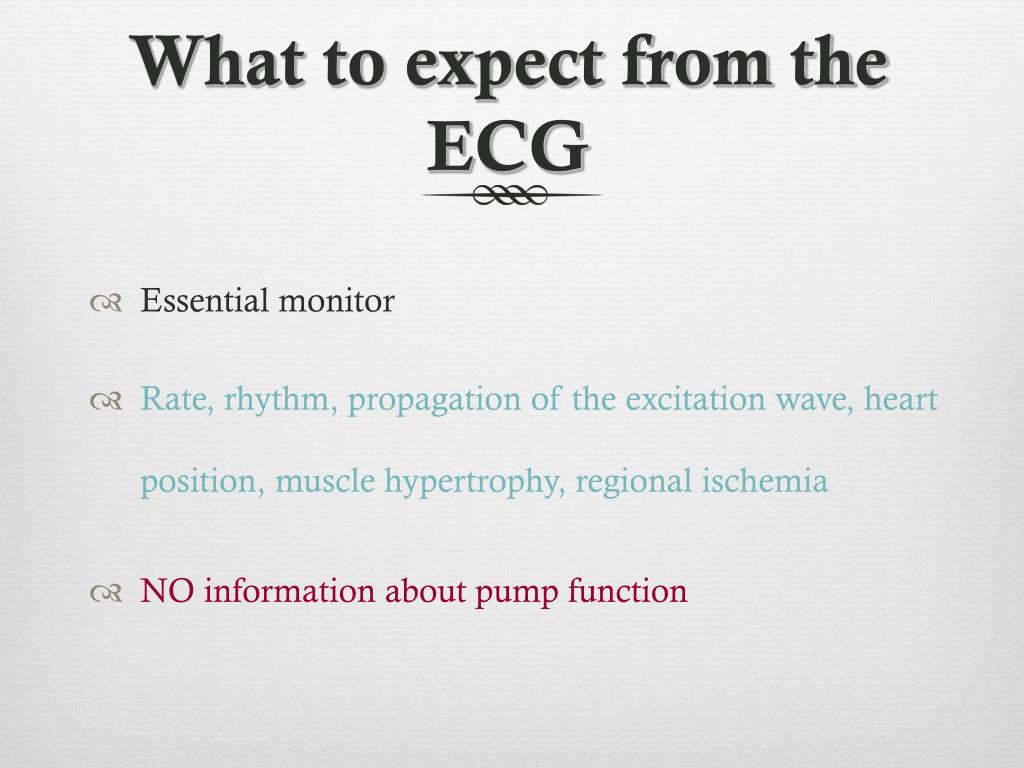

5. What to expect from the ECG Essential monitor Rate, rhythm, propagation of the excitation wave, heart position, muscle hypertrophy, regional ischemia NO information about pump function

6. 3-lead system

9. Lead Selection • Lead II is the same as standard lead two as seen in a 12 lead ECG. • It is the most common monitoring lead. • It is not the optimal monitoring lead.

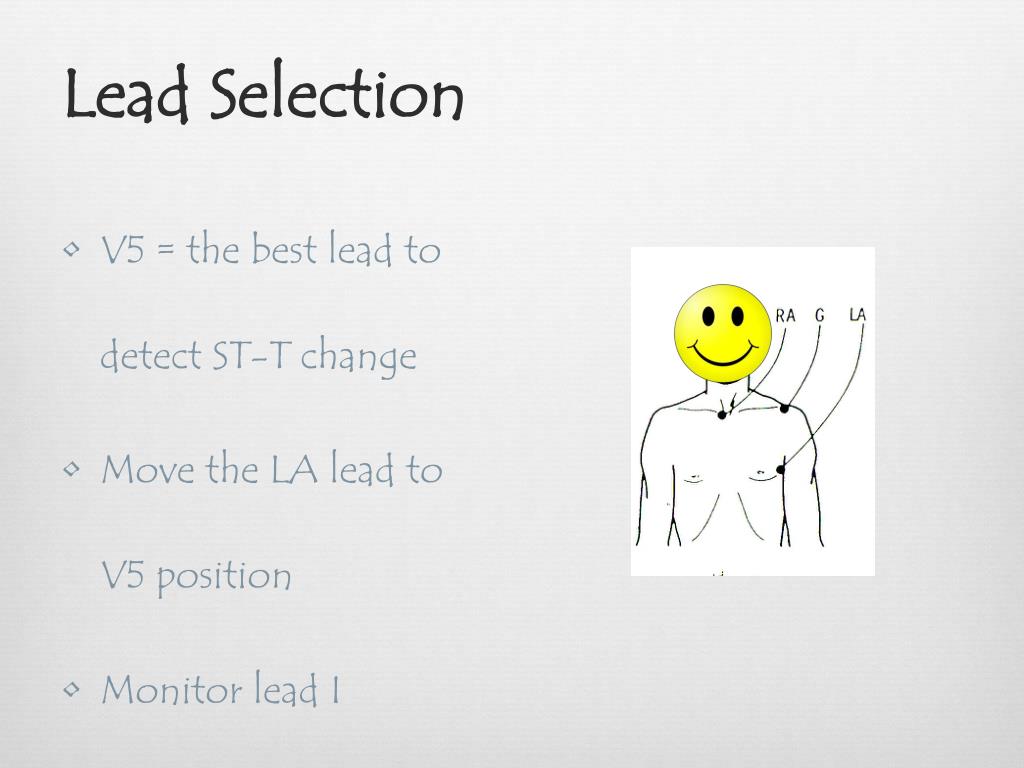

10. Lead Selection • V5 = the best lead to detect ST-T change • Move the LA lead to V5 position • Monitor lead I

11. The shape of the ECG P T QR S

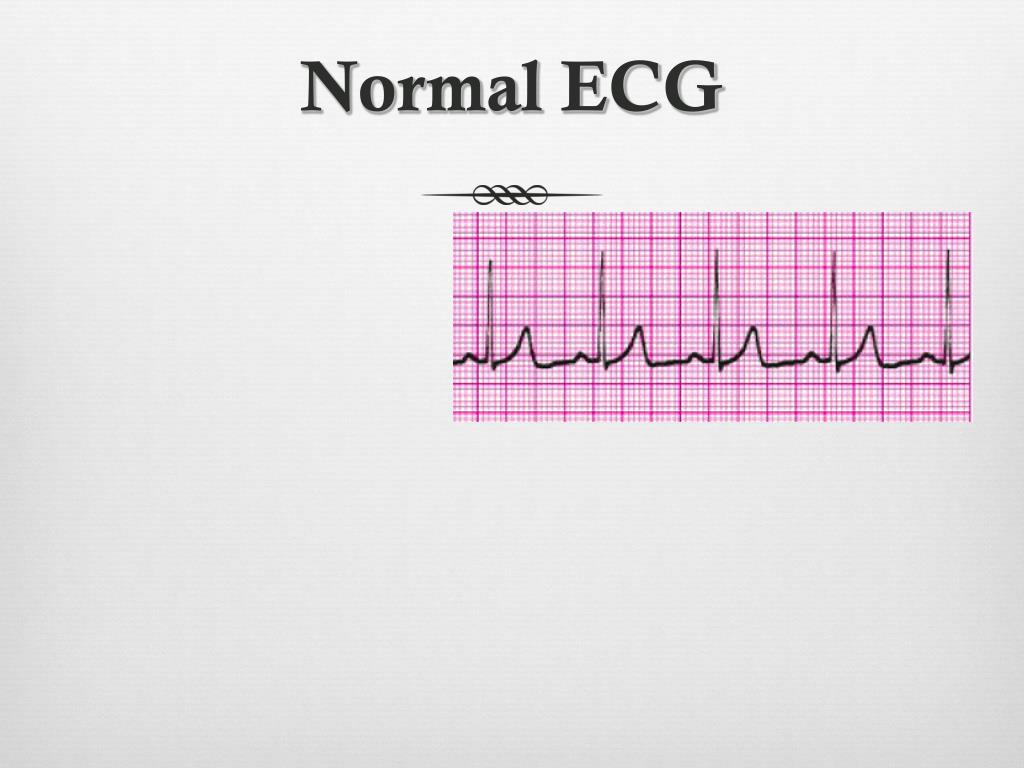

12. Normal ECG

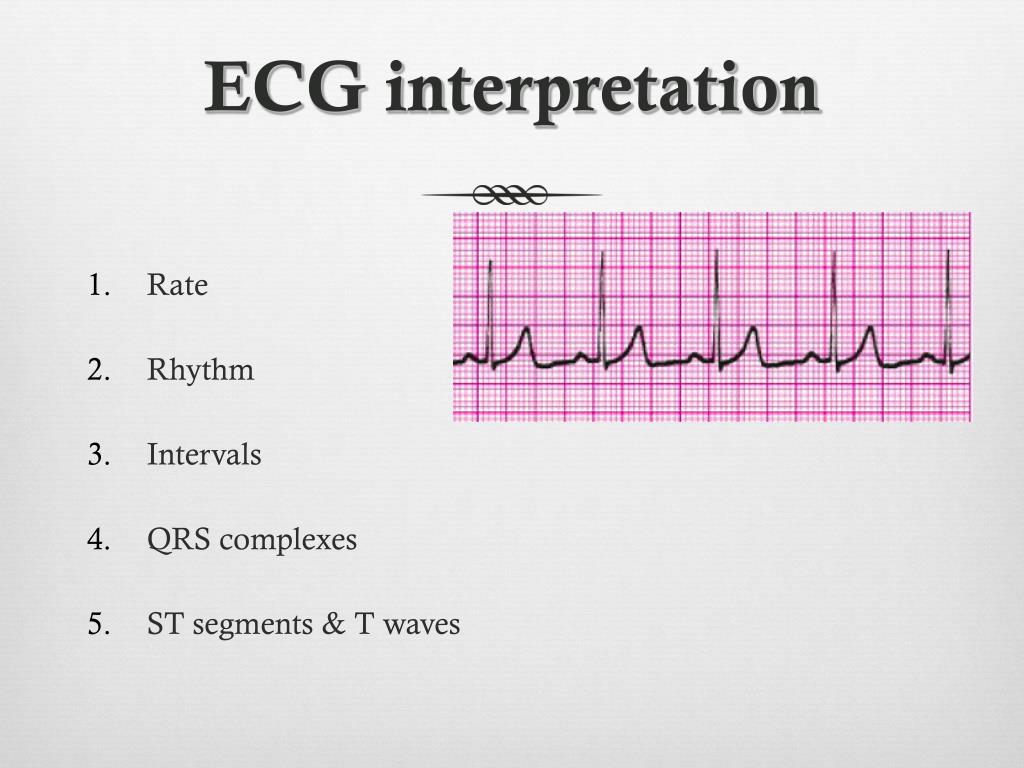

13. ECG interpretation Rate Rhythm Intervals QRS complexes ST segments & T waves

14. Normal Abnormal

15. ECG abnormalities Myocardial ischemia / infarction arrhythmias

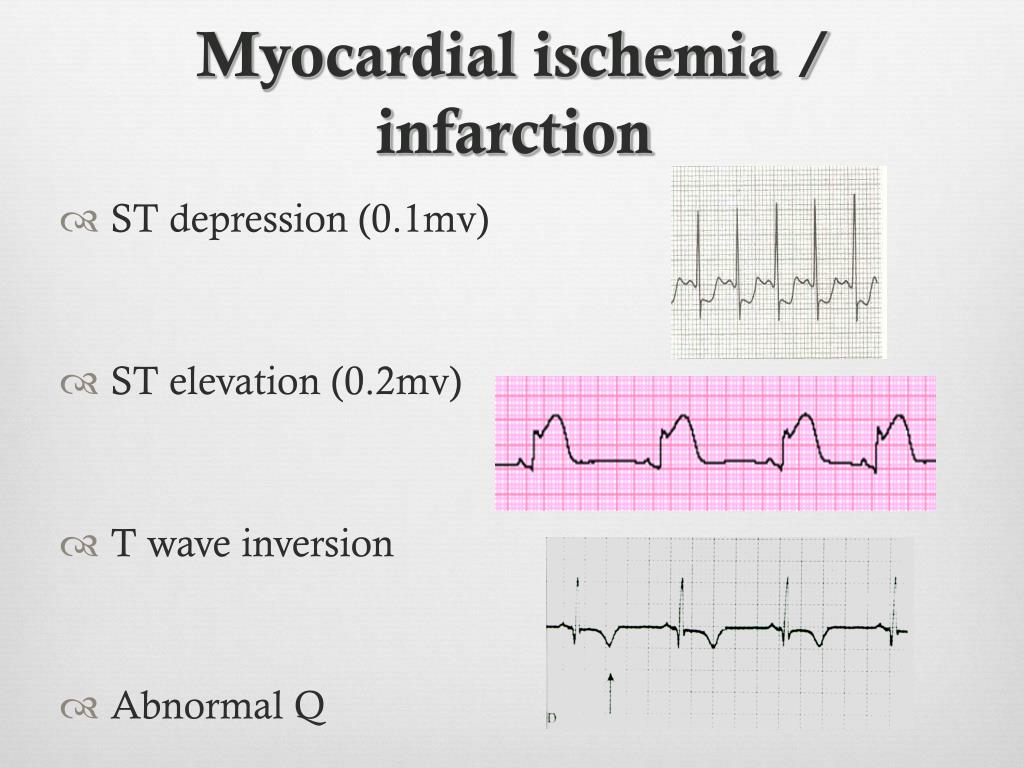

16. Myocardial ischemia / infarction • ST depression (0.1mv) • ST elevation (0.2mv) • T wave inversion • Abnormal Q

17. Myocardial ischemia / infarction

19. Bradyarrhythmias Sinus Bradycardia

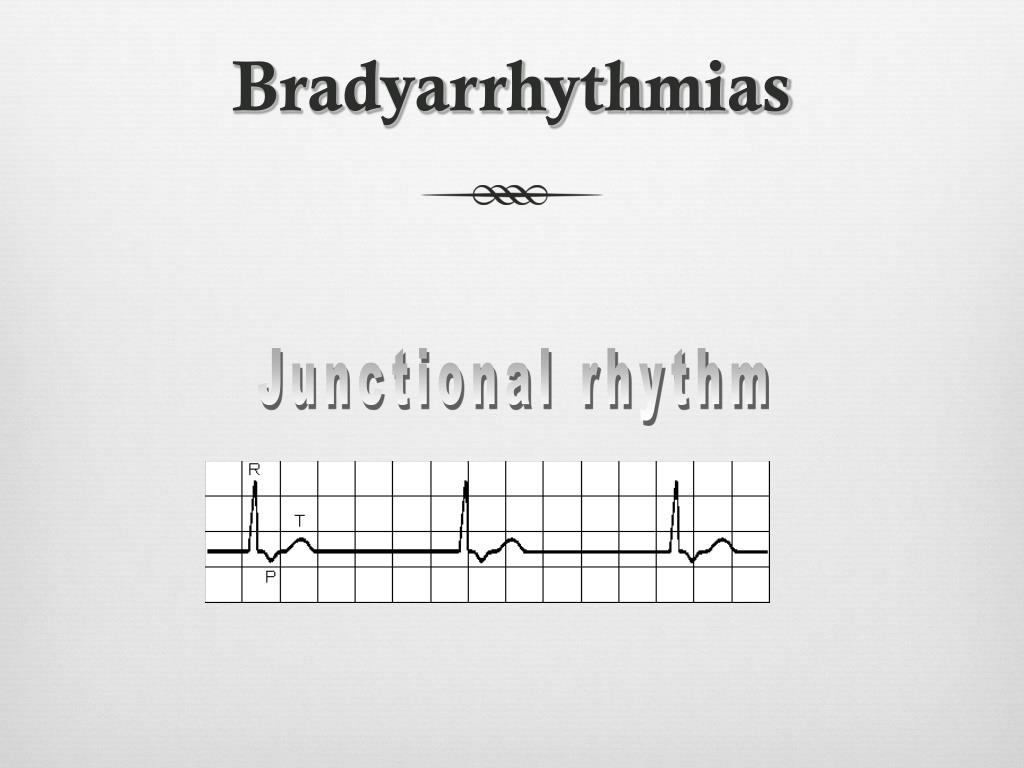

20. Bradyarrhythmias Junctional rhythm

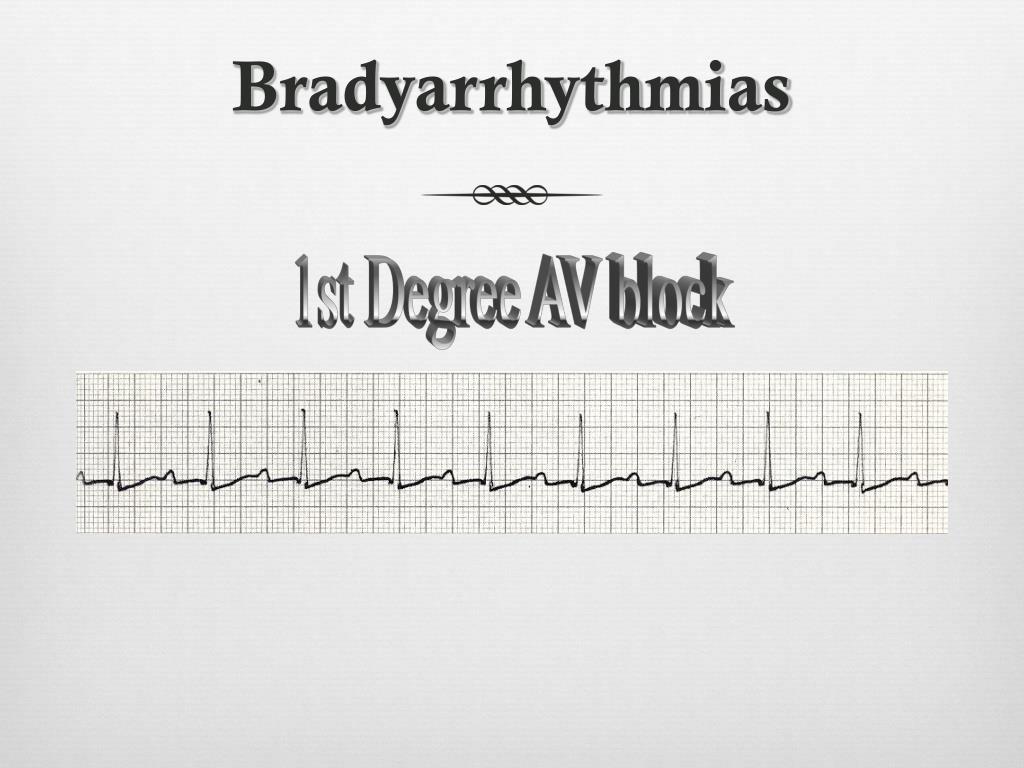

21. Bradyarrhythmias 1st Degree AV block

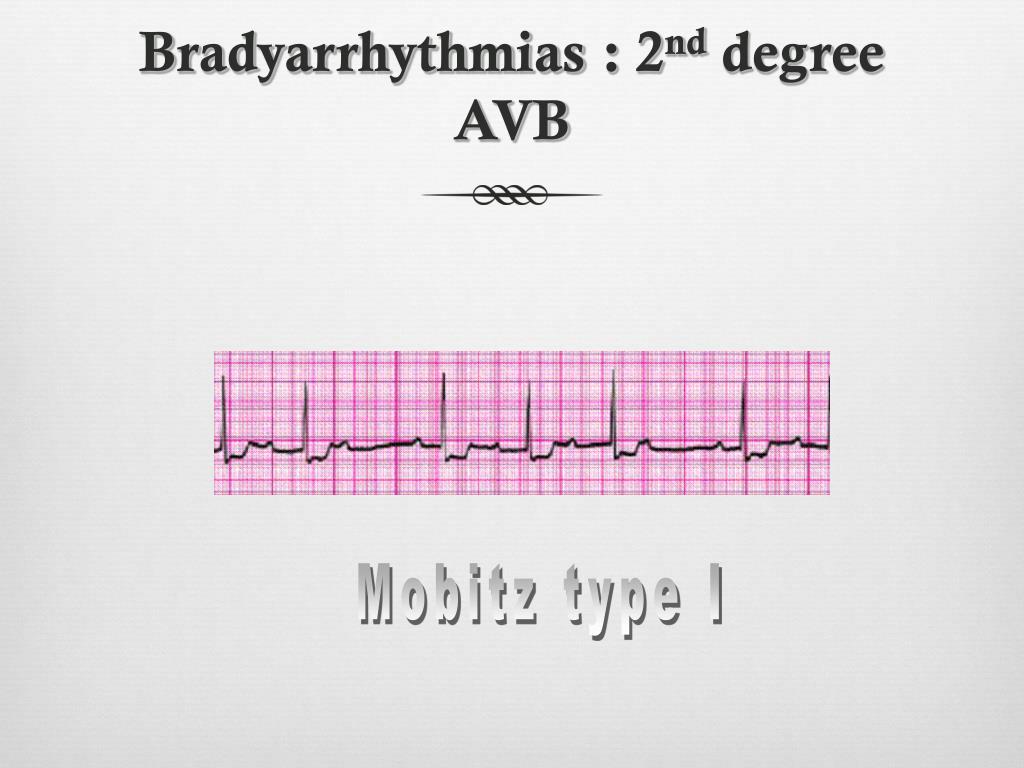

22. Bradyarrhythmias: 2nd degree AVB Mobitz type I

23. Bradyarrhythmias: 2nd degree AVB Mobitz type II

24. Bradyarrhythmias: 3rd degree AVB

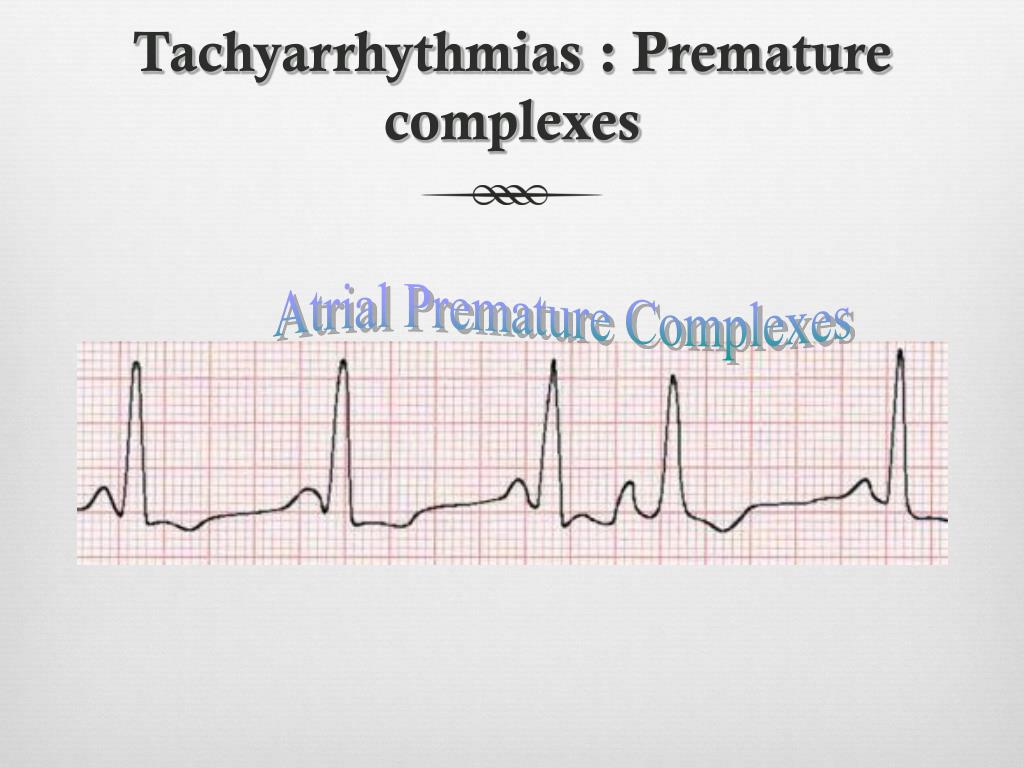

25. Tachyarrhythmias: Premature complexes Atrial Premature Complexes

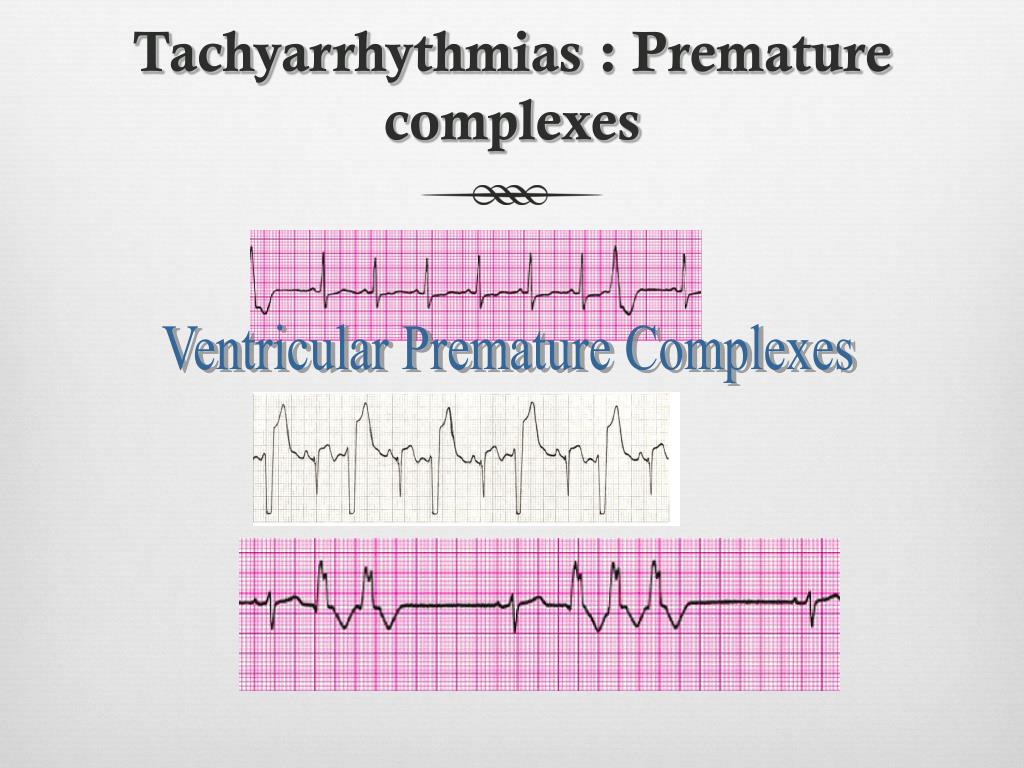

26. Tachyarrhythmias: Premature complexes Ventricular Premature Complexes

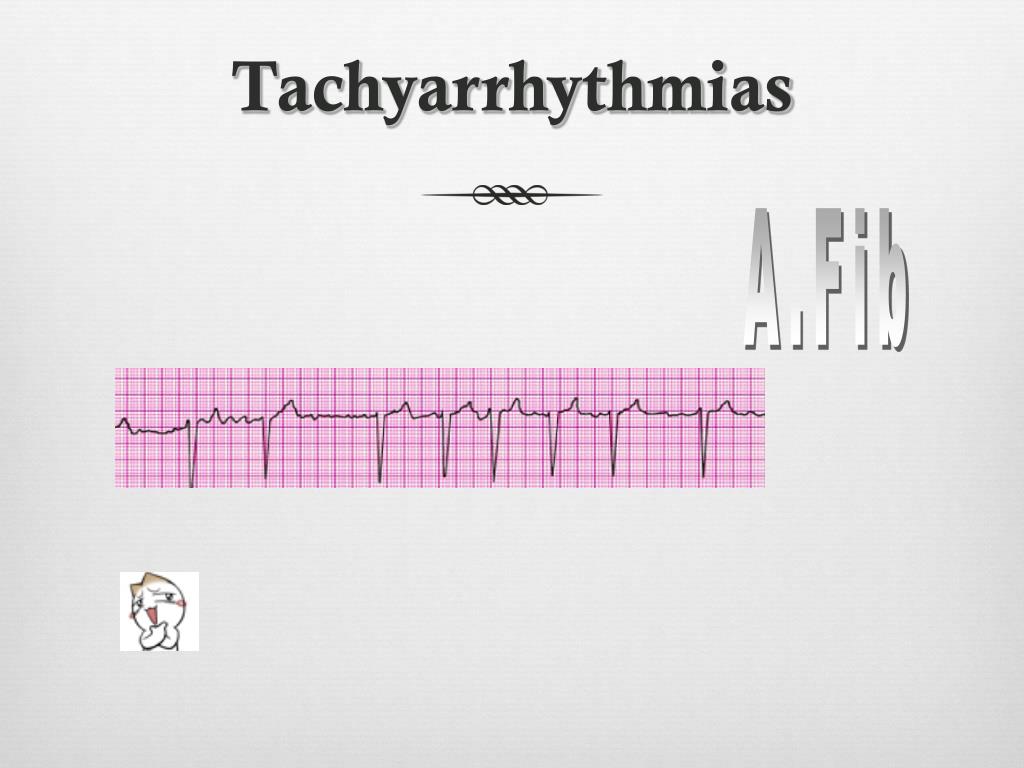

27. Tachyarrhythmias A.Fib

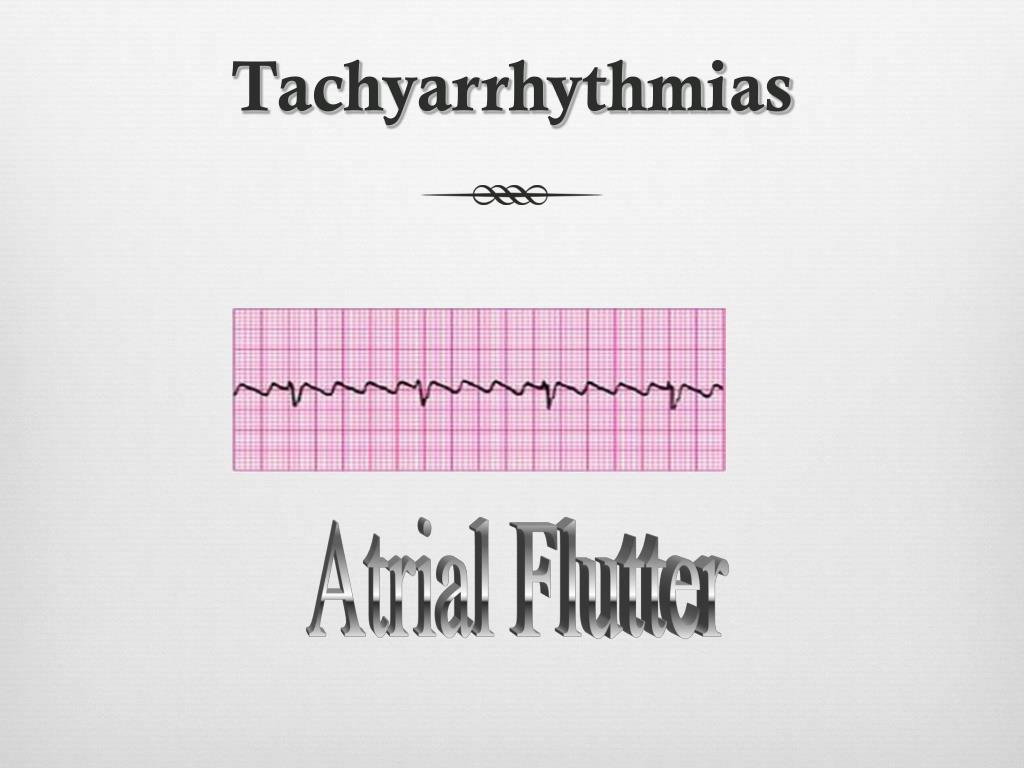

28. Tachyarrhythmias Atrial Flutter

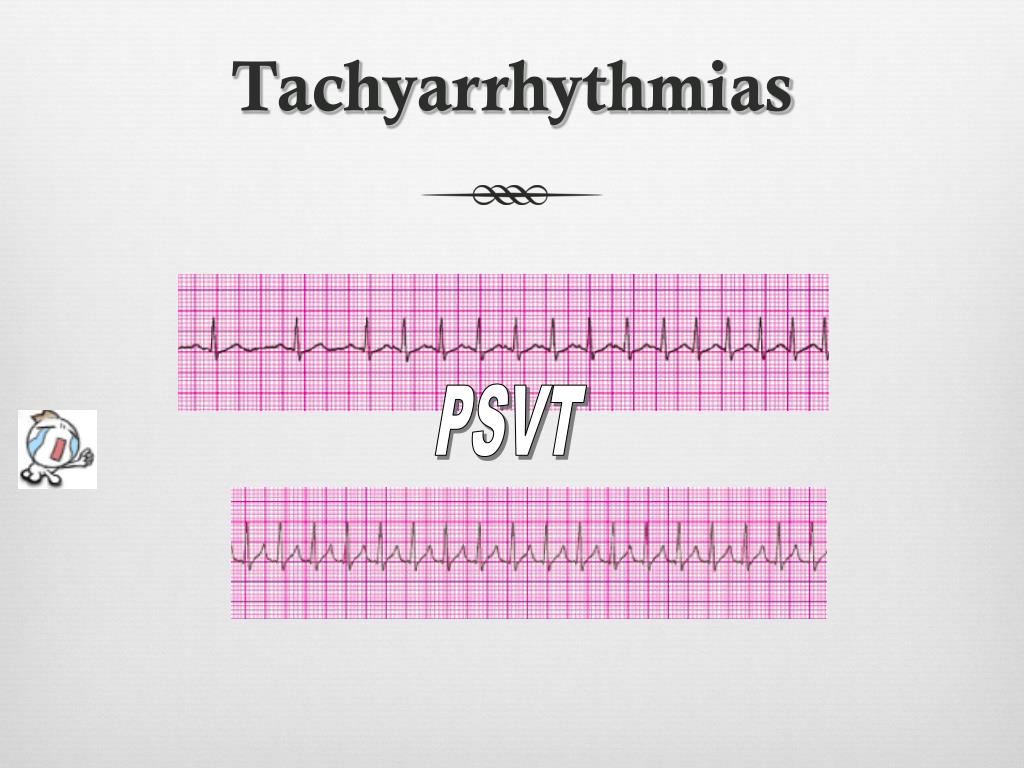

29. Tachyarrhythmias PSVT

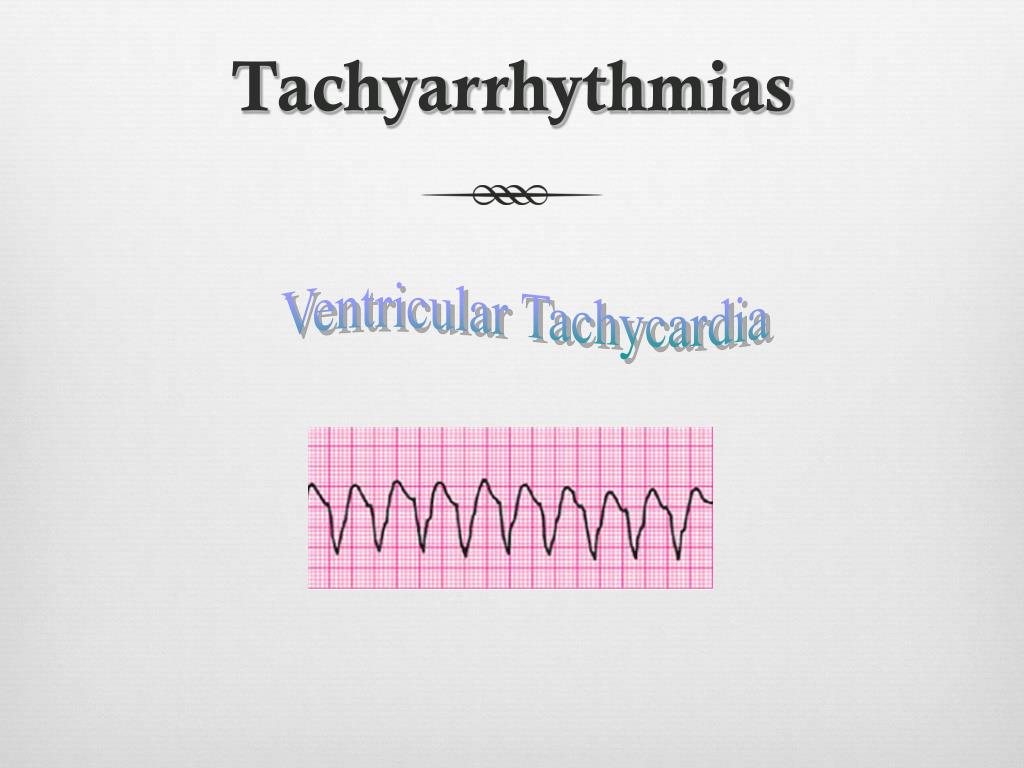

30. Tachyarrhythmias Ventricular Tachycardia

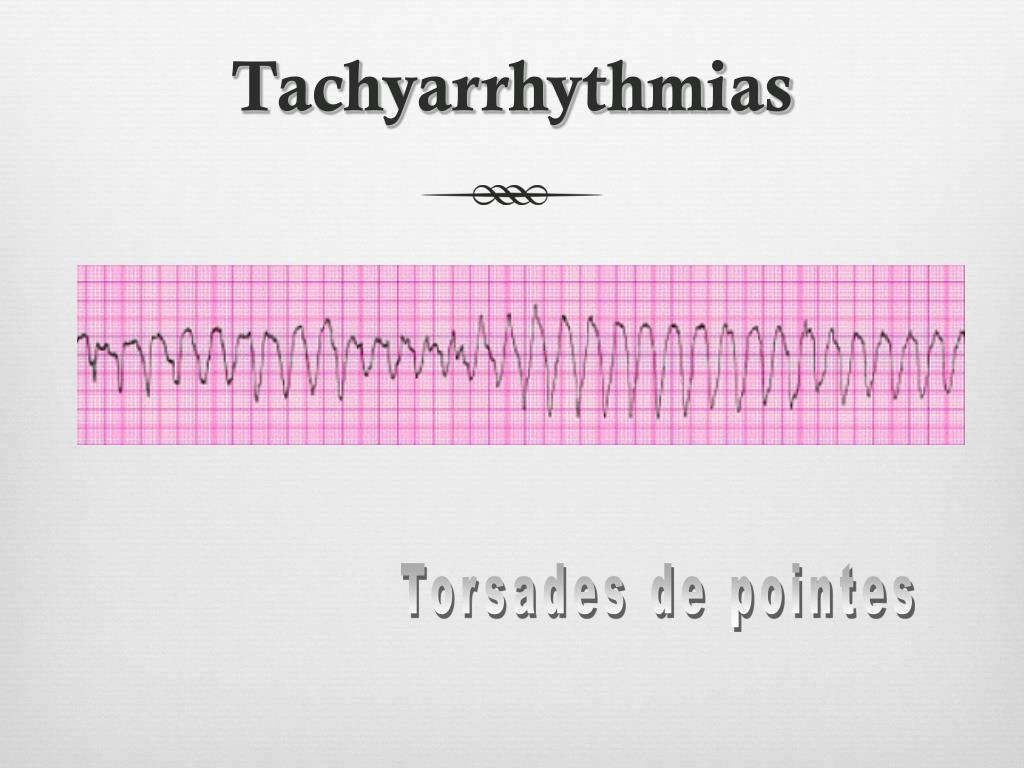

31. Tachyarrhythmias Torsades de pointes

32. Tachyarrhythmias Ventricular Fibrillation

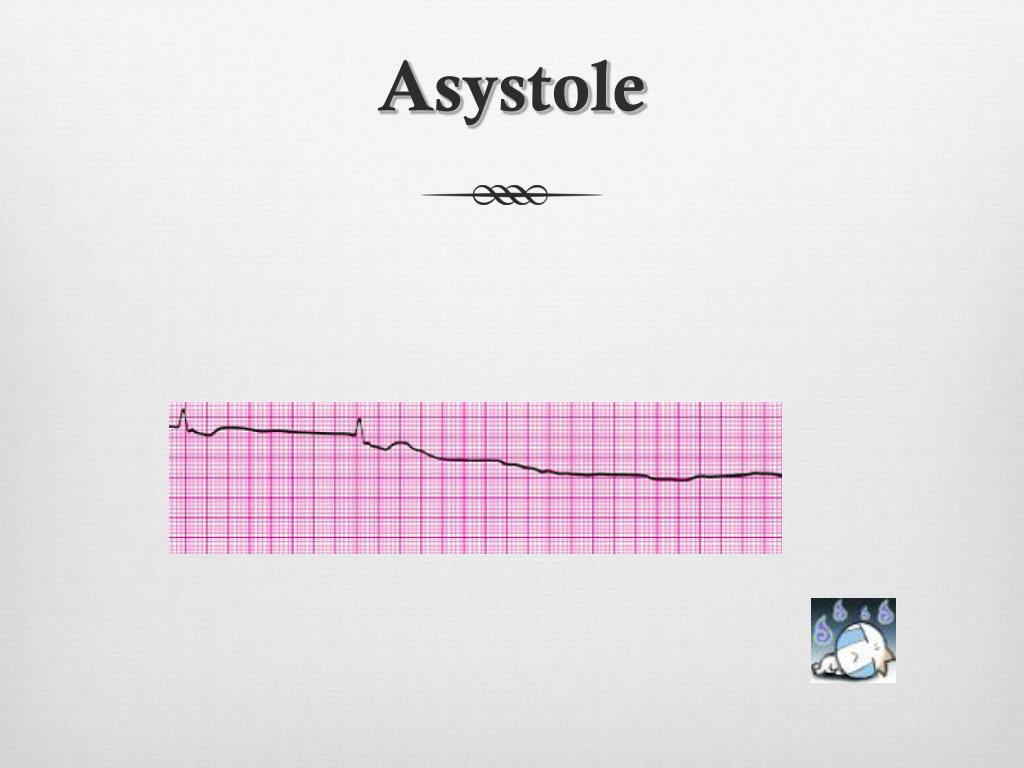

33. Asystole
