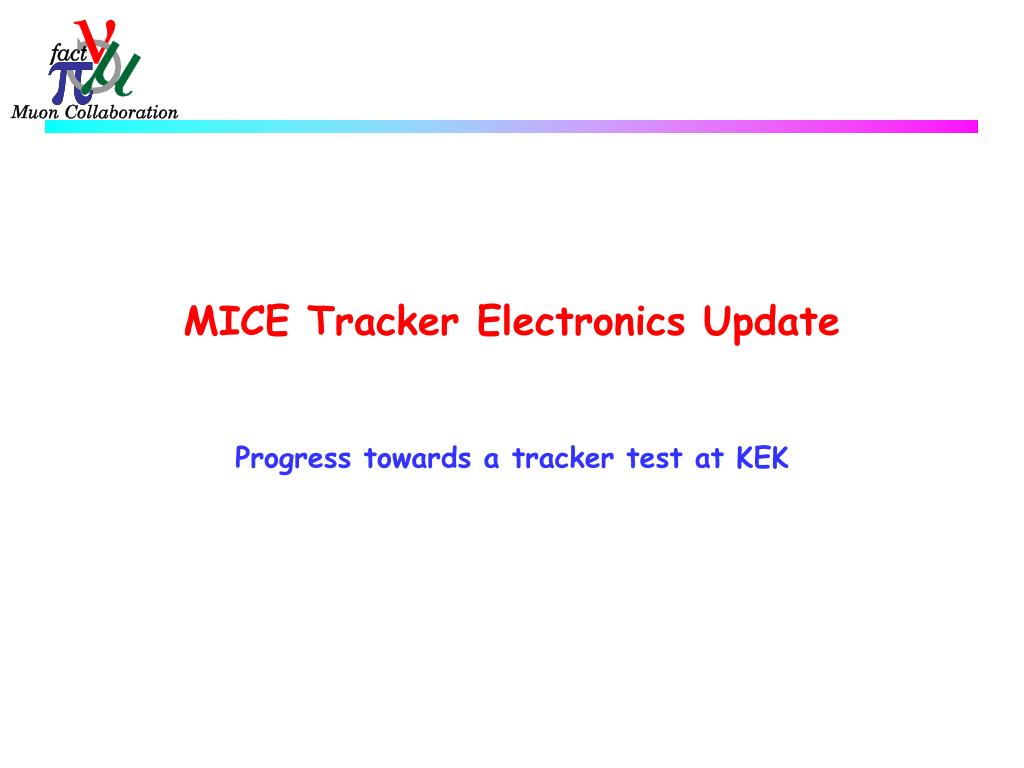

MICE Tracker Electronics Update

MICE Tracker Electronics Update. Progress towards a tracker test at KEK. Status: VLPC System. The VLPC system is complete and operating to spec Can easily control to the 9K spec. With heaters off T=5.3K Uses a Sumitomo SRDK-415D Cryo-cooler. This is the unit we plan to use throughout MICE.

fraley
Télécharger la présentation

MICE Tracker Electronics Update

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. MICE Tracker Electronics Update Progress towards a tracker test at KEK

  2. Status: VLPC System • The VLPC system is complete and operating to spec • Can easily control to the 9K spec. • With heaters off T=5.3K • Uses a Sumitomo SRDK-415D Cryo-cooler. • This is the unit we plan to use throughout MICE

  3. Status: Cryo System • Full Commissioning done – Performance To Spec!!!

  4. Cryo Gas System

  5. Status: Cryo System • However, we did have problems with the thermal links in the cryostat as you know. • Thermal contact was unreliable • Gaps lead to vacuum space and, of course, provided VERY GOOD insulation • This was corrected with the addition of In wire compressed between the Invar box and the clamps

  6. Status: Cryo System • We have updated the design (Russ Rucinski and Michael Sarychev • Provides positive clamping!

  7. Status: Cryo System

  8. Status: Cryo System • So our plan is to do a full interation of the cryostat design and be ready for production of the second system late Fall • Thermal clamp redesign • Address top-plate flatness • Top plate was not quite as flat as we would like. VLPC cassette seal leaked slightly and non-standard gaskets had to be used. Sealed well, but not overly elegant • Simplify G-10 backing plates • Increase can diameter by 2 cm

  9. Status:Electronics • The system will use 4 AFE II boards from D0. These are now working 512 ch ADC Discrim. TDC in next version

  10. Status Electronics • 6 AFE II boards have now been fully tested and are available to MICE • All Channels tested • Temperature and bias control operation • LVDS readout functional • Still need to run the boards through the temperature and bias control calibration test stands

  11. Things still to do • Test readout of 4 boards through VSLB to VME • Calibrate the two VLPC cassettes with LED pulser • Noise • Gain • Dead channel count • Implement replacement board for sequencer control (readout controller) • This will allow for much more efficient asynchronous triggering • Test trigger • Cosmic ray test with tracker at Fermilab • THE TRACKER HAS ARRIVED AT FERMILAB!

  12. Timescale • Next two weeks • Get 4 board readout working • Get sequencer controller replacement working • July 18-22 • Calibrate VLPC Cassettes • July 25-29 • Cosmic Ray Test • August 1 • Pack and Ship to KEK • August 8-12 • Preliminary setup and shakeout at KEK • At least operate VLPC cryo 大丈夫
