  1. Chapter #16 – Liquids and Solids 16.1) Intermolecular Forces 16.2) The Liquid State 16.3) An Introduction to Structures and Types of Solids 16.4) Structure and Bonding of Metals 16.5) Carbon and Silicon: Network Atomic Solids 16.6) Molecular Solids 16.7) Ionic Solids 16.8) Structures of Actual Ionic Solids 16.9) Lattice Defects 16.10) Vapor Pressure and Changes of State 16.11) Phase Diagrams

  2. SiO Bond Network in Quartz Ring structures Tetrahedral geometry

  3. Two-dimensional reprentations of (a) a quartz crystal and (b) a quartz glass

  4. Figure 16.35: Sulfur crystals (yellow) contain S8 molecules. (right) White phosphorous contains P4 molecules. It is so reactive with the oxygen in air that it must be stored under water.

  5. Examples of silicate anions, all of which are based on SiO44-tetrahedra

  6. n-dopant (electron rich) p-dopant (electron deficient)

  7. Semiconductors

  8. p-n Junction

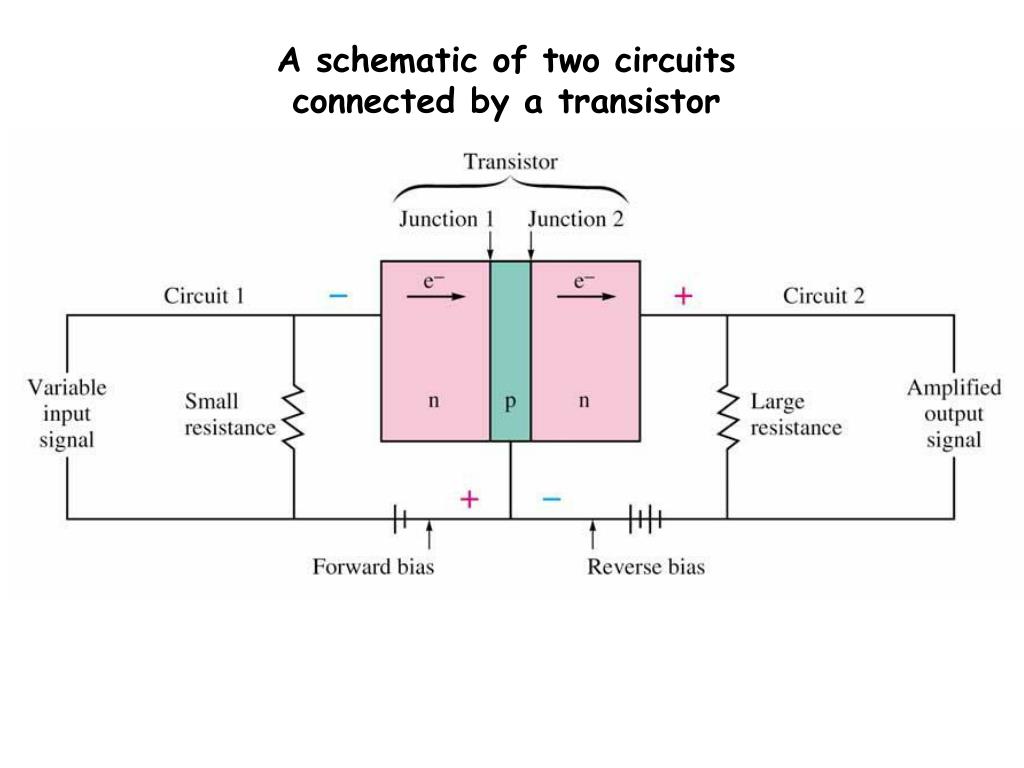

  9. A schematic of two circuitsconnected by a transistor

  10. (a)-(h) The steps for forming a transistor in a crystal of initially pure silicon.

  11. Ionic Solids (NaCl)

  12. Ionic Solids Trigonal Holes: r = x  R = (2/3  1)R r R x r = 0.1547 R

  13. r = R3/2 – R = 0.225 R Radius of a tetrahedral hole Tetrahedral holes

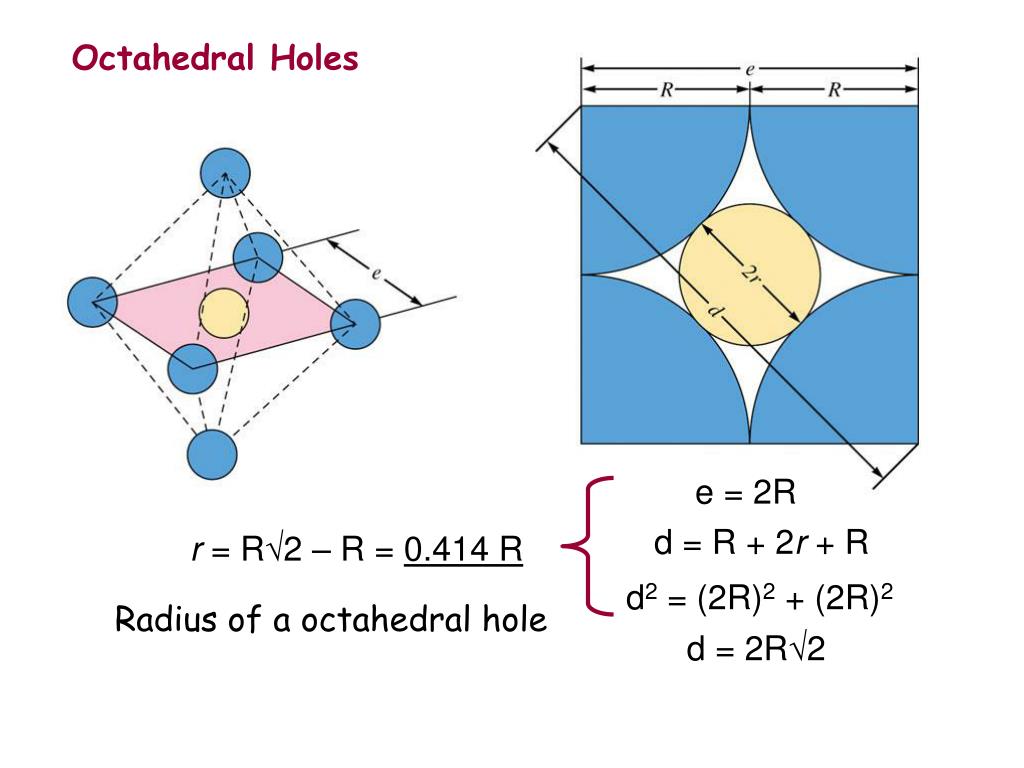

  14. Octahedral Holes e = 2R d = R + 2r + R r = R2 – R = 0.414 R d2 = (2R)2 + (2R)2 Radius of a octahedral hole d = 2R2

  15. The locations (gray x) of the octahedral holes in the face-centered cubic unit cell

  16. (a) A simple cubic array with X- ions, with an M+ ion in the center (in the cubic hole). r = R3 – R = 0.732 R Radius of a cubic hole

  17. If 0.225 R—< r+ < 0.414 R— If 0.414 R—< r+ < 0.732 R— If 0.732 R—< r+ : Fill r+ intetrahedral holes : Fill r+ inoctahedral holes : Fill r+ incubic holes Filling Holes in Ionic Crystals Guidelines: R— : anion X— radius r+ : cation M+ radius

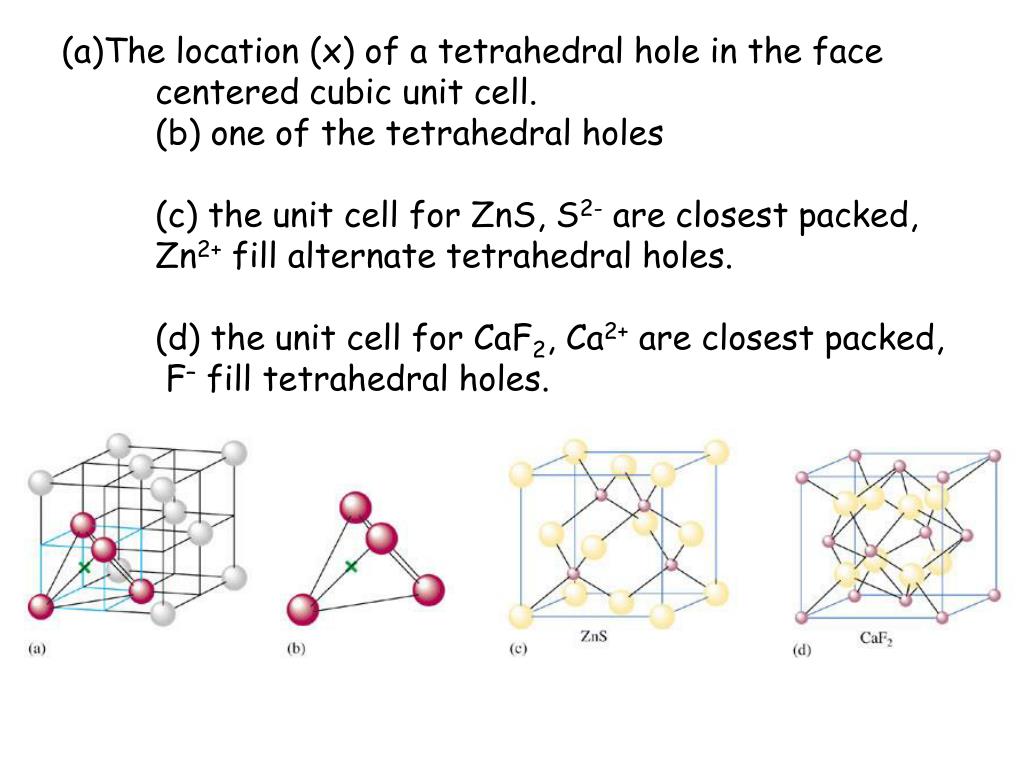

  18. (a)The location (x) of a tetrahedral hole in the face centered cubic unit cell.(b) one of the tetrahedral holes(c) the unit cell for ZnS, S2- are closest packed,Zn2+ fill alternate tetrahedral holes.(d) the unit cell for CaF2, Ca2+ are closest packed, F– fill tetrahedral holes.
