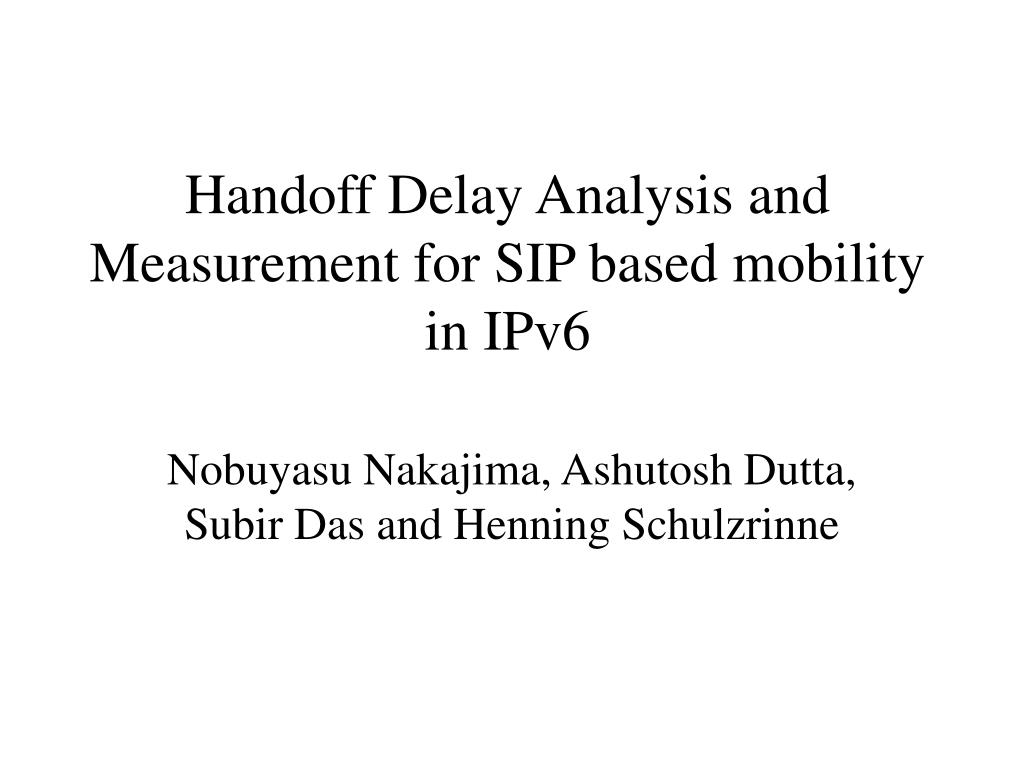

1. Handoff Delay Analysis and Measurement for SIP based mobility in IPv6 Nobuyasu Nakajima, Ashutosh Dutta, Subir Das and Henning Schulzrinne

2. Outline • Introduction • Terminal Mobility Using SIP • Handoff Delay in Mid-call SIP Mobility • DAD • Router Selection • Testbed for Mobile Multimedia Communication Using IPv6 • Implementation of SIP Terminal Mobility • Handoff Delay Measurement • Conclusion

3. Introduction(1/2) • Why IPv6? • The Limitation of IPv4 address space • Network Address Translation ( NAT ) is used to circumvent the address space problem, but it fail to provide the global routability • IPv6 is designed to solve the problem

4. Introduction(2/2) • IPv6 performance issues for real-time communication • Emphasis on handoff delay due to DAD and router selection while visiting a new network and using SIP for mobility

5. Terminal Mobility Using SIP(1/3) • SIP basic procedure

6. Terminal Mobility Using SIP(2/3) • SIP terminal mobility ： pre-call

7. Terminal Mobility Using SIP(3/3) • SIP terminal mobility ： mid-call

8. Handoff Delay in Mid-call SIP Mobility(1/2) • Components of handoff delay in mid-call SIP mobility

9. Handoff Delay in Mid-call SIP Mobility(2/2) • D：total handoff delay • D1：switch lower layer medium to access network • D2：detect a new router and a new link • D3：recovery of communication with a CN after detecting a new link • DAD • Router Selection

10. Duplicate Address Detection(DAD) • DAD is to confirm the uniqueness of the IPv6 address on the link • Send a Neighbor Solicitation on the local link • During the DAD process, this address (tentative address) cannot send and receive packets • Additional delay in sending a re-INVITE • Average delay caused by DAD is 1500ms

11. Reuter Selection(1/2) • Routing Table Update • Incorporate the movement detection part of MIPL MIPv6 in our implementation as Aggressive Router Selection module • Has its own router list and is updated independently • Forcibly updates routing table after receiving router advertisement from a new access router, and delete all routers without the same prefix

12. Reuter Selection(2/2) • Neighbor Unreachability Detection (UDN)

13. Testbed for Mobile Multimedia Communication Using IPv6

14. Implementation of SIP Terminal Mobility • MN’s SIP UA is modified to send re-INVITE with new IP address information to CN • SIP UA is modified to pass the new IP address information of MN to voice communication tool • In order to keep the delay small • Modify the Linux kernel • Skip the DAD process • Select the new router through Aggressive Router Selection

15. Handoff Delay Measurement(1/3) • Handoff flow of SIP mobility in IPv6

16. Handoff Delay Measurement(2/3) • a) SIP mobility without kernel modification • b) SIP mobility with kernel modification • Handoff delay of signaling

17. Handoff Delay Measurement(3/3) • Handoff delay of media UDP packet

18. Conclusion • Modify the Linux kernel to avoid the DAD • Select new router aggressively to avoid NUD • Without the kernel modification：2~40s • With the kernel modification：within 450ms • For some real-time applications, this may be too high
