  1. Minerals – The Building Blocks of Rocks

  2. There are nearly 4000 minerals identified in the Earth’s crust. • Each has an unique chemical composition and internal crystalline structure. • Some rare and some very common

  3. The Building Blocks of Minerals • Elements are the building blocks of minerals. • Most minerals contain more than one element. • There are some with only one element. • There are 113 known elements, • but only 92 occur naturally • The rest have been created in the laboratory

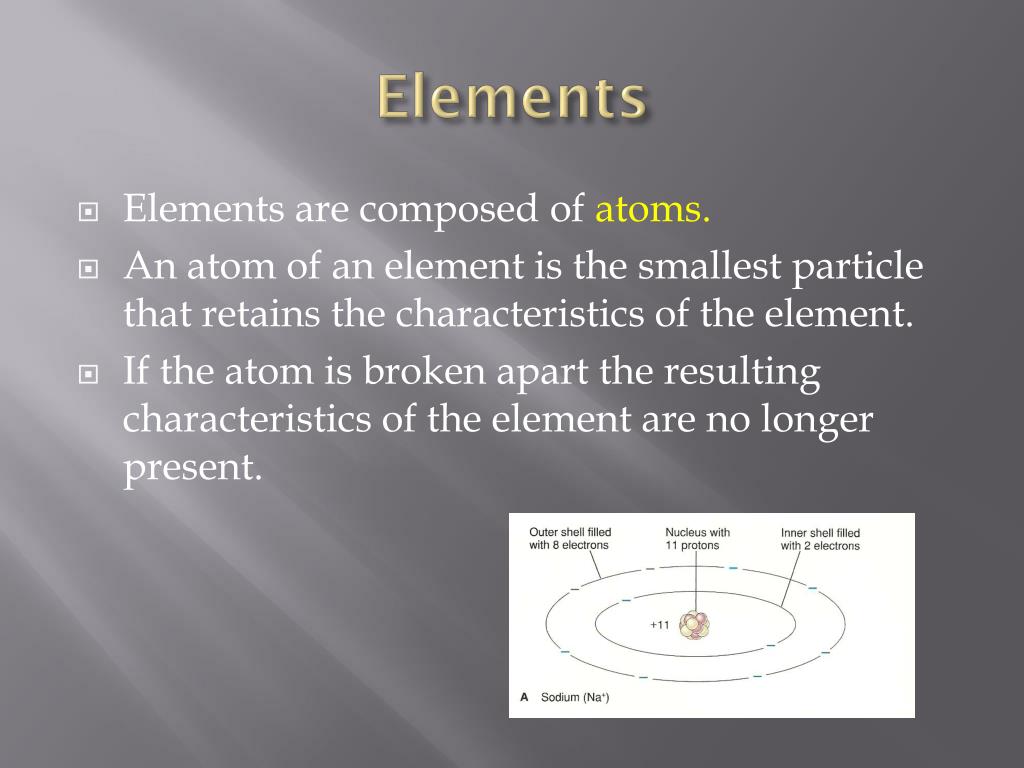

  4. Elements • Elements are composed of atoms. • An atom of an element is the smallest particle that retains the characteristics of the element. • If the atom is broken apart the resulting characteristics of the element are no longer present.

  5. Atoms • Atoms are composed of: • A nucleus which contains: • Neutrons – neutral charged particles • Protons – positive charged particles • Electrons • Which have a negative charge • Orbit the nucleus in energy levels, shells

  6. The number of neutrons of an atom can vary without changing the characteristics of the atom. • The variations in the number of neutrons of a particular element are called Isotopes. • Some elements are stable. • The majority of elements however are unstable, which leads to combining or bonding with other elements. • This bonding leads to three-dimensional crystals called minerals

  7. Bonds • When elements combine it is achieved by: • Covalent bonding – where electrons of combining elements are shared. • Ionic Bonding – where electrons are taken/given away

  8. The bonding of elements is what gives the characteristics of the new material formed • This will determine it behaviour • It shape or crystalline structure. • Example: Halite ( NaCl ) • Sodium is a soft, silvery, potentially explosive metal • Chlorine is a green toxic gas • Together they make table salt • Which has a cubic structure • Examine table salt and you will see this structure

  9. Of the 92 naturally-occurring elements only 8 make up 98% of the Earth’s crust

  10. Silicates • The majority of minerals contain a combination of these 8 elements. • The most popular combination involves Oxygen and Silicon • This combination is known as a Silicate, SiO2 • The silicon-oxygen bond forms a tetrahedron crystal, which is a four sided pyramid

  11. Minerals containing the silicon-oxygen tetrahedron are the most common group of the mineral on Earth. • This group includes about 1/3 of all minerals in the Earth’s crust. • Geologist classify minerals into various groups. • Minerals within the same group have similar characteristics

  12. Mineral Groups • Silicates – silicon oxygen • Elements – un-combined elements • Carbonates – contain a metal and the carbonate ion ( CO3-2 ) • Oxides – contain a metal and oxygen • Sulphides – contain a metal and sulphur • Sulphates – contain a metal and the sulphate ion ( SO4-2 ) • Halides – contain a metal and either chlorine, fluorine, iodine or bromine
