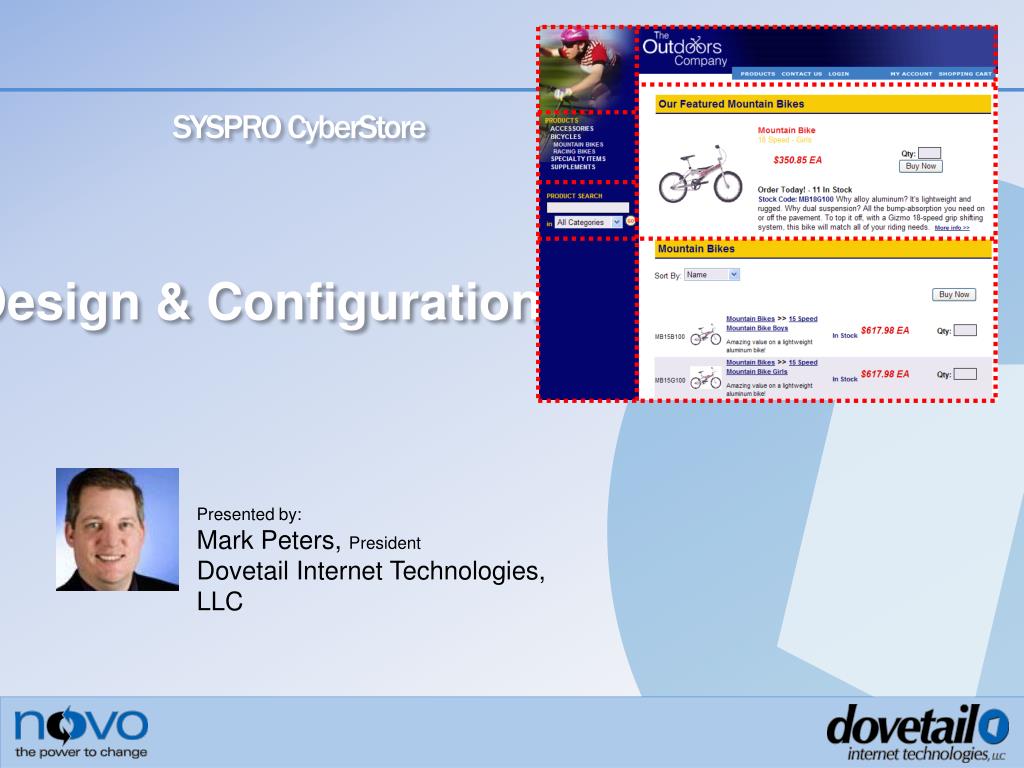

  1. SYSPRO CyberStore Design & Configuration

  2. Who … • Administrator: A designee from your company who is responsible for configuring, and overseeing the overall availability and settings for your online store • Manager: A webmaster. A designee from your company who is responsible for the day-to-day maintenance and customer service of the web store • Designer: The person or persons charged with creating and updating: the look and feel of the website experience

  3. Key Design & Configuration Roles • Design • Design overall look and feel for web presence • Build site graphical elements • Establish style guidelines used for formatting page elements • Establish user path through the site • Determine where controls on a page are located • Configuration • Create HTML Templates • Code Controls within Templates • Edit site Configuration file(s)

  4. Key Design Terminology • Page • A web site page of the online store in the e-Commerce System • Page Engine • Application utilized by the e-Commerce System to pull data from multiple locations and render the site pages. • Style • The Look and Feel or formatting of page elements • Control • Controls provide all the functionality of the online store • Examples: • Hot Buy • Featured Item • Content • Product Search • Category Menu • Placeholder • A snippet of code used in pages to indicate where a control is placed

  5. Some Default Pages • Home Page • Search Results Page • Category List Page • Sub Category List Page • Item Detail Page • Registration Pages • Shopping Cart Page • myAccount Page • Login page • Check Out Pages • Printable Receipt Page • Order History Page

  6. Default SitePage Diagram

  7. Design Options • Pre-designed Templates • “Classic” • “Redeye” • “Green Acres” • “Caramel” • Your own Design • Create your own template using standard web tools • HTML • Flash • CSS

  8. Template 1: “Classic”

  9. Template 2: “Caramel”

  10. Template 3: “RedEye”

  11. Template 4: “Green Acres”

  12. Site Control Tour

  13. Configuring Pages & Controls

  14. Introducing SitePages.config • XML Formatted Definition File • Creates page structures • Defines Controls to Utilize • Sets Control Options • Easily Editable Text Format • Changes take effect instantly

  15. Site Configuration – File Locations • Theme File Location • Site Content File Location • Item Images File Location • Default CSS File Location • Error Log File Location • Site Configuration

  16. Site Configuration – Change Site Theme • Run inetmgr • Open Ecommerce Virtual • Select “Site” Directory • Right-click Properties • Virtual Directory Tab • Change “Local Path:” to new YourCompanySite directory

  17. Site Configuration Files • Program Files C:\Program Files\Dovetail\e-Commerce System\ECommerce • System dependant files; should not be edited

  18. Web Files • Theme File Root C:\Program Files\Dovetail\e-Commerce System\YourCompanySite • Customizable theme files • SitePages.Config C:\Program Files\Dovetail\e-Commerce System\YourCompanySite\xml\SitePages.config • Theme Pages C:\Program Files\Dovetail\e-Commerce System\YourCompanySite\Themes • Homepage Theme - EcomHomeTheme.ascx • Insidepage Theme - EcomTheme.ascx • Order Display Theme - EcomThemeOrderDisplay.ascx • Print Order Theme - EcomThemePrintableView.ascx • Blank Theme - EcomBlankTheme.ascx • Cascading Style Sheets C:\Program Files\Dovetail\e-Commerce System\YourCompanySite\Themes\css • Theme Images C:\Program Files\Dovetail\e-Commerce System\YourCompanySite\Themes\images

  19. Templates • Template 1 “Classic” C:\Program Files\Dovetail\e-Commerce System\OutdoorsSite\Template1 • Template 2 “Caramel” C:\Program Files\Dovetail\e-Commerce System\OutdoorsSite\Template2 • Template 3 “Red Eye” C:\Program Files\Dovetail\e-Commerce System\OutdoorsSite\Template3 • Template 4 “Green Acres” C:\Program Files\Dovetail\e-Commerce System\OutdoorsSite\Template4

  20. Item Images • Photo 1 C:\Program Files\Dovetail\e-Commerce System\YourCompanySite\images\photo1 • Photo 2 C:\Program Files\Dovetail\e-Commerce System\YourCompanySite\images\photo2 • Category Photo C:\Program Files\Dovetail\e-Commerce System\YourCompanySite\images\photo1

  21. SitePages.config Structure <SitePages> <Page> <PlaceHolder> <Control> </PlaceHolder> </Page> </SitePages>

  22. SitePages.Config Sample <Page FileName="default.aspx" Themesrc="EcomHomeTheme.ascx" ThemeCss="site/themes/css/DECTHEHome.css“ RequireSSL="false"> <PlaceHolder ctrlID="RightColumnA"> <Control src="CatalogContentDisplayControl.ascx" Name="Content Display" FileLocation="HomepageWelcome.htm" /> <Control src="CatalogCategoryNavigationControl.ascx" Name="MenuList" /> </PlaceHolder> <PlaceHolder ctrlID="RightColumnB"> <Control src="CatalogSearchControl.ascx" Name="Item Search" /> </PlaceHolder> <PlaceHolder ctrlID="ContentArea"> <Control src="CatalogHotbuyControl.ascx" PhotoWidth="100" NumberOfItemsToDisplay="2" LimitedAvailableMessage ="In Stock" UnlimitedAvailableMessage ="In Stock" /> <Control src="CatalogContentDisplayControl.ascx" FileLocation="Disclaimer.htm" /> </PlaceHolder> </Page>

  23. SitePages.Config Sample - Edited <Page FileName="default.aspx" Themesrc="EcomHomeTheme.ascx" ThemeCss="site/themes/css/DECTHEHome.css“ RequireSSL="false"> <PlaceHolderctrlID="RightColumnA"> <Control src="CatalogSearchControl.ascx" Name="Item Search" /> <Control src="CatalogContentDisplayControl.ascx" Name="Content Display" FileLocation="HomepageWelcome.htm" /> <Control src="CatalogCategoryNavigationControl.ascx" Name="MenuList" /> </PlaceHolder> <PlaceHolderctrlID="RightColumnB"> </PlaceHolder> <PlaceHolderctrlID="ContentArea"> <Control src="CatalogHotbuyControl.ascx" PhotoWidth="300" NumberOfItemsToDisplay="1" LimitedAvailableMessage ="In Stock" UnlimitedAvailableMessage ="In Stock" /> <Control src="CatalogContentDisplayControl.ascx" FileLocation="Disclaimer.htm" /> </PlaceHolder> </Page>

  24. Formatting With CSS

  25. About CSS • CSS = Cascading Style Sheet • style sheets when attached to documents describe how the document is displayed or printed, e.g. a CSS sheet is attached to an HTML document, to influence its layout when accessed via a browser • defining a style sheet allows you to set formatting properties and apply it to specific areas within an HTML page • Over 200 pre-defined style sheets have been included in SYSPRO e-Commerce

  26. Typical CSS Properties • Font Style • Text Size • Text Color • Backgrounds • Alignment • Spacing • Borders • Table Structure

  27. Example: Featured Item Styles

  28. A .CSS file Structure #StyleName { Property1:value(s); Property2:value(s); Property3:value(s); Property4:value(s); }

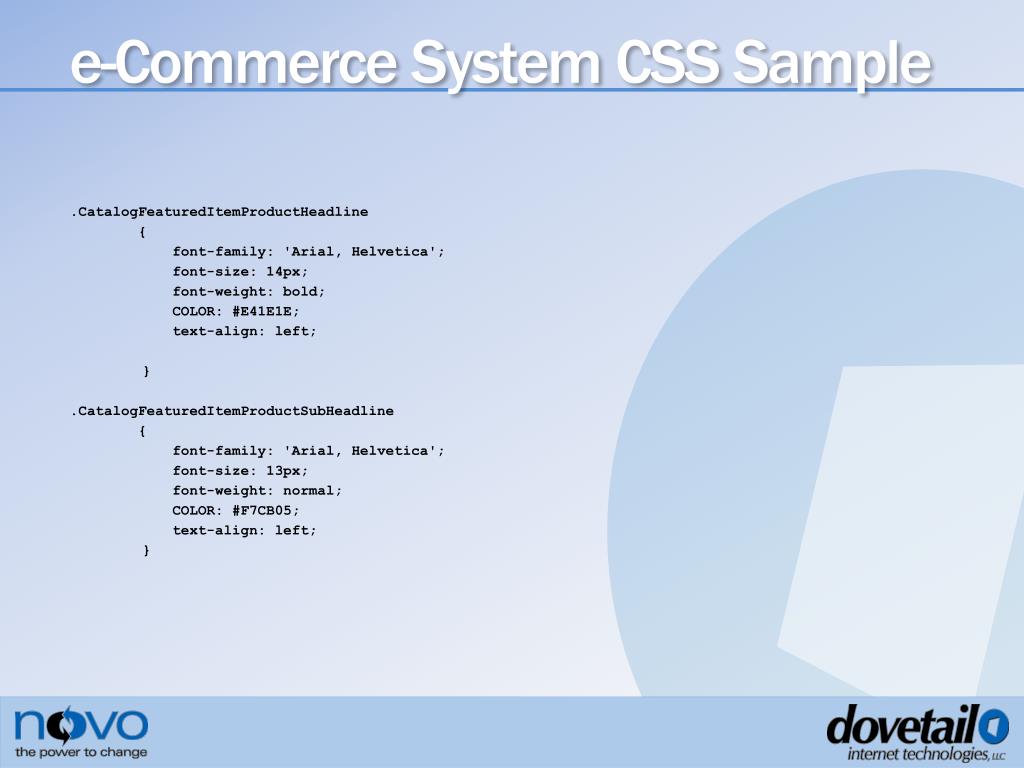

  29. e-Commerce System CSS Sample .CatalogFeaturedItemProductHeadline { font-family: 'Arial, Helvetica'; font-size: 14px; font-weight: bold; COLOR: #E41E1E; text-align: left; } .CatalogFeaturedItemProductSubHeadline { font-family: 'Arial, Helvetica'; font-size: 13px; font-weight: normal; COLOR: #F7CB05; text-align: left; }

  30. e-Commerce System CSS Sample - Edited .CatalogFeaturedItemProductHeadline { font-family: 'Times New Roman'; font-size: 24px; font-weight: bold; COLOR: #E41E1E; text-align: left; } .CatalogFeaturedItemProductSubHeadline { font-family: 'Arial, Helvetica'; font-size: 19px; font-weight: normal; COLOR: #000000; text-align: left; }

  31. Customizing Controls

  32. About Controls • Contain HTML and ASP code snippets • Located in /Ecommerce/Control Folder • Can create Site Specific Versions • Can Modify for Layout and Labels

  33. Control Sample • CheckOutShippingOptions.ascx

  34. Control Sample <%@ Control Language="c#" AutoEventWireup="false" Codebehind="CheckOutShippingOptions.ascx.cs" Inherits="Dovetail.Ecommerce.Control.CheckOutShippingOptions" TargetSchema="http://schemas.microsoft.com/intellisense/ie5" %> <script language=javascript type=text/javascript> function textCounter( field, maxlimit ) { if ( field.value.length >= maxlimit ) { field.value = field.value.substring( 0, maxlimit ); alert( 'There is a '+ maxlimit + ' character limit.' ); return false; } else { //countfield.value = maxlimit - field.value.length; } } </script> <P><asp:label id="messageLabel" CssClass="ValidationMessage" runat="server"></asp:label></P> <TABLE class="DefaultTable" id="Table1" style="WIDTH: 477px; HEIGHT: 154px" cellSpacing="1" cellPadding="1" width="477"> <TR> <TD class="FormLabel" style="WIDTH: 184px">Select&nbsp;Shipping Method: </TD> <TD><asp:dropdownlist id="shpmethodsDropDownList" CssClass="FormSelect" runat="server"></asp:dropdownlist><asp:label id="shpoptionLabel" CssClass="FormLabel" runat="server"></asp:label></TD> </TR> <TR> <TD class="FormLabel" style="WIDTH: 184px">Special Instructions(optional):</TD> <TD><asp:textbox id="specialinstructionsTextBox" CssClass="FormTextArea" runat="server" MaxLength="30" Width="266px" Rows="5"></asp:textbox></TD> </TR> <TR id="OrderCommentsRow" runat="server"> <TD class="FormLabel" id="OrderCommentsLabel" style="WIDTH: 184px" vAlign="top" runat="server">Order Comments (optional):</TD> <TD><asp:textbox id="OrderHeaderCommentsTextBox" CssClass="FormTextArea" runat="server" MaxLength="30" Width="266px" Rows="5" TextMode="MultiLine"></asp:textbox></TD> </TR> <TR> <TD class="FormButtonMatte" colSpan="2"><asp:button id="continueButton" CssClass="FormButtonAlternate" runat="server" Text="Continue"></asp:button><asp:button id="cancelorderButton" CssClass="FormButtonAlternate" runat="server" Text="Cancel"></asp:button></TD> <TD></TD> </TR> </TABLE>

  35. Editing a Control <TABLE class="DefaultTable" id="Table1" style="WIDTH: 477px; HEIGHT: 154px" cellSpacing="1" cellPadding="1" width="477"> <TR> <TD class="FormLabel" style="WIDTH: 184px">Select&nbsp;Shipping Method: </TD> <TD><asp:dropdownlist id="shpmethodsDropDownList" CssClass="FormSelect" runat="server"></asp:dropdownlist><asp:label id="shpoptionLabel" CssClass="FormLabel" runat="server"></asp:label></TD> </TR> <TR> <TD class="FormLabel" style="WIDTH: 184px">Special Instructions(optional):</TD> <TD><asp:textbox id="specialinstructionsTextBox" CssClass="FormTextArea" runat="server" MaxLength="30" Width="266px" Rows="5"></asp:textbox></TD> </TR> <TR id="OrderCommentsRow" runat="server"> <TD class="FormLabel" id="OrderCommentsLabel" style="WIDTH: 184px" vAlign="top" runat="server">Order Comments (optional):</TD> <TD><asp:textbox id="OrderHeaderCommentsTextBox" CssClass="FormTextArea" runat="server" MaxLength="30" Width="266px" Rows="5" TextMode="MultiLine"></asp:textbox></TD> </TR> <TR> <TD class="FormButtonMatte" colSpan="2"><asp:button id="continueButton" CssClass="FormButtonAlternate" runat="server" Text="Continue"></asp:button><asp:button id="cancelorderButton" CssClass="FormButtonAlternate" runat="server" Text="Cancel"></asp:button></TD> <TD></TD> </TR> </TABLE>

  36. Editing a Control <TABLE class="DefaultTable" id="Table1" style="WIDTH: 477px; HEIGHT: 154px" cellSpacing="1" cellPadding="1" width="477"> <TR> <TD class="FormLabel" style="WIDTH: 184px">Select&nbsp;Shipping Method: </TD> <TD><asp:dropdownlist id="shpmethodsDropDownList" CssClass="FormSelect" runat="server"></asp:dropdownlist><asp:label id="shpoptionLabel" CssClass="FormLabel" runat="server"></asp:label></TD> </TR> <TR> <TD class="FormLabel" style="WIDTH: 184px">Shipping Requirements:</TD> <TD><asp:textbox id="specialinstructionsTextBox" CssClass="FormTextArea" runat="server" MaxLength="30" Width="266px" Rows="5"></asp:textbox></TD> </TR> <TR id="OrderCommentsRow" runat="server"> <TD class="FormLabel" id="OrderCommentsLabel" style="WIDTH: 184px" vAlign="top" runat="server">Order Comments (optional):</TD> <TD><asp:textbox id="OrderHeaderCommentsTextBox" CssClass="FormTextArea" runat="server" MaxLength="30" Width="266px" Rows="5" TextMode="MultiLine"></asp:textbox></TD> </TR> <TR> <TD class="FormButtonMatte" colSpan="2"><asp:button id="continueButton" CssClass="FormButtonAlternate" runat="server" Text="Continue"></asp:button><asp:button id="cancelorderButton" CssClass="FormButtonAlternate" runat="server" Text="Cancel"></asp:button></TD> <TD></TD> </TR> </TABLE>

  37. Editing a Control

  38. Questions?
