  1. Multicache-Based Content Management for Web Caching Kai Cheng and Yahiko Kambayashi Graduate School of Informatics, Kyoto University Kyoto JAPAN

  2. Outline of the Presentation • Introduction • Localizing Web Contents • Why Content Management • Contributions of Our Work • Multicache-Based Content Management • Content Management Scheme for LRU-SP • Experimental Evaluation • Concluding Remarks (C)chengk@kuis.kyoto-u.ac.jp

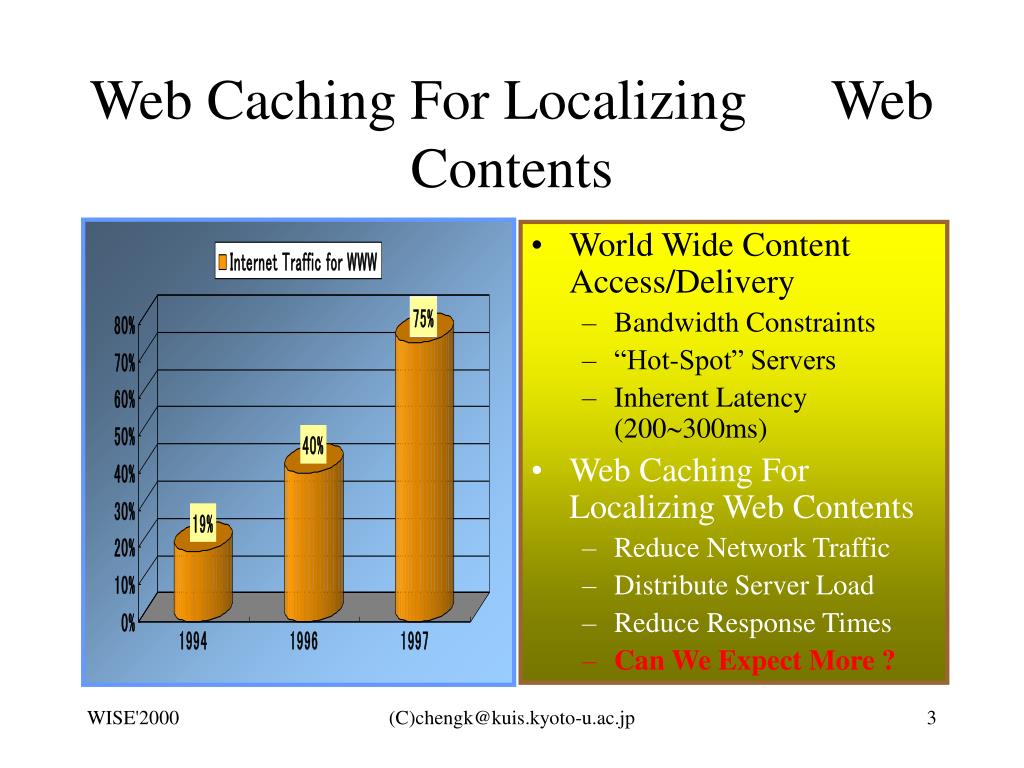

  3. Web Caching For Localizing Web Contents • World Wide Content Access/Delivery • Bandwidth Constraints • “Hot-Spot” Servers • Inherent Latency (200300ms) • Web Caching For Localizing Web Contents • Reduce Network Traffic • Distribute Server Load • Reduce Response Times • Can We Expect More ? (C)chengk@kuis.kyoto-u.ac.jp

  4. Characteristics and Implications (C)chengk@kuis.kyoto-u.ac.jp

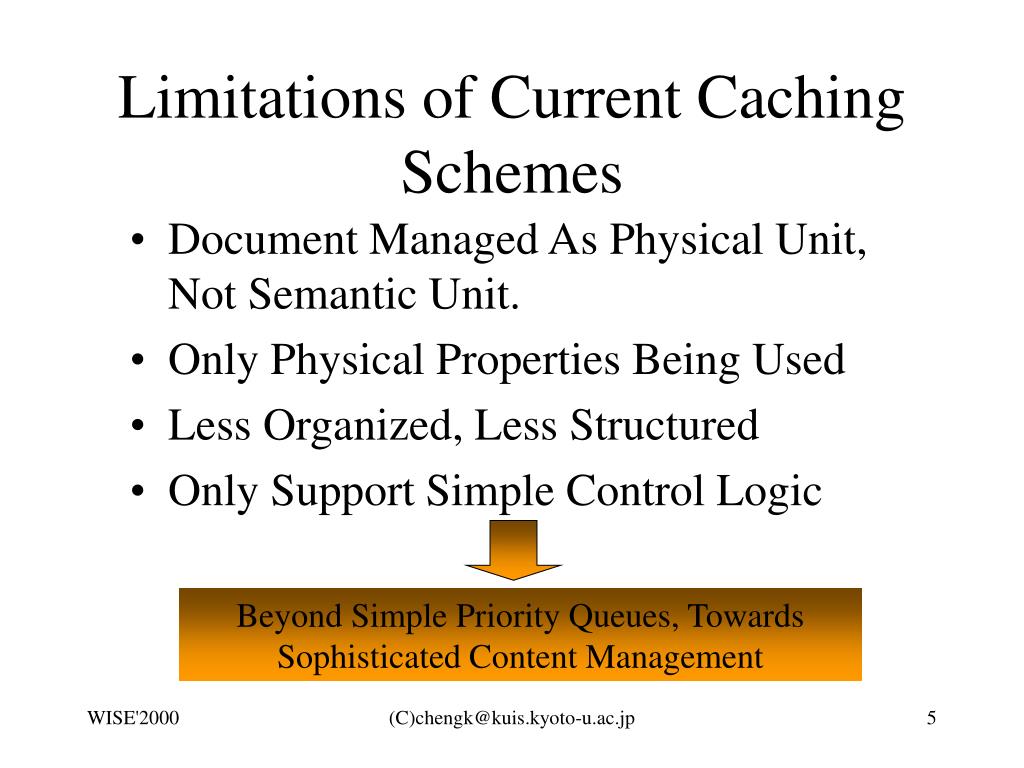

  5. Beyond Simple Priority Queues, Towards Sophisticated Content Management Limitations of Current Caching Schemes • Document Managed As Physical Unit, Not Semantic Unit. • Only Physical Properties Being Used • Less Organized, Less Structured • Only Support Simple Control Logic (C)chengk@kuis.kyoto-u.ac.jp

  6. Content Management • Basic Features • Larger Cache Space • Sophisticated Control Logic • More Challenging • Sophisticated Replacement Policies With • User-Oriented Performance Metrics • Document Managed as Semantic Unit (C)chengk@kuis.kyoto-u.ac.jp

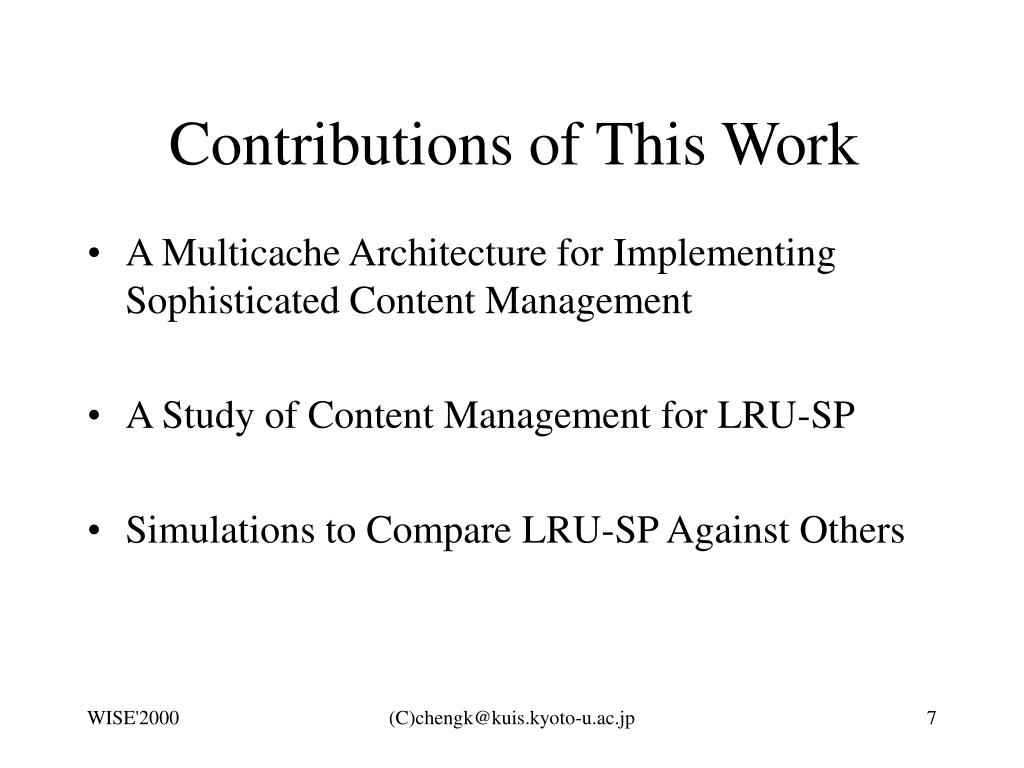

  7. Contributions of This Work • A Multicache Architecture for Implementing Sophisticated Content Management • A Study of Content Management for LRU-SP • Simulations to Compare LRU-SP Against Others (C)chengk@kuis.kyoto-u.ac.jp

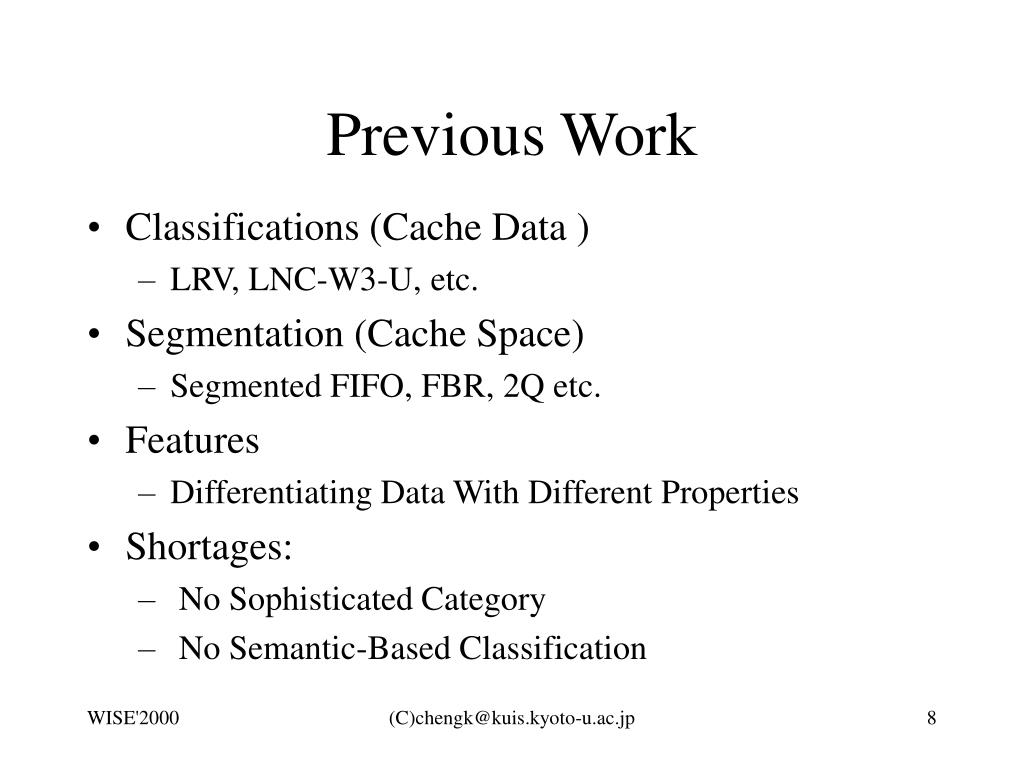

  8. Previous Work • Classifications (Cache Data ) • LRV, LNC-W3-U, etc. • Segmentation (Cache Space) • Segmented FIFO, FBR, 2Q etc. • Features • Differentiating Data With Different Properties • Shortages: • No Sophisticated Category • No Semantic-Based Classification (C)chengk@kuis.kyoto-u.ac.jp

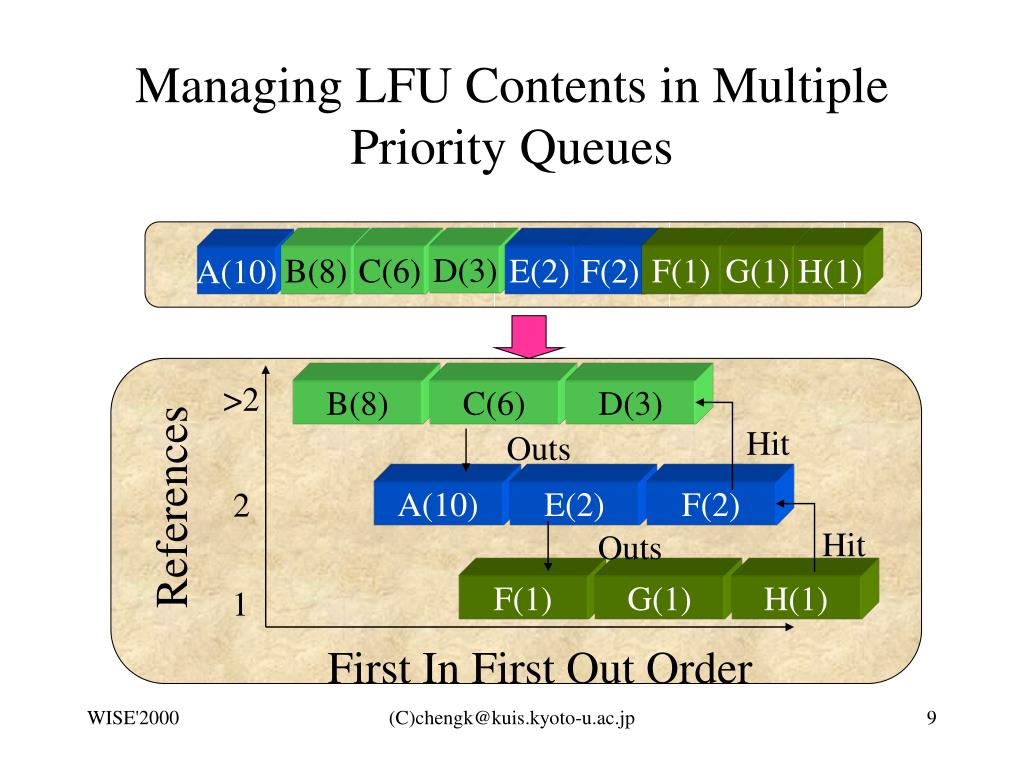

  9. >2 B(8) C(6) D(3) Hit Outs D(3) F(1) G(1) B(8) C(6) E(2) F(2) H(1) A(10) 2 References A(10) E(2) F(2) Hit Outs F(1) G(1) H(1) 1 First In First Out Order Managing LFU Contents in Multiple Priority Queues (C)chengk@kuis.kyoto-u.ac.jp

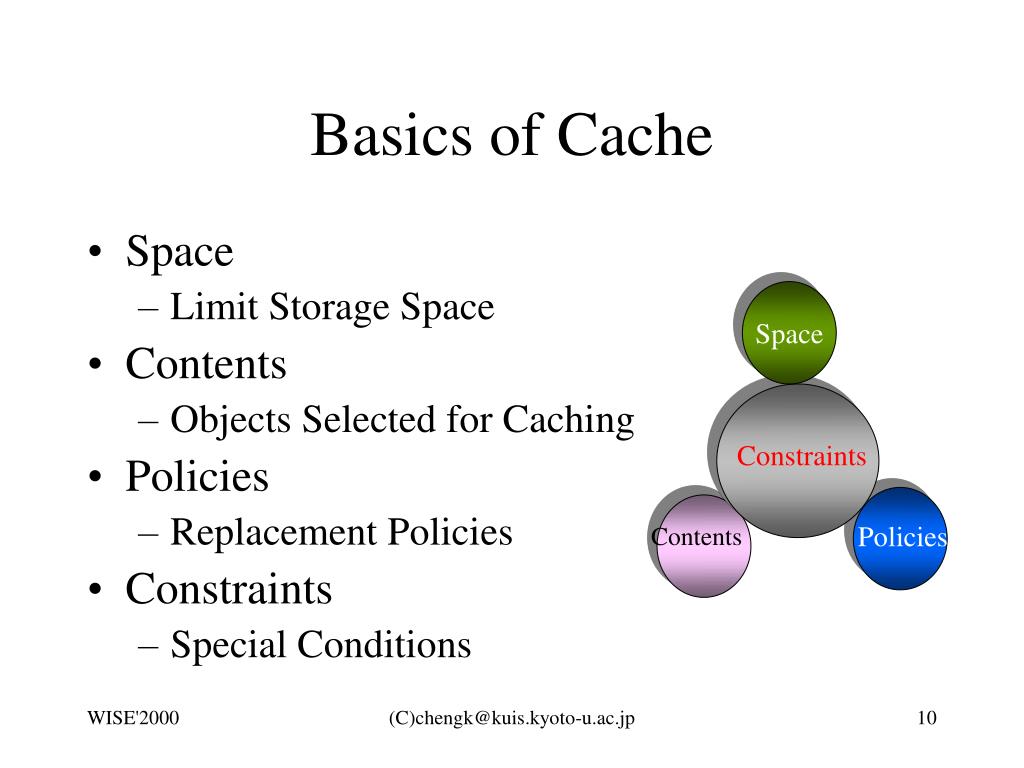

  10. Basics of Cache • Space • Limit Storage Space • Contents • Objects Selected for Caching • Policies • Replacement Policies • Constraints • Special Conditions Space Space Constraints Policies Contents (C)chengk@kuis.kyoto-u.ac.jp

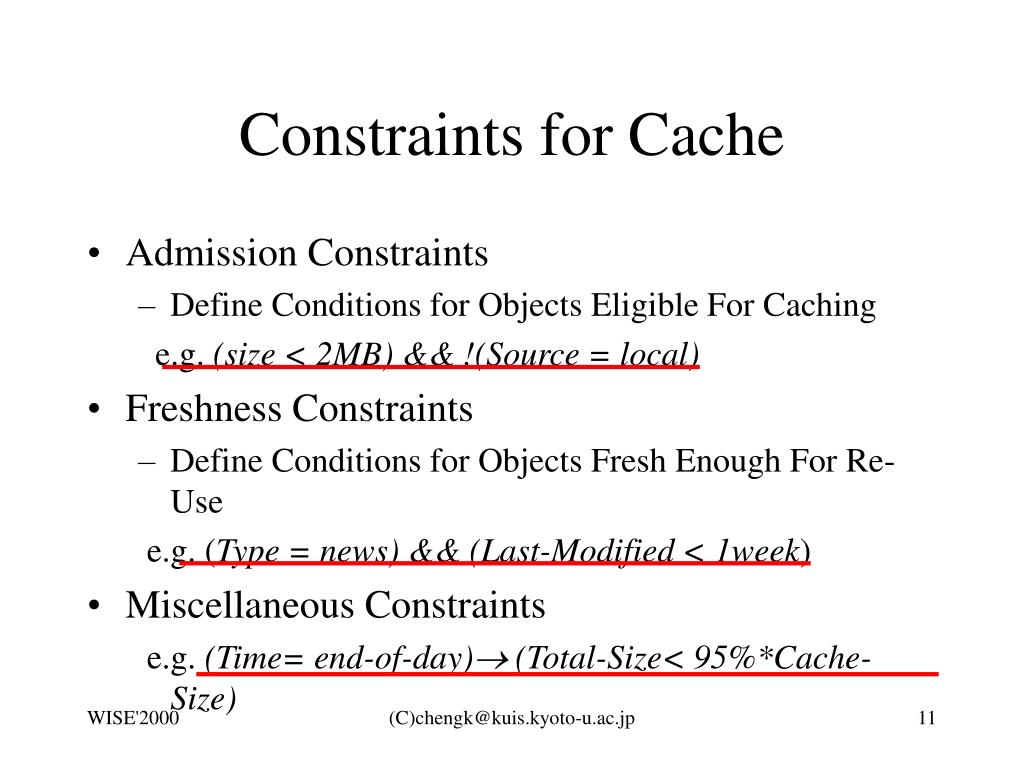

  11. Constraints for Cache • Admission Constraints • Define Conditions for Objects Eligible For Caching e.g. (size < 2MB) && !(Source = local) • Freshness Constraints • Define Conditions for Objects Fresh Enough For Re-Use e.g. (Type = news) && (Last-Modified < 1week) • Miscellaneous Constraints e.g. (Time= end-of-day) (Total-Size< 95%*Cache-Size) (C)chengk@kuis.kyoto-u.ac.jp

  12. Cache Knowledge Base Multicache Architecture Web Cache With Multiple Subcaches IN-CACHE CONSTRAINTS CENTRAL ROUTER Request/Response CKB Client WWW SUBCACHE SUBCACHE SUBCACHE JUDGE (C)chengk@kuis.kyoto-u.ac.jp

  13. Components of the Architecture • Central Router • Control and Mediate the Cache • Cache Knowledge Base (CKB) • A Set of Rule Based To Allocate Objects R1. Allocate(X, 1):-url(X, U), match(U, *.jp),content(X, baseball) • Subcaches • Keep Objects With Special Characteristics • Cache Judge • Make Final Decisions From A Set of Eviction Candidates (C)chengk@kuis.kyoto-u.ac.jp

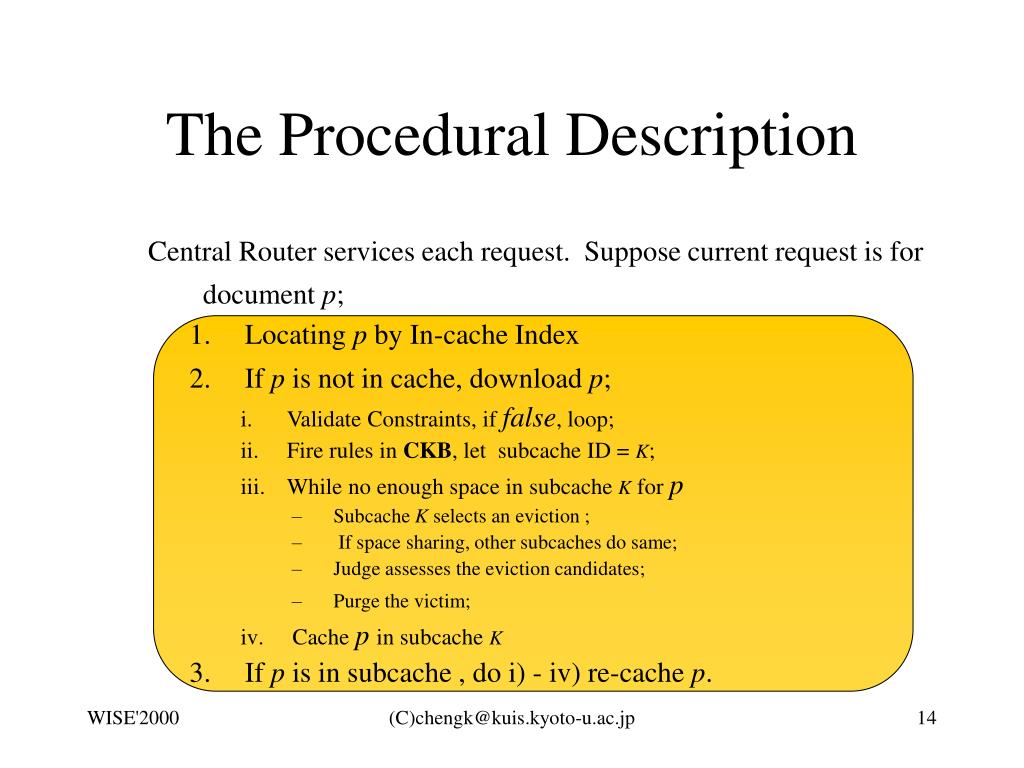

  14. The Procedural Description Central Router services each request. Suppose current request is for document p; • Locating p by In-cache Index • If p is not in cache, download p; • Validate Constraints, if false, loop; • Fire rules in CKB, let subcache ID = K; • While no enough space in subcache K for p • Subcache K selects an eviction ; • If space sharing, other subcaches do same; • Judge assesses the eviction candidates; • Purge the victim; • Cache p in subcache K • If p is in subcache , do i) - iv) re-cache p. (C)chengk@kuis.kyoto-u.ac.jp

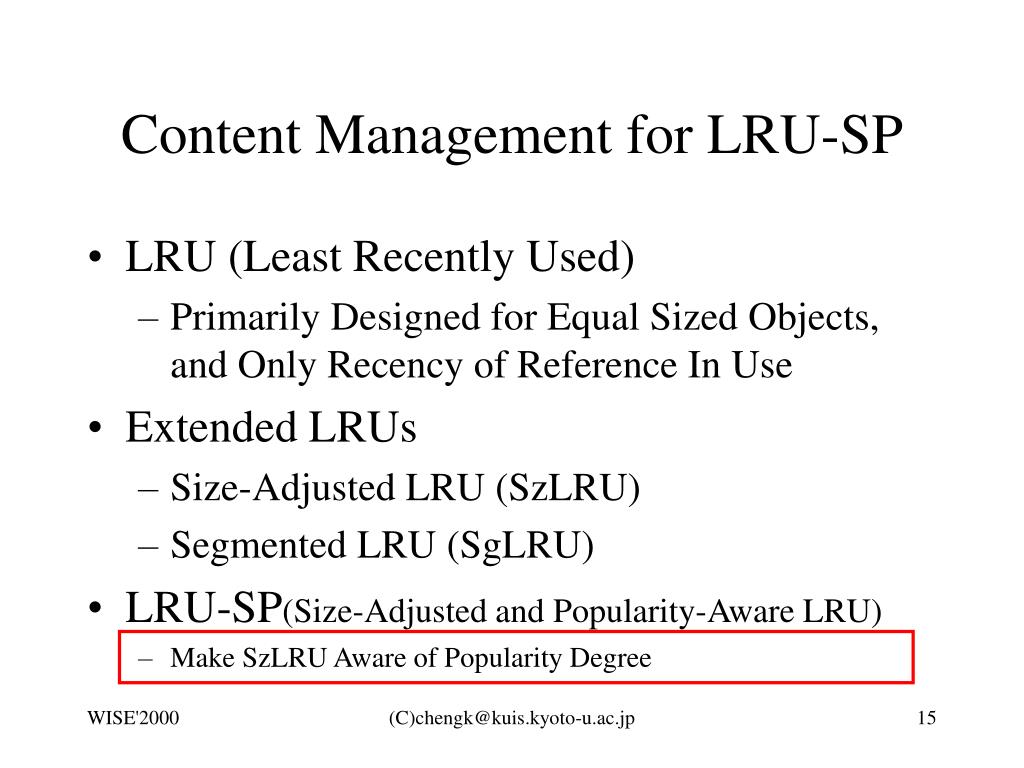

  15. Content Management for LRU-SP • LRU (Least Recently Used) • Primarily Designed for Equal Sized Objects, and Only Recency of Reference In Use • Extended LRUs • Size-Adjusted LRU (SzLRU) • Segmented LRU (SgLRU) • LRU-SP(Size-Adjusted and Popularity-Aware LRU) • Make SzLRU Aware of Popularity Degree (C)chengk@kuis.kyoto-u.ac.jp

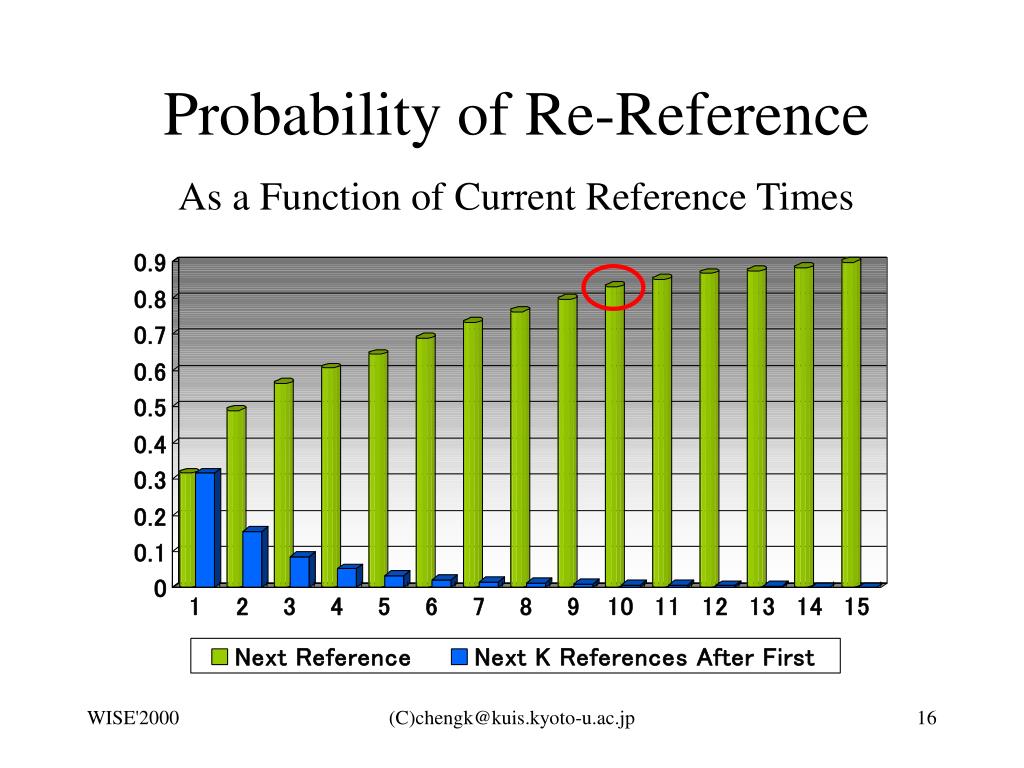

  16. Probability of Re-ReferenceAs a Function of Current Reference Times (C)chengk@kuis.kyoto-u.ac.jp

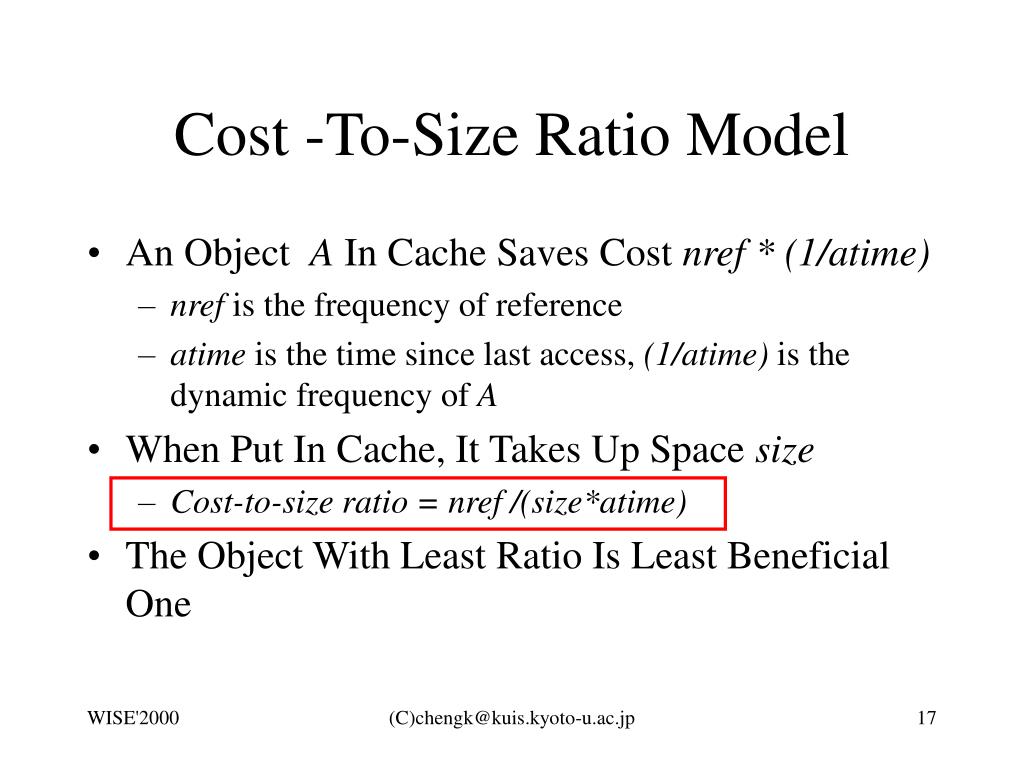

  17. Cost -To-Size Ratio Model • An Object A In Cache Saves Cost nref * (1/atime) • nref is the frequency of reference • atime is the time since last access, (1/atime) is the dynamic frequency of A • When Put In Cache, It Takes Up Space size • Cost-to-size ratio = nref /(size*atime) • The Object With Least Ratio Is Least Beneficial One (C)chengk@kuis.kyoto-u.ac.jp

  18. Content Management of LRU-SP • CKB Rule: • Allocate(X, log(size/nref)):-Size(X, size), Freq(X, nref) • Subcaches • Least Recently Used (LRU) • Judge • Find the One With Largest (size*atime)/nref • The Larger and Older and Colder, the Fast An Object Will Be Purged (C)chengk@kuis.kyoto-u.ac.jp

  19. Multicache Architecture for LRU-SP A a LRU Subcache ① B b Judge LRU Subcache ② CKB a C C c Hits A, B LRU Subcache ③ Computational Complexity O(1) (C)chengk@kuis.kyoto-u.ac.jp

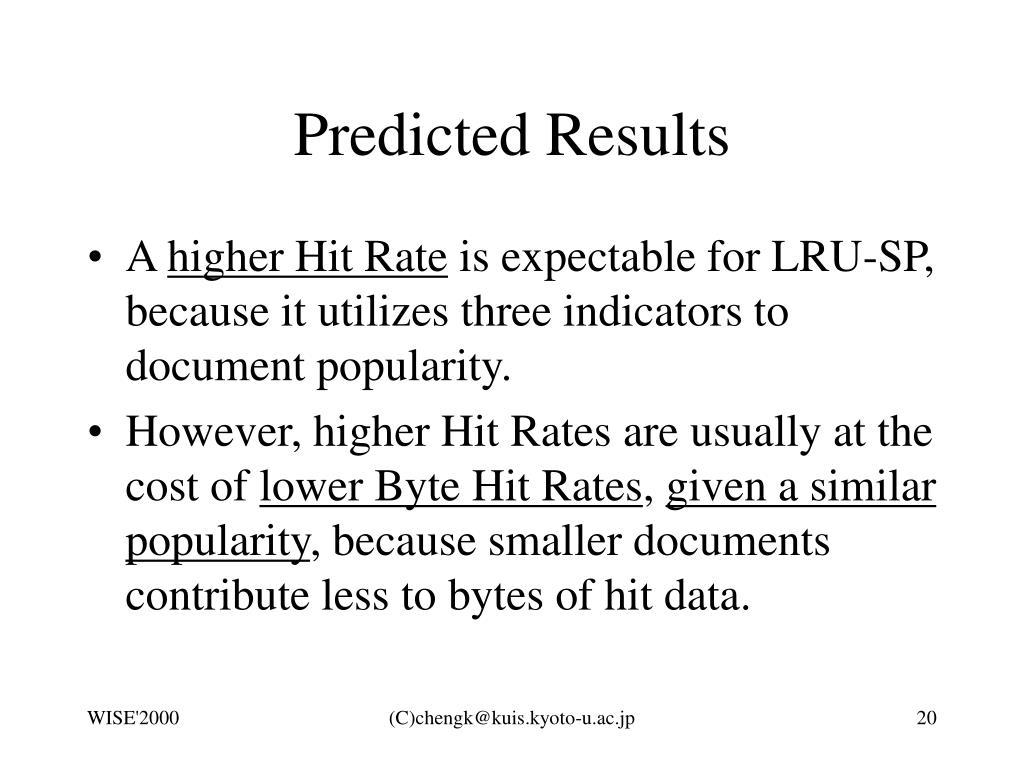

  20. Predicted Results • A higher Hit Rate is expectable for LRU-SP, because it utilizes three indicators to document popularity. • However, higher Hit Rates are usually at the cost of lower Byte Hit Rates, given a similar popularity, because smaller documents contribute less to bytes of hit data. (C)chengk@kuis.kyoto-u.ac.jp

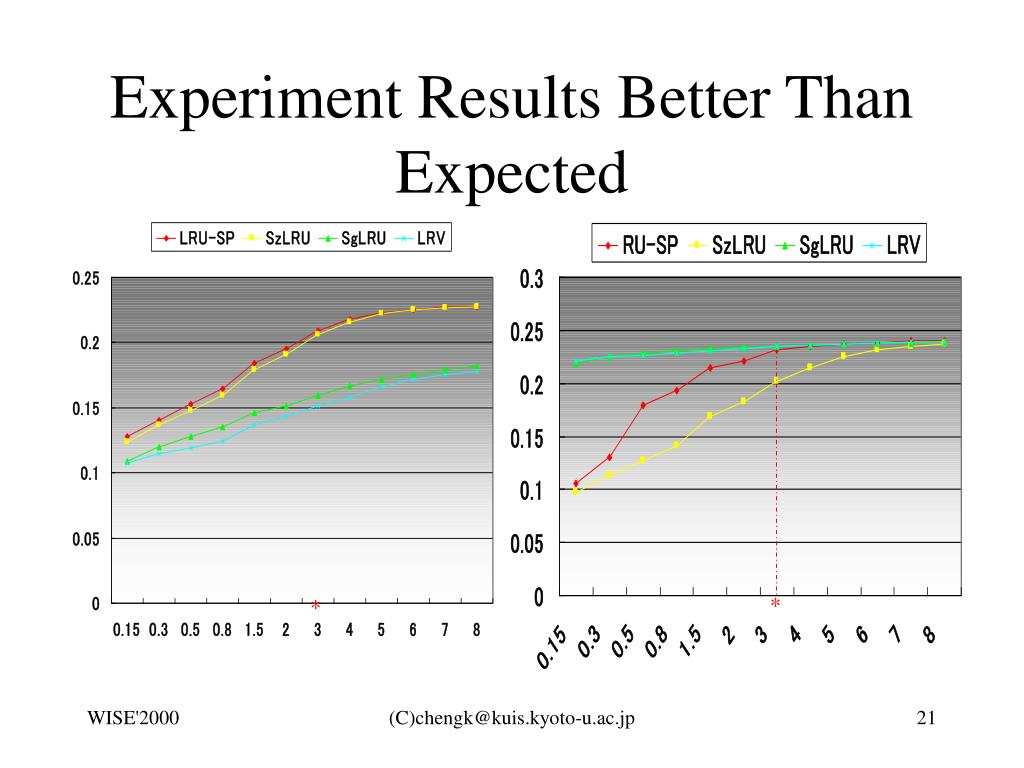

  21. Experiment Results Better Than Expected * * (C)chengk@kuis.kyoto-u.ac.jp

  22. Results & Explanations • LRU-SP really obtained a much higher Hit Rate than SzLRU, SgLRU and LRV. • LRU-SP also obtained a high Byte Hit Rate, especially when cache space exceeds 3% of total required space. • Really Popular Objects Are Saved, So Both Hit Rate and Byte Hit Rate are Improved. • LRU-SP only incurs O(1) time complexity in content management. (C)chengk@kuis.kyoto-u.ac.jp

  23. Concluding Remarks • Multicahe-Based Architecture Has Proved Well-Performed In Balancing High Performance and Low Overhead • Possible To Incorporate Semantic Information as Well as User Preference In Caching • It Can Work With General Database Systems to Support Web Information Integration. (Future Work) (C)chengk@kuis.kyoto-u.ac.jp

  24. Thank You ! And Welcome To http://www.isse.kuis.kyoto-u.ac.jp
