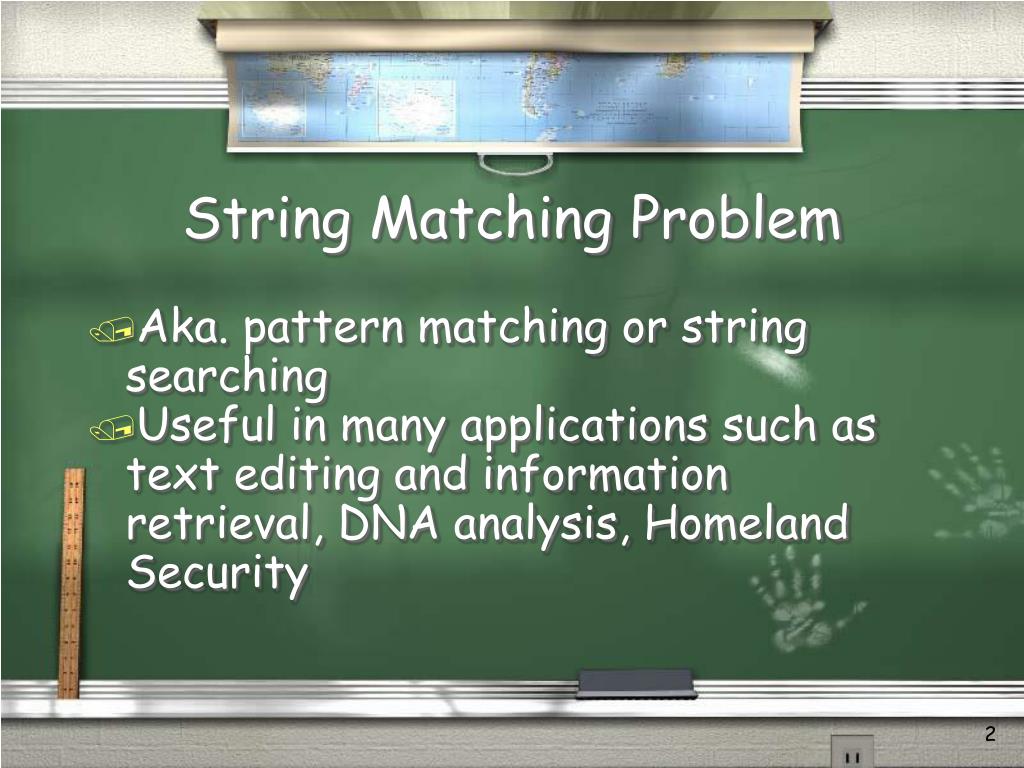

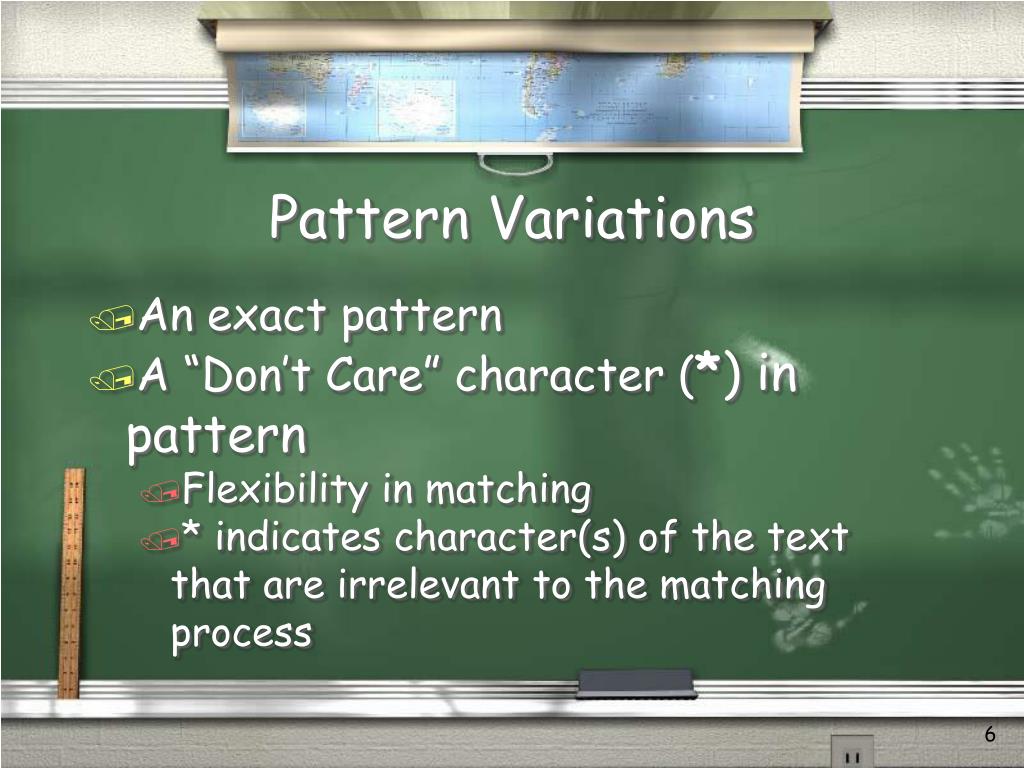

**Parallel String Matching Algorithm(s) Using Associative**Processors Original work by Mary Esenwein and Dr. Johnnie Baker Presented by Shannon Steinfadt April 18, 2007**String Matching Problem**• Aka. pattern matching or string searching • Useful in many applications such as text editing and information retrieval, DNA analysis, Homeland Security**What are we doing?**• Given a pattern and some text, find out if the pattern is IN the text • Is pattern AB in the text ABAA? If so, where? AB ABAA**What’s the notation?**• P is a pattern string of length m • T is a text string of length n, usually n ≥ m**Why use P[j]? How does it relate to T[i+j-1]?**Goal of String Matching • To find all occurrences of a pattern string in the text string • Locate all positions i in T such that T[i+j-1] = P[j] for all j, 1 ≤ j ≤ m**Pattern Variations**• An exact pattern • A “Don’t Care” character (*) in pattern • Flexibility in matching • * indicates character(s) of the text that are irrelevant to the matching process**General “Don’t Care” Character’s (*) Characteristics**• Single character of text • Multiple consecutive text characters • No characters • Combination of above three Example: • Pattern AB*CD could match ABBCD, ABBBBBCD, or ABCD (* is null)**String Matching using ASC**• Three parallel algorithms using associative computing (using 1-D mesh) • String matching for exact match • String matching with fixed length “don’t care” • I.e., exactly 1 character • String matching with variable length “don’t care” • a “don’t care” can have any length or be null**ASC Exact Match Algorithm**for (j = patt_length - 1; j >= 0; j--) { Responders are text[$] == patt_string[j] and counter[$] == patt_counter; Responders add 1 to counter[$] and store result in counter[$] of preceding cell; patt_counter++; } /* When pattern has been processed */ Responders are counter[$] == patt_length; Responders set match[$] = 1 in next cell;**Text[$]**Match[$] Counter[$] Pattern: BBA Text: ABBBABBBABA m=pattern length n=text length j = pattern index i = text index Pattern: BBA patt_ counter patt_length**Text[$] Match[$] Counter[$]**Final State of Exact Match Algorithm Pattern: BBA Text: ABBBABBBABA m = pattern length n = text length j = pattern index i = text index**Algorithm for unit length "don't cares" using ASC**for (j = patt_length - 1; j >= 0; j--) { if (pattern[j] == '*') Responders are counter[$] == patt_counter; else // pattern[j] is not the “don’t care” character Responders are text[$] == pattern[j] and counter[$] == patt_counter; If no Responders are detected, exit; Responders add 1 to counter[$] and store result in counter[$] of preceding cell; patt_counter++; } /* When pattern has been processed */ Responders are counter[$] == patt_length; Responders set match[$] = 1 in next cell;**ASC Exact Match Algorithm (again)**for (j = patt_length - 1; j >= 0; j--) { Responders are text[$] == patt_string[j] and counter[$] == patt_counter; Responders add 1 to counter[$] and store result in counter[$] of preceding cell; patt_counter++; } /* When pattern has been processed */ Responders are counter[$] == patt_length; Responders set match[$] = 1 in next cell;**Text[$]**Match[$] Counter[$] Pattern: BBA Text: ABBBABBBABA m=pattern length n=text length j = pattern index i = text index Pattern: B*A patt_ counter patt_length**Text[$] Match[$] Counter[$]**Final State of Exact Match Algorithm Pattern: B*A Text: ABBBABBBABA m = pattern length n = text length j = pattern index i = text index**VLDC Algorithm (added)**• Works on each “segment” of the pattern broken up by the * character • AB*BB*A has three sections • Consecutive ** characters not necessary, not allowed • This VLDC algorithm unique • Provides information to find all continuation points of all matches following each “*”**VLDC ALGORITHM USING ASC**int patt_length = m; int maxcell = n + 2; /* Special handling for ‘*’ at end of pattern */ if (pattern[m-1] == ‘*’) { Responders are cell index > 1; Responders set segment$[0] = 1; patt_counter = 1; k = 1; /* Reset initial segment index */ } while ((patt_length -= patt_counter) > 0 && maxcell > 0) { patt_counter = 0; for ( I = patt_length - 1; I>= 0 && pattern[I] != ‘*’; I--) { Responders are text$ == pattern[I] and counter$ == patt_counter and cell index < maxcell; Responders add 1 to counter$ and store result in counter$ of preceding cell; patt_counter++; } Responders are counter$ == patt_counter;**VLDC continued**Responders set segment$[k] = patt_counter in next cell; Responders are segment$[k] > 0; maxcell = maximum cell index value of Responders else if no Responders maxcell = 0; All cells become Responders and set counter$ = 0; patt_counter++; k++ } /* When pattern has been processed */ Responders are segment$[--k] > 0; Responders set match$ = 1; /* Special handling for ‘*’ at start of pattern */ if (pattern[0] == ‘*’) { Responders are cell index < maxcell and cell index > 1; Responders set match$ = 1; }**After third pattern segment in VLDC Algorithm**Pattern: AB*BB*A Text: ABBBABBBABA T$ M$ C$ S0$ S1$ S2$ Responder$ 1 2 Patt_counter 3 4 5 6 7 Maxcell 8 9 10 11 12**After second pattern segment in VLDC Algorithm**Pattern: AB*BB*A Text: ABBBABBBABA T$ M$ Counter$ S0$ S1$ S2$ Responder$ 1 2 Patt_counter 3 4 5 6 7 Maxcell 8 9 10 11 (Used to keep pattern segments in order, I.e. AB occurs before BB) 12**After first pattern segment in VLDC Algorithm**Pattern: AB*BB*A Text: ABBBABBBABA T$ M$ Counter$ S0$ S1$ S2$ Responder$ 1 2 Patt_counter 3 4 5 6 7 Maxcell 8 9 10 11 (Used to keep pattern segments in order, I.e. AB occurs before BB) 12**Final State in VLDC Algorithm**Pattern: AB*BB*A Text: ABBBABBBABA T$ M$ Counter$ S0$ S1$ S2$ Responder$ 1 2 Patt_counter 3 4 5 6 7 Maxcell 8 9 10 11 (Used to keep pattern segments in order, I.e. AB occurs before BB) 12**Finding All Continuation Points**• Match starts where M$ = 1 • Match to any pattern segment begins where S$[x] == segment length • i.e. where any S$[x] > 0 • Continuation of match in S$[x-1] whose cell/PE index is >= (S$[x] + segment size) of S$[x]’s cell/PE index**Using the Final State in VLDC Algorithm**Pattern: AB*BB*A Text: ABBBABBBABA S0$ S1$ S2$ T$ M$ C$ • Start with index 2, where there’s a match M$=1 • Work from S2$ down and left, count down 2 values and move into S1$, count down 2 values and move to S0$ • That produces: 246 ABBBA • Any index >= 4 in S1[$] whose value is >0 will also produce a correct match • 2710 ABBBABBBA • 2810 ABBBABBBA • Some of the additional matches are: • 2410 ABBBABBBA • 2412 ABBBABBBABA • 2812 ABBBABBBABA • 6810 ABBBA • 6812 ABBBABA 1 2 3 4 5 6 7 8 9 10 11 12**Existing Algorithms**• Sequential Algorithms • Naïve algorithm: O(mn) • Knuth, Morris, & Pratt, or Boyer-Moore: O(m+n) • Parallel Algorithms • A PRAM exact string matching: O(n) • On a reconfigurable mesh: O(1) on n(n-m+1) PEs • On a SIMD hypercube (limited to {0,1}): O(lg n) on n/lg n PEs • On a neural network: O(1) on nm PEs • ASC algorithms: O(m) time on O(n) PEs**Question to consider**• The “don’t care” character allows non-matching for an arbitrary length. This is discussed on slide 13. Instead, consider “*” to allow a non-match for two characters and make necessary changes in trace in Slide 15-16.
