Efficient String Matching for DNA Sequence Patterns Using Finite Automata

marvel avatar
marvel
11 diapositives · 289 Views · Sep 28, 2014

This document explores the applications of string matching algorithms, particularly in the context of DNA sequence analysis. It delves into the Naive Matcher approach for identifying occurrences of a pattern within a text, highlighting its time complexity and efficiency concerns. Further, we discuss the Finite Automaton method, which improves upon traditional matching techniques by minimizing rescanning of characters. This work is relevant in bioinformatics for tasks like DNA pattern searching, reconstructing sequences from fragments, and comparing genetic similarities.

#efficient string matching for dna sequence patterns using finite automata #efficient string matching for dna sequence patterns using finite automata ppt #powerpoint #presentation
Efficient String Matching for DNA Sequence Patterns Using Finite Automata - slide 1
01 / 11Efficient String Matching for DNA Sequence Patterns Using Finite Automata
1 / 17

Télécharger la présentation

Efficient String Matching for DNA Sequence Patterns Using Finite Automata
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

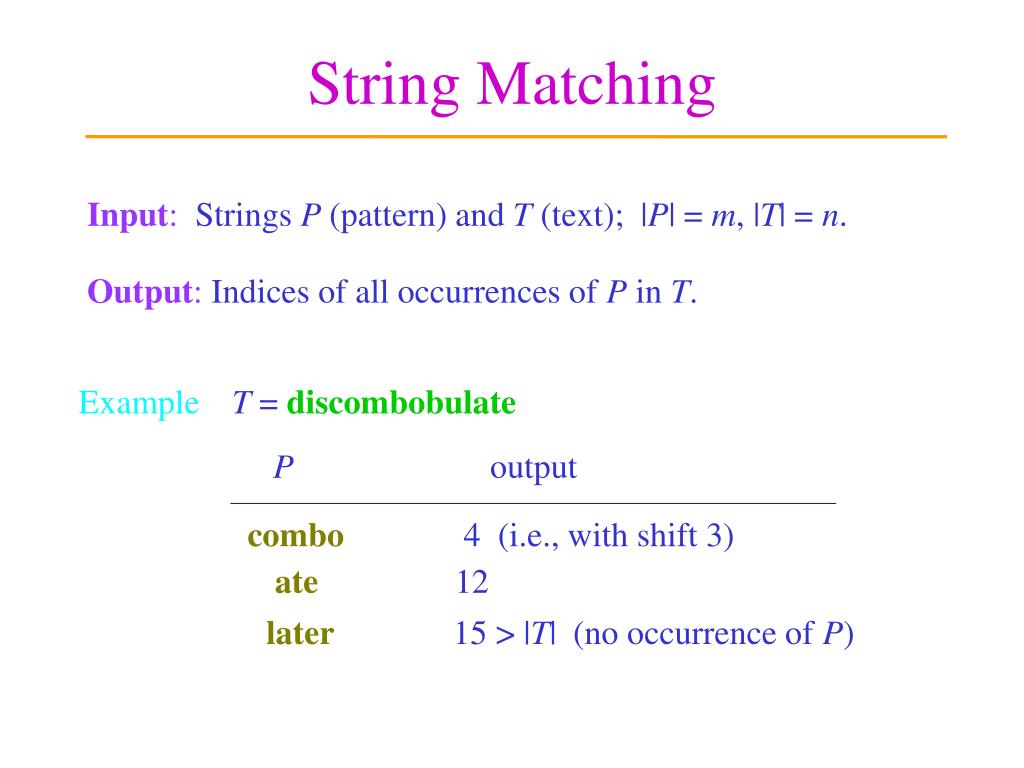

  1. String Matching Input:Strings P (pattern) and T (text); |P| = m, |T| = n. Output: Indices of all occurrences of P in T. Example T =discombobulate P output combo4 (i.e., with shift 3) ate12 later15 > |T| (no occurrence of P)

  2. Applications Text retrieval Computational biology - DNA is a one-dimensional (1-D) string of characters A’s, G’s, C’s, T’s. - All information for 3-D protein folding is contained in protein sequence itself and independent of the environment. Searching for DNA patterns Comparing two or more DNA strings for similarities Reconstructing DNA strings from overlapping fragments.

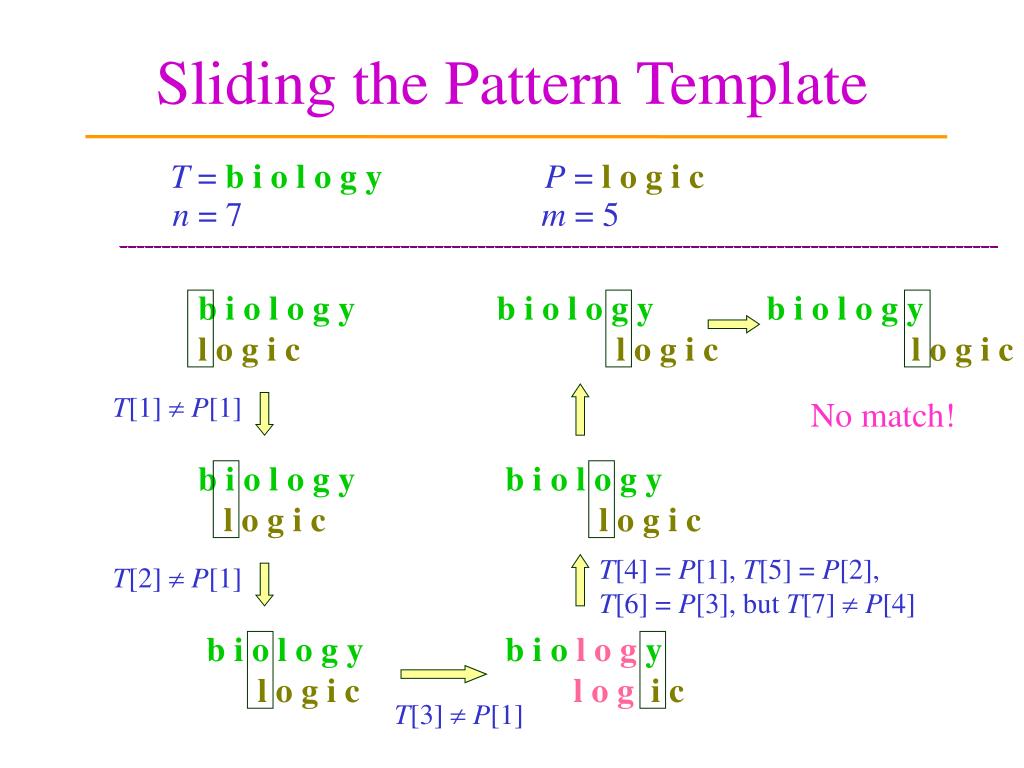

  3. Sliding the Pattern Template T =b i o l o g yP =l o g i c n = 7 m = 5 b i o l o g y l o g i c b i o l o g y l o g i c b i o l o g y l o g i c T[1]  P[1] No match! b i o l o g y l o g i c b i o l o g y l o g i c T[4] = P[1], T[5] = P[2], T[6] = P[3], but T[7]  P[4] T[2]  P[1] b i o l o g y l o g i c b i o l o g y l o g i c T[3]  P[1]

  4. Another Example T =b i o l o g i c a lP =l o g i c n = 10 m = 5 b i o l o g i c a l l o g i c Match found! return 4.

  5. The Naive Matcher Pattern: P[1..m] Text: T[1..n] Naive-String-Matcher(T, P) // find all occurrences of P in T. fors = 1 ton  m +1 do ifP[1 .. m] = T[s .. s+m1] then print “Pattern occurs at index” s T: s s+m-1 P: 1 m

  6. P T 1 2 3 n m+1 n Time Complexity m(n  m + 1) comparisons (as below) in the worst case. m chars n  m + 1 blocks, each requiring m comparisons Time complexity isO(mn)!

  7. Example a input a b b 0 1 0 0 1 state a 1 0 0 transition function b Finite Automaton Afinite automatonconsists of a finite setQof states a start state a set A of accepting states a finite input alphabet  a transition function d: Q    Q. accepting state start state

  8. Always begins at the start state. Accepts a string if it ends at an accepting state after accepting all string chars. Otherwise, it rejects the string. a b 0 1 a b Accepting a String input state sequence accepts? Yes aabba 010001 No bbabb 000100

  9. input state a b P b 1 0 a b 0 1 2 0 a a b a a 0 1 2 3 4 2 2 3 b a b 3 4 0 a a 2 0 4 b state sequence A String Matching Automaton Ex. Pattern P =a a b a aba not rescanned due to transition 42 T = a b b a a a b a a b a Pattern occurs at indices 5 and 8! 0 1 0 0 1 2 2 3 4 2 3 4

  10. Key Ideas of Automaton Matching Slide pattern forward by more than one position if possible. Do not rescan chars of T that have already been examined.

  11. 3 But computing d requiresO(m ||)!// details omitted. The Automaton Matcher Finite-Automaton-Matcher(T, d, m) n = length[T] q = 0 // current state fori = 1 ton do q = d(q, T[i]) // d function precomputed if q = m// match succeeds then print “Pattern occurs at index” i m+1 O(n)if the state transition function d is available.
