IBM – TEAM1k Detector System

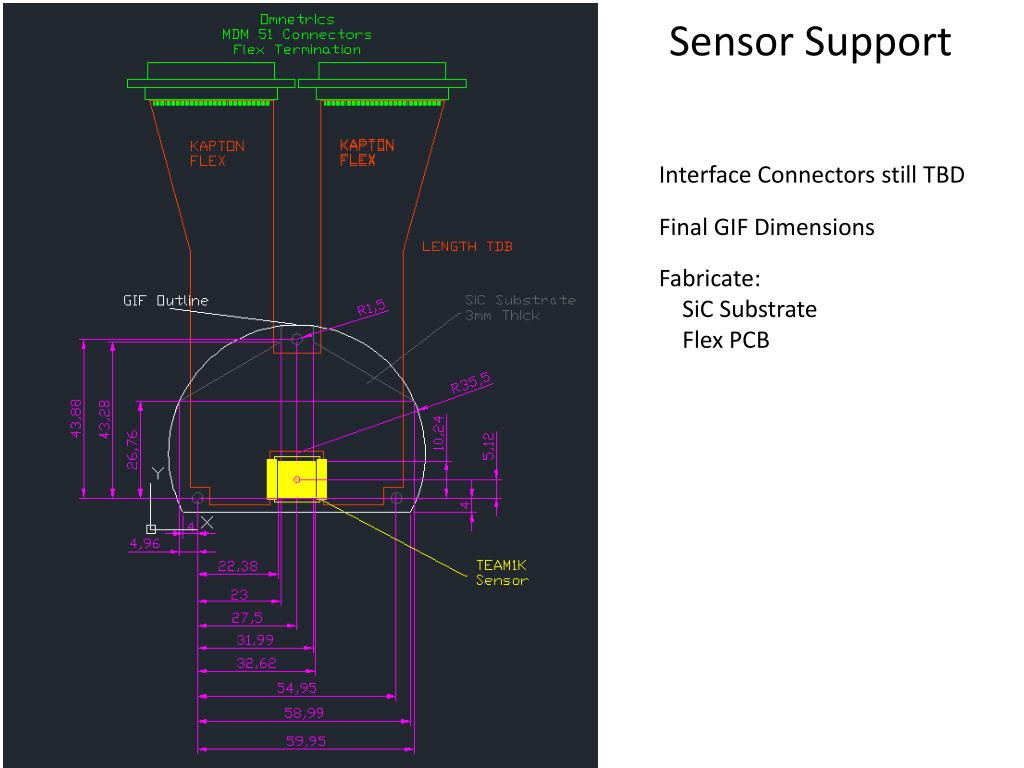

Sensor Support Interface Connectors still TBD Final GIF Dimensions Fabricate: SiC Substrate Flex PCB
Sensor Bias Board Sensor Analog I/O 3M: 51 Pin MDR Connector 8 Channels Analog Out >> DAQ 50Ohms/Coax Positronics: CBD8W8F85R50T0 8 Channels Analog Out >> DAQ 50Ohms/Coax Positronics: CBD8W8F85R50T0 Sensor Clock & Bias 3M: 51 Pin MDR Connector Control I/O >> DAQ: FCI DensiShield Connectors (3x)

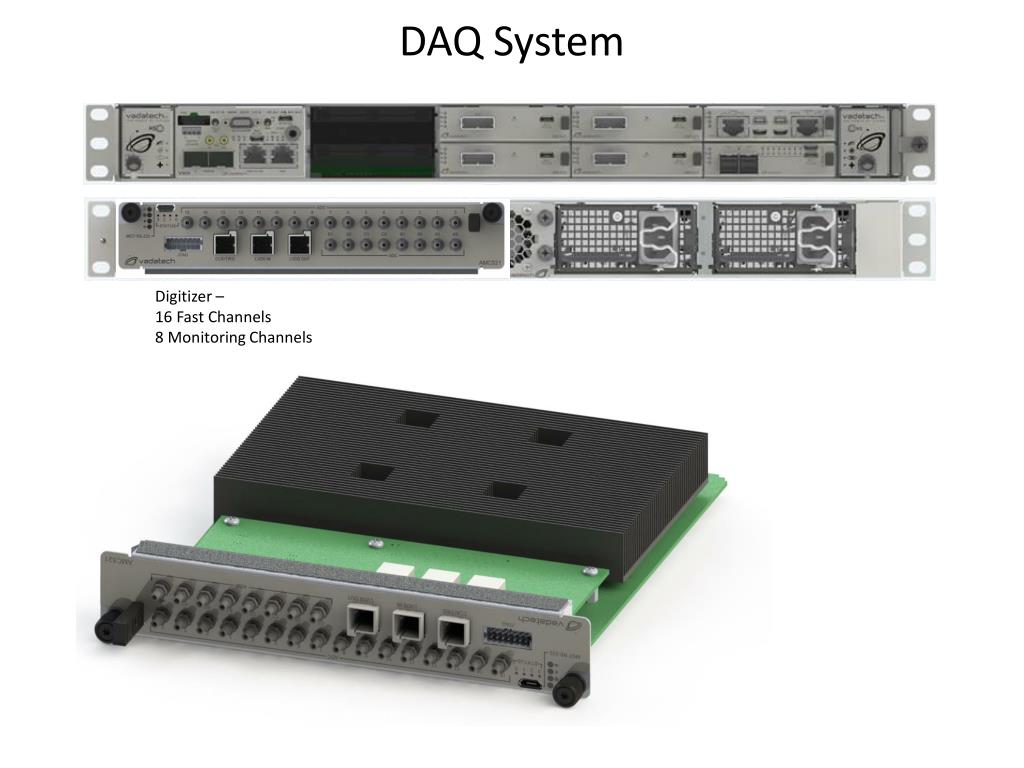

DAQ System Digitizer – 16 Fast Channels 8 Monitoring Channels
