An introduction to Binary

An introduction to Binary. Binary is the language used by computers. It uses 0 and 1 to represent different numbers. In the everyday number system we use 0 – 9 to show numbers. H T U 5 6 9

gage
Télécharger la présentation

An introduction to Binary

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. An introduction to Binary

  2. Binary is the language used by computers. It uses 0 and 1 to represent different numbers.

  3. In the everyday number system we use 0 – 9 to show numbers. H T U 5 6 9 If a number has two whole numbers to its right we know that it has a ‘hundreds’ value. In this example the ‘5’ actually represents 500. This number system is known as ‘Base 10’. Each position to the left is worth 10x more than the place to the right: H T U 100 10 1 x10 x10

  4. Binary uses ‘Base 2’. Each position to the left is worth 2x more than the place to the right: 16 8 4 2 1 x2 x2x2x2 Of course you don’t have to write in 1,2,4 etc. You just remember them like you remember HTU.

  5. How do I write numbers in binary, Binary-Bot?

  6. To write numbers in Binary you only have to be able to add. For example: If I wanted to write 9 as a Binary number I have to see which columns I can use to get to 9 16 8 4 2 1 1 0 0 1 I would put a 1 in the place that has the value of ‘8’, zeroes in the ‘4’ and ‘2’ columns and a 1 in the ‘1’ column. (1 x 8) and (1 x 1) gives me 9

  7. But couldn’t I get to 9 like this, Binary-Bot? 16 8 4 2 1 4 1 Or like this? 16 8 4 2 1 1 2 1 (1 x 4) and (2x2) and (1x1) will give me a 9!

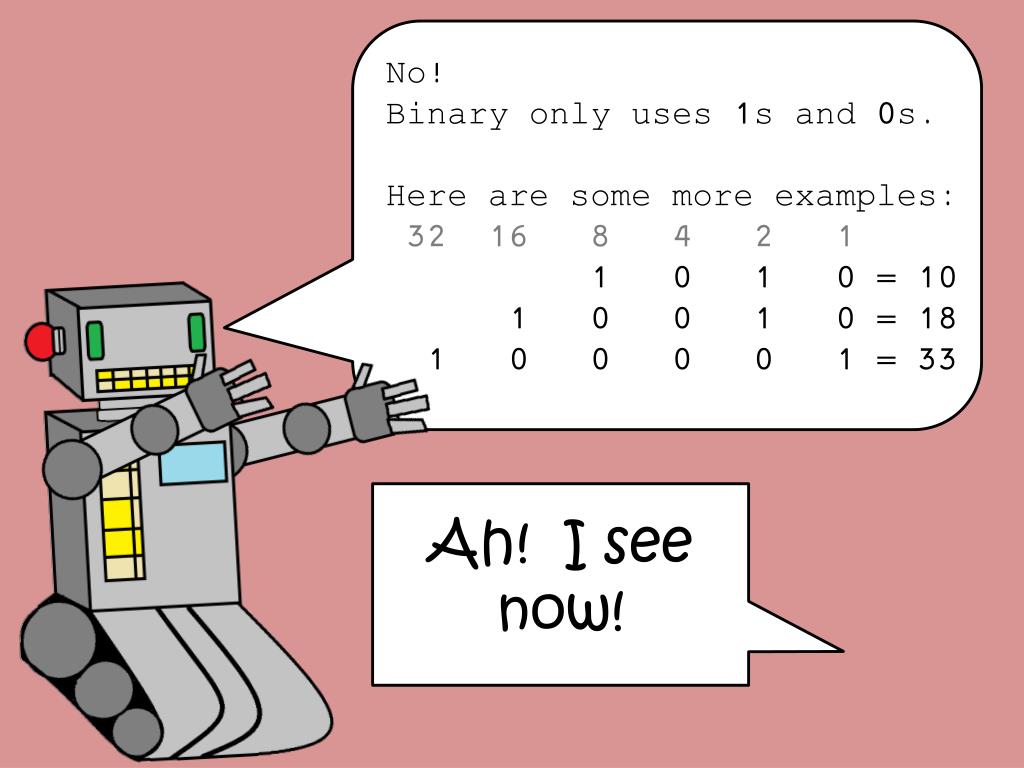

  8. No! Binary only uses 1s and 0s. Here are some more examples: 32 16 8 4 2 1 1 0 1 0 = 10 1 0 0 1 0 = 18 1 0 0 0 0 1 = 33 Ah! I see now!

  9. Here are the answers Try working out these numbers 11 1 0 1 1 0 0 0 1 1 0 1 1 0 1 0 1 1 1 1 1 1 1 0 1 0 1 0 1 0 1 1 1 Can you tell straight away which numbers will be odd? 17 22 2 63 42 23

  10. You can easily count from 1 – 10 using the base 10 system – but could you do this in Binary? Here are the first three numbers to get you started: 1 0 0 0 1 0

  11. Can you make numbers over 100 in Binary? Yes! I just need to ‘add’ another column to the left. 64 32 16 8 4 2 1 1 1 1 1 1 0 1 This would give me 125! Consider this: In the everyday way of writing numbers 125 is equal to one 100, two 10s and five 1s. In the Binary system 1111101 is equal to one 64, one 32, one 16, one 8, one 4 and one 1.

  12. That was An introduction to Binary Thanks, Binary-Bot!
