Data File Formats: netCDF

gaia avatar
gaia
11 diapositives · 365 Views · Sep 22, 2014

by Tom Whittaker University of Wisconsin-Madison SSEC/CIMSS 2009 MUG Meeting June, 2009. Data File Formats: netCDF. What it is...and is not. netCDF is a model for scientific data Variables, dimensions, attributes, coordinates netCDF is not a DBMS

Data File Formats: netCDF - slide 1
01 / 11Data File Formats: netCDF
1 / 17

Télécharger la présentation

Data File Formats: netCDF
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. by Tom Whittaker University of Wisconsin-Madison SSEC/CIMSS 2009 MUG Meeting June, 2009 Data File Formats: netCDF

  2. What it is...and is not... • netCDF is a model for scientific data • Variables, dimensions, attributes, coordinates • netCDF is not a DBMS • netCDF provides libraries for data access: • C, Fortran, C++, Java, Python, Ruby, IDL, Matlab • netCDF is not a data transmission format • netCDF is a format for portable binary data • Direct access, metadata, appending new data

  3. Brief History • Developed at Unidata beginning in 1987 • Concepts grew out of NASA Common Data Format • New Mexico Institute of Mining and Technology • SeaSpace Inc. • Version 2 released in 1999; Version 4 in 2009 • Why not HDF? • Too easy to abuse; too complex; no conventions • NASA sees the light; funds netCDF4

  4. What is important about netCDF? • It is a self-contained, self-describing file format • It is a community-driven project • Updates are always backward-compatible • It is extensible • The Community is active • Creating conventions for structure • Testing and making suggestions

  5. netCDF Data Model • Variables: name, shape (list of Dimensions), type, Attributes, values • Dimensions: name, length • Attributes: name, type, value(s) • Coordinate Variables: values associated with Dimensions

  6. Supported File Formats • One API for all these: • NetCDF3 (“classic”), netCDF4 • HDF5, HDF4, HDF5-EOS, HDF-EOS • OpenDAP, GRIB1 and GRIB2, GINI • GEMPAK, DMSP, NEXRAD (level 2 & 3) • ADDE, BURF, GTOPO, McIDAS AREA • TDWR, URF, USPLN and NLDN

  7. Conventions.....not “standards” • Many, for our varied data • NUWG (1992) – observations • RAF – aircraft • CDC – gridded data • COARDS (1995) – grids • CF (now....) - grids, etc. • Why? • Sharing data, writing applications • Software is NOT omnipotent!

  8. ....a word about Units • International “standards” for Units • I say “deg_C” • You say “C” • I think you mean Coulombs.......... • UDUNITS package provides definitions and ways to combine units • McIDAS-V (via the VisAD library) enforces legitimate combinations of parameters based on their units • e.g., cannot add a temperature to a pressure....

  9. CF Conventions • CF literally means “Climate and Forecast” • Mostly designed for gridded data • Good documentation available on-line • Defines structure • e.g., use of Coordinate variables to describe data variables • McIDAS-V has a few “requirements” • e.g., Time • What about satellite data? • Conventions in the CF-style being developed

  10. What if..... • ....I cannot read my data? • Check for CF compliance • Use netCDF Tools to check variables, etc. • Use NCML to fix things up • ....I have one file per time, but want to animate? • For some, use the formula • For others, use NCML aggregation • ....I do not know what to do... • Write the Help Desk

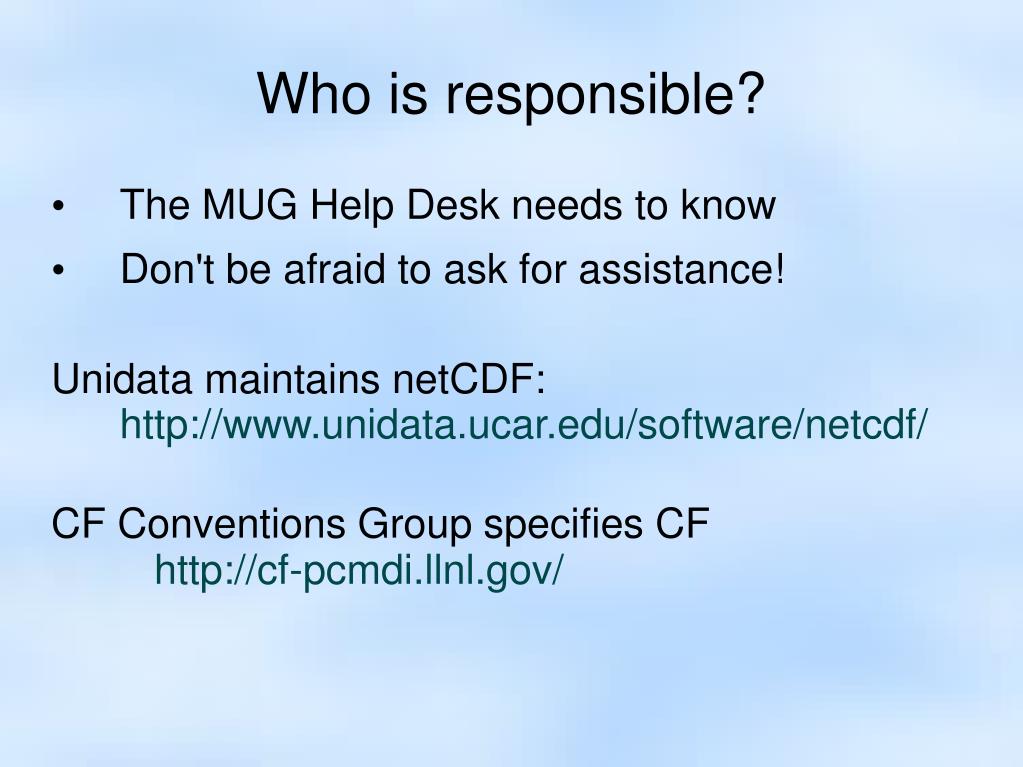

  11. Who is responsible? • The MUG Help Desk needs to know • Don't be afraid to ask for assistance! Unidata maintains netCDF:http://www.unidata.ucar.edu/software/netcdf/ CF Conventions Group specifies CFhttp://cf-pcmdi.llnl.gov/
