  1. DOT/PF INCIDENT RESPONSE FLOOD MAY 09 DISASTER EVENT SITREP (Situation Report) WASHTO Committee on Maintenance

  2. Eagle/Yukon River Ice Jam EAGLE/ YUKON RIVER ICE JAM/ FLOOD MAY 09 DISASTER EVENT

  3. Where in the World is Eagle

  4. City and Village of Eagle • Established in 1897 during the Klondike Gold Rush • Eagle population is approximately 140 • Eagle Village pop is approximately 70 • Eagle is a National Historic Landmark EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  5. Eagle Before the Flood

  6. Eagle Before the Flood

  7. Eagle Before the Flood

  8. The Flood/Ice Dam • A long cold winter combined with higher than usual snow pack (up to 150% of normal), higher than usual ice formation on the river (up to 140% of normal) and several days of unseasonably warm weather, which caused rapid melting and ice movement downstream on the Yukon

  9. The Flood

  10. Flood Photos EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT SITREP 05.11.09 - 2-

  11. Flood Photos Before After

  12. Flood Photos Before After

  13. Flood Photos Before After

  14. SITUATIONDESCRIPTION EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  15. DamagePHOTOS EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  16. Damage Photos

  17. Damage Photos

  18. DamagePHOTOS EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  19. DamagePHOTOS EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  20. Damage Photos

  21. DamagePHOTOS EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  22. DamagePHOTOS EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

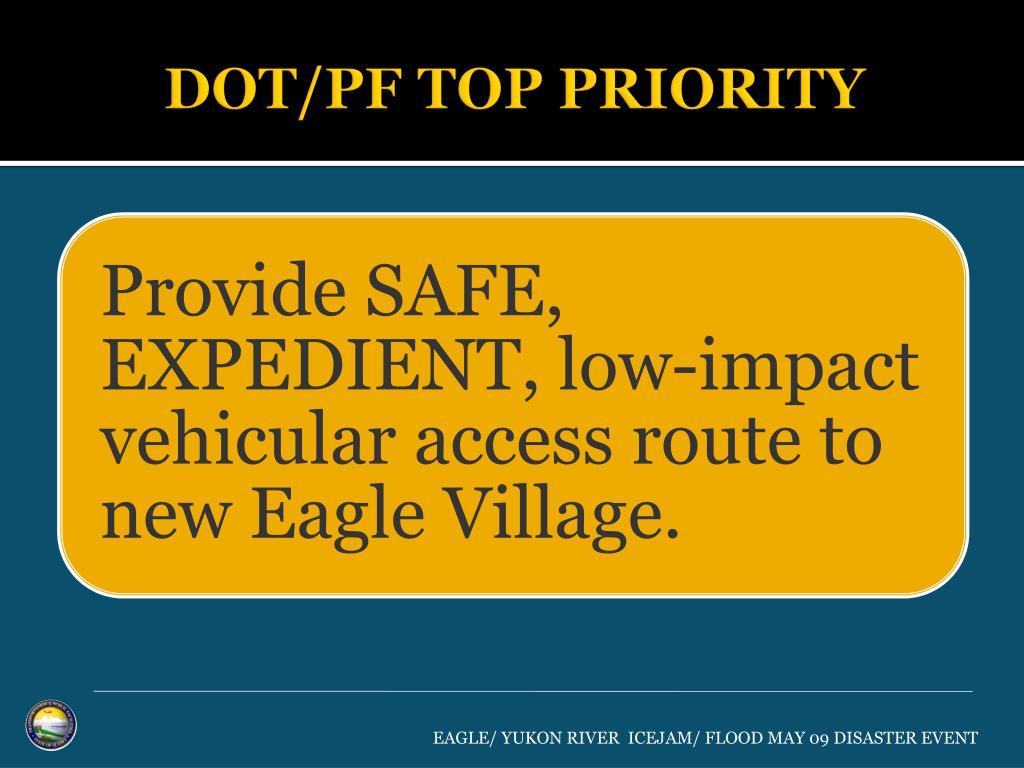

  23. DOT/PF TOP PRIORITY EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

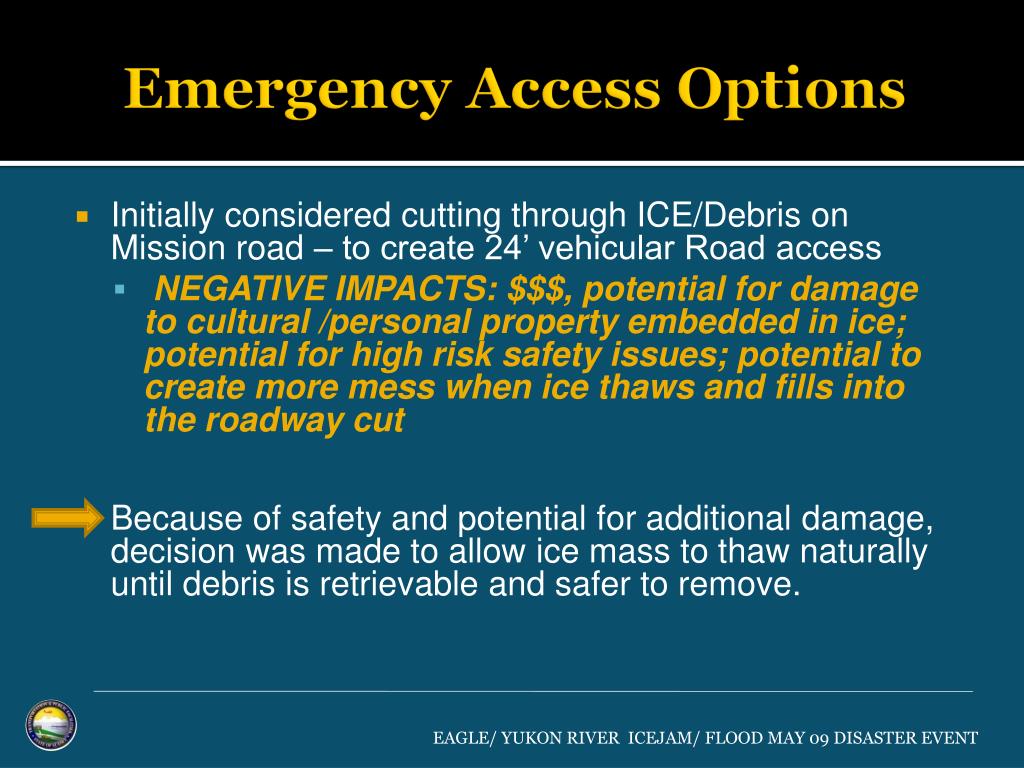

  24. Emergency Access Options • Initially considered cutting through ICE/Debris on Mission road – to create 24’ vehicular Road access • NEGATIVE IMPACTS: $$$, potential for damage to cultural /personal property embedded in ice; potential for high risk safety issues; potential to create more mess when ice thaws and fills into the roadway cut • Because of safety and potential for additional damage, decision was made to allow ice mass to thaw naturally until debris is retrievable and safer to remove. EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  25. Considerations in planning alternate temp Vehicular route • Looked at temp detours/alt routes for pre-fab road mat system which would lay down with minimal ground prep and min ground disturbance to wetlands. • 2 viable routes: • Existing 4-wheeler trail that was being used, passable at the time only by 6-whlrs since it was getting more saturated daily due to high use and thawing ground. Trail was also very curvy and with lots of hills and dips • Preferred Option: Straight route determined along a survey line cut from east end of airport straight through to mission rd just south of village EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  26. Mission Road proposed temporary by-pass EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  27. The Ice Field

  28. Detour Route • 5.21 MAINLINE Completed with all mat quantities installed. • 400 Durabase (composite material interlocking semi-flexible) • 200 MudMats (cordura-like fabric with sandwiched bamboo poles), Eventually OVERLAYED w/ DuraBase mats • 100 Carolina (rigid wooden type) – also decided to replace these on the mainline with Durabase. EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  29. mudmats EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  30. Mudmats • ISSUES with Mudmats: bamboo “reinforcement poles” bend and break even after pickup truck driving over it; bicyclists cannot drive on it;, water is seeping through the fabric. Project was reluctant to allow trucks and heavy equipment to drive over mudmats.

  31. Carolina Mats • ISSUES w Carolina mats: many of them shift quite noticeably and need heavy equipment to adjust after several passes of heavy vehicle traffic. Very rigid, do not flex to meet end to end without need for shims of lumber to bridge.

  32. Durabase Mats EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT SITREP

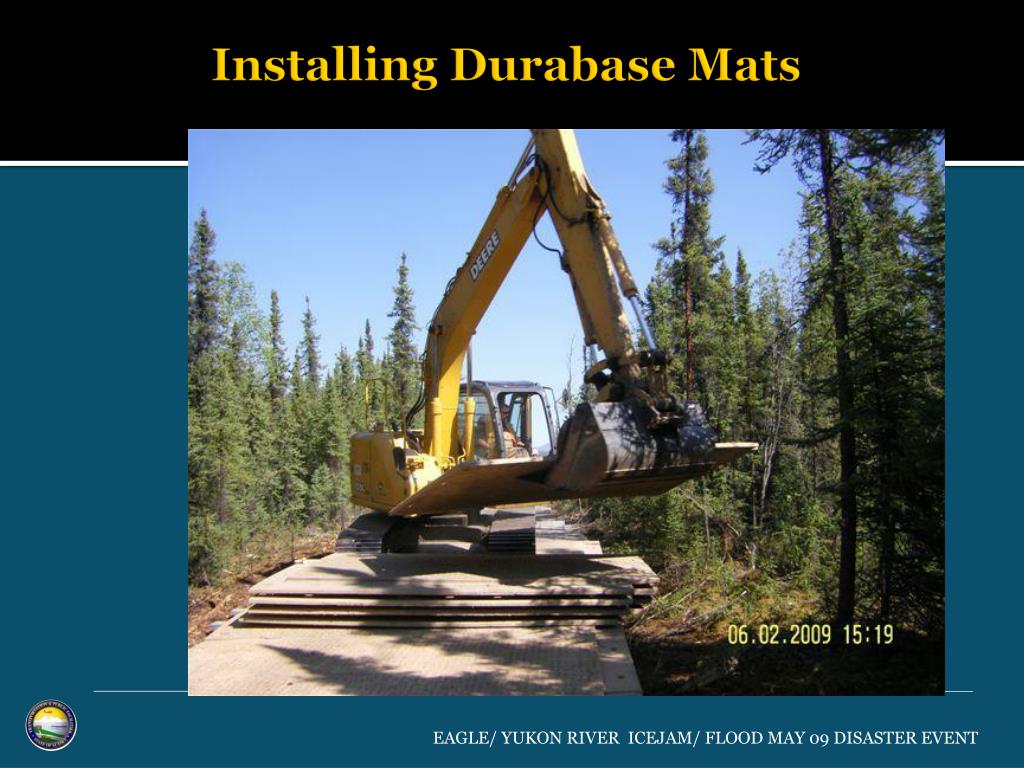

  33. Installing Durabase Mats EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  34. Durabase Mats EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT SITREP

  35. EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  36. Mission Rd temp by-pass EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  37. Mission Rd temp by-pass EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  38. Mission Rd temp by-pass EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  39. Next Step - Debris Removal • Debris removal contract and Rd repair contract with 5 day bid period (6/5) • Contractor started work 6/13 • ADEC provided Term-Contractor for Hazmat removal • Worked with ADEC /DNR/SECC and City to locate debris storage site. EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT

  40. Debris/Ice Removal EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT SITREP

  41. Completed Repairs EAGLE/ YUKON RIVER ICEJAM/ FLOOD MAY 09 DISASTER EVENT SITREP

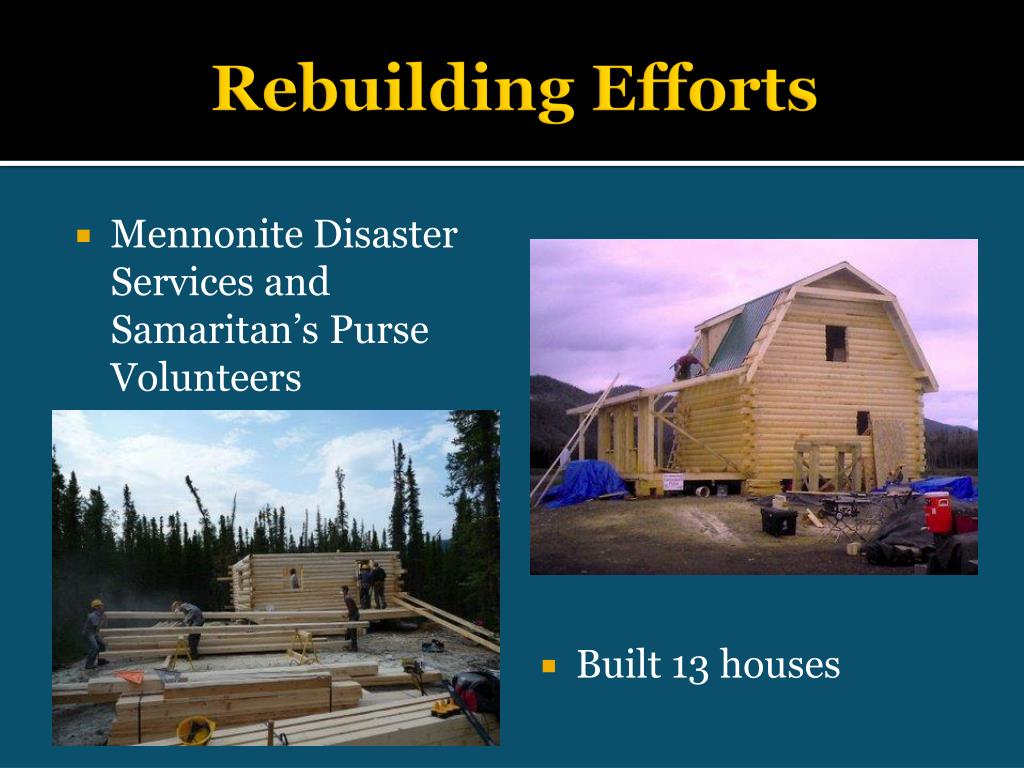

  42. Rebuilding Efforts • Mennonite Disaster Services and Samaritan’s Purse Volunteers • Built 13 houses

  43. Rebuilding Efforts • Eagle and 3 other villages had an immediate need for 8000 lbs of dog food per week
