  1. MONSOON RAINS DEVASTATION IN SINDH (Dated: 13th SEPTEMBER, 2011) PROVINCIAL DISASTER MANAGEMENT AUTHORITY

  2. Sindh Rainfall

  3. Sindh Rainfall (July – August) July August First Spell of Monsoon July – August

  4. Sindh Rainfall (August – Sept) Rainfall in mm 30 August – 12 September

  5. Sindh Rain and Cloud Burst 13 September Satellite imagery – Pakistan Met Department Rain may continue for 5 more days

  6. Sindh LBOD

  7. Sindh Displacement, Damages & losses

  8. Persons Affected: 5,355,441

  9. Relief Camps Relief Camps: 2154 Male: 81,404 Female: 78,665 Children: 140,978 Total Population: 301,047 Population in Camps by District No of Camps by District

  10. Relief Camps in Schools

  11. Houses Damaged: 1,190,454

  12. Partially: 412,379 Fully: 423,773 Total Houses Damaged: 1,191,102

  13. No. of Villages Affected: 29,120

  14. Total Persons Died: 218

  15. Persons Injured: 497

  16. Area Affected (Acres):4,499,927

  17. CROP AREA Damaged(Acres):1,595,052:

  18. Area Affected vs Crop Area Damaged

  19. CROP Damages As of 7th September 2011 Source: Agriculture Department

  20. Cotton : 52 %

  21. Rice: 22 %

  22. Sugarcane: 21 %

  23. Kharif Vegetables: 78 %

  24. CROP PERCENTAGE AFFECTED DISTRICT WISE As of 7th Sept 2011

  25. IRRIGATION

  26. RAIN DEVASTATION 2011 IN SINDH Recorded rainfall since 12-08-2011 to-date from 350 – 875 mm (14” – 35”) in various Districts of Sindh (aggregate). The current rains devastated mainly Districts, Tharparkar, Badin, Shaheed Benazirabad, Mirpurkhas, Tando Mohammad Khan, Tando Allahyar, Badin, Khairpur & generally other Districts of Sindh. Flushing of Rain water into Drainage System beyond it’s capacity (LBOD more than 18000 against designed discharge of 4000 cusecs). 1

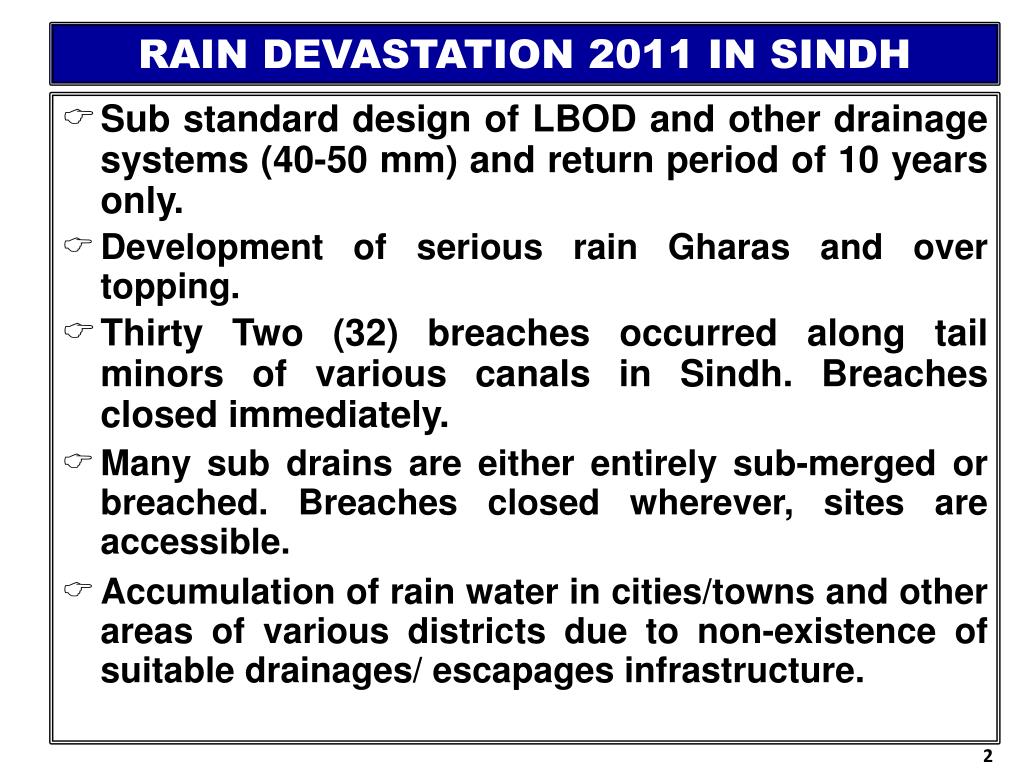

  27. Sub standard design of LBOD and other drainage systems (40-50 mm) and return period of 10 years only. Development of serious rain Gharas and over topping. Thirty Two (32) breaches occurred along tail minors of various canals in Sindh. Breaches closed immediately. Many sub drains are either entirely sub-merged or breached. Breaches closed wherever, sites are accessible. Accumulation of rain water in cities/towns and other areas of various districts due to non-existence of suitable drainages/ escapages infrastructure. RAIN DEVASTATION 2011 IN SINDH 2

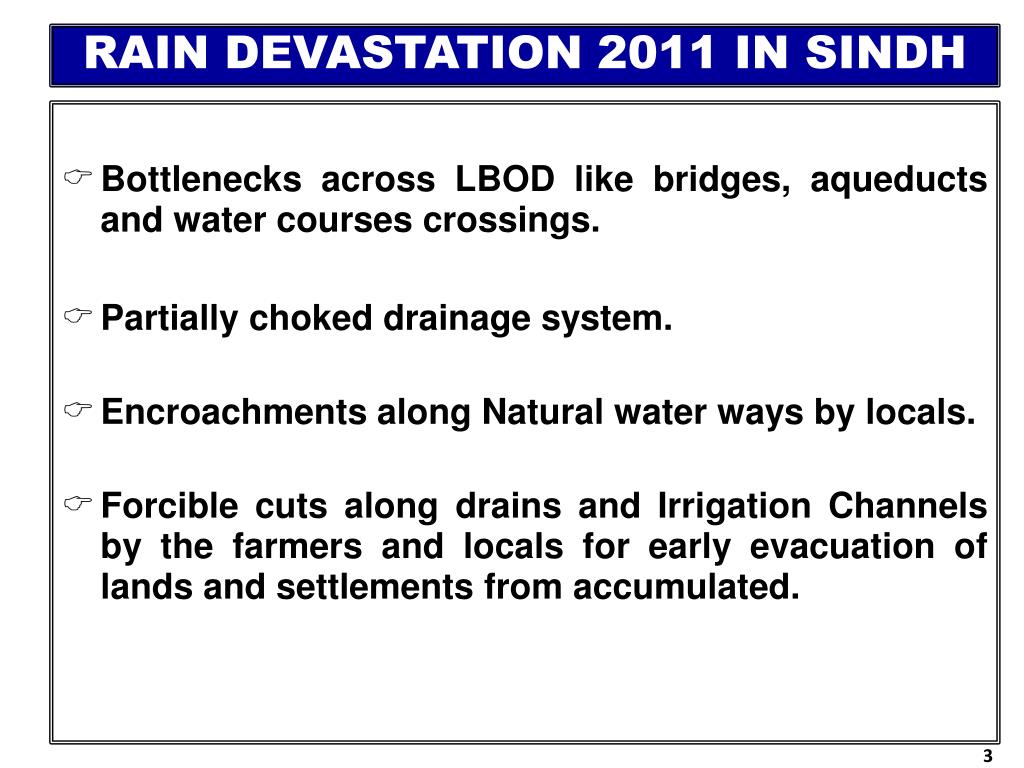

  28. Bottlenecks across LBOD like bridges, aqueducts and water courses crossings. Partially choked drainage system. Encroachments along Natural water ways by locals. Forcible cuts along drains and Irrigation Channels by the farmers and locals for early evacuation of lands and settlements from accumulated. RAIN DEVASTATION 2011 IN SINDH 3

  29. Shikarpur • Shahdadkot LBOD MAP • Sukkur • Nara Western Canal • Sukkur Barrage • Rice Canal • Qambar • Khairpur Feeder West • Khairpur • SALIENT FEATURES • Spinal Drain : 210 KM • KPOD/DPOD : 99 KM • Tidal Link : 43 KM • Surface Drains : 1666 KM • Drainage Wells : 1673 Nos. • Tile/Interceptor Dr: : 1795 KM • Chotiari Reservoir : 0.71 maf • Benefited Area : 1.270 M.A • Project Cost : Rs.33.44 Bill: • Commencement : July 1986 • Completion : Dec, 2002 • Larkana • Rohri Canal • Khairpur Feeder East • Dadu Canal • Khairpur N.S • Kandiaro • Eastern Nara Canal • Nasrat Canal • Moro • Dadu • Jamrao Head Works • Baffle Chute Structure • Sehwan • CHOTIARI • RESERVIOR • NAWABSHAH • Manchar Lake • SANGHAR • Sakrand • River Induus • Hala • Mithrao Canal • Tando Adam • Nara Canal • MIRPURKHAS • Kotri Barrage • Umerkot • Hyderabad • Tando Allahyar • Kalri Baghar Feeder • SPINAL DRAIN • Lined Channel • Digri Mirpurkhas Main Drain • T.M khan • Karachi • Fuleli Canal • Kinjar Lake 26 kms • Matli • Pinyari Feeder Off Take RD 303 Nabisar Depression Kadhan Pateji Outfall Drain • Thatta • Badin RD 159 RD 0+0 RD 21+0 • Mirpur Sakro • Dhoro Puran Outfall Drain • Jati RD 0+0 • Shakoor Dhand RD 154 • Shah • TIDAL LINK 4 • Rann of Kutch

  30. COMPONENTS OF LBOD SYSTEM 5

  31. DETAILS OF DRAINAGE SYSTEM 6

  32. Through suitable route into River Indus or local depressions. Through existing drainage system immediately after receding of LBOD @ normal gauges. Through irrigation infrastructure when there shall be demand of water by growers for their cultivation. STRATEGY FOR EVACUATION OF RAIN WATER 7

  33. AREAS UNDER INUNDATION UPTO 12-09-2011 IN VARIOUS DISTRICTS 8

  34. 10

  35. 11

  36. 12

  37. MEASURES TAKEN BY THE DEPARTMENT On the receipt of weather warning, all main canals are completely closed on 28th August, 2011 on emergency basis. Adequate machinery and labour has been deployed along entire Drainage system and F.P Bund being concern areas. Section-144 is imposed by concerned District Administrations to not allow any unauthorized cut in main canals and drains by locals. 13

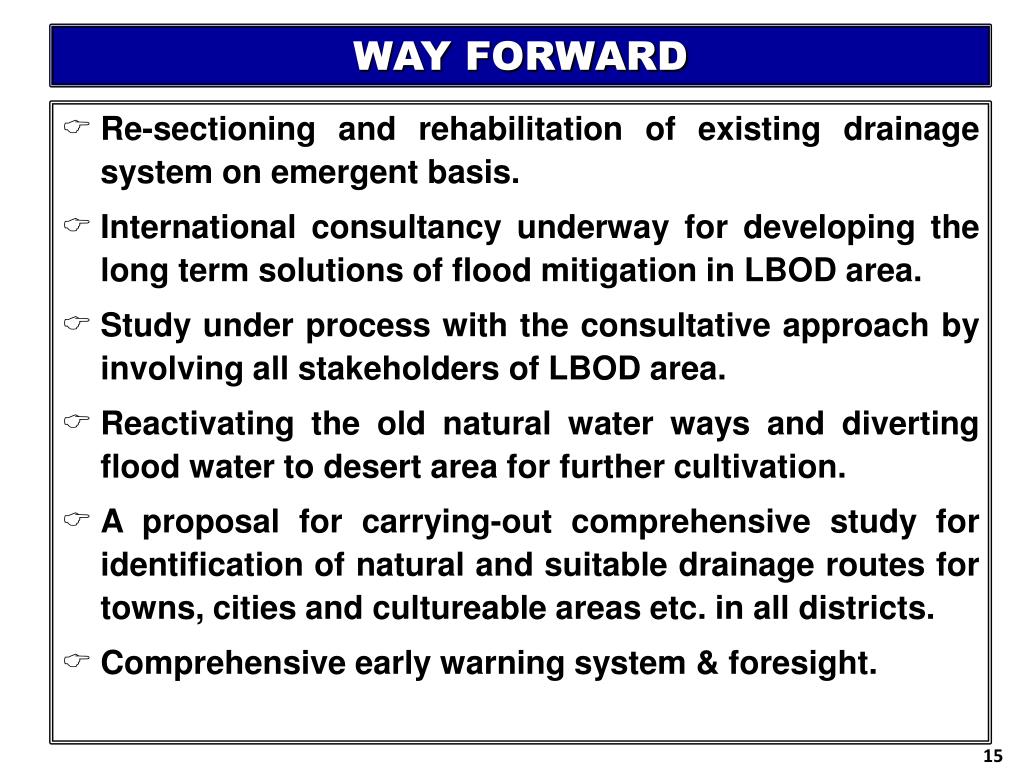

  38. WAY FORWARD Re-sectioning and rehabilitation of existing drainage system on emergent basis. International consultancy underway for developing the long term solutions of flood mitigation in LBOD area. Study under process with the consultative approach by involving all stakeholders of LBOD area. Reactivating the old natural water ways and diverting flood water to desert area for further cultivation. A proposal for carrying-out comprehensive study for identification of natural and suitable drainage routes for towns, cities and cultureable areas etc. in all districts. Comprehensive early warning system & foresight. 15

  39. STEPS TAKEN

  40. Steps taken • In order to assess and evaluate the preparedness status, the Chief Minister chaired a meeting of all the concerned on 28th August to give directions to the overall effort • In consequence to weather advisories, instructions issued to districts as well as stakeholders for preemptive measures • KESC / HESCO / SEPCO/ instructed to provide uninterrupted power supply for the pumping stations to enable quick drainage of rain water; secure transmission lines; prompt action in case electrocution • KWSB / WASA / TMAs instructed to ensure clean passage for drainage of water and clear sewerage lines.

  41. Steps taken-cont’d • Health: All formations of Heath Department engaged for provision of emergencies health cover • Education Dept: All leaves cancelled. School put on stand-by for use as shelter • Livestock: Preventive services being ensured • Urban services: All Cantonment Boards/DHAs have taken preemptive measures to meet the rain emergency • KBCA: To avoid structural collapse, KBCA instructed to identify dangerous/old structures • Coordination with all the line Depts of Sindh Government

  42. Steps taken cont’d • Control Room in PDMA established. It is functional 24/7 for this emergency situation. • Advertisements given in newspapers for ensuring precautions during rain • GIS maps of the inundated areas of the districts of lower Sindh dispatched to affected districts to enable them to coordinate relief work in more effective manner. • Field visits/Monitoring teams: PDMA/Relief Dept/Health Dept teams visited affected districts for monitoring and coordination with District Administrations

  43. Steps taken-cont’d • Close liaison with District Administration by the PDMA/R.C. • Future requirements obtained from the districts in order to facilitate provision of relief goods to them. • Arrangement of transportation and labour during the Eid holidays to continue uninterrupted supply of relief goods to affected districts • Arrangement of relief stores for their onward transmission during Eid holidays • Agriculture Department has deployed its resources in rain affected districts which include 19 buildozers.

  44. ALERT issued to Armed Forces-28th August 2011 • On the directions of the Competent Authority, the Armed Forces were requested to place the units (regular as well as Medical and Engineering Corps) on alert, for their movement/dispatch, if required, within the shortest possible notice of two hours in case of any untoward situation for search and rescue/relief operations and to provide air cover if needed. • Army and Navy presently started support in Badin and Shaheed Benazirabad • Army & Navy has been requested to deploy additional troops and resources in light of severe threat of LBOD

  45. Compensation plan Compensation Plan • SINDH PEOPLES’ CARD – A Compensation plan for cash transfer developed for Rain 2011 affectees • To start with, DCOs of first 7 affected districts have been directed to submit the lists of affected settlements and to identify venue/centres for the use of NADRA. • Affected Areas of Badin, T M Khan, Mirpurkhas, T.Allahyar & Thatta forwarded to NADRA

  46. Compensation Plan cont’d • NADRA authorities have started preparation for the delivery of the Programme within 10 days • Cash compensation of Rs. 10 thousands per family has been proposed.
