Applications of Risk Minimization to Speech Recognition

1. • Joseph Picone Inst. for Signal and Info. Processing Dept. Electrical and Computer Eng. Mississippi State University • Contact Information: Box 9571 Mississippi State University Mississippi State, Mississippi 39762 Tel: 662-325-3149 Fax: 662-325-2298 Email: picone@isip.msstate.edu Applications of Risk Minimization to Speech Recognition MIT LINCOLN LABORATORY • Acknowledgement:Supported by NSF under Grant No. IIS-0085940. • URL: www.isip.msstate.edu/publications/seminars/.../2003/lincoln_labs

2. INTRODUCTION ABSTRACT AND BIOGRAPHY ABSTRACT: Statistical techniques based on Hidden Markov models (HMMs) with Gaussian emission densities have dominated the signal processing and pattern recognition literature for the past 20 years. However, HMMs suffer from an inability to learn discriminative information and are prone to overfitting and over‑parameterization. In this presentation, we will review our attempts to apply notions of risk minimization into pattern recognition problems such as speech recognition. New approaches based on probabilistic Bayesian learning are shown to provide an order of magnitude reduction in complexity over comparable approaches based on HMMs and Support Vector Machines. BIOGRAPHY: Joseph Picone is currently a Professor in the Department of Electrical and Computer Engineering at Mississippi State University, where he also directs the Institute for Signal and Information Processing. For the past 15 years he has been promoting open source speech technology. He has previously been employed by Texas Instruments and AT&T Bell Laboratories. Dr. Picone received his Ph.D. in Electrical Engineering from Illinois Institute of Technology in 1983. He is a Senior Member of the IEEE and a registered Professional Engineer.

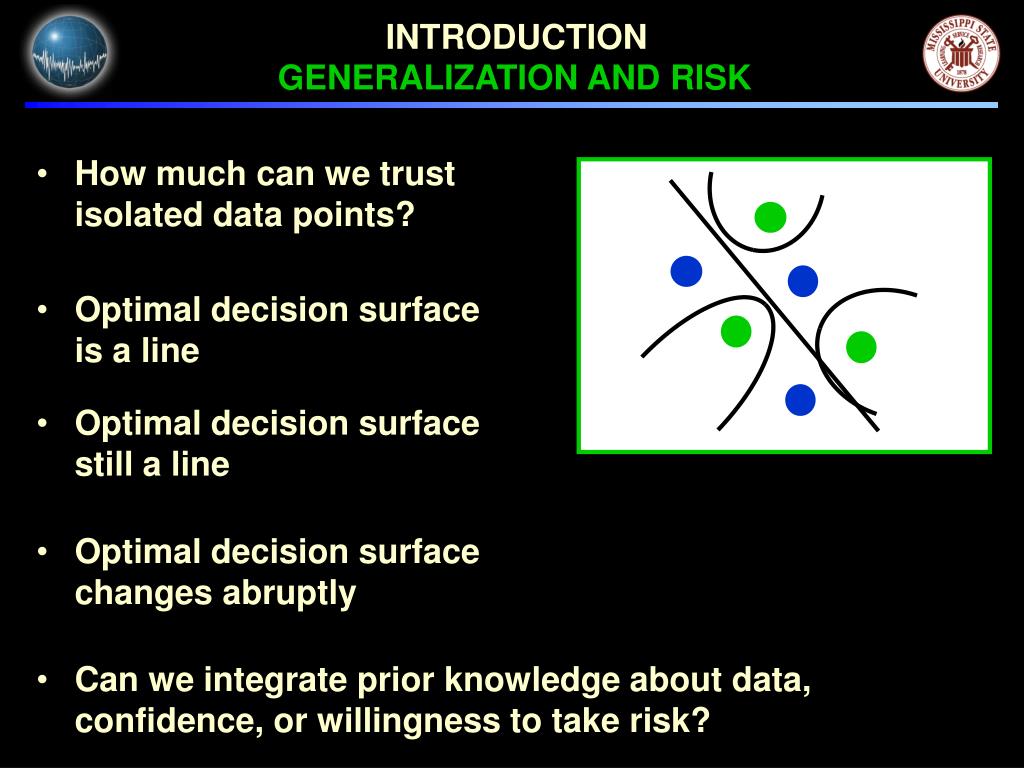

3. How much can we trust isolated data points? • Optimal decision surface is a line • Optimal decision surface still a line • Optimal decision surface changes abruptly INTRODUCTION GENERALIZATION AND RISK • Can we integrate prior knowledge about data, confidence, or willingness to take risk?

4. INTRODUCTION ACOUSTIC CONFUSABILITY • Regions of overlap represent classification error • Reduce overlap by introducing acoustic and linguistic context • Comparison of “aa” in “lOck” and “iy” in “bEAt” for conversational speech

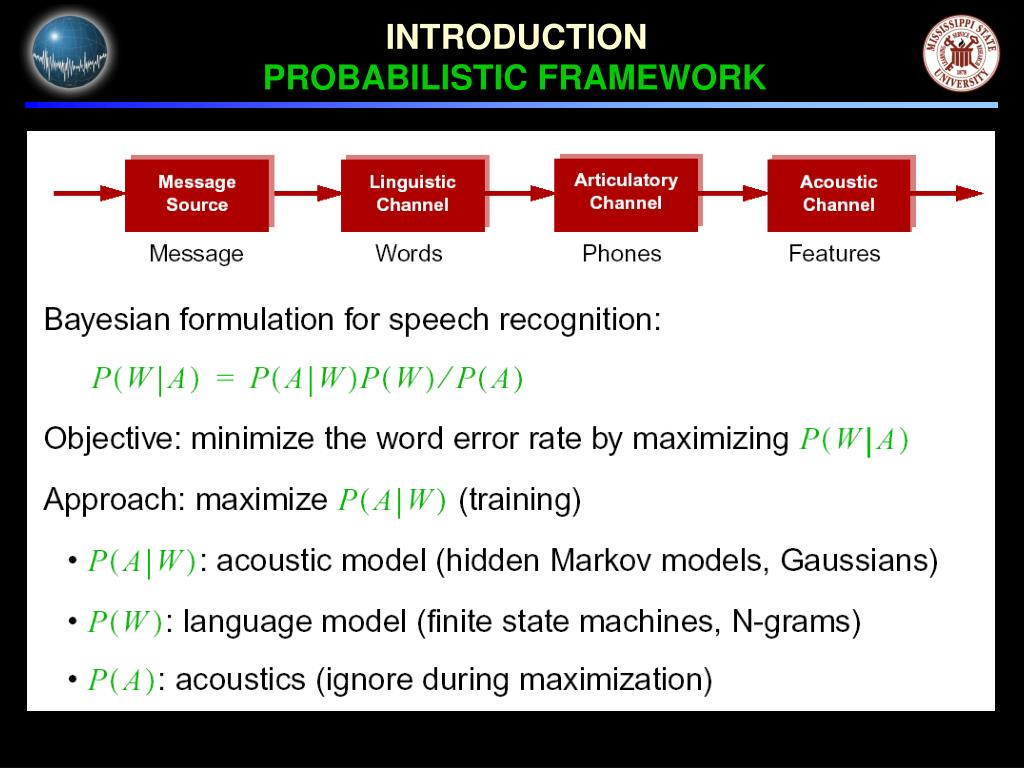

5. INTRODUCTION PROBABILISTIC FRAMEWORK

6. INTRODUCTION ML CONVERGENCE NOT OPTIMAL • Finding the optimal decision boundary requires only one parameter. • Maximum likelihood convergence does not translate to optimal classification if a priori assumptions about the data are not correct.

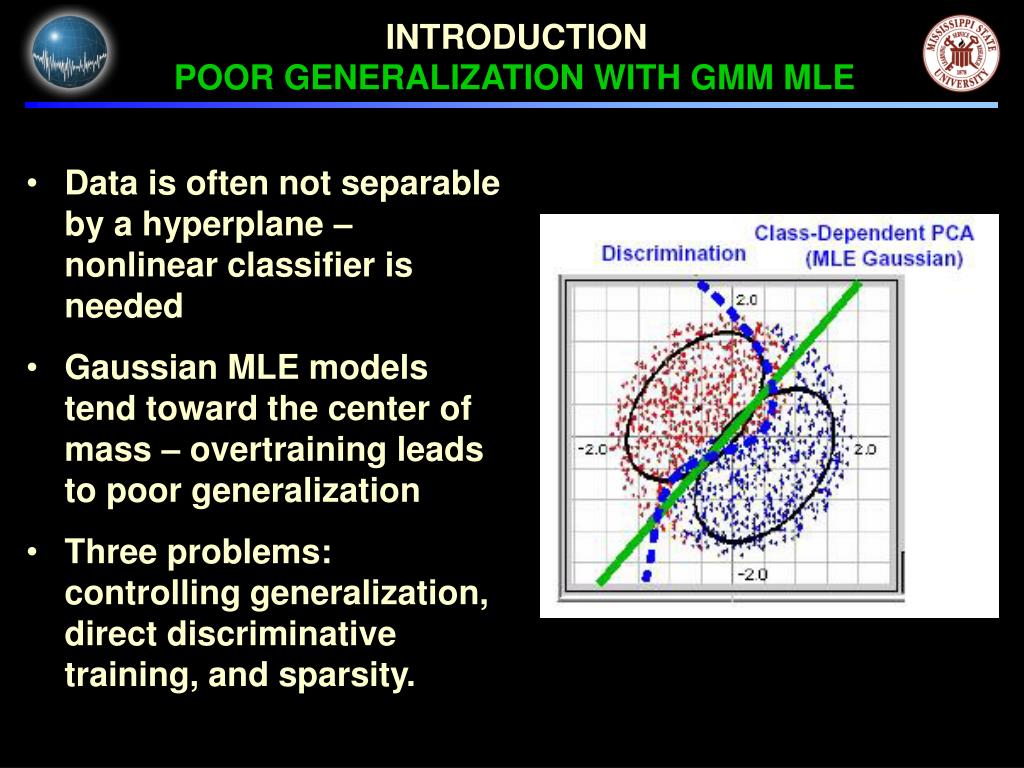

7. INTRODUCTION POOR GENERALIZATION WITH GMM MLE • Data is often not separable by a hyperplane – nonlinear classifier is needed • Gaussian MLE models tend toward the center of mass – overtraining leads to poor generalization • Three problems: controlling generalization, direct discriminative training, and sparsity.

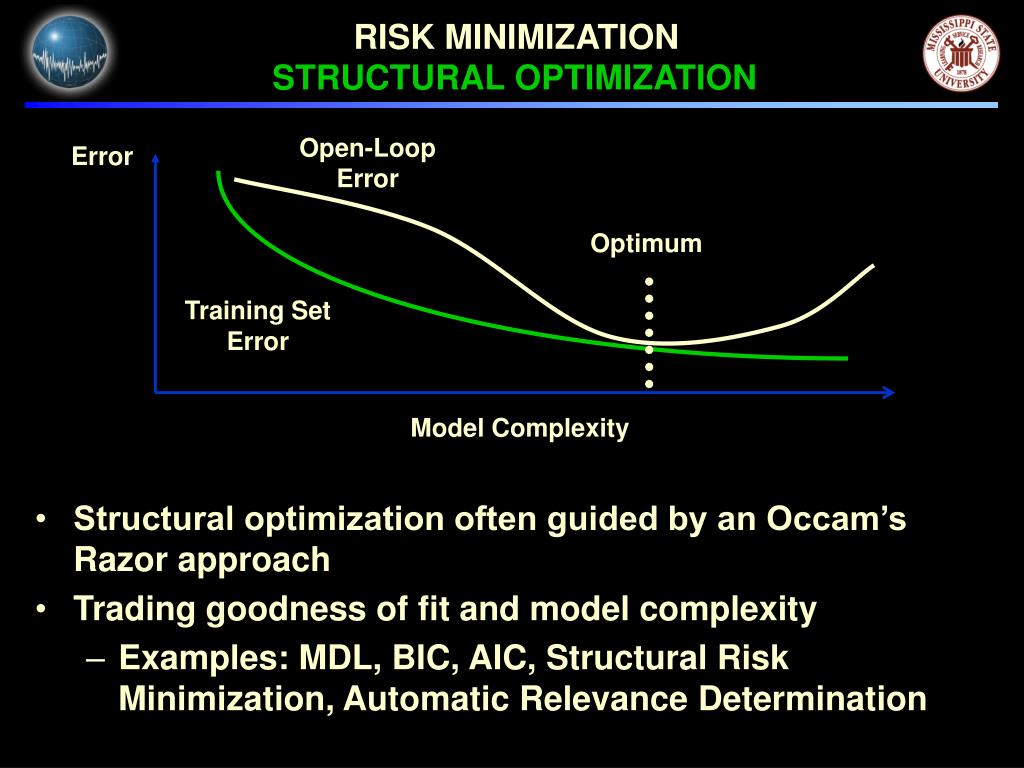

8. RISK MINIMIZATION STRUCTURAL OPTIMIZATION Open-Loop Error Error • Structural optimization often guided by an Occam’s Razor approach • Trading goodness of fit and model complexity • Examples: MDL, BIC, AIC, Structural Risk Minimization, Automatic Relevance Determination Optimum Training Set Error Model Complexity

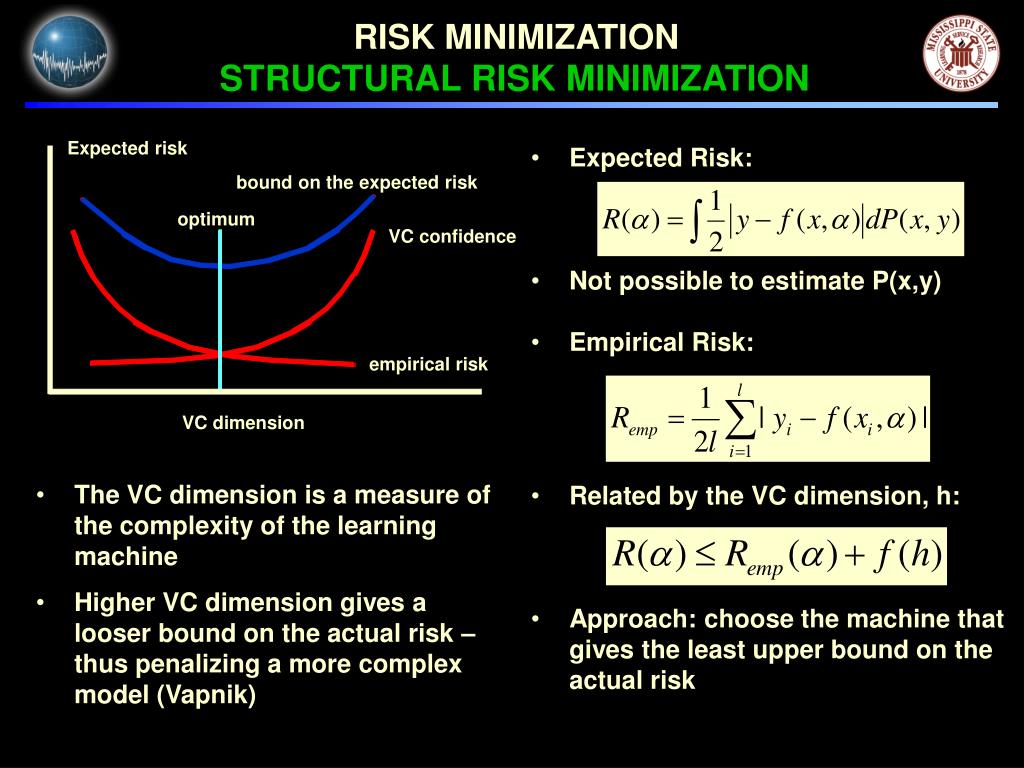

9. The VC dimension is a measure of the complexity of the learning machine Higher VC dimension gives a looser bound on the actual risk – thus penalizing a more complex model (Vapnik) RISK MINIMIZATION STRUCTURAL RISK MINIMIZATION Expected risk • Expected Risk: • Not possible to estimate P(x,y) • Empirical Risk: • Related by the VC dimension, h: • Approach: choose the machine that gives the least upper bound on the actual risk bound on the expected risk optimum VC confidence empirical risk VC dimension

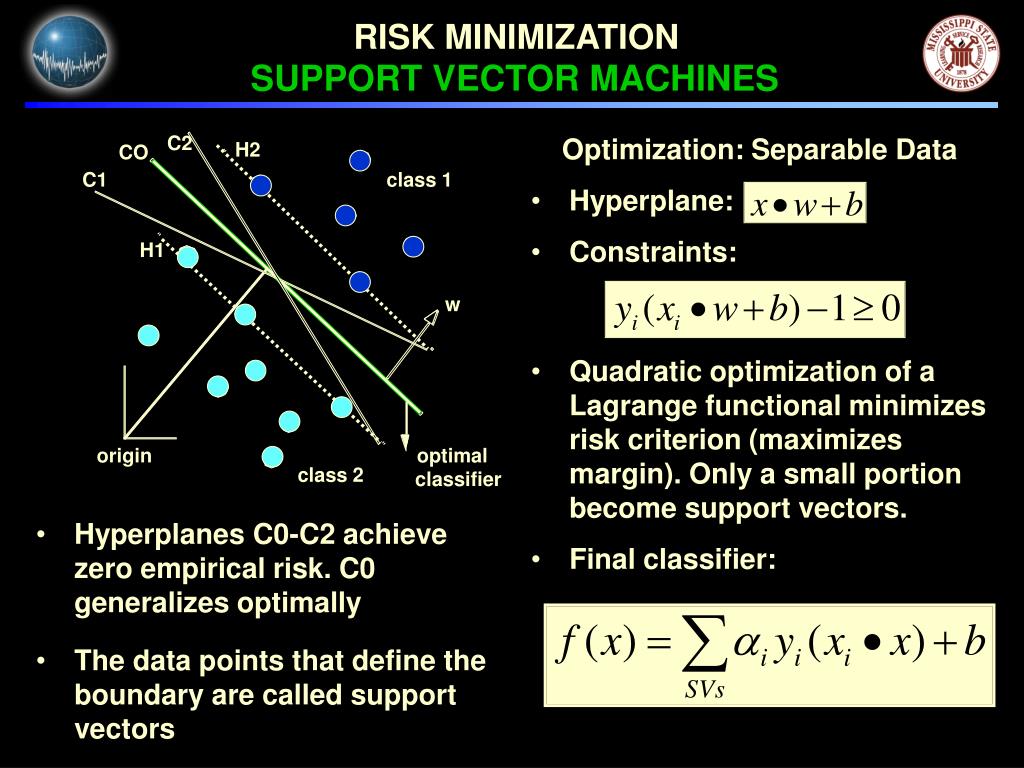

10. Hyperplanes C0-C2 achieve zero empirical risk. C0 generalizes optimally The data points that define the boundary are called support vectors RISK MINIMIZATION SUPPORT VECTOR MACHINES Optimization: Separable Data • Hyperplane: • Constraints: • Quadratic optimization of a Lagrange functional minimizes risk criterion (maximizes margin). Only a small portion become support vectors. • Final classifier: C2 H2 CO C1 class 1 H1 w origin optimal class 2 classifier

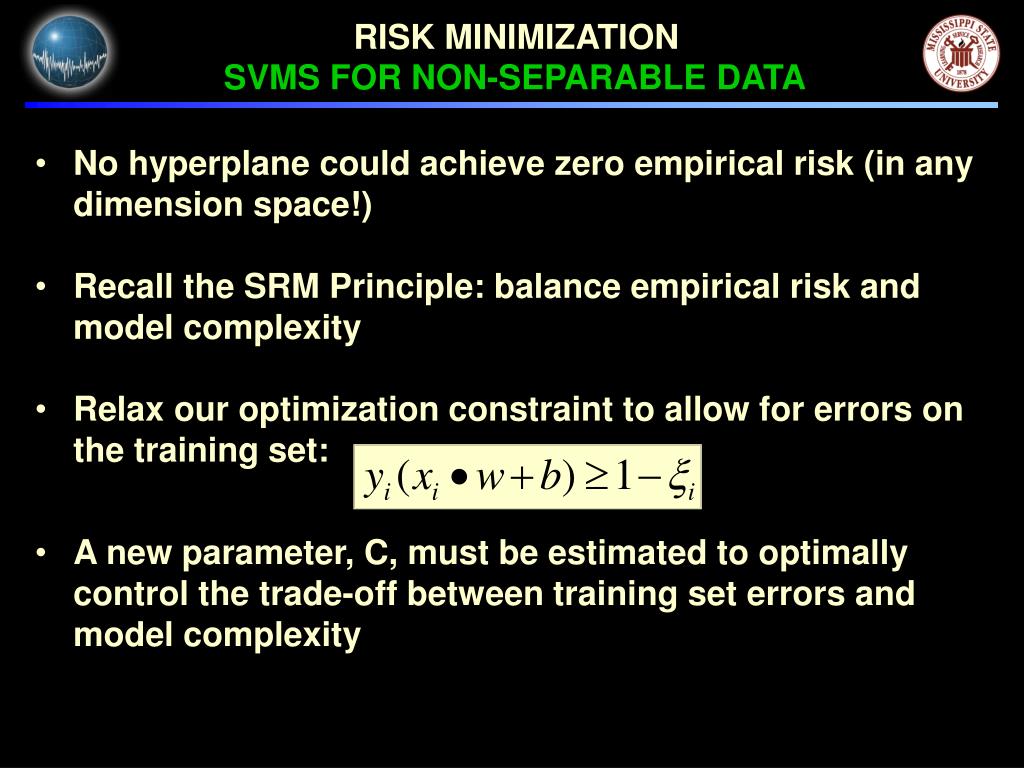

11. No hyperplane could achieve zero empirical risk (in any dimension space!) Recall the SRM Principle: balance empirical risk and model complexity Relax our optimization constraint to allow for errors on the training set: A new parameter, C, must be estimated to optimally control the trade-off between training set errors and model complexity RISK MINIMIZATION SVMS FOR NON-SEPARABLE DATA

12. RISK MINIMIZATION DRAWBACKS OF SVMS • Uses a binary (yes/no) decision rule • Generates a distance from the hyperplane, but this distance is often not a good measure of our “confidence” in the classification • Can produce a “probability” as a function of the distance (e.g. using sigmoid fits), but they are inadequate • Number of support vectors grows linearly with the size of the data set • Requires the estimation of trade-off parameter, C, via held-out sets

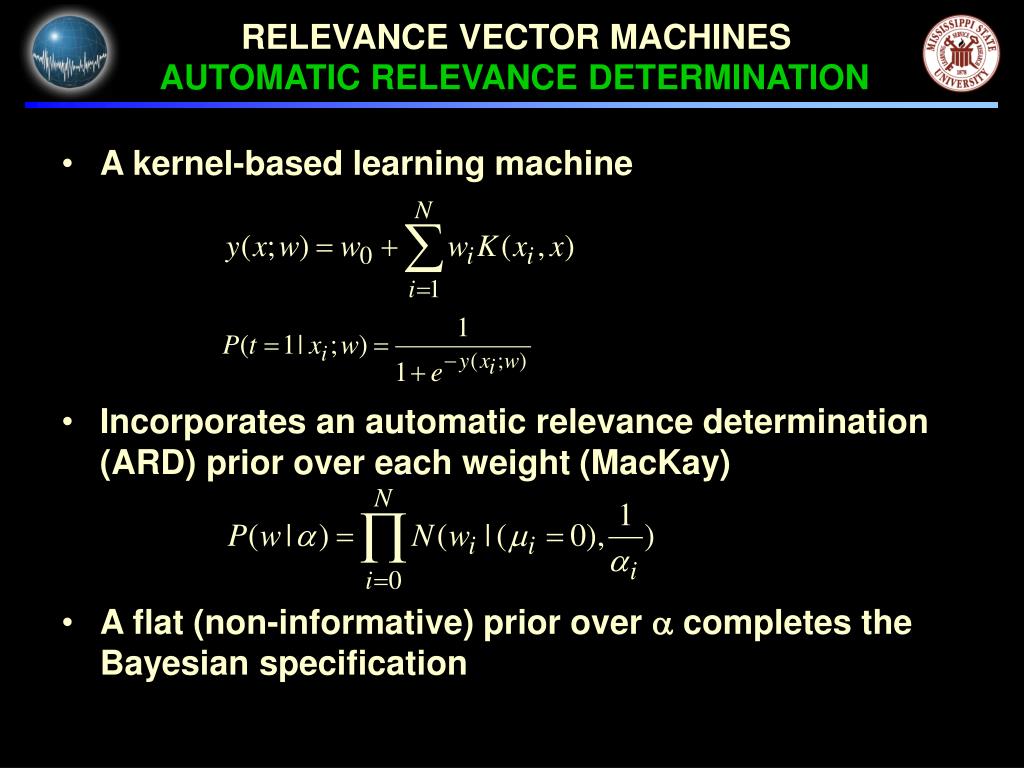

13. RELEVANCE VECTOR MACHINES AUTOMATIC RELEVANCE DETERMINATION • A kernel-based learning machine • Incorporates an automatic relevance determination (ARD) prior over each weight (MacKay) • A flat (non-informative) prior over a completes the Bayesian specification

14. RELEVANCE VECTOR MACHINES ITERATIVE REESTIMATION • The goal in training becomes finding: • Estimation of the “sparsity” parameters is inherent in the optimization – no need for a held-out set! • A closed-form solution to this maximization problem is not available. Iteratively reestimate

15. RELEVANCE VECTOR MACHINES LAPLACE’S METHOD • Fix a and estimate w (e.g. gradient descent) • Use the Hessian to approximate the covariance of a Gaussian posterior of the weights centered at • With and as the mean and covariance, respectively, of the Gaussian approximation, we find by finding • Method is O(N2) in memory and O(N3) in time

16. RVM: Data: Class labels (0,1) Goal: Learn posterior, P(t=1|x) Structural Optimization: Hyperprior distribution encourages sparsity Training: iterative O(N3) SVM: Data: Class labels (-1,1) Goal: Find optimal decision surface under constraints Structural Optimization: Trade-off parameter that must be estimated Training: Quadratic O(N2) RELEVANCE VECTOR MACHINES COMPARISON TO SVMS

17. EXPERIMENTAL RESULTS DETERDING VOWEL DATA • Deterding Vowel Data: 11 vowels spoken in “h*d” context; 10 log area parameters; 528 train, 462 SI test

18. hh aw aa r y uw region 1 0.3*k frames region 2 0.4*k frames region 3 0.3*k frames mean region 1 mean region 2 mean region 3 EXPERIMENTAL RESULTS INTEGRATION WITH SPEECH RECOGNITION • Data size: • 30 million frames of data in training set • Solution: Segmental phone models • Source for Segmental Data: • Solution: Use HMM system in bootstrap procedure • Could also build a segment-based decoder • Probabilistic decoder coupling: • SVMs: Sigmoid-fit posterior • RVMs: naturally probabilistic k frames

19. EXPERIMENTAL RESULTS HYBRID DECODER Features (Mel-Cepstra)) HMM RECOGNITION SEGMENTAL CONVERTER N-best List Segment Information HYBRID DECODER Segmental Features Hypothesis

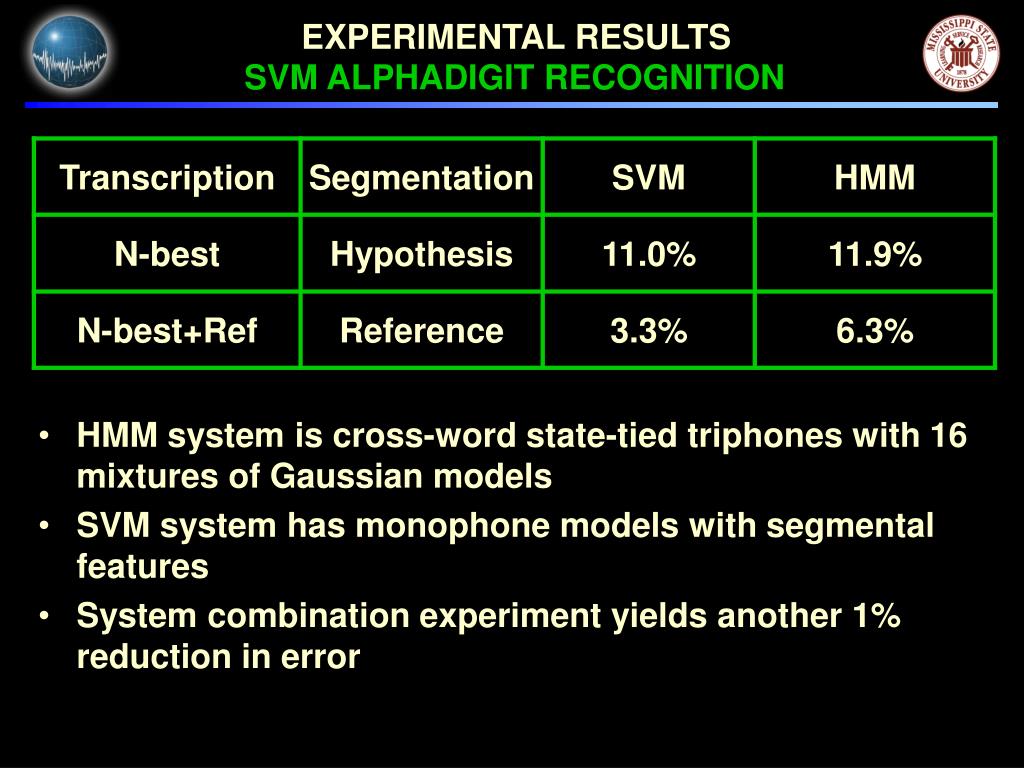

20. EXPERIMENTAL RESULTS SVM ALPHADIGIT RECOGNITION • HMM system is cross-word state-tied triphones with 16 mixtures of Gaussian models • SVM system has monophone models with segmental features • System combination experiment yields another 1% reduction in error

21. EXPERIMENTAL RESULTS SVM/RVM ALPHADIGIT COMPARISON • RVMs yield a large reduction in the parameter count while attaining superior performance • Computational costs mainly in training for RVMs but is still prohibitive for larger sets

22. SUMMARY PRACTICAL RISK MINIMIZATION? • Reduction of complexity at the same level of performance is interesting: • Results hold across tasks • RVMs have been trained on 100,000 vectors • Results suggest integrated training is critical • Risk minimization provides a family of solutions: • Is there a better solution than minimum risk? • What is the impact on complexity and robustness? • Applications to other problems? • Speech/Non-speech classificiation? • Speaker adaptation? • Language modeling?

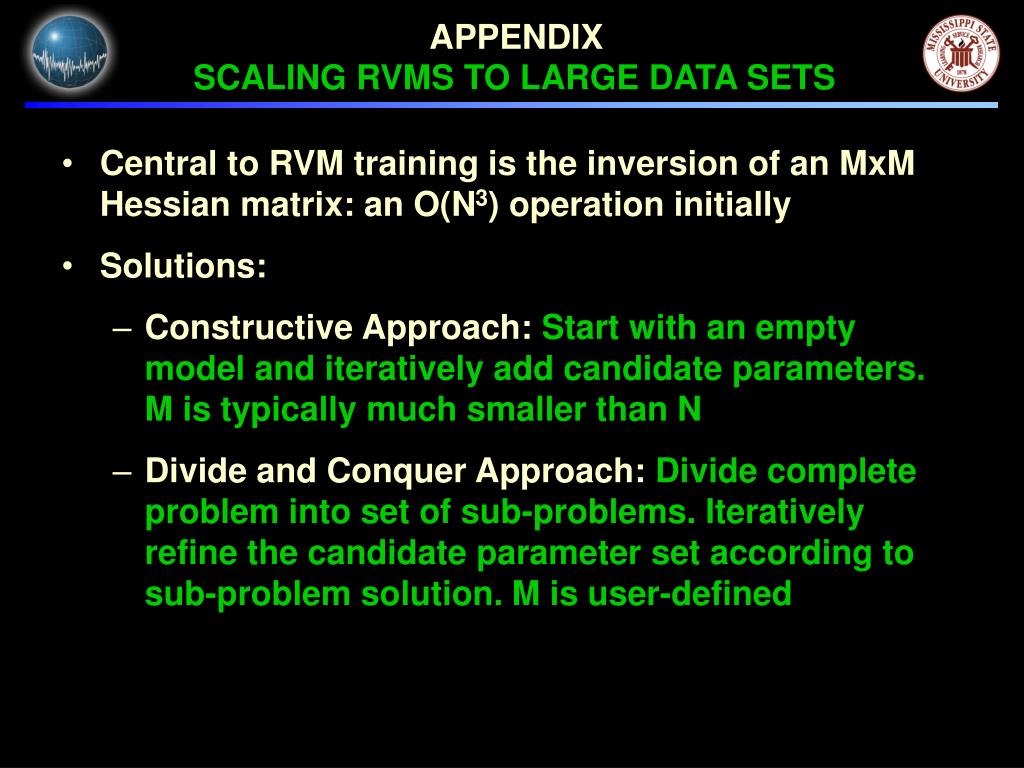

23. APPENDIX SCALING RVMS TO LARGE DATA SETS • Central to RVM training is the inversion of an MxM Hessian matrix: an O(N3) operation initially • Solutions: • Constructive Approach: Start with an empty model and iteratively add candidate parameters. M is typically much smaller than N • Divide and Conquer Approach: Divide complete problem into set of sub-problems. Iteratively refine the candidate parameter set according to sub-problem solution. M is user-defined

24. APPENDIX PRELIMINARY RESULTS • Data increased to 10000 training vectors • Reduction method has been trained up to 100k vectors (on toy task). Not possible for Constructive method

25. SUMMARY ACKNOWLEDGEMENTS • Principal Investigators: Aravind Ganapathiraju (Conversay) and Jon Hamaker (Microsoft) as part of their Ph.D. studies at Mississippi State • Consultants: Michael Tipping (MSR-Cambridge) and Thorsten Joachims (Cornell) • Motivation: Serious work began after discussions with V.N. Vapnik at the CLSP Summer Workshop in 1997.

26. Pattern Recognition Applet: compare popular algorithms on standard or custom data sets • Speech Recognition Toolkits: compare SVMs and RVMs to standard approaches using a state of the art ASR toolkit • Foundation Classes: generic C++ implementations of many popular statistical modeling approaches • Fun Stuff: have you seen our commercial on the Home Shopping Channel? SUMMARY RELEVANT SOFTWARE RESOURCES

27. SUMMARY BRIEF BIBLIOGRAPHY • Influential work: • M. Tipping, “Sparse Bayesian Learning and the Relevance Vector Machine,” Journal of Machine Learning, vol. 1, pp. 211-244, June 2001. • D. J. C. MacKay, “Probable networks and plausible predictions --- a review of practical Bayesian methods for supervised neural networks,” Network: Computation in Neural Systems, 6, pp. 469-505, 1995. • D. J. C. MacKay, Bayesian Methods for Adaptive Models, Ph. D. thesis, California Institute of Technology, Pasadena, California, USA, 1991. • E. T. Jaynes, “Bayesian Methods: General Background,” Maximum Entropy and Bayesian Methods in Applied Statistics, J. H. Justice, ed., pp. 1-25, Cambridge Univ. Press, Cambridge, UK, 1986. • V.N. Vapnik, Statistical Learning Theory, John Wiley, New York, NY, USA, 1998. • V.N. Vapnik, The Nature of Statistical Learning Theory, Springer-Verlag, New York, NY, USA, 1995. • C.J.C. Burges, “A Tutorial on Support Vector Machines for Pattern Recognition,” AT&T Bell Laboratories, November 1999. • Applications to Speech Recognition: • J. Hamaker and J. Picone, “Advances in Speech Recognition Using Sparse Bayesian Methods,” submitted to the IEEE Transactions on Speech and Audio Processing, January 2003. • A. Ganapathiraju, J. Hamaker and J. Picone, “Applications of Risk Minimization to Speech Recognition,” submitted to the IEEE Transactions on Signal Processing, July 2003. • J. Hamaker, J. Picone, and A. Ganapathiraju, “A Sparse Modeling Approach to Speech Recognition Based on Relevance Vector Machines,” Proceedings of the International Conference of Spoken Language Processing, vol. 2, pp. 1001-1004, Denver, Colorado, USA, September 2002. • J. Hamaker, Sparse Bayesian Methods for Continuous Speech Recognition, Ph.D. Dissertation, Department of Electrical and Computer Engineering, Mississippi State University, December 2003. • A. Ganapathiraju, Support Vector Machines for Speech Recognition, Ph.D. Dissertation, Department of Electrical and Computer Engineering, Mississippi State University, January 2002.
