  1. Once Upon a Time-Memory Tradeoff Mark Stamp Department of Computer Science San Jose State University

  2. This talk… • Non-cryptanalytic TMTOs • Crypto background • Hellman’s cryptanalytic TMTO • Distributed TMTO • Conclusions TMTO

  3. Non-crypto TMTOs • Popcnt • Shank’s algorithm TMTO

  4. Popcnt • Let x be a 32-bit integer • Define popcnt(x) = number of 1’s in binary expansion of x • How to compute popcnt(x) ? TMTO

  5. Simple popcnt popcnt(x) t = 0 for i = 0 to 31 t = t + (x >> i) & 1 next i return t end popcnt TMTO

  6. Efficient popcnt Initialize: table[i] = popcnt(i) for i = 0,1,…,255 popcnt(x) t = table[ x & 0xff ] + table[ (x >> 8) & 0xff ] + table[ (x >> 16) & 0xff ] + table[ (x >> 24) & 0xff ] return t end popcnt TMTO

  7. Discrete Log • Let p be prime, g {1,2,…, p1} s.t. for any n there is a k with n = gkmod p • Discrete log: given m {1,2,…, p1} find e s.t. m = gemod p • Notation: e = logg(m) • Could try each value in {1,2,…, p1} to find e that works TMTO

  8. Shank’s algorithm • Shank’s is a TMTO for discrete log • Given m, we want e = logg(m) A. Compute list Lr as follows • Let r = sqrt(p 1) and compute grj mod p forj = 0,1,…,r  1 • Let Lr be the list of ( j,grj mod p) sorted on second coordinate TMTO

  9. Shank’s alg (continued) B. Compute list Lm as follows • Compute mgi mod p fori = 0,1,…,r  1 • Let Lm be the list of (i,mgi mod p) sorted on second coordinate TMTO

  10. Shank’s alg. (cont. again) C. Then e = logg(m) is found by • Find elements of Lr and Lm that agree in 2nd coordinates, say, ( j,x)  Lr and (i,x) Lm • Then e = logg(m) = rj + i mod (p  1) since grj = mgi mod p • Shank’s: baby step, giant step TMTO

  11. Shank’s algorithm (example) • Suppose p = 257,g = 3. Thenr = 16 andLris (0,1) (3,2) (6,4) (9,8) (12,16) (15,32) (2,64) (5,128) (13,129) (10,193) (7,225) (4,241) (1,249) (14,253) (11,255) (8,256) • Suppose m = 132. Then Lm is (9,23) (1,44) (3,62) (5,64) (8,69) (12,77) (15,79) (6,107) (0,132) (10,179) (2,186) (4,192) (13,197) (7,207) (11,231) (14,237) • From Lr and Lm we find (2,64) and (5,64). Then log3(132) = 2  16 + 5 = 37 and easy to verify 337 = 132 mod 257 TMTO

  12. Block cipher Consider a block cipher C = E(P, K) where P is plaintext of length n C is ciphertext of length n K is key of length k TMTO

  13. Block Cipher TMTO

  14. Chosen plaintext attack • We chooseP and obtain C, where C = E(P, K) • Want to find the key K • Exhaustive key search • Table pre-computation • TMTO lies between 1. and 2. TMTO

  15. Chain of encryptions Assume n = k. Then a chain is SP = K0 =Starting Point K1 = E(P, SP) K2 = E(P, K1) : : EP = Kt = E(P, Kt1) =End Point TMTO

  16. Chain (another view) TMTO

  17. Pre-computation • Compute m encryption chains, each of length t +1 • Save only start and end points (SP0, EP0) (SP1, EP1) : (SPm-1, EPm-1) TMTO

  18. TMTO Attack • Memory: Given (SPi, EPi), i = 0,1,…,m1 • For chosen P compute C = E(P, K) • The key K is unknown • Time: Compute chain (max of t steps) X0 = C, X1 = E(P, X0), X2 = E(P, X1),… TMTO

  19. Attack (continued) • Given the chain X0 = C, X1 = E(P, X0), X2 = E(P, X1),… • Suppose we find Xi= EPj • Then C might be in chain (SPj, EPj) • Assume C is in chain (SPj, EPj) TMTO

  20. Attack (continued again) • Given C is in the chain (SPj, EPj) and Xi= EPj • Re-compute chain (SPj, EPj) Y0 = SPj, Y1 = E(P,Y0), Y2 = E(P,Y1),… • Then C = Yti = E(P, Yti1) • And Yti1 = K (always?) TMTO

  21. In a perfect world • Suppose the block cipher has 56 bit key • Suppose we find m = 228 chains, each of length t = 228 and no chains overlap • Memory: 228 pairs (SPj, EPj) • Time: about 228 (for attack) • Find C in about 227 tries • Find K with about 227 more tries TMTO

  22. In a perfect world • All chains distinct • Ciphertext C lies within a chain SP0 EP0 C EP1 SP1 EP2 SP2 TMTO

  23. In the real world • Chains are not so well-behaved • Chains cycle and merge C EP SP TMTO

  24. To reduce merging • Compute chain as Ki = F(E(P, Ki1)) where F is a permutation • Choose r different functions F • For each F choose m random SP • Each chain of length t TMTO

  25. Notation • m = number of random starting points for each function F • t = length of each chain • r = number of “random” functions F • Note: mtr = total number of computed chain elements TMTO

  26. Real-world issues • False alarms, avoid cycles, reduce merging, etc. • Pre-computation is lots of work (must be amortized over many attacks) • Success is not assured • What if block size not equal key length? • What is the probability of success? TMTO

  27. Probability of success • Occupancy problem: b balls distributed with uniform probability to c cells • Let pl(b,c) be probability of l empty cells. Feller [3] shows TMTO

  28. Success probability (continued) • Poisson approx to pl(b,c) is pl() = el/l! where  = ceb/c • So expected number of empty cells is TMTO

  29. Success probability (still more) • Expected number of occupied cells is c  = c(1  eb/c) • Therefore P(cell i is occupied)= 1  eb/c • TMTO attack succeeds if and only if the “cell” with key K is “occupied” TMTO

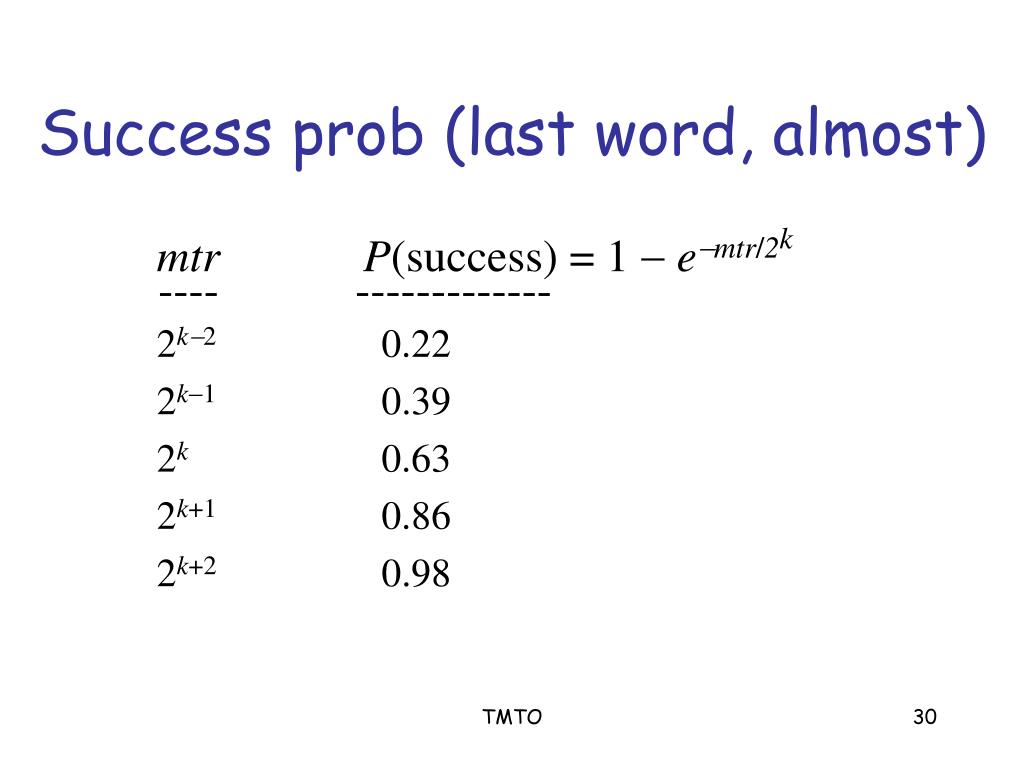

  30. Success prob (last word, almost) mtr P(success) = 1  emtr/2k ---- ------------- 2k2 0.22 2k1 0.39 2k 0.63 2k+1 0.86 2k+2 0.98 TMTO

  31. The bottom line • Choose m = t = r = 2k/3 and probability of success is about 0.63 (at least 0.55 by a more careful analysis) • Pre-computation is O(mtr) work • Each TMTO attack requires O(mr) “memory” and O(tr) “time” TMTO

  32. Distinguished points • Let a distinguished point be of the form (x0,x1,…,xs1,0,0,…,0) • Construct chain until distinguished point is found • If no distinguished point is found within max steps, don’t save chain • Then every EP is distinguished TMTO

  33. Distinguished points +/- • Disadvantages • Chains are variable length • Some extra work to find chains • Triples (SP, EP, length) • Advantage • Distributed attack is very nice • Why? One client for each F then client only needs (P, C) and F and max chain length  no data! TMTO

  34. References [1] M. Hellman, A cryptanalytic time-memory tradeoff, IEEE Trans on Info Thy, Vol. 26, No. 4, July 1980, pp. 401-406 [2] J.Borst, et al., On the time-memory tradeoff between exhaustive key search and table precomputation, http://www.esat.kuleuven.ac.be/~borst/downloadable/tm.ps.gz [3] W. Feller, An Introduction to Probability Theory and Its Applications, volume 1, Wiley (1968) [4] M. Stamp, Once upon a time-memory tradeoff, http://www.cs.sjsu.edu/faculty/stamp/articles/tmto.pdf TMTO
