The National Grid Service: Towards the UK's e-infrastructure

1. The National Grid Service:Towards the UK's e-infrastructure http://www.ngs.ac.uk http://www.grid-support.ac.uk Neil Geddes Director, GOSC Thanks to Stephen Pickles and Andy Richards The UK's National Grid Service is a project to deploy and operate a grid infrastructure for computing and data access across the UK. This development will be a cornerstone of the development of the UK's "e-Infrastructure" over the coming decade. The goals, current status and plans for the National Grid Service and the Operations Support Centre will be described.

2. Outline • Overview of GOSC and NGS • Users • registrations, usage, helpdesk queries • Services & Middleware • what we offer today • managing change • The Future • Expansion and “joining” the NGS • Roadmap for the future • Summary

3. GOSC The Grid Operations Support Centre is a distributed “virtual centre” providing deployment and operations support for the NGS and the wider UK e-Science programme. - started October 2004

4. GOSC Roles • UK Grid Services • National Services • Authentication, authorization, certificate management, VO management, security, network monitoring, help desk + support centre. • support@grid-support.ac.uk • NGS Services • Job submission, simple registry, data transfer, data access and integration, resource brokering, monitoring and accounting, grid management services, workflow, notification, operations centre. • NGS core-node Services • CPU, (meta-) data storage, key software • Services coordinated with others (eg OMII, NeSC, LCG, EGEE): • Integration testing, compatibility & Validation Tests, User Management, training • Administration: • Security • Policies and acceptable use conditions • SLA’s, SLD’s • Coordinate deployment and Operations

5. NGS “Today” Interfaces Projects e-Minerals e-Materials Orbital Dynamics of Galaxies Bioinformatics (using BLAST) GEODISE project UKQCD Singlet meson project Census data analysis MIAKT project e-HTPX project. RealityGrid (chemistry) Users Leeds Oxford UCL Cardiff Southampton Imperial Liverpool Sheffield Cambridge Edinburgh QUB BBSRC CCLRC. Nottingham … OGSI::Lite • If you need something else, please say!

6. http://www.ngs.ac.uk NGS core nodes: Need UK e-Science certificate (1-2 days) Apply through NGS web site (1-2 weeks)

7. NGS Partner nodes Data nodes at RAL + Manchester Compute nodes at Oxford + Leeds Compute nodes at Cardiff + Bristol Free at point of use Apply through NGS web site Accept terms and conditions of use Light-weight peer review 1-2 weeks To do: project or VO-based application and registration All access is through digital X.509 certificates from UK e-Science CA or recognized peer National HPC services HPCx CSAR Must apply separately to research councils Digital certificate and Conventional (username/ password) access supported Gaining Access

8. Users registrations, helpdesk and usage

9. User registrations so far

10. Example usage over 1hr period 03/03/05

12. Query Tracking and FAQ’s • Provide first point of contact support • Contact point between other helpdesks - Or provide helpdesk facilities for other sites • Users input queries at a range on places • behind the scenes collaboration - user gets answer back from where they asked • Develop Support relationship with technical expertise at sites

13. Help Desk http://www.grid-support.ac.uk support@grid-support.ac.uk Certification 54 Savannah 28 NGS 14 SRB 6 General 4 Security 3 GT2 2 Access Grid 2 Internal 1 Project Registration 1 OGSA-DAI 1

14. User Survey • December 2004 - Query all users who have had accounts > 3 months • 16 responses (out of ~100 users) • 3 papers • AHM04 (2), Phys. Rev. Lett. • 6 conference presentations • AHM04, SC2005, Systems Biology, IPEM(2), MC2004 • ~Bi-annual activity hereafter

15. End-users • You need a current UK e-Science Certificate • http://ca.grid-support.ac.uk/ • See your local Registration Authority • Complete the application form on the NGS web site, and read the conditions of use: • http://www.ngs.ac.uk/apply.html • Wait 1-2 weeks for peer review • You gain access to all core nodes automatically • Use the NGS and GSC web sites and help-desk • Happy computing!

16. Projects and VOs • Just need access to compute and data resources for users in your project? • short term, we need applications from individuals • project-based applications will come, currently in requirements gathering phase • if in doubt, talk to us! • Want to host your data on NGS? • consider GridFTP, SRB, Oracle, or OGSA-DAI • NGS maintains infrastructure • you populate and manage data • for OGSA-DAI, work with NGS to validate Grid Data Services

17. Provisioning services • NGS resources can be used to provision a portal or other service for your community • Deployment and security scenarios are negotiable • NGS policies (core nodes): • your portal can present its own, or a delegated user’s credential to NGS, but tasks should be traceable to initiating end-user • you should not run your own services in user space without prior agreement of NGS and hosting site • we need to know that services are secure, will not jeopardise operation of other NGS services, or consume too much precious resource on head nodes • Talk to us!

18. NGS Core Services Globus, SRB, Oracle, OGSA-DAI, and others

19. NGS Core Services: Globus • Globus Toolkit version 2 • GT 2.4.3 from VDT 1.2 • Job submission (GRAM) • File transfer (GridFTP) • Shell (GSI-SSH) • Information Services (MDS/GIIS/GRIS) • Information providers from GLUE schema • Use BDII implementation of MDS2 (as does EGEE)

20. NGS Core Services: SRB • Storage Resource Broker from SDSC • Location transparent access to storage • Metadata catalog • Replica management • Clients on compute nodes • Servers on data nodes • Issues/to do: • licensing • MCAT replication and failover

21. NGS Core Services: Oracle • Oracle 9i database • Only on data nodes • Populated by users/data providers • Infrastructure maintained by NGS database administrators • Accessed directly • e.g. Geodise • or via OGSA-DAI

22. NGS Services: OGSA-DAI • Developed by UK e-Science projects OGSA-DAI and DAIT • OGSA-DQP (Distributed Query Processing) • Experimental service based on OGSI/GT3 on Manchester data node only • containment: 2 cluster nodes reserved for development and production • will consider WS-I and WSRF flavours when in final release • Uses Oracle underneath • User-provided Grid Data Services validated on test system, then transferred to production during scheduled maintenance • Early users from e-Social Science (ConvertGrid) • Established liaisons with OGSA-DAI team

23. NGS Core Services: other Operated by GOSC for NGS and UK e-Science programme: In production: • Certificate Authority • Information Services (MDS/GIIS) • MyProxy server • Integration tests and database • Cluster monitoring • LCG-VO In testing: • VOMS • EDG Resource Broker • Portal In development: • Accounting • using GGF Usage Record standard for interchange

24. The Future NGS Expansion Managing Change The Vision Thing

25. Expansion Resource providers join the NGS by • Defining level of service commitments through SLDs • Adopting NGS acceptable use and security policies • Run compatible middleware • as defined by NGS Minimum Software Stack • and verified by compliance test suite • Support monitoring and accounting Two levels of membership • Affiliation • a.k.a. connect to NGS • Partnership

26. Affiliation Affiliates commit to: • running NGS-compatible middleware • as defined in NGS Minimum Software Stack • this means users of affiliate’s resources can access these using same client tools they use to access NGS • a well-defined level of service and problem referral mechanisms • SLD approved by NGS Management Board and published on NGS web-site • providing technical, administrative, and security (CERT) contacts • providing an account and mapping for daily compliance tests (GITS++) • accepting UK e-Science certificates • maintaining baseline of logs to assist problem resolution • Resources for whatever users/projects/VO’s they choose to support

27. Partnership Partners commit to same as affiliates, plus: • making “significant” resources available to NGS users • creation of accounts/mappings • in future, VO support, pool accounts, etc • recognise additional CAs with which UK e-Science programme has reciprocal agreements • publish/provide additional information to support resource discovery, brokering • ability to compile code for computational resources Bristol and Cardiff have been through certification process: • supported by “buddies” and NGS-Rollout list • useful feedback on viability of NGS Minimum Software Stack • Accepted as full partners at recent GOSC Board Meeting

28. Benefits Affiliation: • NGS brand • certified NGS-compatible • better integrated support for local users who also access NGS facilities • assistance/advice in maintaining NGS-compatibility over time Partnership: • higher brand quality • Membership of NGS Technical Board • either direct, or through regional or functional consortia • Get a say in the technical direction/decisions • NGS brand must be valuable to make this work. • Total cost of ownership • User pressure/requirements Why Bother ? • Total cost of (shared) ownership • Driven by user demand for common interfaces

29. New Partners • Cardiff • 1000 hours per week on • four eight-processor SGI Origin 300 servers handling throughput work • Myrinet™ interconnect. Each of the Origin servers provides: • 8 64-bit 500MHz MIPS RISC R14000™ processors; • 8GB of system memory; • 12GB of local diskspace. • 1500GB SAN Fibre Channel Storage System • Bristol • Cycle scavenging on a beowulf system: • 20 2.3GHz Athlon processors arranged in 10 dual processor nodes. • There is 240GB of local disk mounted onto the system head node. • Installed with a binary compatible Linux release to Red Hat Enterprise 3. • Uses the Sun Grid Engine workload management system. • Next • Lancaster, White Rose Grid, Edinburgh/ScotGrid …

30. The Vision Thing • Common tools, procedures and interfaces • Reduce total cost of ownership for providers • Lower threshold for users • Early adopter system for UK research grids • technology evaluation • technology choices • pool expertise • drive interface standards and requirements • …

31. Regional and Campus grids Community Grids VRE, VLE, IE HPCx + HECtoR LHC ISIS TS2 UK e-Infrastructure Users get common access, tools, information, Nationally supported services, through NGS Integrated internationally

32. Maintaining Compatibility • Operating a production grid means valuing robustness and reliability over fashion. • NGS cares about: • alignment/compatibility with leading international Grid efforts • special requirements of UK e-Science community • easy migration/upgrade paths • proven robustness/reliability • based on standards or standards-track specifications • NGS cannot support everything • Everyone wants service-oriented grids • but still settling out: WS-I, WS-I+, OGSI, WSRF, GT3, GT4, gLite • Caution over OGSI/WSRF has led to wide convergence on GT2 for production grids and hence some inter-Grid compatibility • but there are potentially divergent forces at work • Significant changes to NGS Minimum Software Stack will require approval by NGS Management Board on conservative time scales

33. Strategic Framework • GOSC/NGS  UK e-Science project • support other UK (e-)science projects • International Compatibility • EGEE • European infrastructure (and possible funding) • LHC at most UK universities • only user group who want to build the grid • GridPP committed to common w/s plan in 2005 • GEANT • Others • TeraGrid – US cyberinfrastructure $$$ (unlikely to pay us) • Open Science Grid – will develop compatibility with LCG • RoW e.g. China • Want use other software, but must be EGEE compatible • Also driven by user requirements • Sets framework for relationship with OMII and others • Other factors • JISC and Shibboleth

34. gLite and Web-Services • EGEE is about production, not R&D • EGEE has to deploy production quality middleware now • We believe that Web-Services will be a key technology for gLite (EGEE Grid middleware) • Need to convince users (SOAP performance!) • Since standards haven’t solidified yet, EGEE is however taking a cautious approach towards WS-* • No WSRF, Not even WS-Addressing • Not a problem in a LCG2 (close community) • We are committed to WS-I (Basic Profile) compliance to maximise interoperability • Benefit to users not apparent now • More WS-* standards will be used as their maturity is demonstrated GOSC Management Board - NGS Status

35. LCG/EGEE Resources: Feb 2005 • Country providing resources • Country anticipating joining • In LCG-2/EGEE: • 113 sites, 30 countries • >10,000 cpu • ~5 PB storage • Includes non-EGEE sites: • 9 countries • 18 sites

36. Applications • HEP Applications • Biomed Applications • imaging, drug discover • mri simulation • protein sequence analyis • Generic Applications • Earth Observation, Seismology, Hydrology, Climate, Geosciences • Computational Chemistry • Astrophysics • Applications “behind the corner” • R-DIG • BioDCV EGEE Third Conference, Athens, 19.04.2005

37. Earth Science Achievements ES: Earth Observation, Seismology, Hydrology, Climate, Geosciences • 12 Institutes, 1 Organisation, 2 Private companies • ESR (Earth Sciences Research) VO at SARA 23 registered users from 8 countries (CH, D, F, I, NL, SK, Ru) + ~8 asking certificates. • EGEODE (Expanding GEOsciences on DEmand) VO at IN2P3 (Lyon), 5 registered users. Highligths • Retrieval of 1 year of Ozone profiles from Satellite GOME data with NNO algorithm i.e. 6746 orbits in 181 jobs: success rate 100% • Validation of 7 years of GOME Ozone profiles retrieved with 2 Versions of NNO algorithms and several months of OPERA i.e. 228000 files • Determination of Earth Quake mechanisms for 5 recent ones – one case 24h after its occurrence (Challenge fulfilled ) • Successful run of a complex MPI application on 5 sites (CCG, CPPM, LAL, NIKHEF, and SCAI) with 16 CPUs; this application ran with >1000CPUs  good benchmark EGEE Third Conference, Athens, 19.04.2005

38. Earth Science Achievements • Water management of coastal water in Mediterranean area: transfer application from Gilda to EGEE; other application under development • Flood prediction: difficulty to transfer application from CrossGrid to EGEE • Climate: Different technologies for secure (meta-)data access evaluated and first tests using ERA40 data and a climate data operator package performed. • Geosciences: nearly complete deployment of Geocluster (400 modules); • Home-made solution for license management • Requirements: • Data, metadata and license : security and restriction access • Web-service based interface : example -difference with Cross Grid • Accounting • MPI: homogeneous environments, more CPUs EGEE Third Conference, Athens, 19.04.2005

39. Process for Moving Forward • New developments evaluated by ETF • must have some longer term support likely • User requests treated on case by case basis • NGS Technical Board consider against needs • user demand • new functionality • improved functionality • improved security/performace/managability • Proposal brought to GOSC Board • Prepared by GOSC “executive” • N.Geddes, S.Pickles, A.Richards, S.Newhouse

40. “User requests treated on case by case basis” • Already see users running web services in user space • Exactly what we want … but … • Potential security risks • Change Conditions of Use to reflect user responsibilities • Require secured web services (X509) • Encourage auditing and audit trails • With time limits • Services run “at risk” • Services lead to significant system load • run on head node (or other specialised node) • Full support only when “approved”

41. Expectations • Little demand for GT4 • expect usability much better than GT3 • Watching brief, OGSA-DAI or TeraGrid users may drive this • Indications of Glite improvements in • VOMS, RB, shell, File i/o, data catalog • unlikely to have full ETF assessment by End March • unlikely to all be robust before Q4 • OMII job submission • expect good usability, limited functionality • run as user services • problems integrating into Resource Broker and Accounting ? • Net result likely to be a vague w/s plan • Hopefully able to focus on some key components

42. Summary TODAY • 4 core nodes operational • 2+2 Partners • 150 Users registered (50 since 1 September ’04) • Grid enabled – Globus v2 (VDT distribution v1.2) at present • BDII information service (GLUE + MDS Schemas) • Data Services – SRB, Oracle, OGSA-DAI • Growing base of user applications • MyProxy and CA services • VO Management Software – LCG-VO • User support: Helpdesk Next… • Other Middleware [gLite/OMII etc…] • NGS Portal • Resource Broker • SRB production service • Accounting • Continued expansion • Providing computing, data, and facility access for a wide range of users

43. The end…

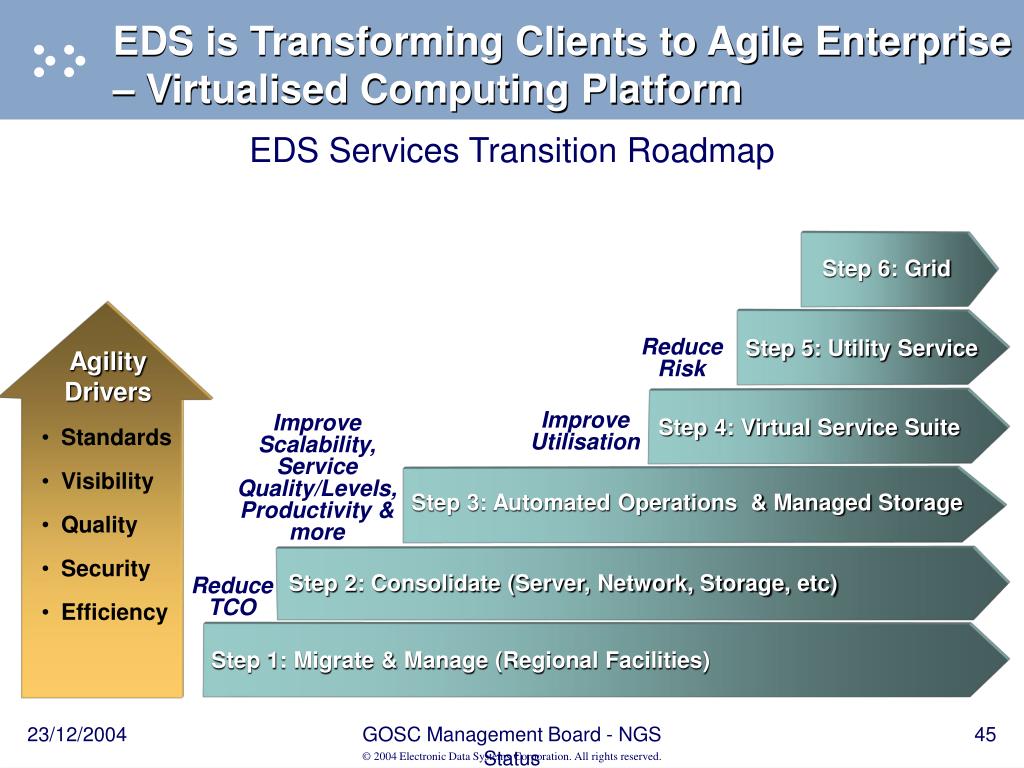

45. EDS is Transforming Clients to Agile Enterprise – Virtualised Computing Platform EDS Services Transition Roadmap Step 6: Grid Reduce Risk Step 5: Utility Service • Agility Drivers • Standards • Visibility • Quality • Security • Efficiency Improve Utilisation Improve Scalability, Service Quality/Levels, Productivity & more Step 4: Virtual Service Suite Step 3: Automated Operations & Managed Storage Reduce TCO Step 2: Consolidate (Server, Network, Storage, etc) Step 1: Migrate & Manage (Regional Facilities) GOSC Management Board - NGS Status
