  1. CS B553: Algorithms for Optimization and Learning Univariate optimization

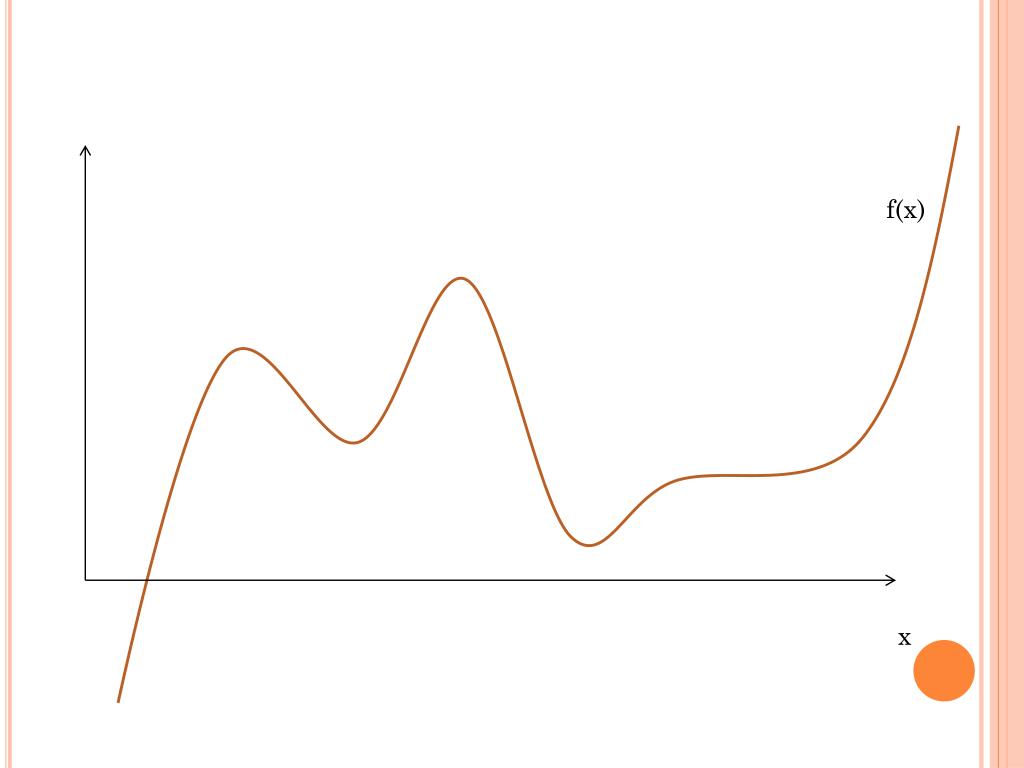

  2. f(x) x

  3. Key Ideas • Critical points • Direct methods • Exhaustive search • Golden section search • Root finding algorithms • Bisection • [More next time] • Local vs. global optimization • Analyzing errors, convergence rates

  4. Figure 1 f(x) Local maxima Inflection point Local minima x

  5. Figure 2a f(x) a b x

  6. Figure 2b Find critical points, apply 2nd derivative test f(x) a b x

  7. Figure 2b f(x) a b x

  8. Figure 2c f(x) a b x Global minimum must be one of these points

  9. Figure 3 Exhaustive grid search f(x) a b x

  10. Exhaustive grid search f(x) a b x

  11. Figure 4 Two types of errors f(x) f(xt) Analytical error f(x*) x x* xt Geometric error

  12. Does exhaustive grid search achieve e/2 geometric error? f(x) x* b a x e

  13. Does exhaustive grid searchachieve e/2 geometric error? Not necessarily for multi-modal objective functions f(x) x* b a x Error

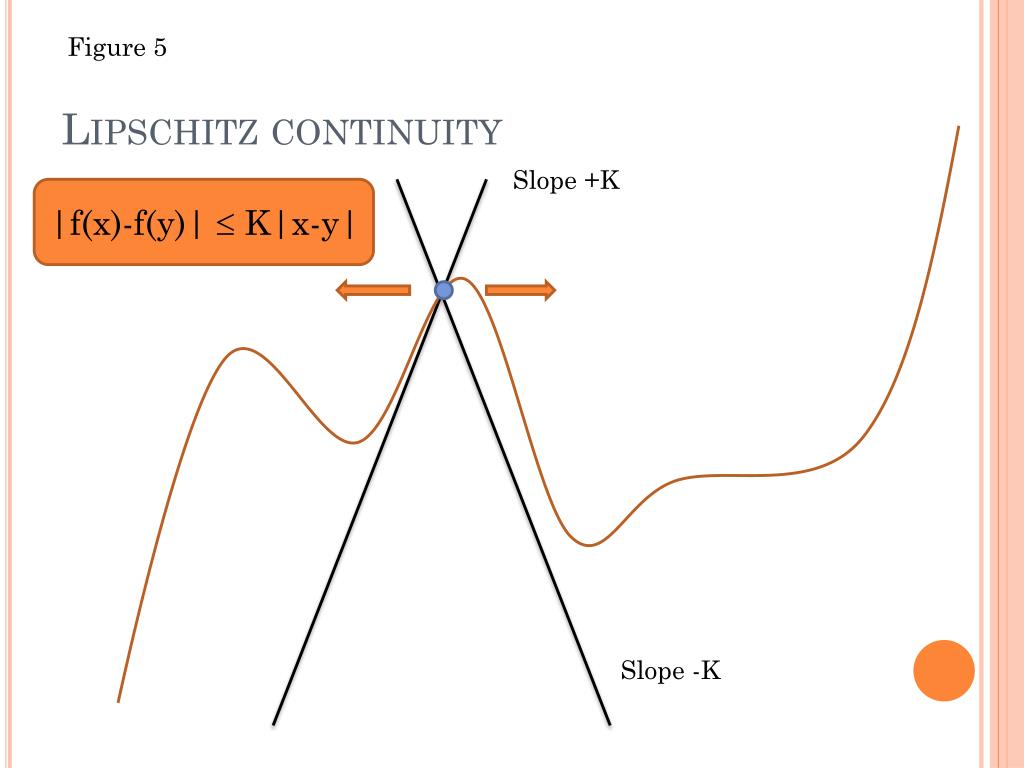

  14. Figure 5 Lipschitz continuity Slope +K |f(x)-f(y)|  K|x-y| Slope -K

  15. Figure 6 Exhaustive grid search achieves Ke/2 analytical error in worst case f(x) b a x e

  16. Figure 7a Golden section search f(x) m b a x Bracket [a,b]Intermediate point m with f(m) < f(a),f(b)

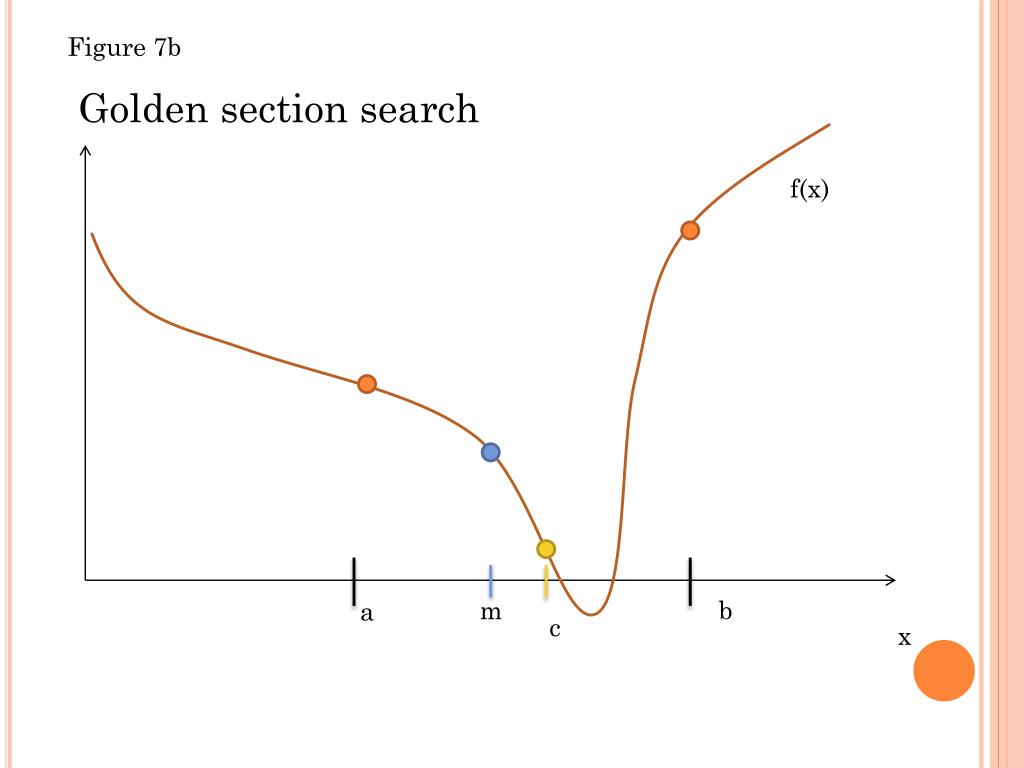

  17. Figure 7b Golden section search f(x) c m b a x Candidate bracket 1 [a,m] Candidate bracket 2 [c,b]

  18. Figure 7b Golden section search f(x) m b a x

  19. Figure 7b Golden section search f(x) m b a c x

  20. Figure 7b Golden section search f(x) a b m x

  21. Optimal choice: based on golden ratio f(x) c m b a x Choose c so that (c-a)/(m-c) = , where  is the golden ratio => Bracket reduced by a factor of -1 at each step

  22. Notes • Exhaustive search is a global optimization: error bound is for finding the true optimum • GSS is a local optimization: error bound holds only for finding a local minimum • Convergence rate is linear: with xn = sequence of bracket midpoints

  23. Figure 8 Root finding: find x-value where f’(x) crosses 0 f(x) f’(x) x

  24. Figure 9a Bisection g(x) a b Bracket [a,b]Invariant: sign(f(a)) != sign(f(b))

  25. Figure 9 Bisection g(x) a m b Bracket [a,b]Invariant: sign(f(a)) != sign(f(b))

  26. Figure 9 Bisection g(x) a b Bracket [a,b]Invariant: sign(f(a)) != sign(f(b))

  27. Figure 9 Bisection g(x) a m b Bracket [a,b]Invariant: sign(f(a)) != sign(f(b))

  28. Figure 9 Bisection g(x) a b Bracket [a,b]Invariant: sign(f(a)) != sign(f(b))

  29. Figure 9 Bisection g(x) a m b Bracket [a,b]Invariant: sign(f(a)) != sign(f(b))

  30. Figure 9 Bisection g(x) a b Bracket [a,b]Invariant: sign(f(a)) != sign(f(b)) Linear convergence: Bracket size is reduced by factor of 0.5 at each iteration

  31. Next time • Root finding methods with superlinear convergence • Practical issues
