  1. Mid-Term Presentation Unit 91 Week 7 Jon Gutierrez, Chris Sauer, Simon Radomski, Chat Huynh, Jeff Burton, & Robert Platt October 1, 2008

  2. Outline • Project Goal • Problem Statement • Design Partition • Analysis Tool

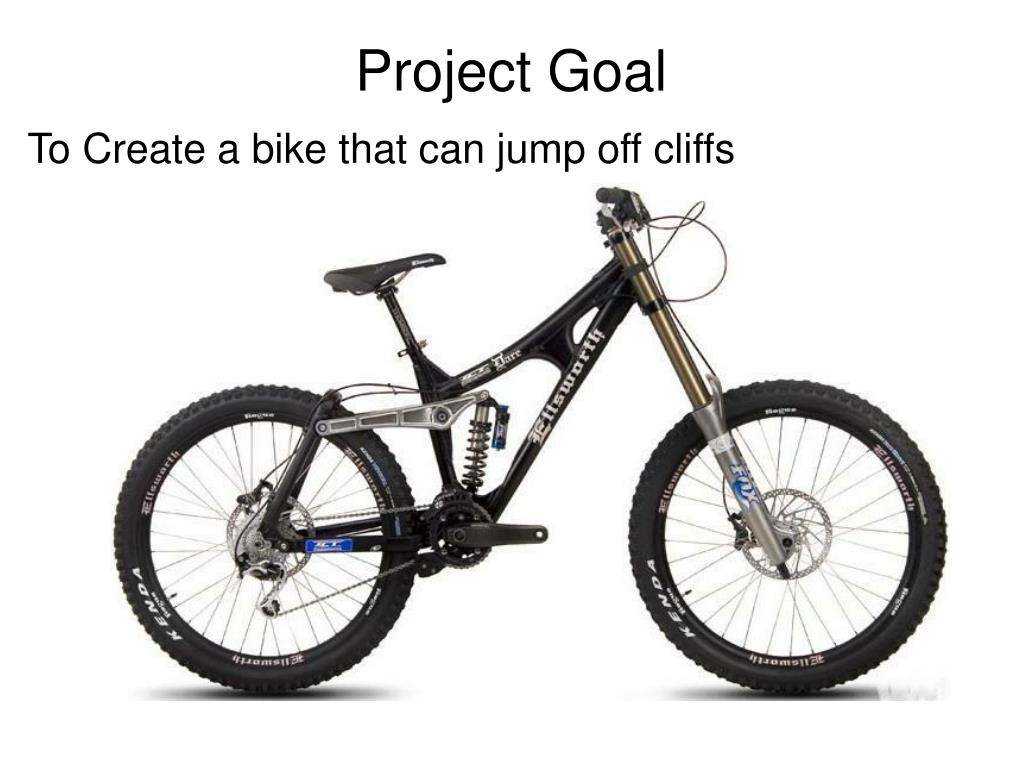

  3. Project Goal To Create a bike that can jump off cliffs

  4. Josh Bender Josh Bender – YouTube.com http://www.youtube.com/watch?v=Y3qRy0Nj2uY

  5. Problem Statement Mechanical Advantage Regular Riding Landing Jumps Characteristics • Hard Suspension • Maximum force to rider Characteristics • Soft Suspension • High Traction Production Downhill Bikes Our Bike

  6. Problem Statement Force To Rider Begin Impact End Impact Characteristics • High Final Force Characteristics • Low Initial force Our Bike Production Downhill Bikes Goal: allow the rider additional reaction time

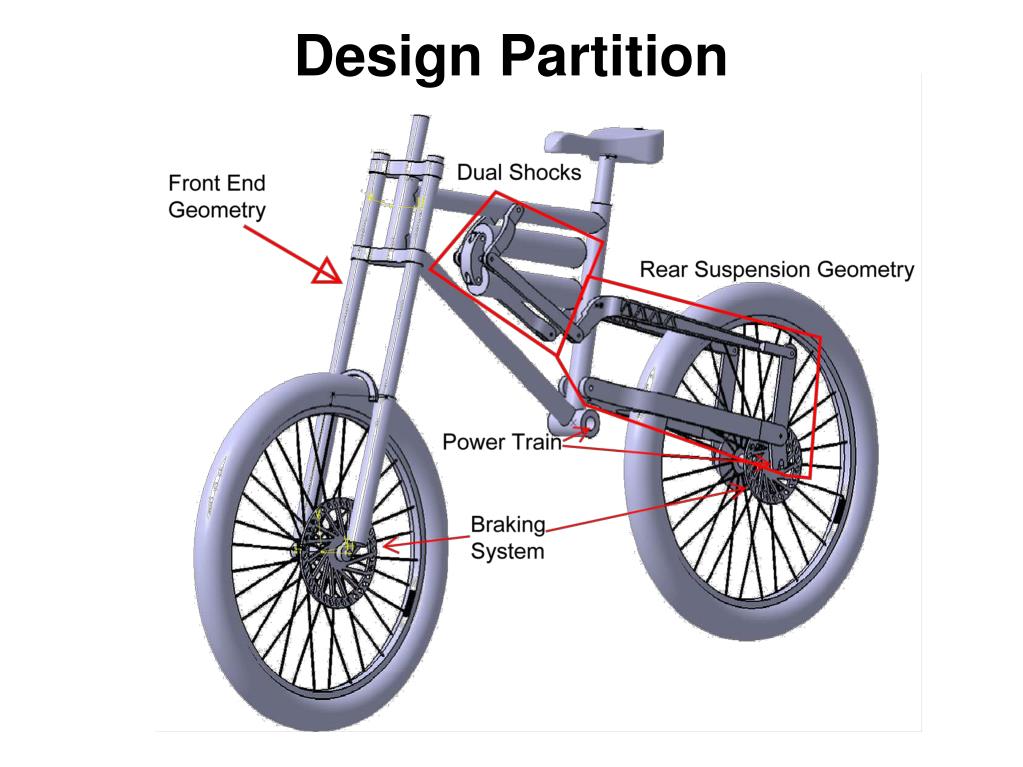

  7. Design Partition

  8. Evaluate Wheel Path • Chain Extension • Affect of Geometries on Forces

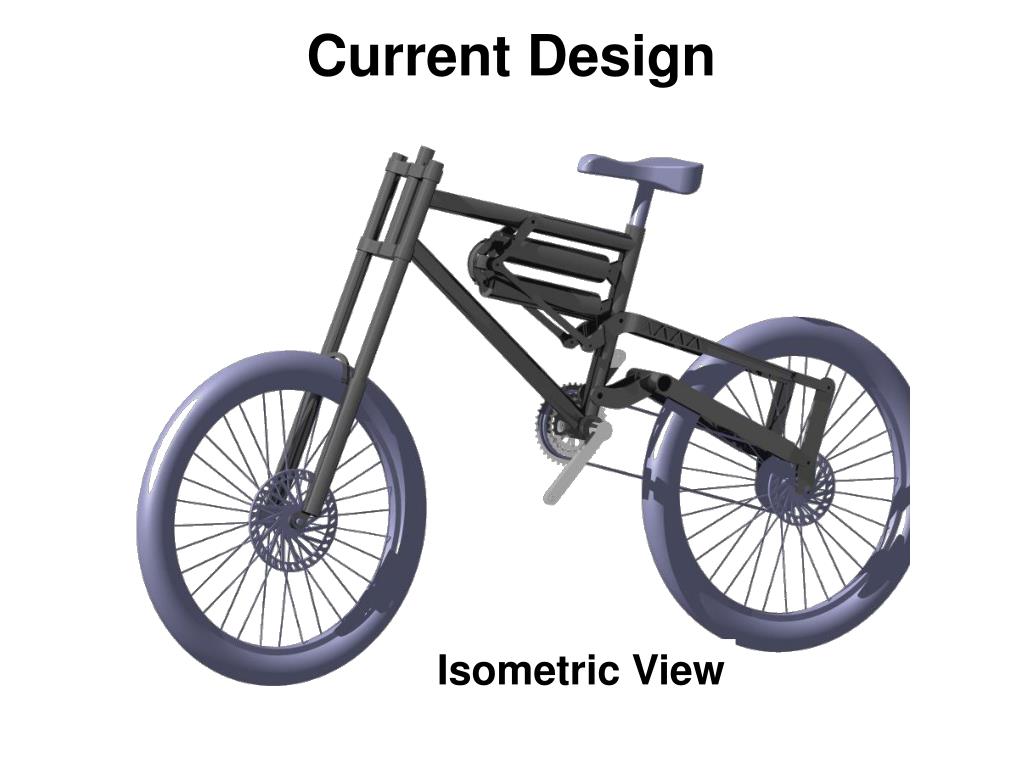

  9. Current Design Isometric View

  10. Current Design Un-Compressed

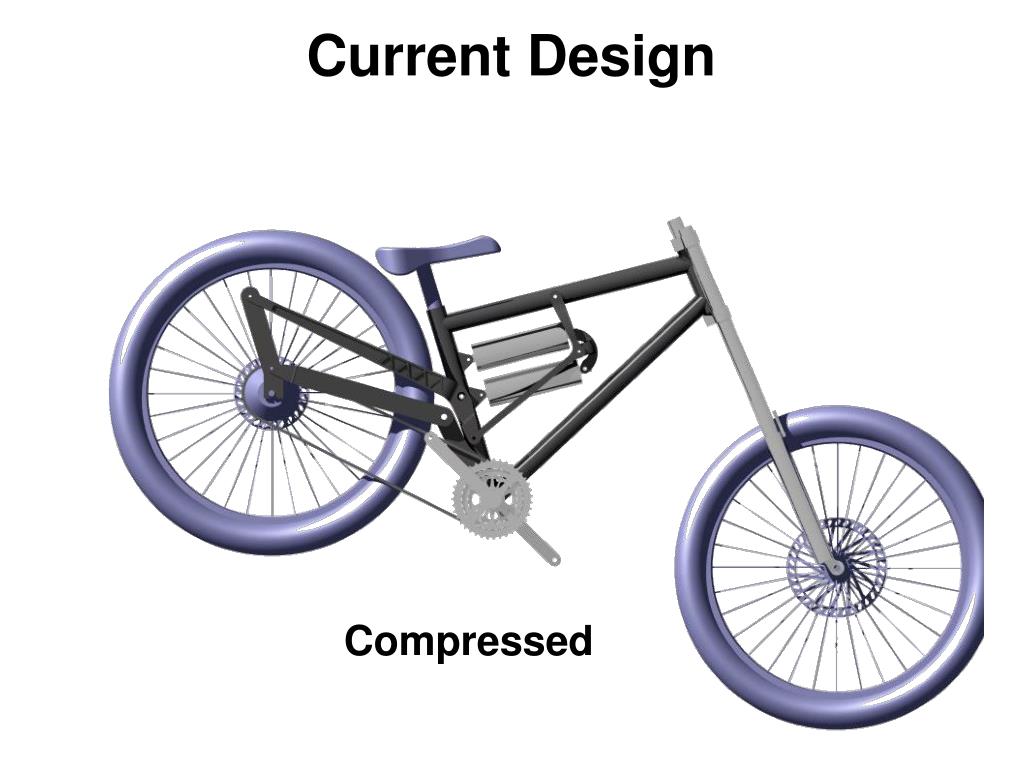

  11. Current Design Compressed
