Presentation Transcript

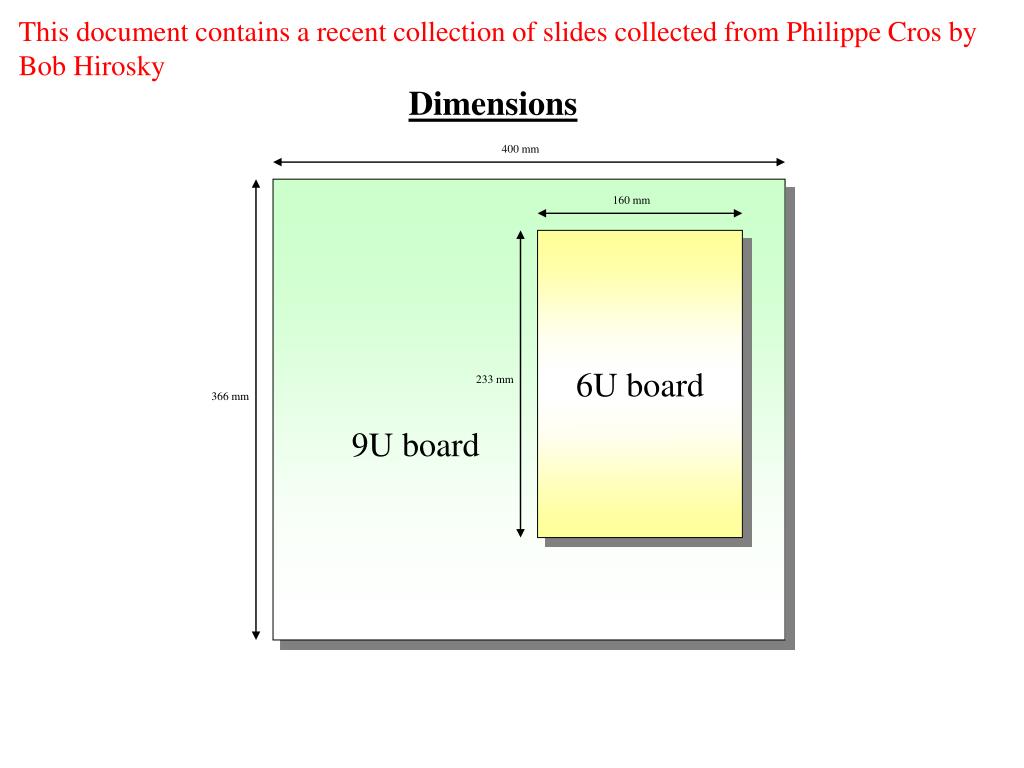

  1. This document contains a recent collection of slides collected from Philippe Cros by Bob Hirosky Dimensions 400 mm 160 mm 6U board 233 mm 366 mm 9U board

  2. Geometry of the boards 9U board 6U board Hard drive mezzanine board The proportions of the boards are respected

  3. Geometry of the boards (profile view) 9U components side (a few thin (height : 1.20 mm) TTL drivers will be on the other side) 6U components side mezzanine components side PCI interface TTL drivers Hard drive 9U board 6U board 9U board The proportions of the boards are respected ~12mm

  4. Electronics placement 9U board 6U board VME TTL driver mezzanine board Hard drive VME EPROM TTL driver PCI PLX 9054 PQFP 176 TTL drivers Local bus EIDE ECL drivers Magic bus Display XCV405E BGA 676 EPROM Xilinx Virtex-E 1.8V Extended memory Fineline BGA 676 The proportions of the boards are respected

  5. the mezzanine board is modified with a ‘Rigid Flex’ cable EPROM EPROM PCI PCI PLX9054 PQFP 176 PLX9054 PQFP 176 No connectors The board and cable are in one piece local bus local bus

  6. Mechanics placement Display 9U board 6U board VME TTL driver mezzanine board VME EPROM TTL driver PCI PLX 9054 PQFP 176 EIDE TTL drivers Local bus ECL drivers Magic bus XCV405E BGA 676 EPROM The proportions of the boards are respected view next page

  7. 9U board from the factory The proportions of the boards are respected

  8. most components are assembled TTL driver TTL driver TTL drivers EIDE ECL drivers Add-on Magic bus clk40MHz EPROM Altera APEX 20K200 Fineline BGA 484 FIFOs The proportions of the boards are respected

  9. the inside cut is sawed, the VME connectors are soldered TTL driver TTL driver TTL drivers EIDE ECL drivers Add-on Magic bus clk40MHz EPROM Altera APEX 20K200 Fineline BGA 484 FIFOs The proportions of the boards are respected

  10. the front pannel and support bars are screwed TTL driver TTL driver TTL drivers EIDE ECL drivers Add-on Magic bus clk40MHz EPROM Altera APEX 20K200 Fineline BGA 484 FIFOs The proportions of the boards are respected

  11. Mechanics placement VME 9U board VME XCV405E BGA 676 The proportions of the boards are respected

  12. Grounding of the boards 9U board 6U board backplane mezzanine board The proportions of the boards are respected
