  1. MAF (Mass Air Flow) Kelompok I FAKULTAS TEKNIK UNIVERSITAS NEGERI PADANG

  2. Anggota • Mhd.FuadMandaGarsyah (1102534) • Iswandi (1102528) • Muhammad Aswan (1105043) • RosiAriska (1105042) • Endrisusanto (1108954)

  3. PengertianSensor massaaliranudaramengkonversikanjumlahudara yang dimasukankedalammesinmenjadisinyaltegangan. ECM perlumengetahuiasumsi volume udarauntukmenghitungbebanmesin. Inidiperlukanuntukmenentukanbahanbakaruntukdiinjeksikan.

  4. Posisi Sensor Air flow sensor terletaktepatdialiranudaramasuk, antara filter udaradanbagianthorttletempat yang dapatmengukurudara yang masuk.

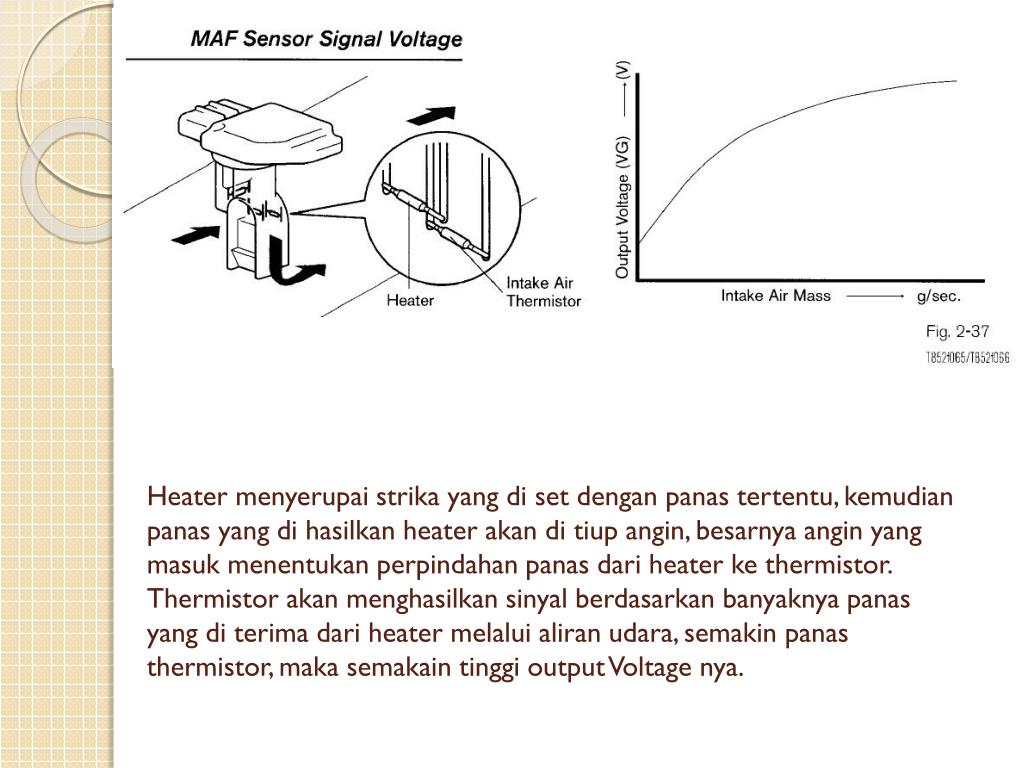

  5. Heater menyerupaistrika yang di set denganpanastertentu, kemudianpanas yang dihasilkan heater akanditiupangin, besarnyaangin yang masukmenentukanperpindahanpanasdari heater kethermistor. Thermistorakanmenghasilkansinyalberdasarkanbanyaknyapanas yang diterimadari heater melaluialiranudara, semakinpanasthermistor, makasemakaintinggi output Voltage nya.

  6. Cara Kerja MAF Sinyaldikirimke ECU Output voltage Udarapanas udaramasuk Throtle body

  7. ECU

  8. Sekian, terimakasihpertanyaan
