  1. eShelf Solution OPS eShelf Team, DDS

  2. eShelf Specification • eTicket • - Display : TFT LCD 2.3", 320x240, 4:3, 65k • - MCU : ST STM32F2 Cortex-M3, 120MHz • - Storage : Build in 4GB Micro SD - Data I/O : RS485- Button : ID*1 • - Enclosure material : Plastic • - Dimension : 55.1(W)x50(H)x10.85 (D)mm • eChannel • - Data I/O : RS485 115,200b/s • - Power : 19VDC • - Enclosure material : Plastic+Aluminum • - Dimension : 885 (W)x50.1 (H)x19.3 (D)mm • WFRS • - Wi-Fi router : 802.11n w/RS485 port • - Adapter : 90W, 19VDC/4.74A • - Hub board (*2 option): • RJ45 *5 • 12VDC *1 • 5VDC *1 • - RJ45 cable *5 • - RS485 cable *1 • - DC 12V cable *1 • - Dimension : 200(W)x40(H)x260 (D)mm • Notice • - One WFRS can support 10pcs eChannel w/62pcs eTicket(with Hub board*2) • - One eChannel can support 15pcs eTicket

  3. Product Feature Specifications ARM platform - Cortex-A9, Dual Core 1.5 GHz - Amlogic AML8726-M - 1GB DDR3 System Slim and Light design - Display 9.7", 1024x768, 4:3 w/CPT touch - Android 4.0 - Battery 6000mAh (3.7V) - MIC, Stereo speakerx2(1W) - Front Camera 0.3M, Real Camera 2M - Storage : Build in flash 4G Modules/Cards for optional SKU - 3G Module : Yes(Option) - WLAN : 802.11 b/g/n - Bluetooth : V4.0 of 1,2,3Mbps - Sensor : G-sensor Accessory - Extension power cable (Option) - USB cable - DC Adapter - Adapter pin head eTablet10 Specification • Extra-Slim FORM FACTOR - Enclosure material : Plastic • - 10W, 5VDC/2A Adapter • - Dimension : 277.54(W)x222.44(H)x64.5(D)mm • - Weight : 820g

  4. Product Feature Specifications ARM platform - Cortex-A9, Dual Core 1.5 GHz - Amlogic AML8726-M - 1GB DDR3 System Slim and Light design - Display 18.5”, 16:9, 1366x768, 250nits w/CPT touch - Android 4.0 - MIC, Stereo speakerx2(1W) - Front Camera 1.3M - I/O : 3.5mm audio jack, USB 2.0x2- Storage : Build in flash 4G Modules/Cards for optional SKU - 3G Module : Yes(Option) - WLAN : 802.11 b/g/n - Bluetooth : V4.0 of 1,2,3Mbps Accessory - AC/DC Adapter - Power cord (EU, US, AU) eTile19 Specification • Extra-Slim FORM FACTOR - Enclosure material : Metal • - Dimension :454x290x30mm (WxHxD) • - Weight : 4.7Kg

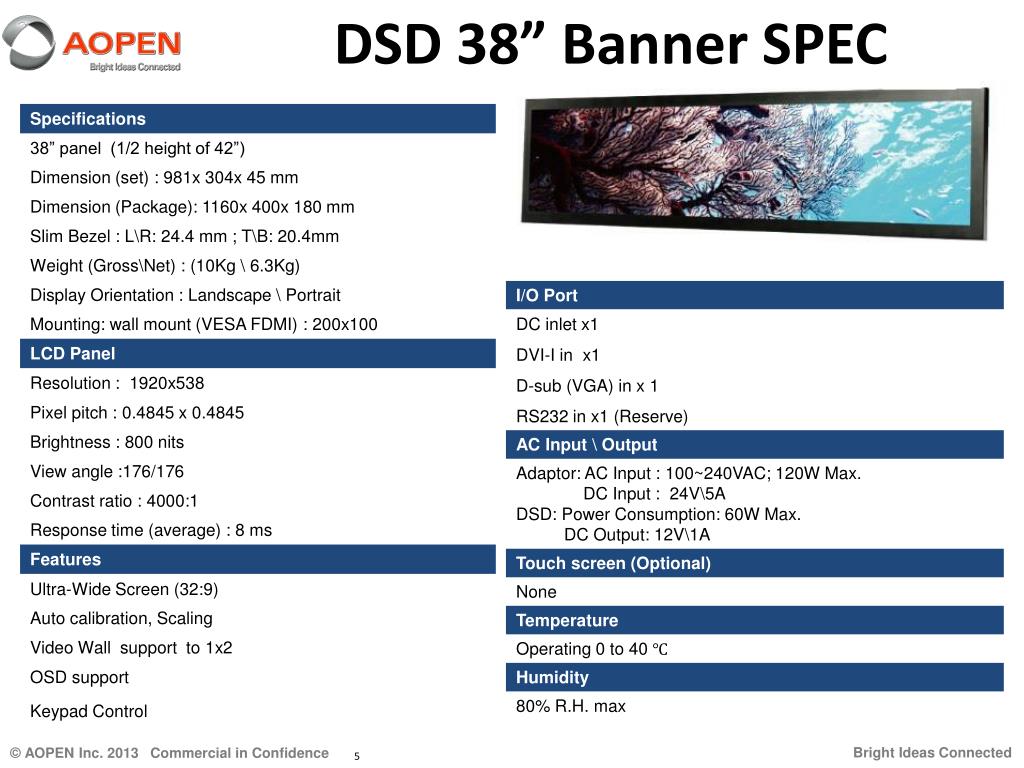

  5. DSD 38” Banner SPEC
