  1. China Geomagnetism Satellite Mission Spacecraft Systemand Payload Tielong Zhang On behalf of the CGS Team in the Institute of Geology and Geophysics, Chinese Academy of Science

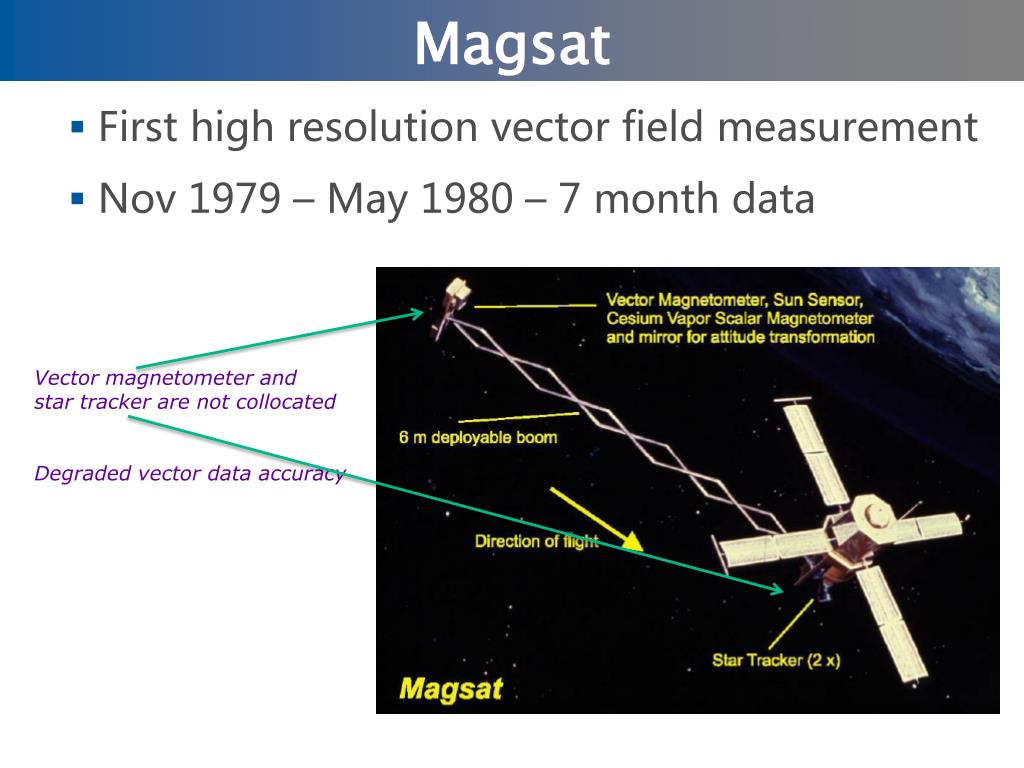

  2. Magsat • First high resolution vector field measurement • Nov 1979 – May 1980 – 7 month data Vector magnetometer and star tracker are not collocated Degraded vector data accuracy

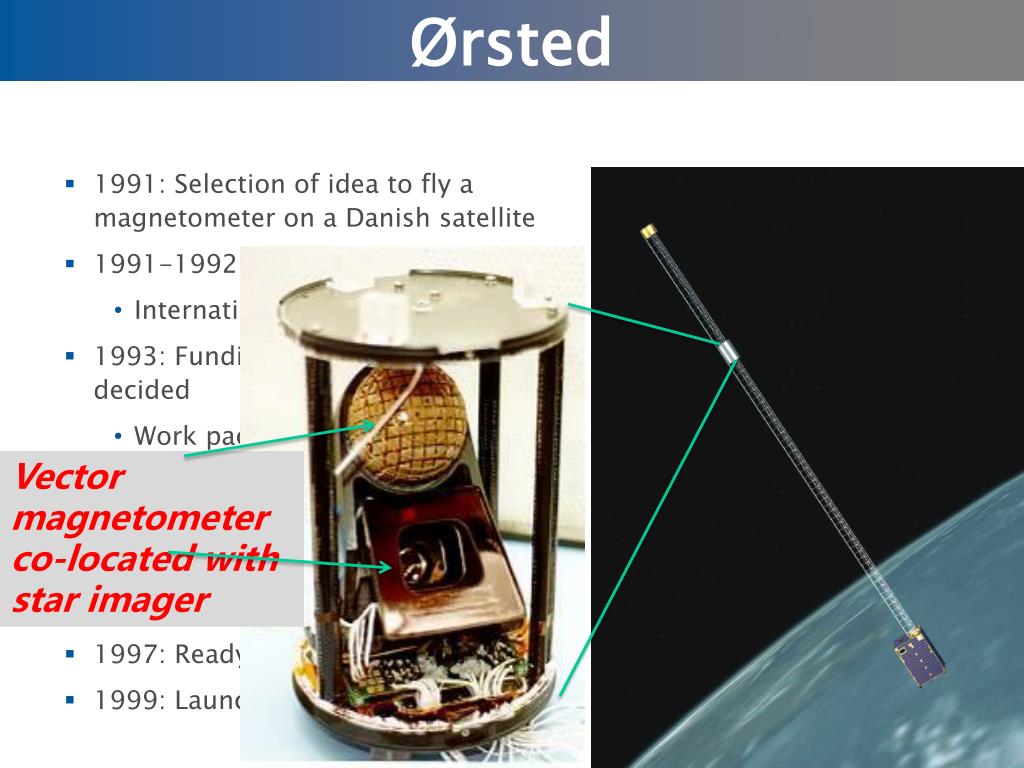

  3. Ørsted • 1991: Selection of idea to fly a magnetometer on a Danish satellite • 1991-1992: Feasibility study • International Review, March 1992 • 1993: Funding for the total project decided • Work package contracts • Research Announcement • 1995: First Ørsted International Science Team (ØIST) meeting • 100 participants, 60 foreign • 1997: Ready for launch! • 1999: Launch on February 23 Vector magnetometer co-located with star imager

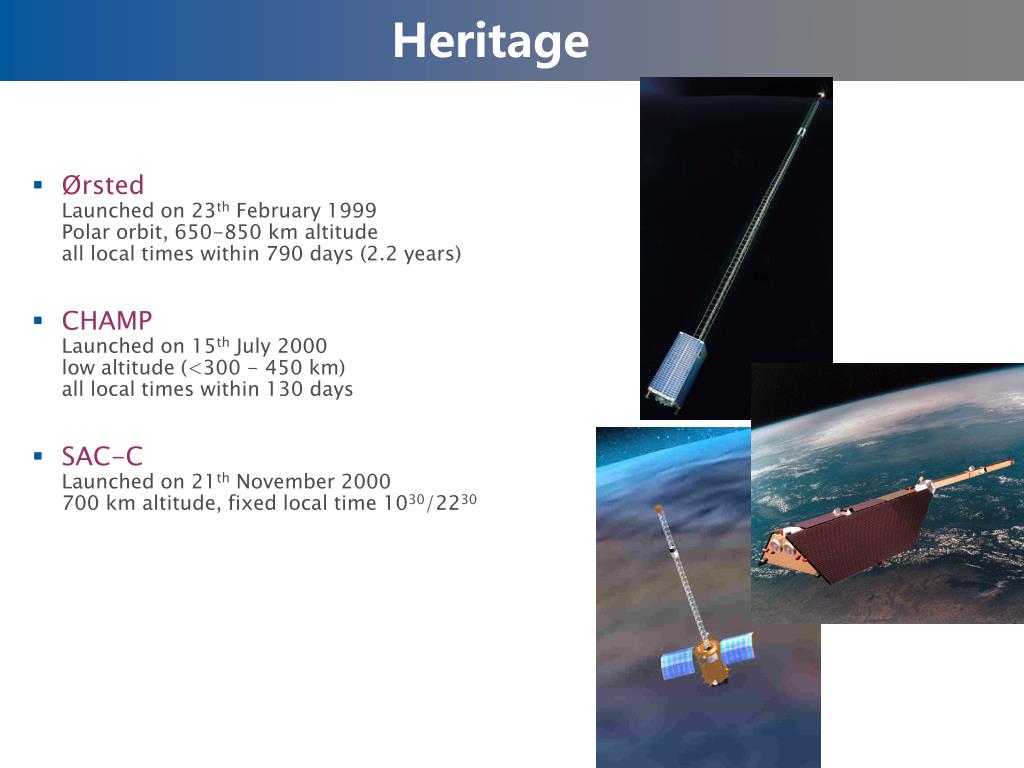

  4. Heritage • ØrstedLaunched on 23th February 1999 Polar orbit, 650-850 km altitudeall local times within 790 days (2.2 years) • CHAMPLaunched on 15th July 2000low altitude (<300 - 450 km)all local times within 130 days • SAC-CLaunched on 21th November 2000700 km altitude, fixed local time 1030/2230

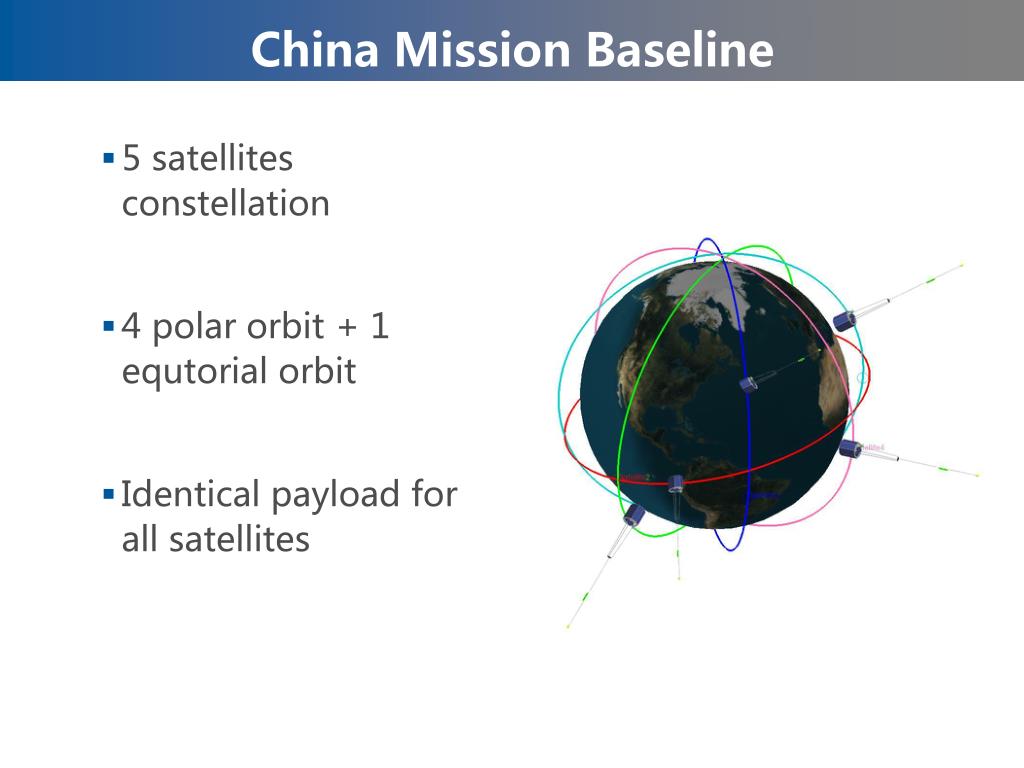

  5. China Mission Baseline • 5 satellites constellation • 4 polar orbit + 1 equtorial orbit • Identical payload for all satellites

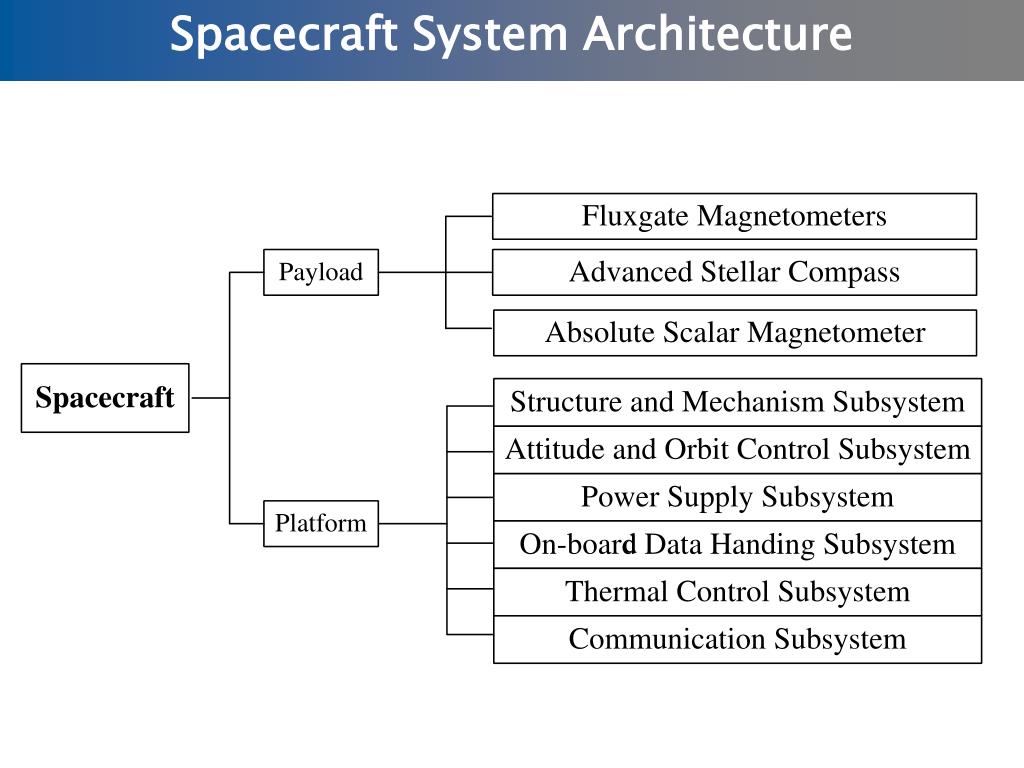

  6. Spacecraft System Architecture

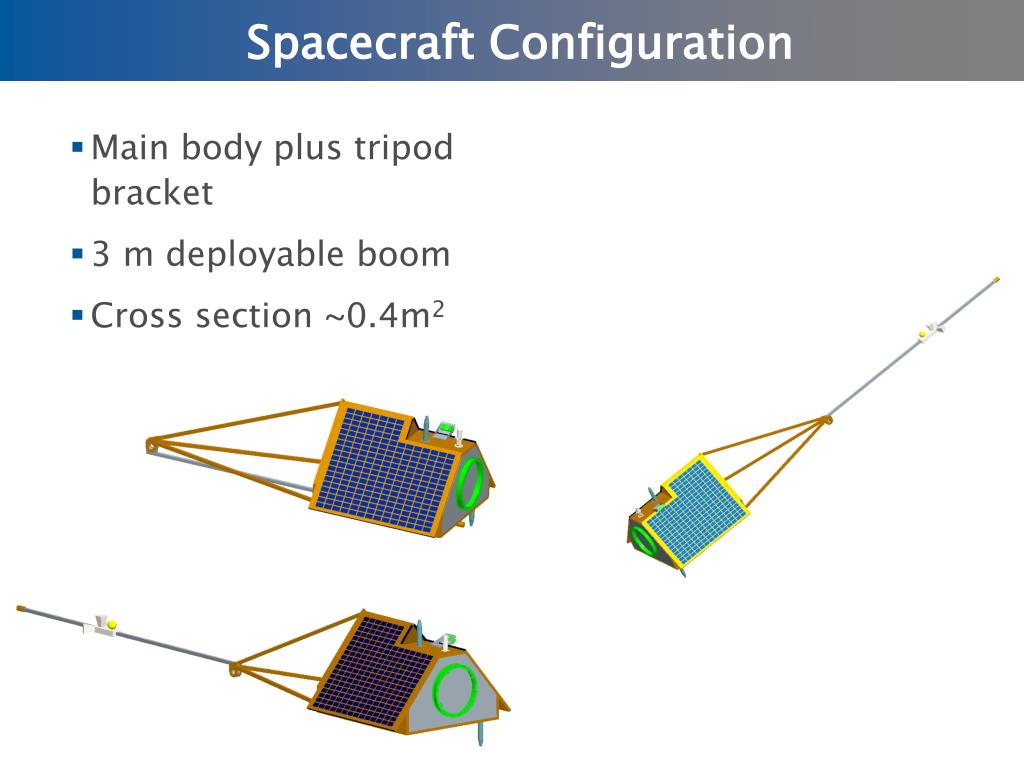

  7. Spacecraft Configuration • Main body plus tripod bracket • 3 m deployable boom • Cross section ~0.4m2

  8. S/C Configuration

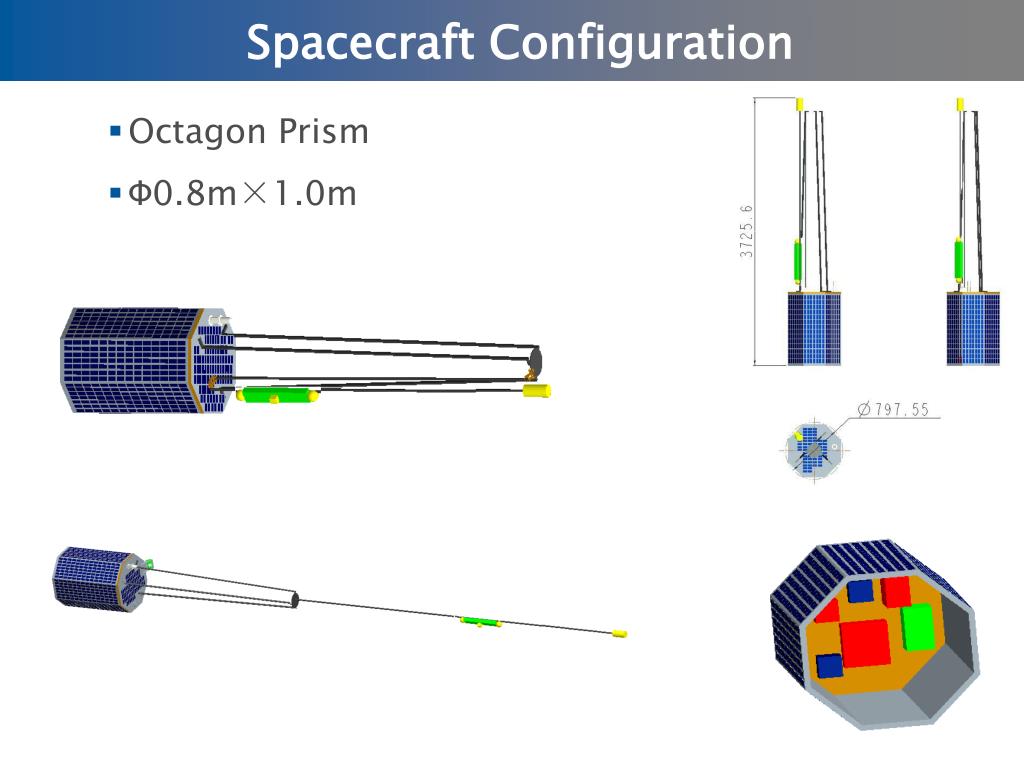

  9. Spacecraft Configuration • Octagon Prism • Φ0.8m×1.0m

  10. S/C Configuration • Main body Shape: • Octagon prism with a tripod bracket • On orbit status: • 5m boom attaches to the bracket • Size: • Φ0.8m×3.5m (in Launch Status ); • Φ0.8m×8.5m (in Flight Status) boom folded boom deployed

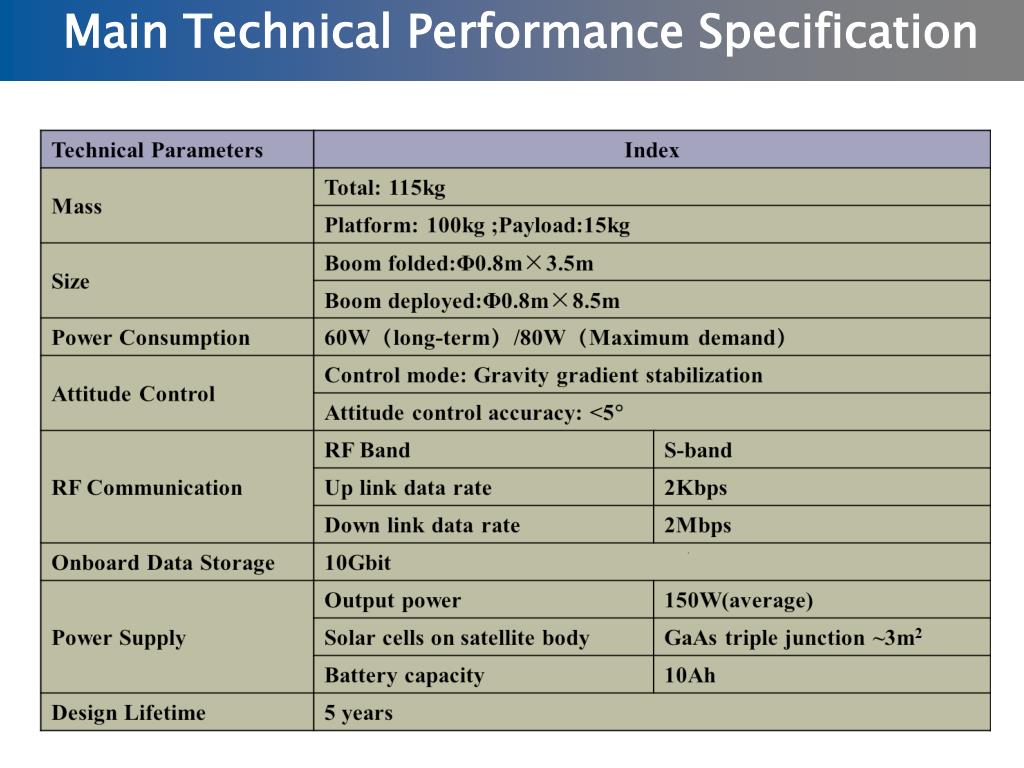

  11. Main Technical Performance Specification

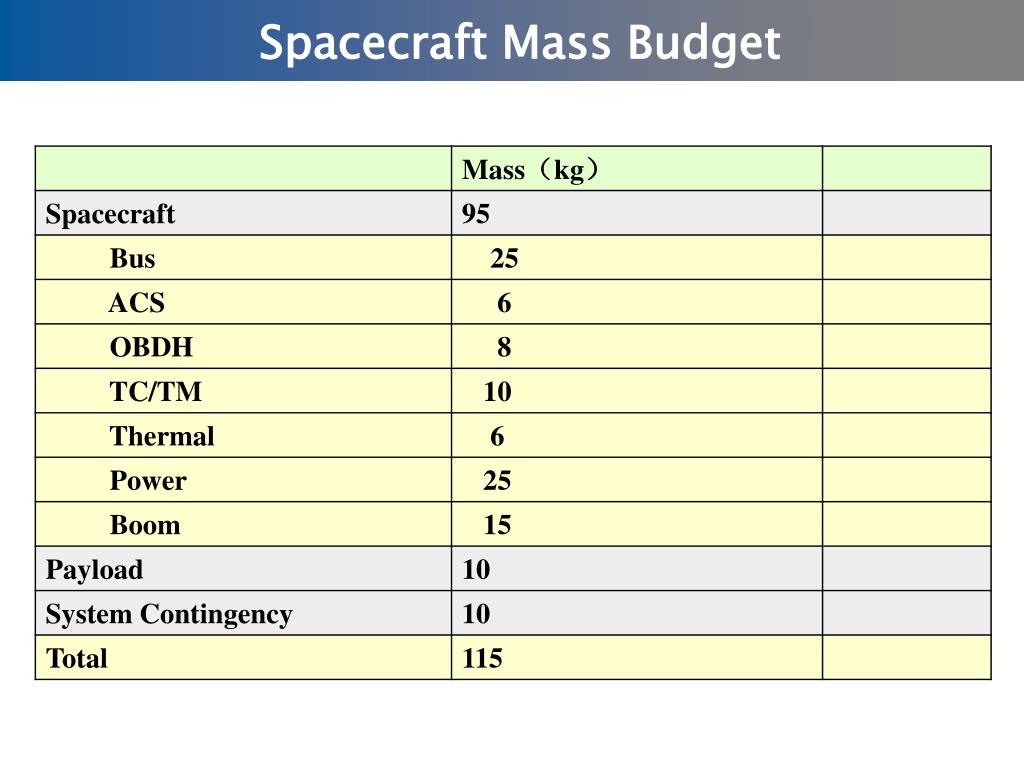

  12. Spacecraft Mass Budget

  13. Spacecraft Power Budget

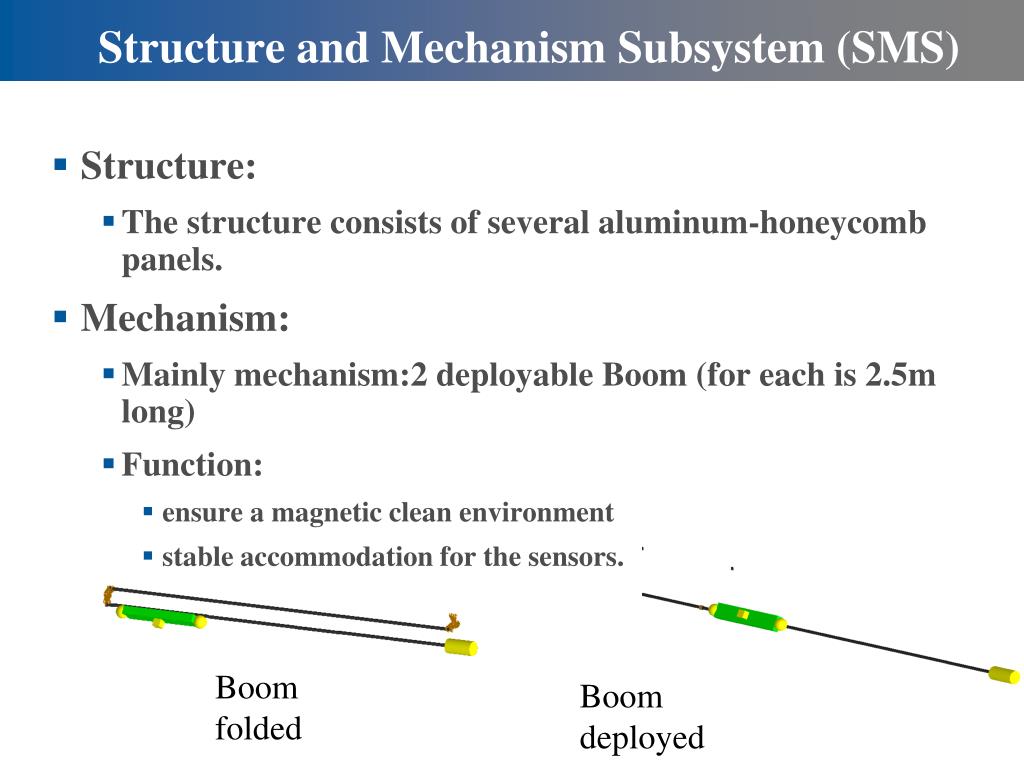

  14. Structure and Mechanism Subsystem (SMS) • Structure: • The structure consists of several aluminum-honeycomb panels. • Mechanism: • Mainly mechanism:2 deployable Boom (for each is 2.5m long) • Function: • ensure a magnetic clean environment • stable accommodation for the sensors. Boom folded Boom deployed

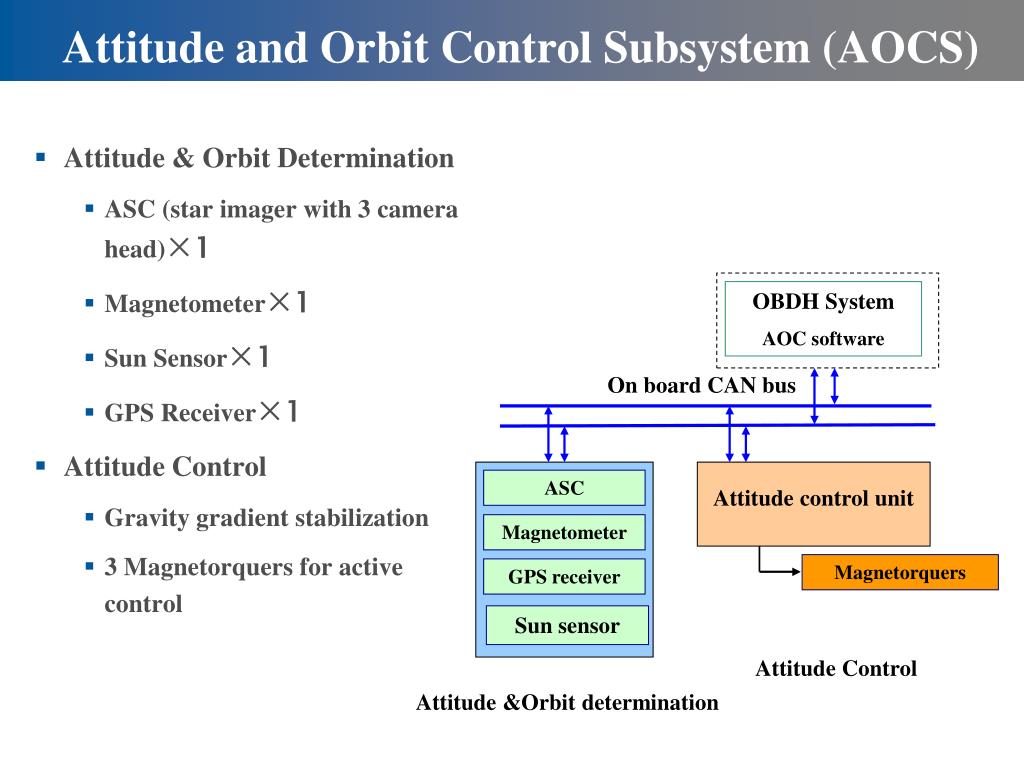

  15. Attitude and Orbit Control Subsystem (AOCS) • Attitude & Orbit Determination • ASC (star imager with 3 camera head)×1 • Magnetometer×1 • Sun Sensor×1 • GPS Receiver×1 • Attitude Control • Gravity gradient stabilization • 3 Magnetorquers for active control OBDH System AOC software On board CAN bus ASC Attitude control unit Magnetometer Magnetorquers GPS receiver Sun sensor Attitude Control Attitude &Orbit determination

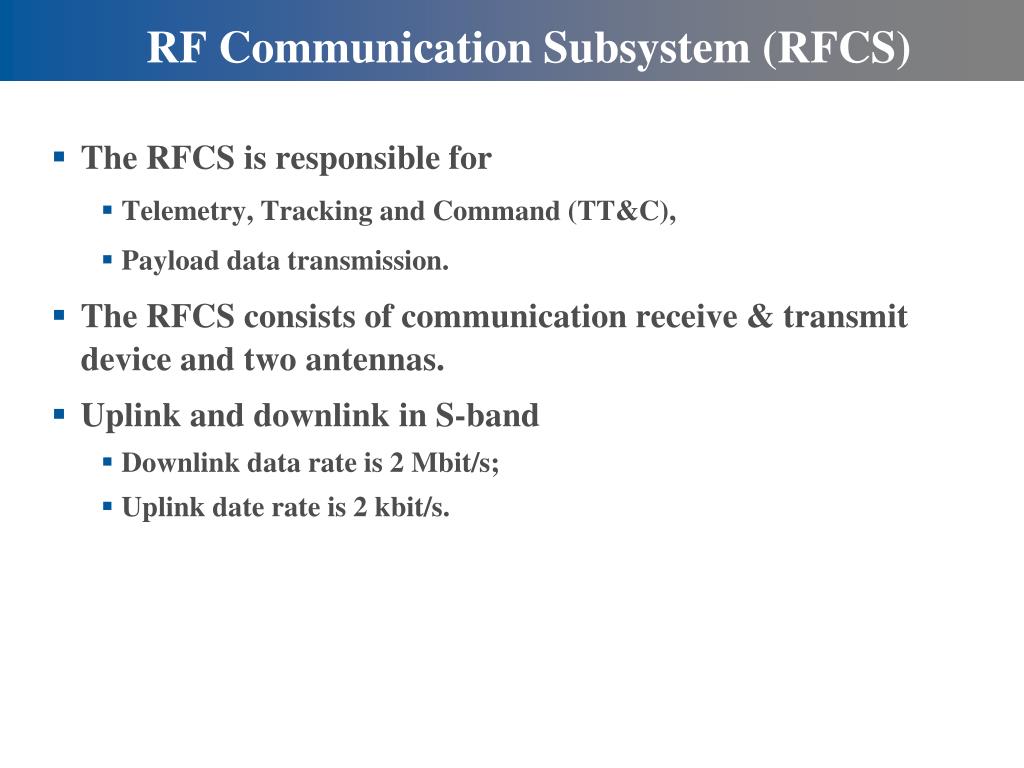

  16. RF Communication Subsystem (RFCS) • The RFCS is responsible for • Telemetry, Tracking and Command (TT&C), • Payload data transmission. • The RFCS consists of communication receive & transmit device and two antennas. • Uplink and downlink in S-band • Downlink data rate is 2 Mbit/s; • Uplink date rate is 2 kbit/s.

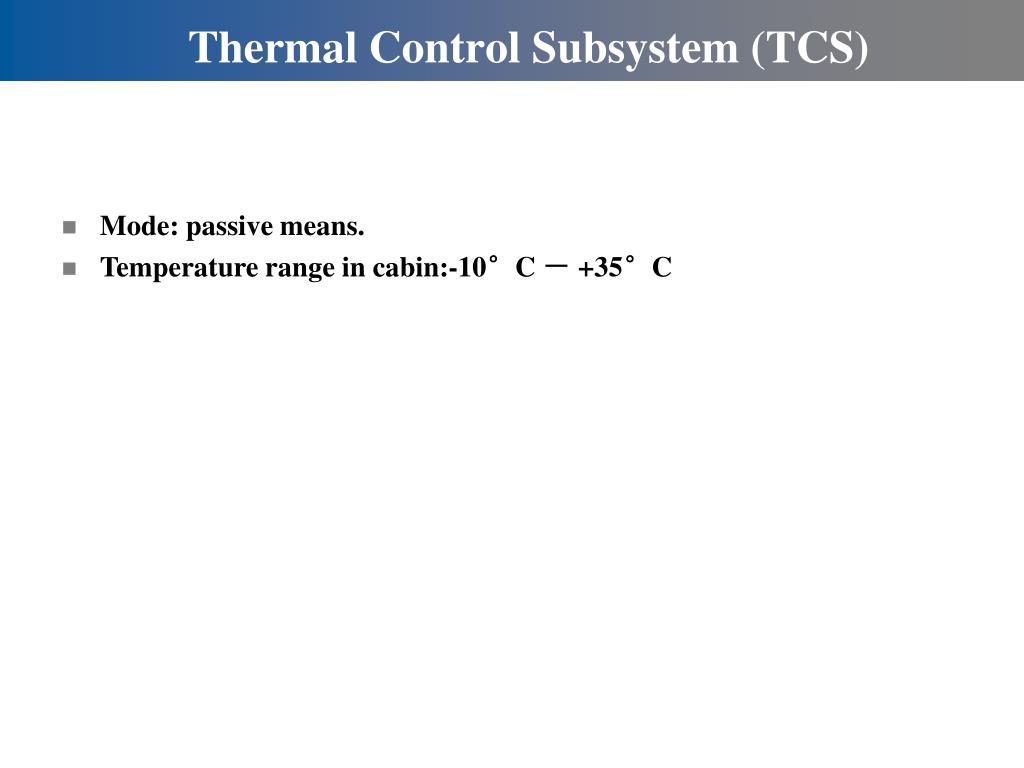

  17. Thermal Control Subsystem (TCS) • Mode: passive means. • Temperature range in cabin:-10°C － +35°C

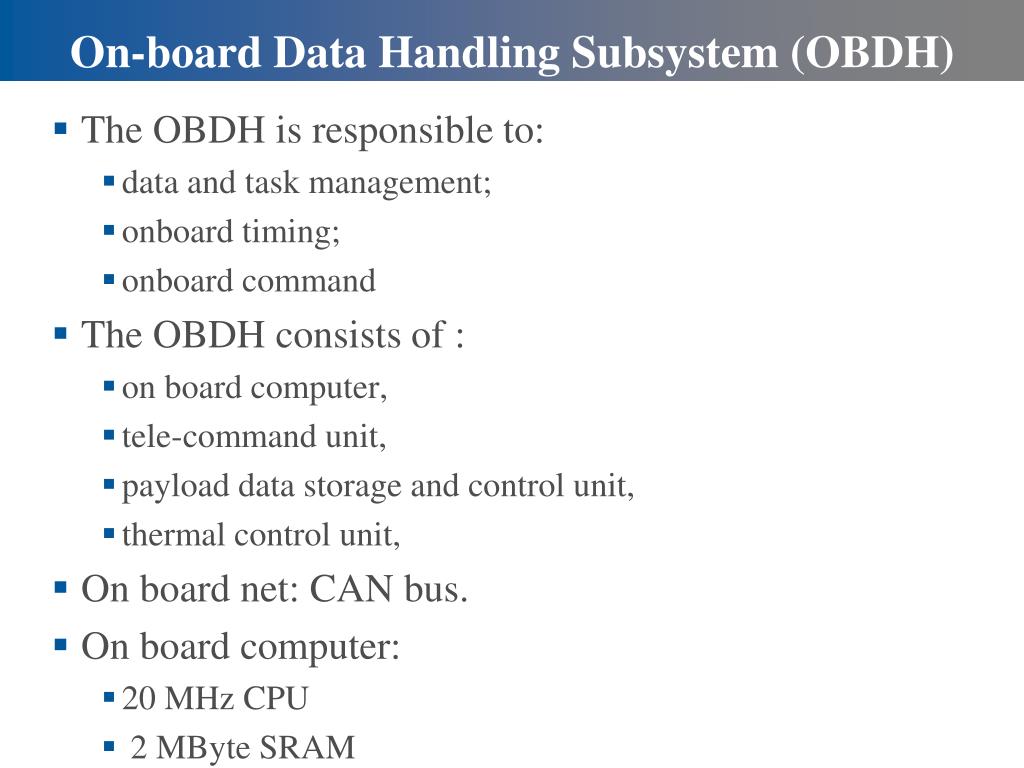

  18. On-board Data Handling Subsystem (OBDH) • The OBDH is responsible to: • data and task management; • onboard timing; • onboard command • The OBDH consists of : • on board computer, • tele-command unit, • payload data storage and control unit, • thermal control unit, • On board net: CAN bus. • On board computer: • 20 MHz CPU • 2 MByte SRAM

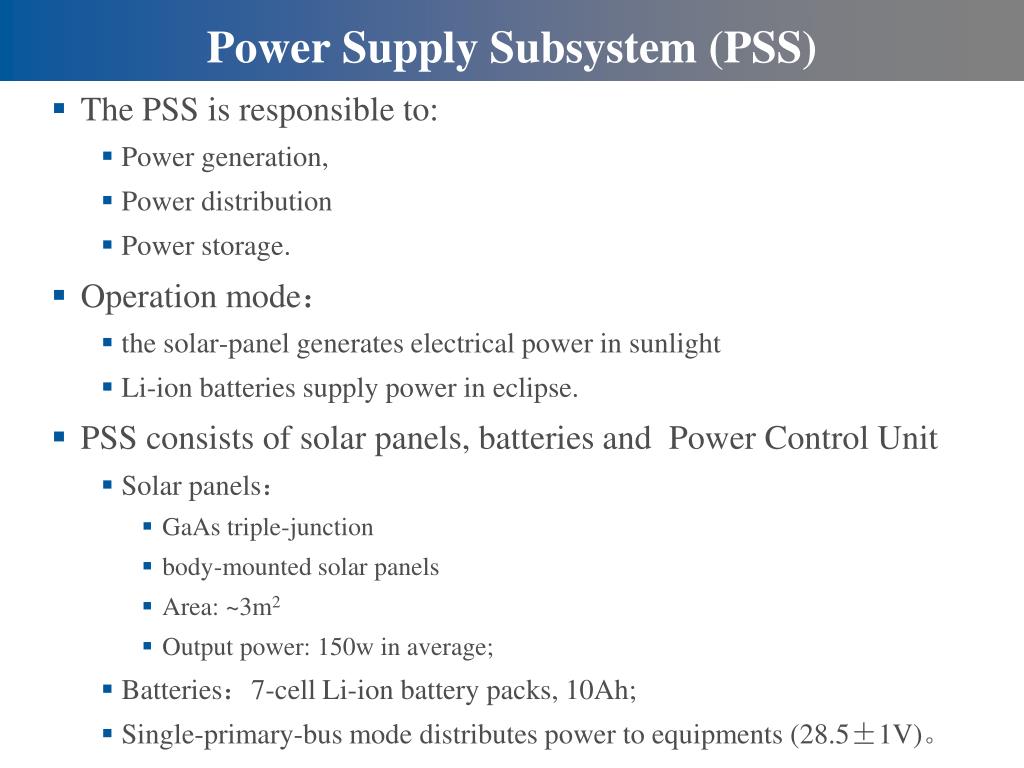

  19. Power Supply Subsystem (PSS) • The PSS is responsible to: • Power generation, • Power distribution • Power storage. • Operation mode： • the solar-panel generates electrical power in sunlight • Li-ion batteries supply power in eclipse. • PSS consists of solar panels, batteries and Power Control Unit • Solar panels： • GaAs triple-junction • body-mounted solar panels • Area: ~3m2 • Output power: 150w in average; • Batteries：7-cell Li-ion battery packs, 10Ah; • Single-primary-bus mode distributes power to equipments (28.5±1V)。

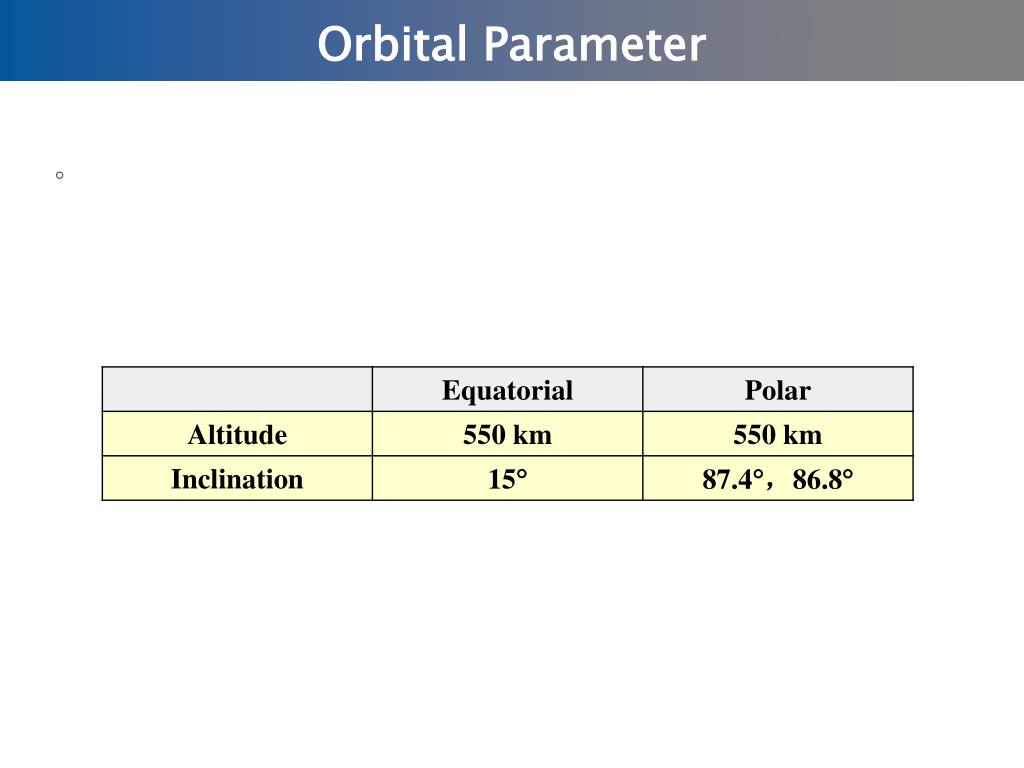

  20. Orbital Parameter 。

  21. RAAN variation 15°equatorial：period 49day 87.4°polar：period 1060day 86.8°polar：period 861day Orbit 15°equatorial 87.4°polar 86.8°polar

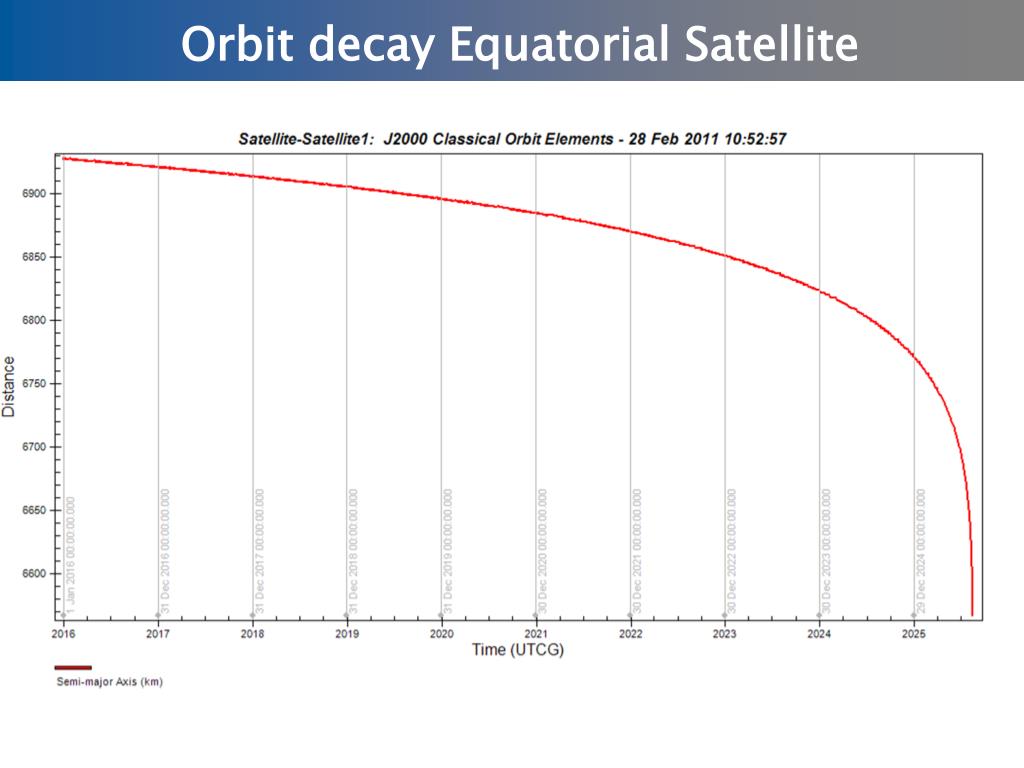

  22. Orbit decay Equatorial Satellite

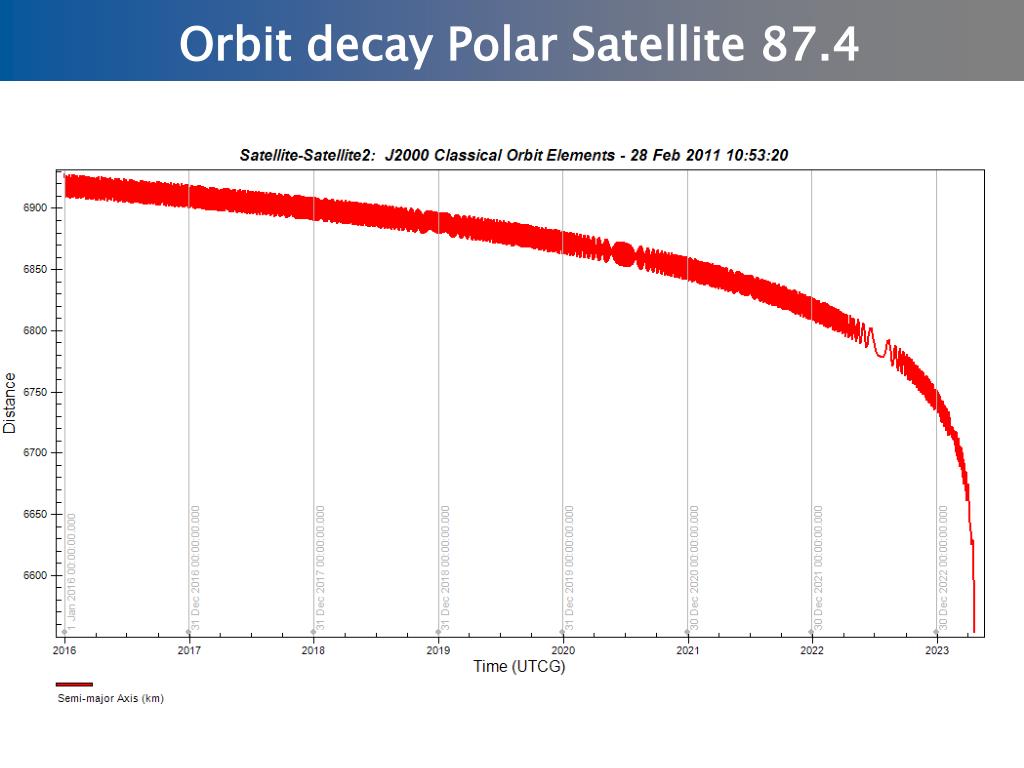

  23. Orbit decay Polar Satellite 87.4

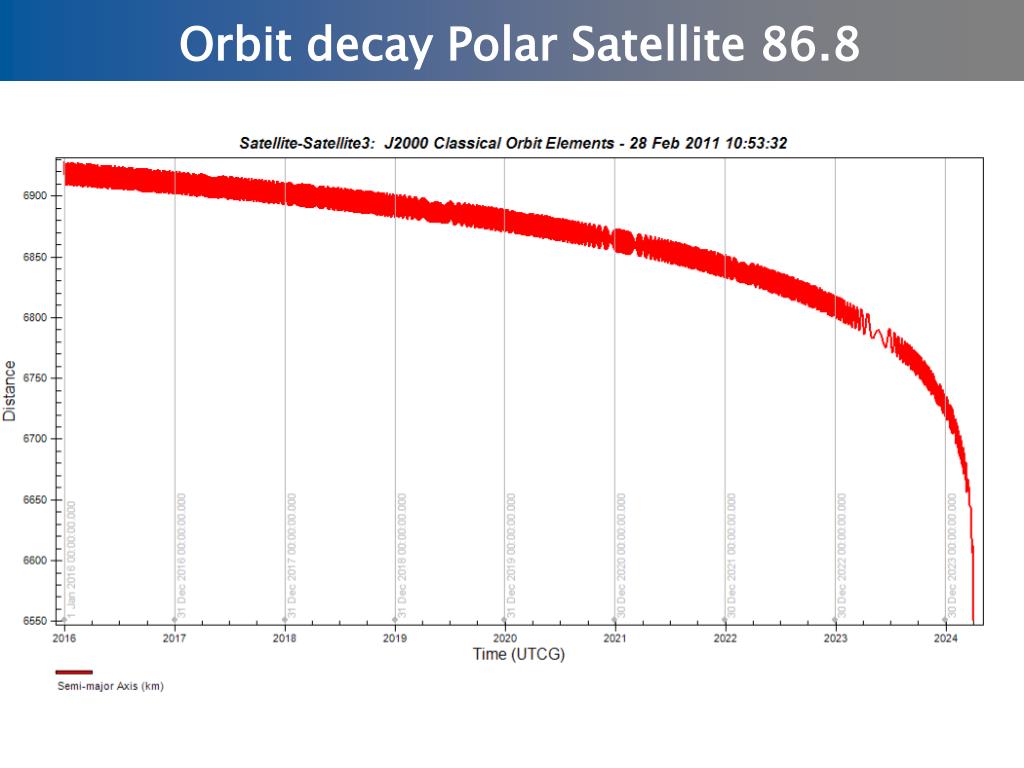

  24. Orbit decay Polar Satellite 86.8

  25. Orbit Decay

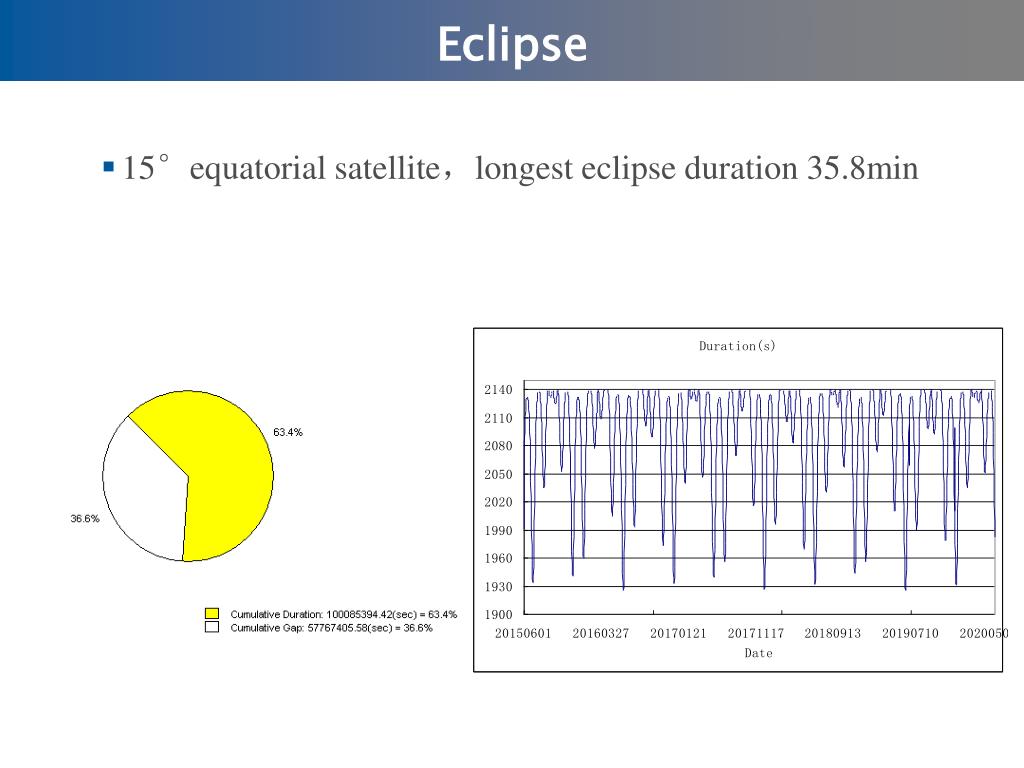

  26. Eclipse • 15°equatorial satellite，longest eclipse duration 35.8min

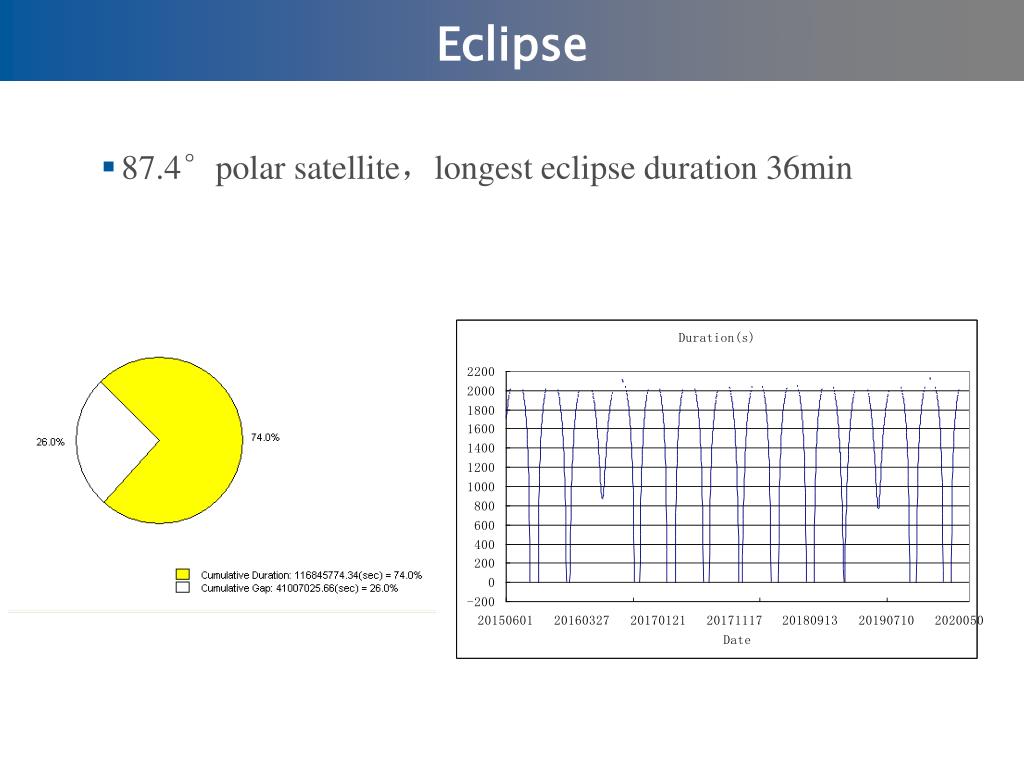

  27. Eclipse • 87.4°polar satellite，longest eclipse duration 36min

  28. Eclipse • 86.8°polar satellite，longest eclipse duration 36min

  29. Ground Stations for Data Receiving

  30. Ground Stations for Data Receiving • Equatorial satellite: Sanya station, 60 min visible time per day • Polar satellite, 3 stations, 80 min visible time per day for data downloading

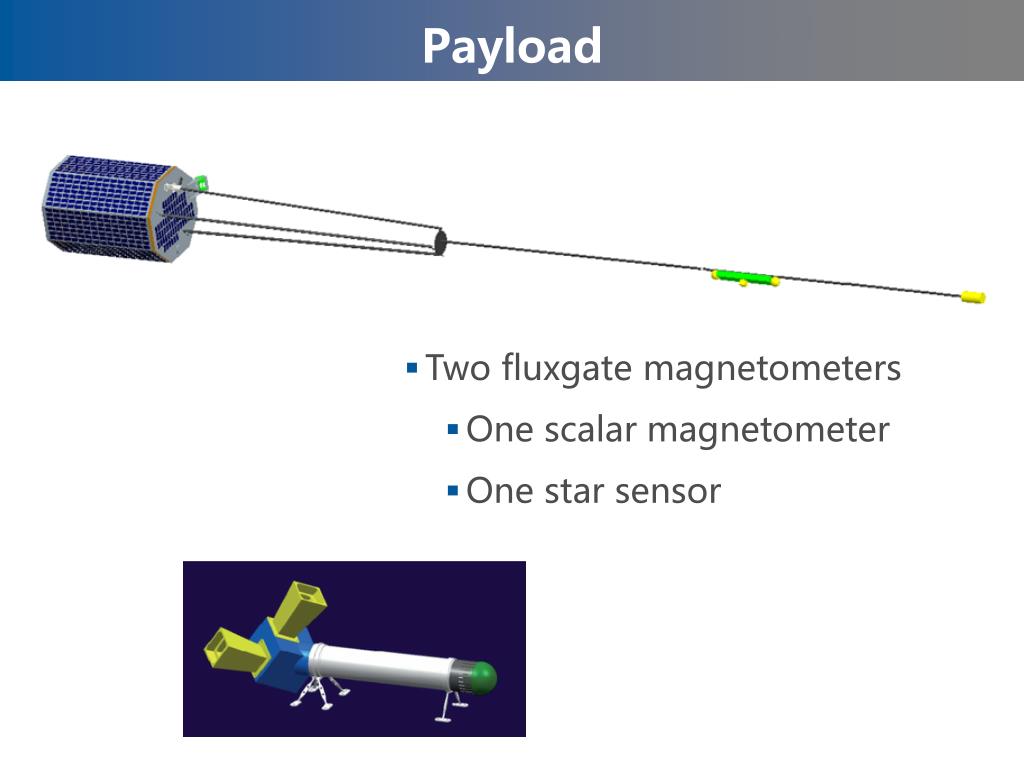

  31. Payload • Two fluxgate magnetometers • One scalar magnetometer • One star sensor
