Neuron (Nerve Cell)

Neuron (Nerve Cell). Myelin Sheath Cell Body Nucleus Axon Carry messages away from the cell body to other neurons Axon Terminal Dendrites Carry messages to the cell body. Myelin Sheath. signal direction. Axon coated with insulation made of myelin cells (Fatty, protein substance)

Télécharger la présentation

Neuron (Nerve Cell)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

  1. Neuron (Nerve Cell) • Myelin Sheath • Cell Body • Nucleus • Axon • Carry messages away from the cell body to other neurons • Axon Terminal • Dendrites • Carry messages to the cell body

  2. Myelin Sheath signal direction • Axon coated with insulation made of myelin cells (Fatty, protein substance) • speeds electrical signal • 330 mph vs. 11 mph myelincoating • Multiple Sclerosis • immune system (T cells) attacks myelin coating • loss of signal

  3. Types of neurons sensory neuron (from senses) interneuron (brain & spinal cord) motor neuron (to muscle)

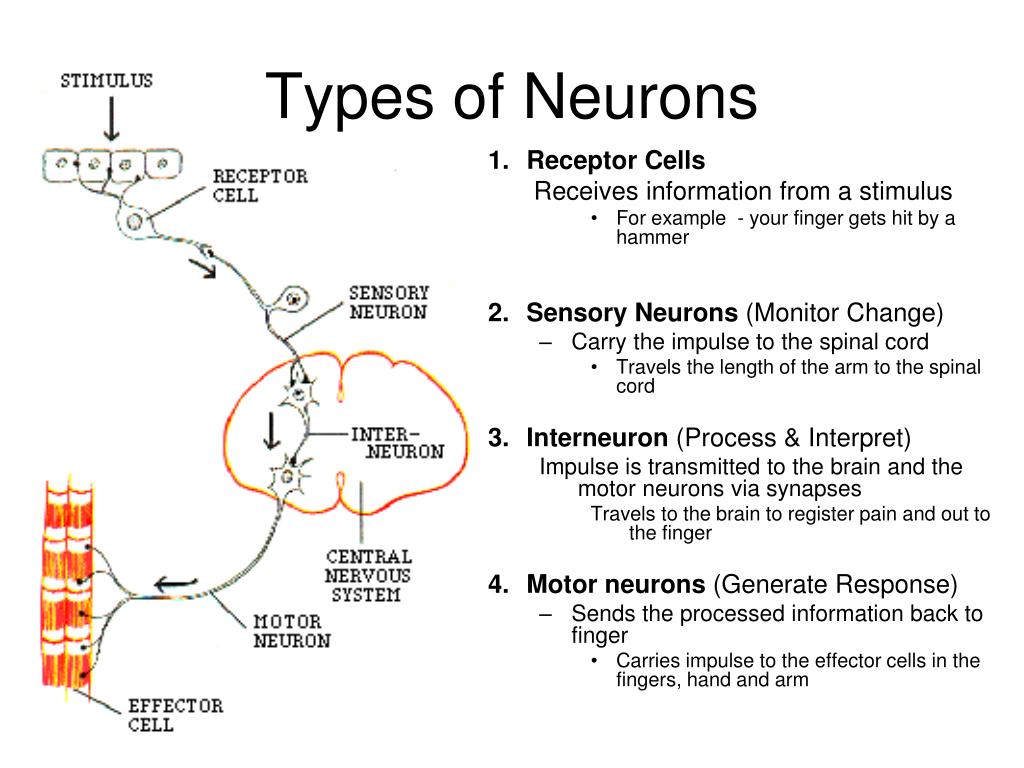

  4. Types of Neurons • Receptor Cells Receives information from a stimulus • For example - your finger gets hit by a hammer • Sensory Neurons (Monitor Change) • Carry the impulse to the spinal cord • Travels the length of the arm to the spinal cord • Interneuron (Process & Interpret) Impulse is transmitted to the brain and the motor neurons via synapses Travels to the brain to register pain and out to the finger • Motor neurons (Generate Response) • Sends the processed information back to finger • Carries impulse to the effector cells in the fingers, hand and arm

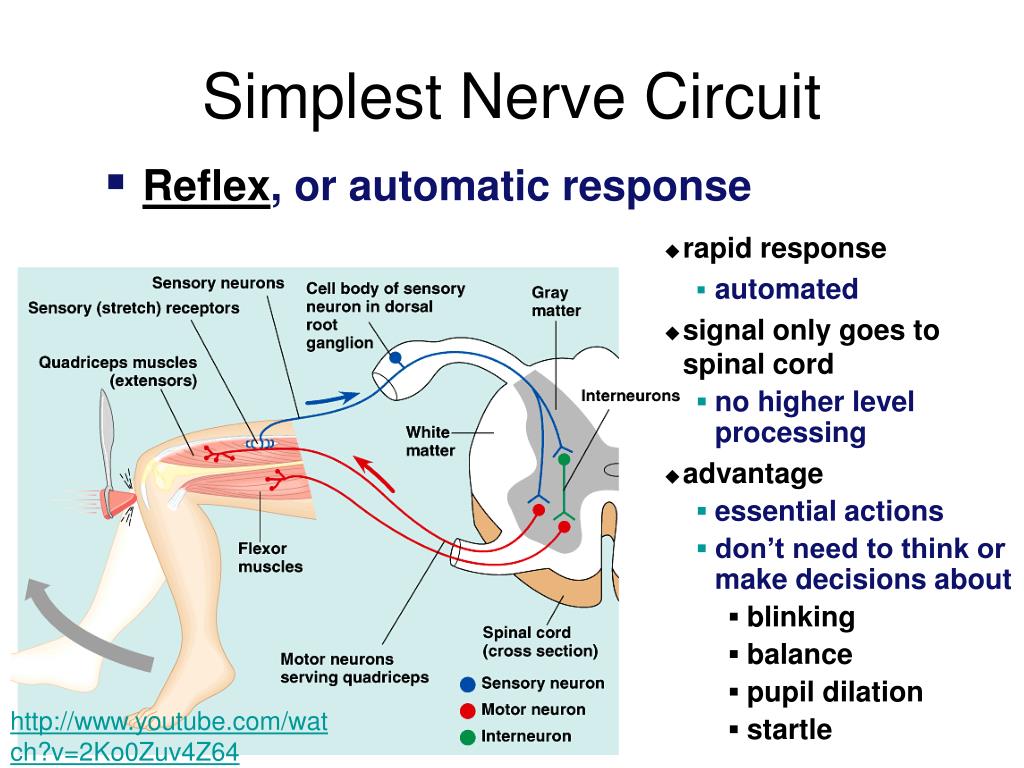

  5. Simplest Nerve Circuit • Reflex, or automatic response • rapid response • automated • signal only goes to spinal cord • no higher level processing • advantage • essential actions • don’t need to think or make decisions about • blinking • balance • pupil dilation • startle http://www.youtube.com/watch?v=2Ko0Zuv4Z64

  6. Synapse Junction between nerve cells • 1st cell releases chemical to trigger next cell (Neurotransmitter) • where drugs affect nervous system synapse

  7. Nervous System • Two MAJOR divisions • Central Nervous System (CNS) • brain and spinal cord 2. Peripheral Nervous System • nerves • Ganglia • Collections of nerves • Two MINORdivisions • Somatic and autonomic

  8. The Peripheral Nervous System Your brain and spinal cord are connected to the rest of your body by the peripheral nervous system. The PNS is made up of 12 pairs of nerves from your brain called cranial nerves, and 31 pairs from your spinal cord called spinal nerves. Spinal nerves are made up of bundles of sensory and motor neurons bound together by connective tissue. For this reason, a single spinal nerve can have impulses going to and from the brain at the same time. Some nerves contain only sensory neurons, and some contain only motor neurons, but most nerves contain both types of neurons. Somatic and Autonomic Systems The peripheral nervous system has two major divisions. The somatic system controls voluntary actions. It is made up of the cranial and spinal nerves that go from the central nervous system to your skeletal muscles. The autonomic system controls involuntary actions-those not under conscious control-such as your heart rate, breathing, digestion, and glandular functions. These two divisions, along with the central nervous system, make up your body's nervous system. Research Visit the Glencoe Science Web site at tx.science.glencoe.com for more information about the nervous system. Make a brochure outlining recent medical advances.

  9. Acupuncture • Traditional Chinese medicine: • Balance Chi ( life force energy) • Points in body allow better flow of Chi • energy flow will re-balance. • Western practitioners • acupuncture points as places to stimulate nerves, & muscles. • boost the activity of your body's natural painkillers • increase blood flow.

  10. Acupuncture loci vs.Peripheral Nerve loci

  11. Parasympathetic vs. Sympathetic

  12. Quick Practice

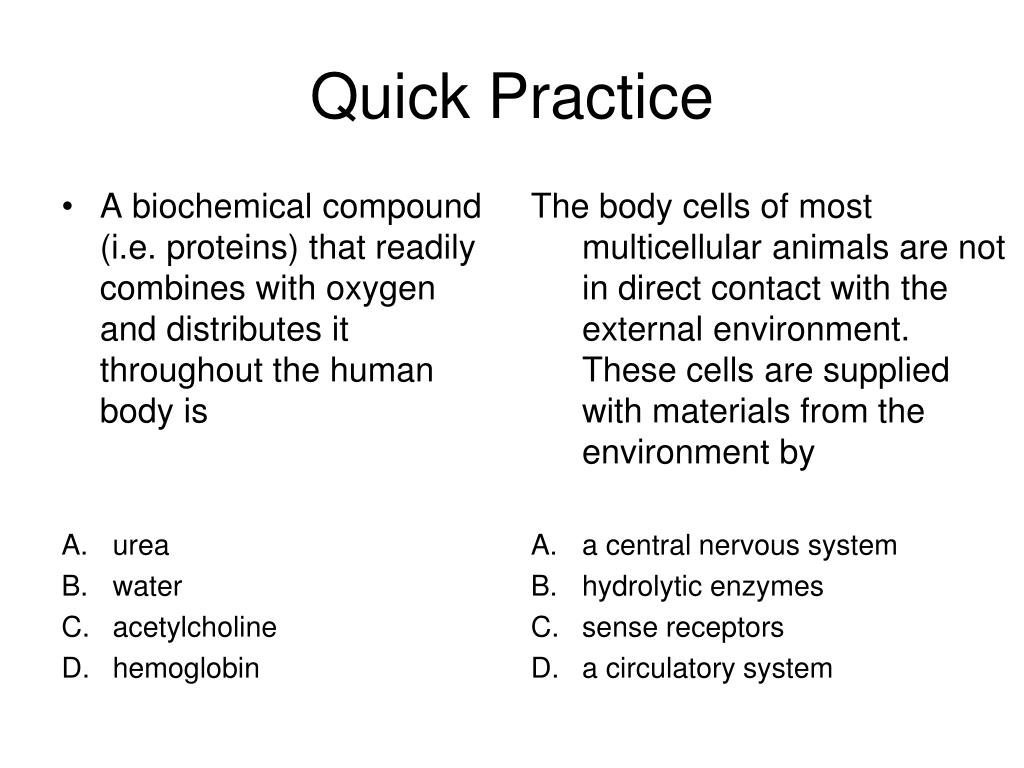

  13. Quick Practice • A biochemical compound (i.e. proteins) that readily combines with oxygen and distributes it throughout the human body is • urea • water • acetylcholine • hemoglobin The body cells of most multicellular animals are not in direct contact with the external environment. These cells are supplied with materials from the environment by • a central nervous system • hydrolytic enzymes • sense receptors • a circulatory system

  14. Quick Practice • Which of the following is/are type(s) of neurons? A)sensory B)motor C)interneurons D)all of the above • Sensory nerve cells act as the decision-making cells to sum up all signals for certain stimuli. A)True B)False

  15. Quick Practice • The peripheral nervous system includes mixed nerves that _________. • A)serve the muscular and skeletal system • B)serve the sympathetic system • C)serve the parasympathetic system • D)contain both sensory and motorfibers

  16. Endocrine System: Through chemicals released into the bloodstream, this system regulates overall metabolism, homeostasis, growth, mood, & reproduction. Chemical signals called hormones are created in glands. (see naked person to the right) Works with the nervous system to accomplish regulation. Example: Fear + Adrenaline Chemical Regulation!

  17. http://www.youtube.com/watch?v=NX7QNWEGcNIhttp://www.youtube.com/watch?v=NX7QNWEGcNIhttp://www.youtube.com/watch?v=NX7QNWEGcNIhttp://www.youtube.com/watch?v=NX7QNWEGcNI • Parkour • http://dsc.discovery.com/tv-shows/other-shows/videos/adrenaline-lab-jeff-wise-explains-adrenalines-power.htm • How Adrenaline works

  18. Endocrine glands: “Ductless” glands. Produce & secrete chemicals into blood However, hormones will only affect specific cells with receptors Target tissue: Specific tissue (group of cells) that recognizes each type of hormone. Is either stimulated (start or speed up) or inhibited (stop or slow down).

  19. Rate of secretion varies with the needs of the body Like when your hyperglycemic Endocrine & Nervous system teamwork Hypothalamus Feedback regulates glandular secretions: Negative Feedback Positive Feedback The Regulation of Hormone Secretion What’s happening in the loops? What are the hormones(chemical messengers) involved? Target cells? Are they released all the time? Every day at 1pm? Once a year? Does it vary?

  20. Negative Feedback & Stability: Tends to keep a variable close to some value (set point). Ex: Blood glucose conc., or body temp. MUST MAINTAIN HOMEOSTASIS! Positive Feedback & Rapid Change The response intensifies the original change. i.e: Baby Cry  Oxytocin  Milk Production

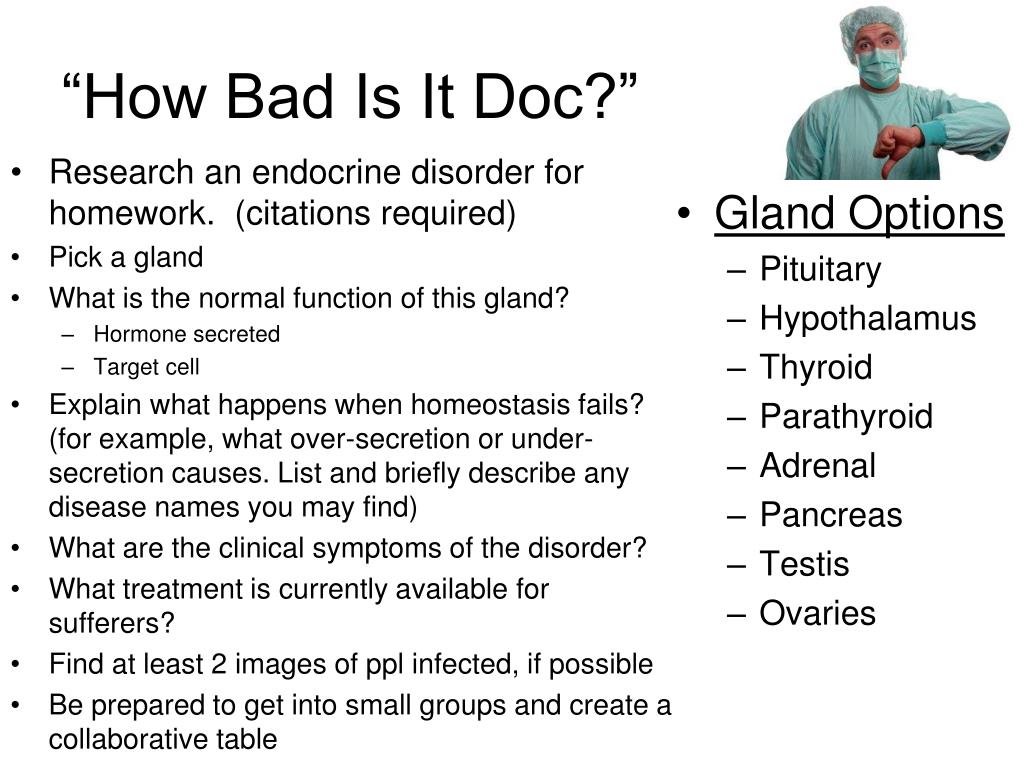

  21. “How Bad Is It Doc?” • Research an endocrine disorder for homework. (citations required) • Pick a gland • What is the normal function of this gland? • Hormone secreted • Target cell • Explain what happens when homeostasis fails? (for example, what over-secretion or under-secretion causes. List and briefly describe any disease names you may find) • What are the clinical symptoms of the disorder? • What treatment is currently available for sufferers? • Find at least 2 images of ppl infected, if possible • Be prepared to get into small groups and create a collaborative table • Gland Options • Pituitary • Hypothalamus • Thyroid • Parathyroid • Adrenal • Pancreas • Testis • Ovaries

  22. Portfolio • To be completed over next 3 weeks • Today, Wednesday, Thursday, Friday your topic is the nervous and Endocrine systems • Homework will also include portfolio work • By Thursday (Class’ end) • Gather information covering all requirements per system • Continue multimedia formatting of evidence • By Friday (Class’ end) • I should be reviewing your multimedia evidence for accuracy and misconception • Finalize evidence of nervous and endocrine systems
