1. Agent & PDK JBossNetwork Enterprise Manager The Professional Open Source™ Company

2. Agenda • Overview of the Agent Architecture • Server Agent communications • Plugin Development Kit • MX4J Example 2 The Professional Open Source™ Company

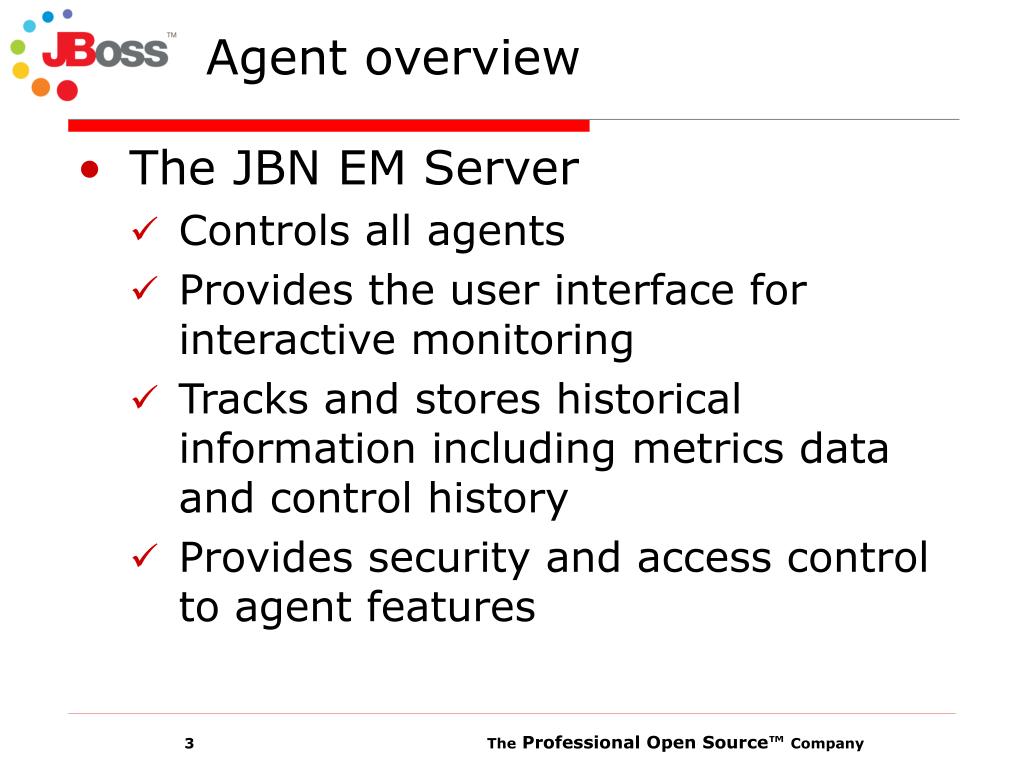

3. Agent overview • The JBN EM Server • Controls all agents • Provides the user interface for interactive monitoring • Tracks and stores historical information including metrics data and control history • Provides security and access control to agent features 3 The Professional Open Source™ Company

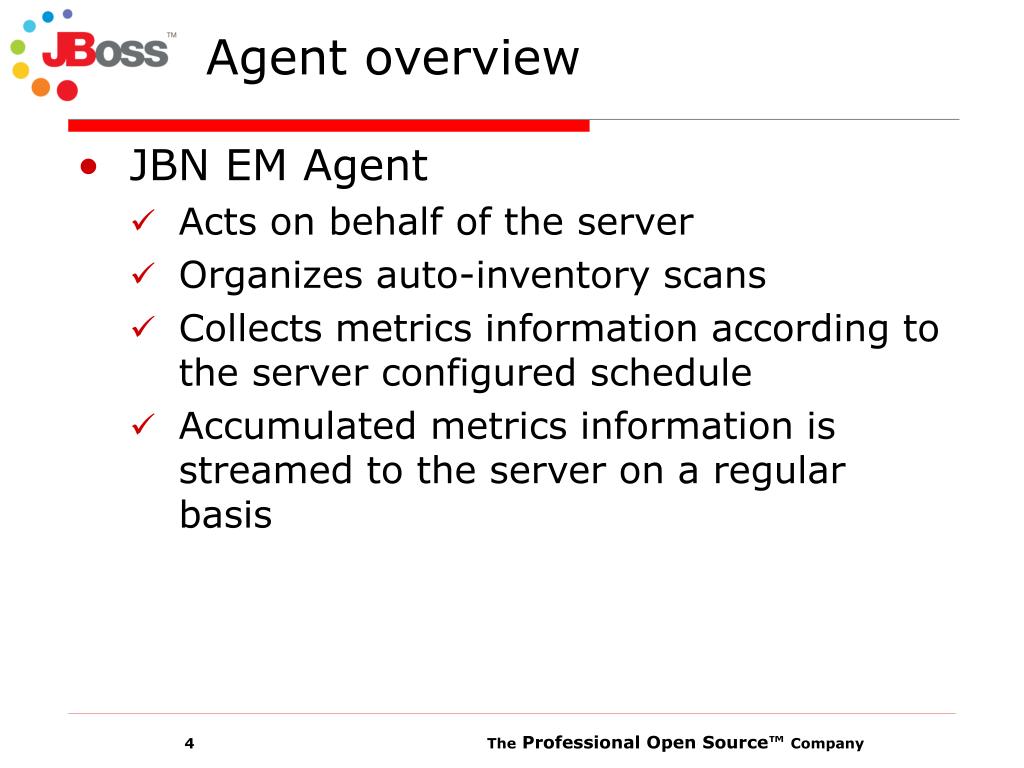

4. Agent overview • JBN EM Agent • Acts on behalf of the server • Organizes auto-inventory scans • Collects metrics information according to the server configured schedule • Accumulated metrics information is streamed to the server on a regular basis 4 The Professional Open Source™ Company

5. Server agent communication Platform C JBN EM Agent JBN EM Server JBoss Tomcat Control Apache Metrics Platform B JBN EM Agent Platform A JBN EM Agent plugins JBoss A JBoss A Apache JBoss B Apache JBoss B 5 The Professional Open Source™ Company

6. Plugin overview • A JBN EM Plugin is a self-contained jar or xml file representing a platform, server or service that can be monitored • They include metadata about the inventory hierarch of these resource types in the form of an xml descriptor • This metadata is loaded by both the server and the agent • Plugin hooks are available for • Measurement (metrics) • Control • Auto Inventory • Response Time 6 The Professional Open Source™ Company

7. Plugin descriptor • The plugin descriptor is named “hq-plugin.xml” when deployed in a plugin jar <plugin package="net.hyperic.hq.product.mx4j"> <property name="template-config“ value="jmxUrl=%jmxUrl%"/> <filter name="ServerInfo“ value="hyperic:type=ServerInfo"/> <server name="Example Server“ version="1.0" description="Example MX4J 3.0 Based Server"> <!-- package attribute above is prepended --> <plugin type="measurement“ class="MX4JMeasurementPlugin"/> <plugin type="autoinventory“ class="MX4JDetector"/> … 7 The Professional Open Source™ Company

8. Plugin services • Metrics are defined against platforms, servers and services …. <service name="Echo Service"> <plugin type="control“ class="MX4JControlPlugin"/> <config> <option name="service.name" description="Service Name" default=""/> </config> <actions include="start,stop"/> <metrics include="echo-service"/> </service> … 8 The Professional Open Source™ Company

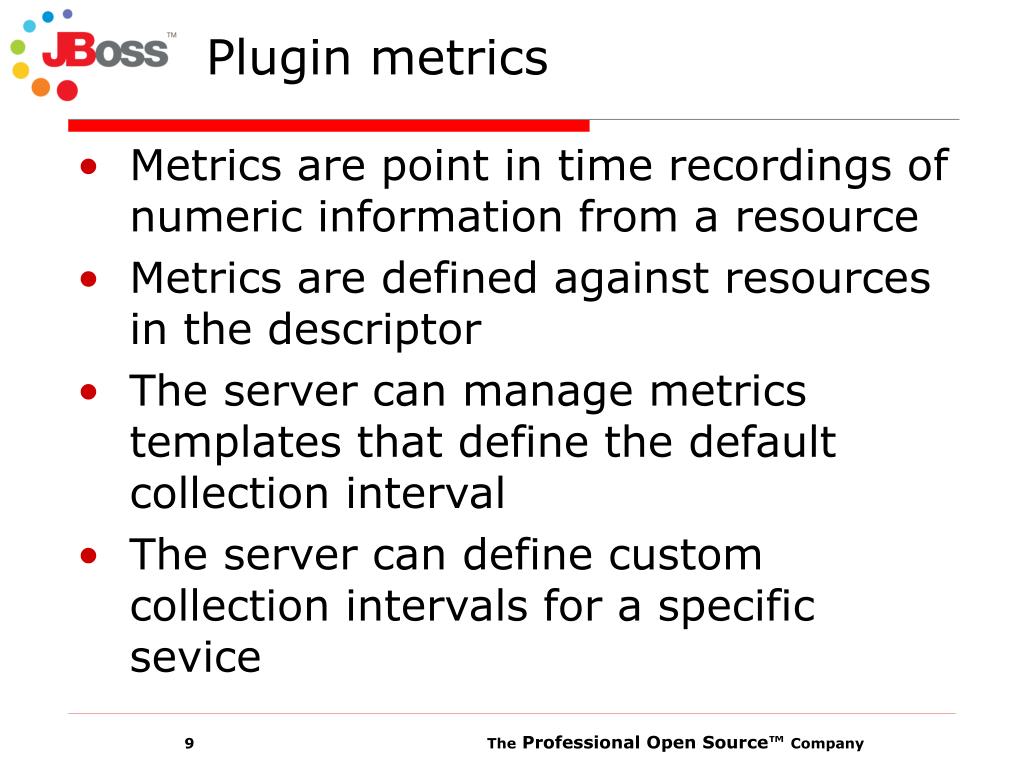

9. Plugin metrics • Metrics are point in time recordings of numeric information from a resource • Metrics are defined against resources in the descriptor • The server can manage metrics templates that define the default collection interval • The server can define custom collection intervals for a specific sevice 9 The Professional Open Source™ Company

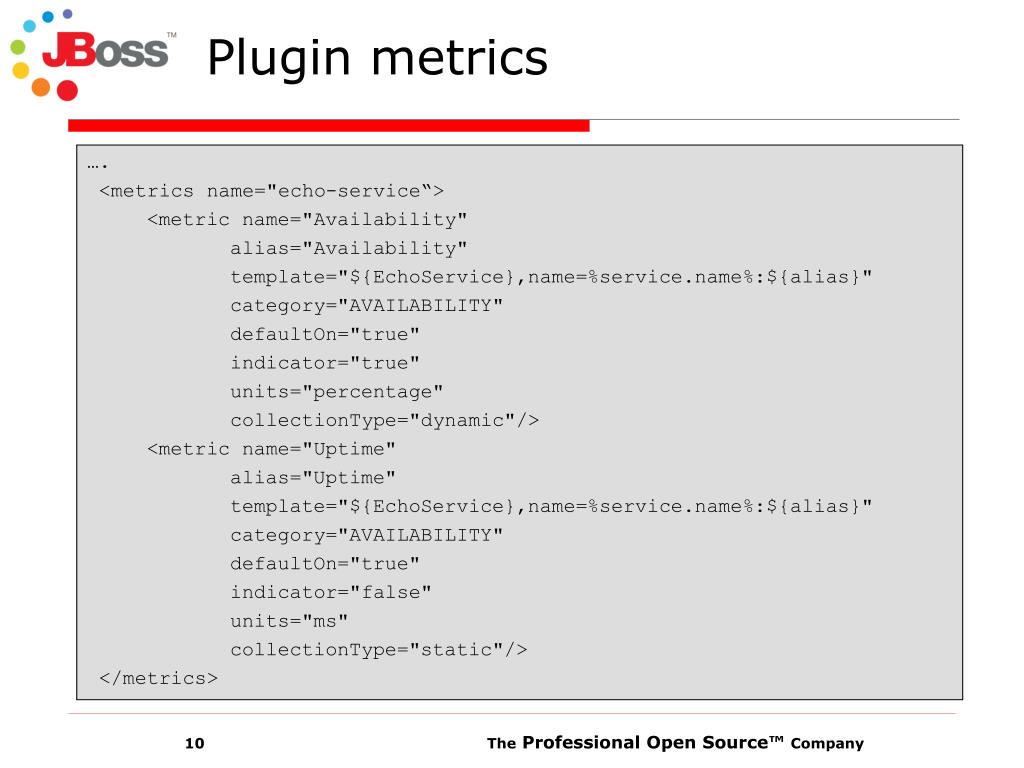

10. Plugin metrics …. <metrics name="echo-service“> <metric name="Availability" alias="Availability" template="${EchoService},name=%service.name%:${alias}" category="AVAILABILITY" defaultOn="true" indicator="true" units="percentage" collectionType="dynamic"/> <metric name="Uptime" alias="Uptime" template="${EchoService},name=%service.name%:${alias}" category="AVAILABILITY" defaultOn="true" indicator="false" units="ms" collectionType="static"/> </metrics> 10 The Professional Open Source™ Company

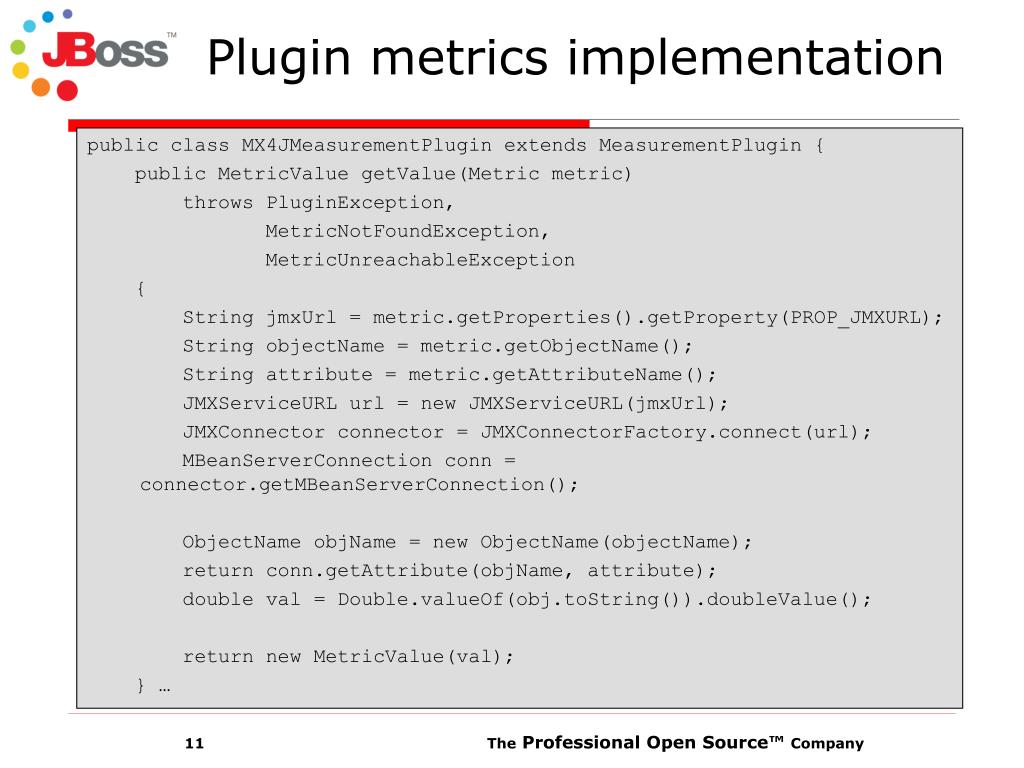

11. Plugin metrics implementation public class MX4JMeasurementPlugin extends MeasurementPlugin { public MetricValue getValue(Metric metric) throws PluginException, MetricNotFoundException, MetricUnreachableException { String jmxUrl = metric.getProperties().getProperty(PROP_JMXURL); String objectName = metric.getObjectName(); String attribute = metric.getAttributeName(); JMXServiceURL url = new JMXServiceURL(jmxUrl); JMXConnector connector = JMXConnectorFactory.connect(url); MBeanServerConnection conn = connector.getMBeanServerConnection(); ObjectName objName = new ObjectName(objectName); return conn.getAttribute(objName, attribute); double val = Double.valueOf(obj.toString()).doubleValue(); return new MetricValue(val); } … 11 The Professional Open Source™ Company

12. Example metrics defaults 12 The Professional Open Source™ Company

13. Plugin controls • Below is an example of resource control provided by a plugin • This plugin implements three control actions, start, stop and reload via <actions include="start,stop,restart"/> • These actions can be scheduled and are historically tracked 13 The Professional Open Source™ Company

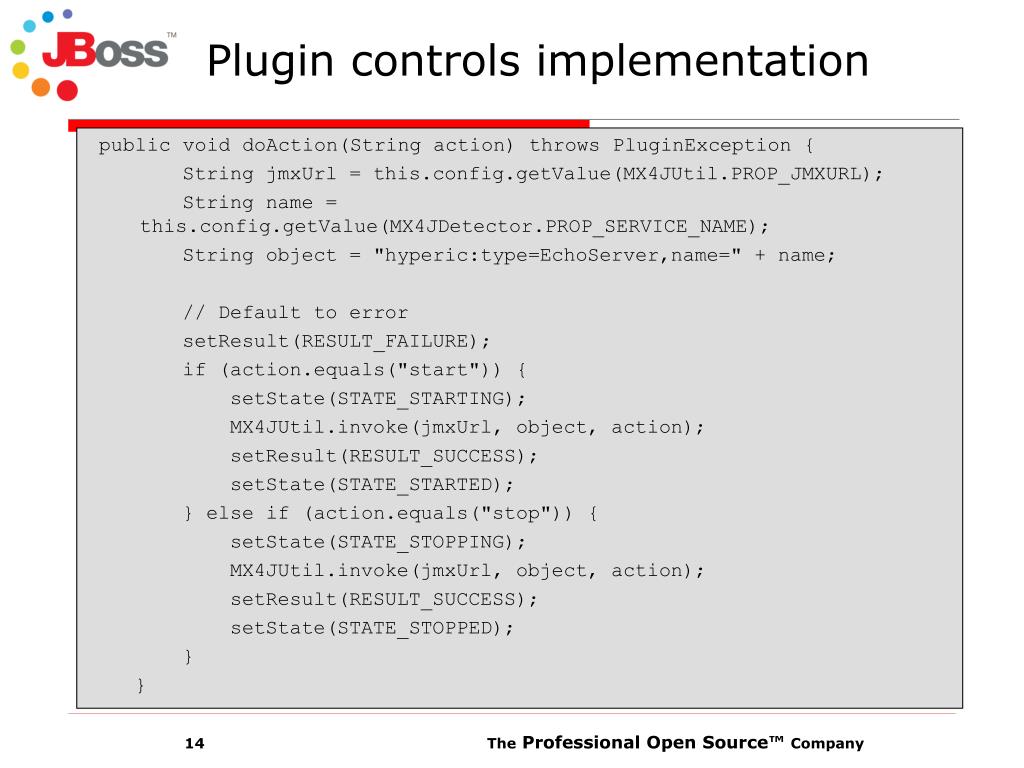

14. Plugin controls implementation public void doAction(String action) throws PluginException { String jmxUrl = this.config.getValue(MX4JUtil.PROP_JMXURL); String name = this.config.getValue(MX4JDetector.PROP_SERVICE_NAME); String object = "hyperic:type=EchoServer,name=" + name; // Default to error setResult(RESULT_FAILURE); if (action.equals("start")) { setState(STATE_STARTING); MX4JUtil.invoke(jmxUrl, object, action); setResult(RESULT_SUCCESS); setState(STATE_STARTED); } else if (action.equals("stop")) { setState(STATE_STOPPING); MX4JUtil.invoke(jmxUrl, object, action); setResult(RESULT_SUCCESS); setState(STATE_STOPPED); } } 14 The Professional Open Source™ Company

15. Plugin autoinventory • The autoinventory plugin can search for known services using means appropriate to the service • HTTP server management could attempt connection to an admin URL on port 80 for example • Autoinventory plugins can also configure file system properties to integrate with the search architecture • Implements List discoverServices(ConfigResponse serverConfig) 15 The Professional Open Source™ Company

16. Review • We’ve covered • The Server/Agent architecture of JBN EM • The Server management and display of metrics collection, control operation and autoinventory • The Agent plugin architecture including • The execution of plugin implementations • The definition of resource metadata • The implementation of metrics gathering 16 The Professional Open Source™ Company
