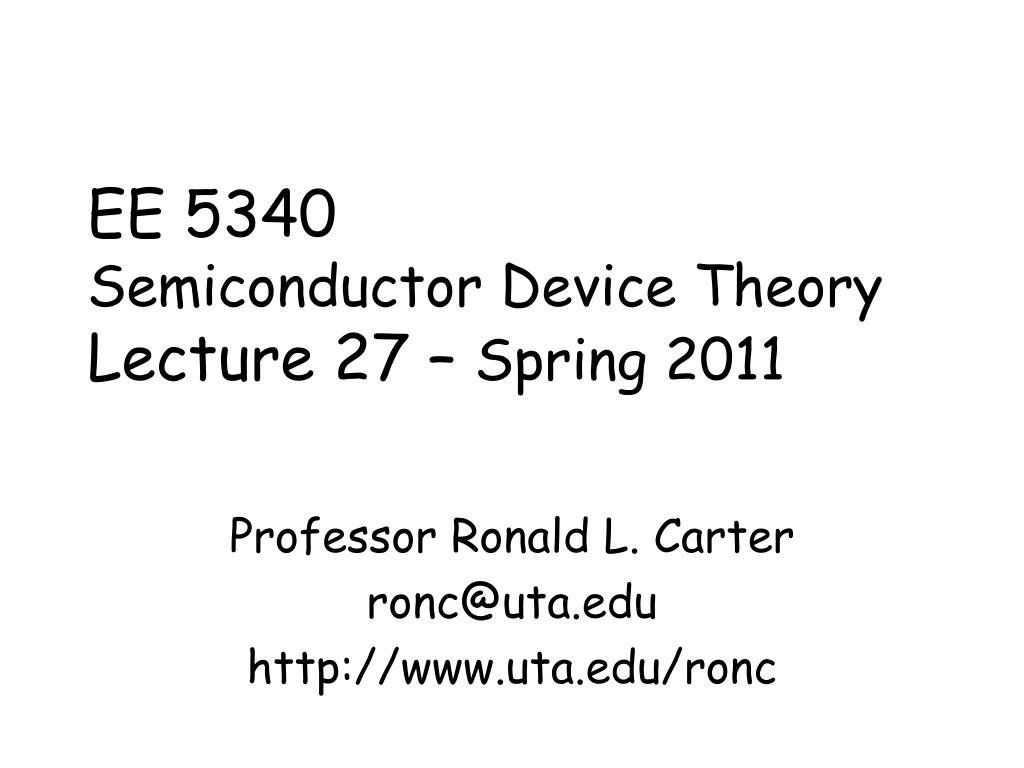

  1. EE 5340Semiconductor Device TheoryLecture 27 – Spring 2011 Professor Ronald L. Carter ronc@uta.edu http://www.uta.edu/ronc

  2. Fully biased n-MOScapacitor VG Channel if VG > VT VS VD EOx,x> 0 e- e- e- e- e- e- n+ n+ p-substrate Vsub=VB DeplReg Acceptors y 0 L

  3. MOS energy bands atSi surface for n-channel Fig 8.10**

  4. Computing the D.R. W and Q at O.S.I. Ex Emax x

  5. Q’d,max and xd,max forbiased MOS capacitor Fig 8.11** xd,max (mm)

  6. Fully biased n-channel VT calc

  7. n-channel VT forVC = VB = 0 Fig 10.20*

  8. Fully biased p-channel VT calc

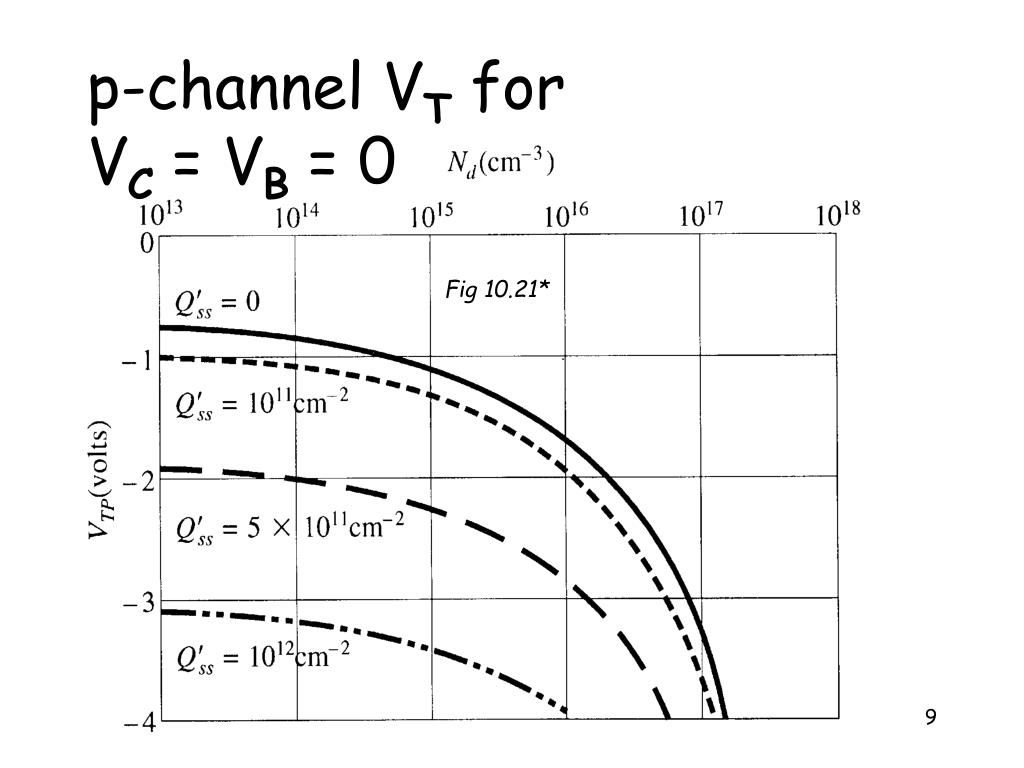

  9. p-channel VT forVC = VB = 0 Fig 10.21*

  10. n-channel enhancementMOSFET in ohmic region 0< VT< VG Channel VS = 0 0< VD< VDS,sat EOx,x> 0 e-e- e- e- e- n+ n+ DeplReg p-substrate Acceptors VB < 0

  11. Conductance ofinverted channel • Q’n= - C’Ox(VGC-VT) • n’s= C’Ox(VGC-VT)/q, (# inv elect/cm2) • The conductivity sn = (n’s/t) q mn • G = sn(Wt/L) = n’s q mn(W/L) = 1/R, so • I = V/R = dV/dR, dR = dL/(n’sqmnW)

  12. Basic I-V relationfor MOS channel

  13. I-V relation for n-MOS (ohmicreg) ohmic ID non-physical ID,sat saturated VDS VDS,sat

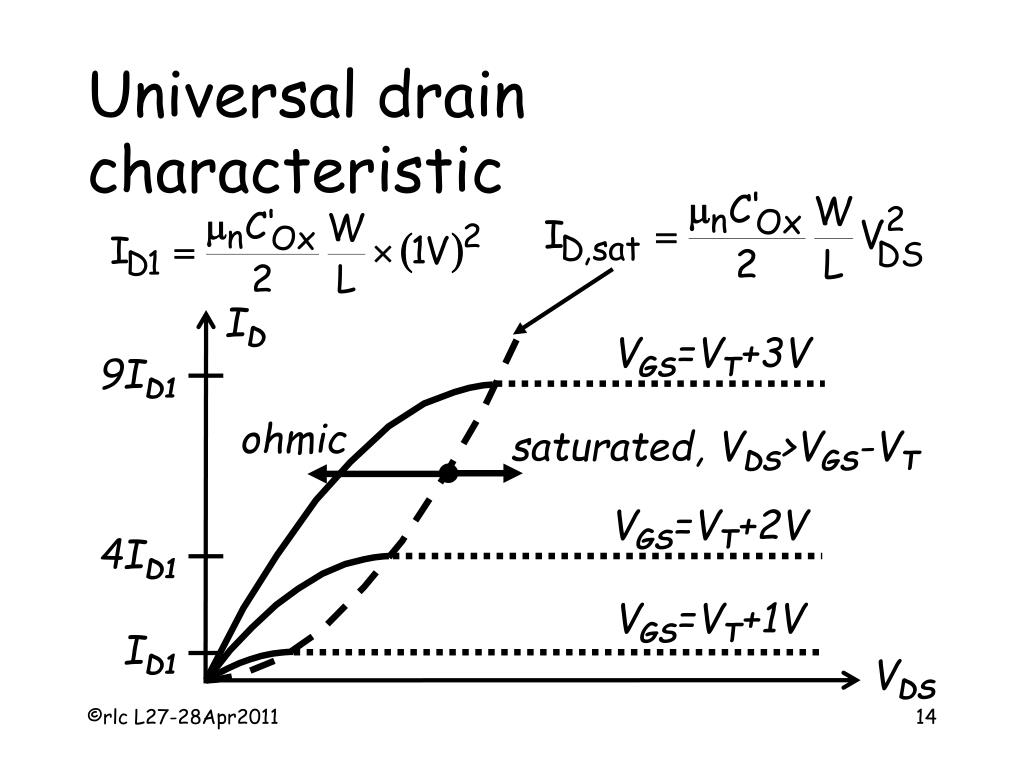

  14. Universal draincharacteristic ID VGS=VT+3V 9ID1 ohmic saturated, VDS>VGS-VT VGS=VT+2V 4ID1 VGS=VT+1V ID1 VDS

  15. Characterizing then-ch MOSFET VD ID D G B S VGS VT

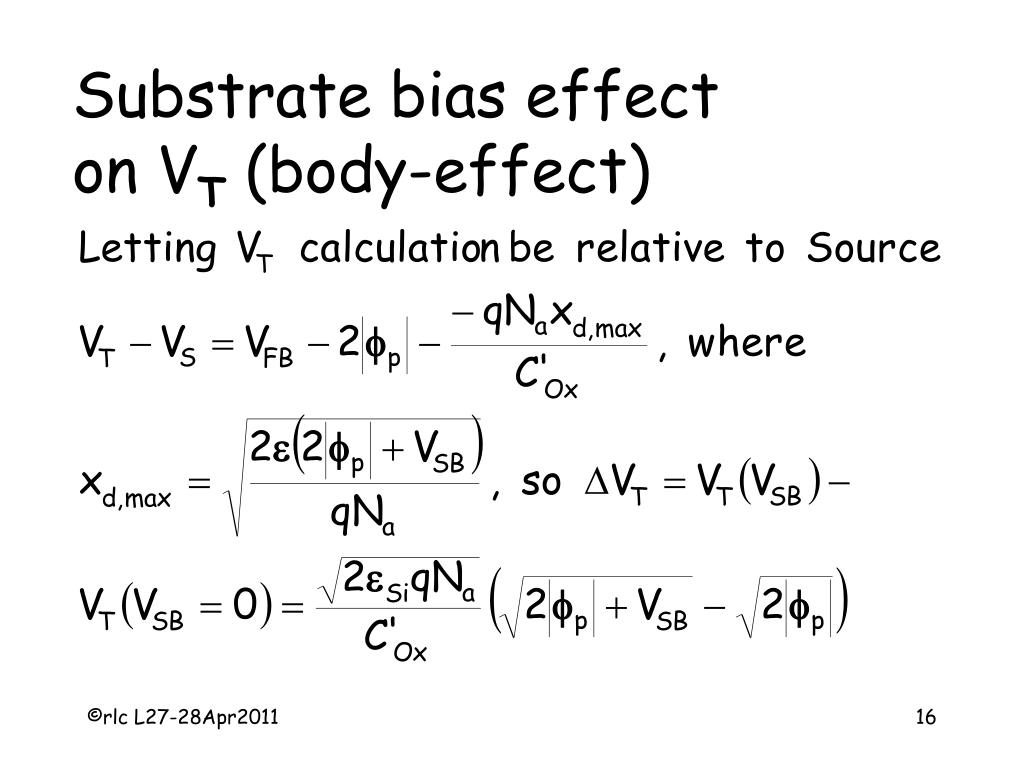

  16. Substrate bias effect on VT (body-effect)

  17. Body effect data Fig 9.9**

  18. Low field ohmiccharacteristics

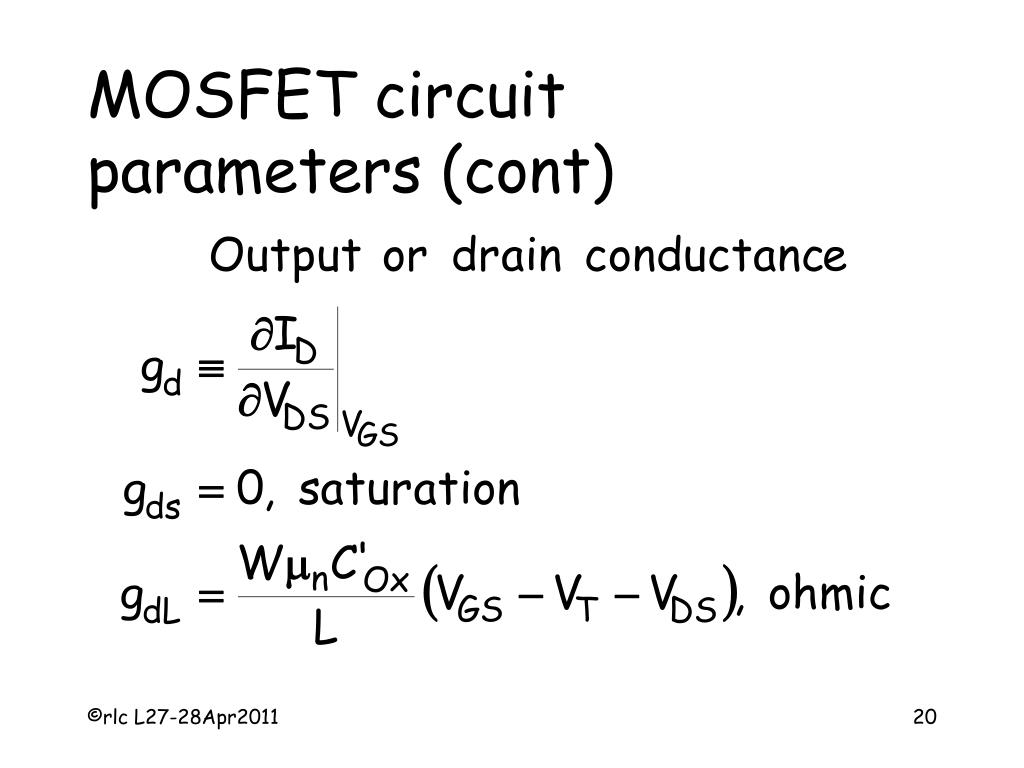

  19. MOSFET circuitparameters

  20. MOSFET circuitparameters (cont)

  21. MOSFET equivalentcircuit elements Fig 10.51*

  22. MOS small-signal equivalent circuit Fig 10.52*

  23. MOS channel-length modulation Fig 11.5*

  24. Analysis of channellength modulation

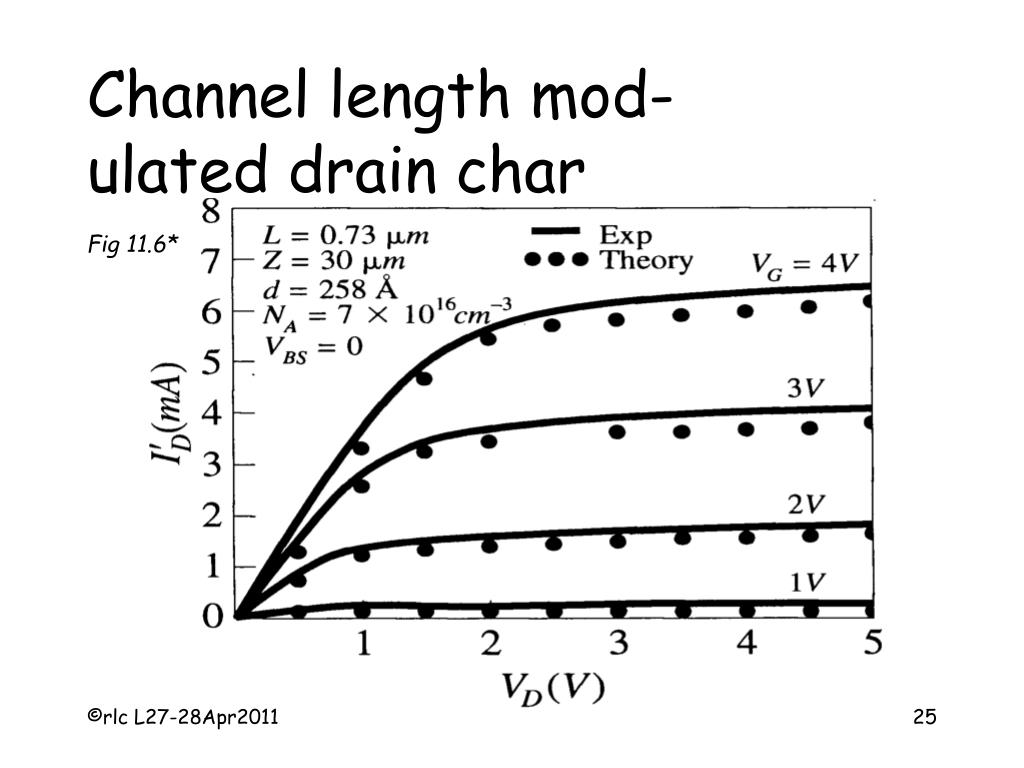

  25. Channel length mod-ulated drain char Fig 11.6*

  26. Implanted n-channel enhance-ment MOSFET (ohmic region) 0< VT< VG e- channel ele+ implant ion Channel VS = 0 0< VD< VDS,sat EOx,x> 0 n+ n+ e-e- e- e- e- ++++++++++++ DeplReg p-substrate Acceptors VB < 0

  27. Range Si & SiO2 Al Si3N4 DRP Si Al & SiO2 Si3N4 Ion implantation*

  28. “Dotted box” approx**

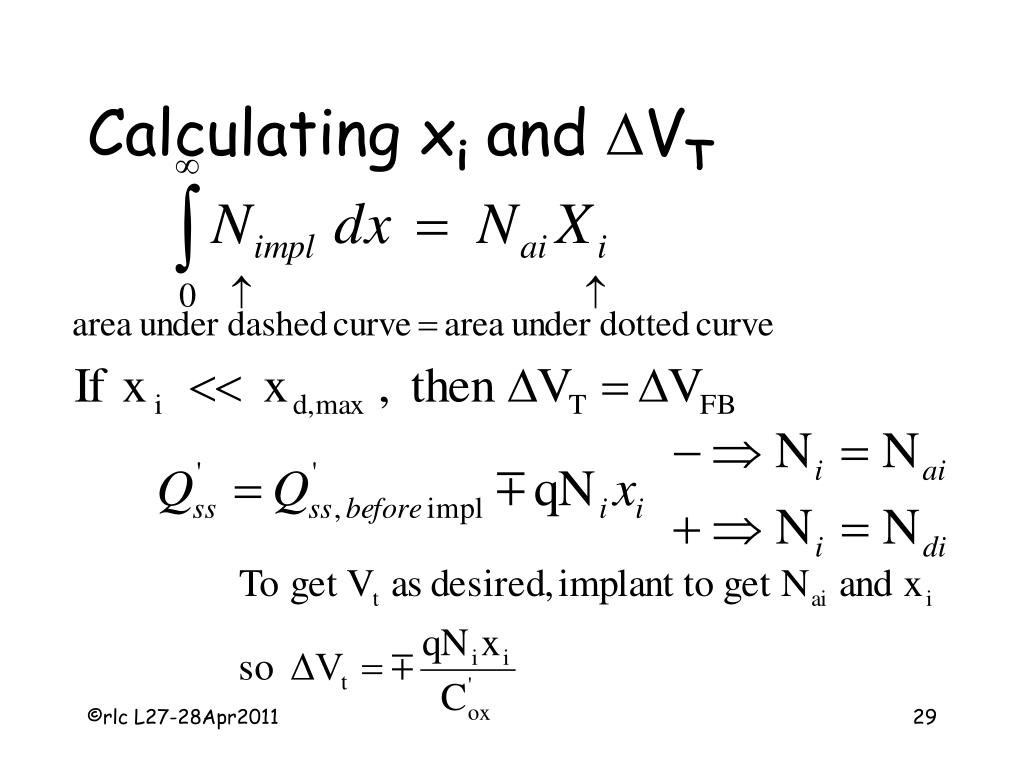

  29. Calculating xi andDVT

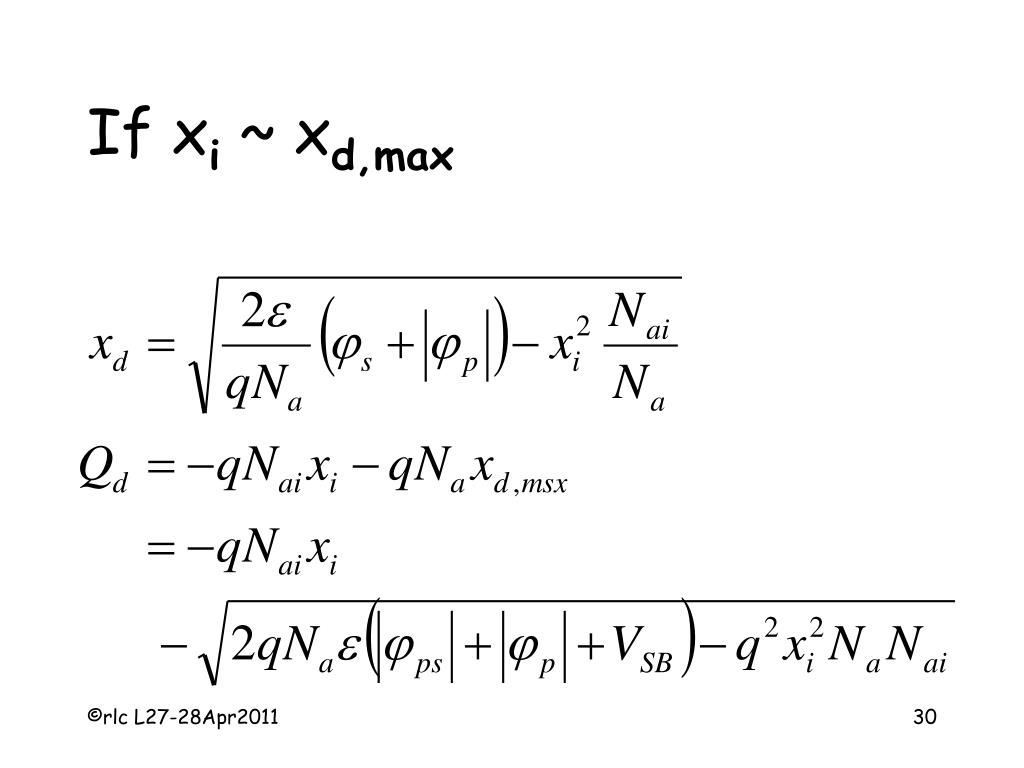

  30. If xi ~xd,max

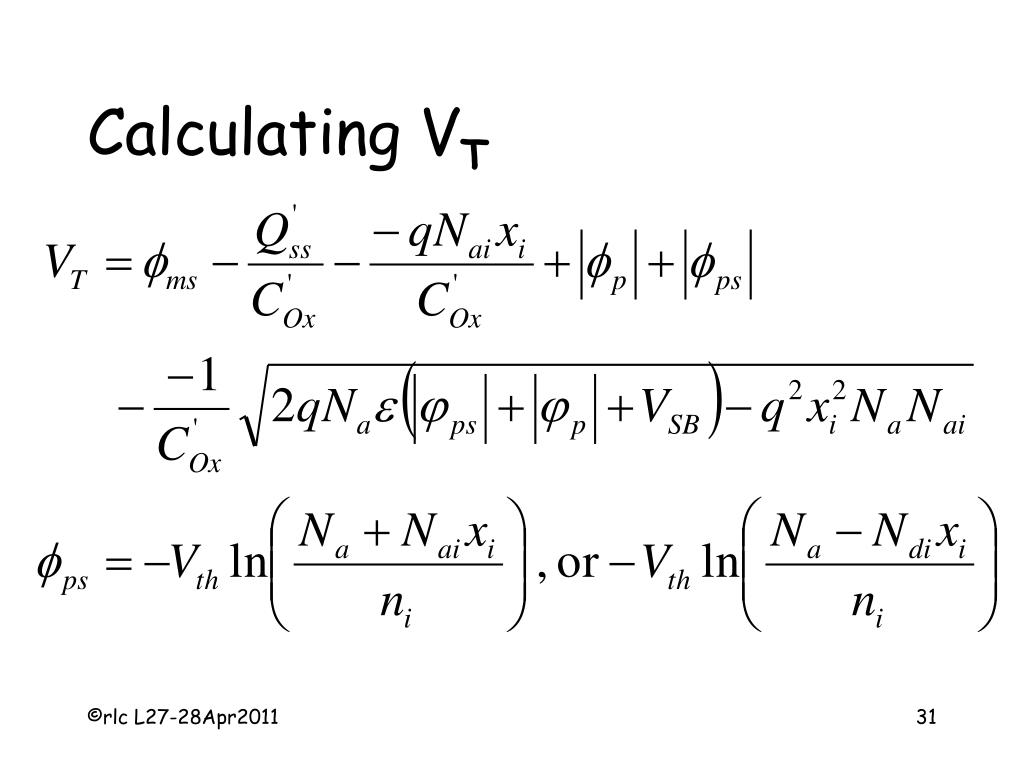

  31. Calculating VT

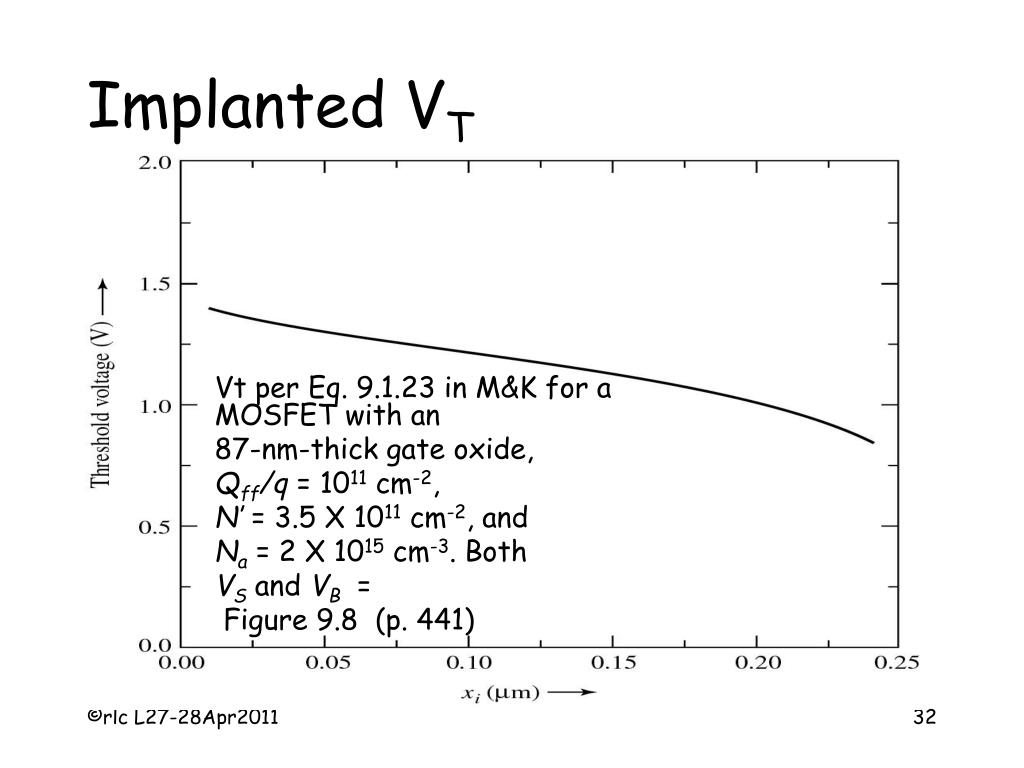

  32. Vt per Eq. 9.1.23 in M&K for a MOSFET with an 87-nm-thick gate oxide, Qff/q = 1011 cm-2, N’ = 3.5 X 1011 cm-2, and Na = 2 X 1015 cm-3. Both VS and VB = Figure 9.8 (p. 441) Implanted VT

  33. Mobilities**

  34. Substrate bias effect on VT (body-effect)

  35. Body effect data Fig 9.9**

  36. M&K Fig. 9.9 (Eq. 9.1.23)

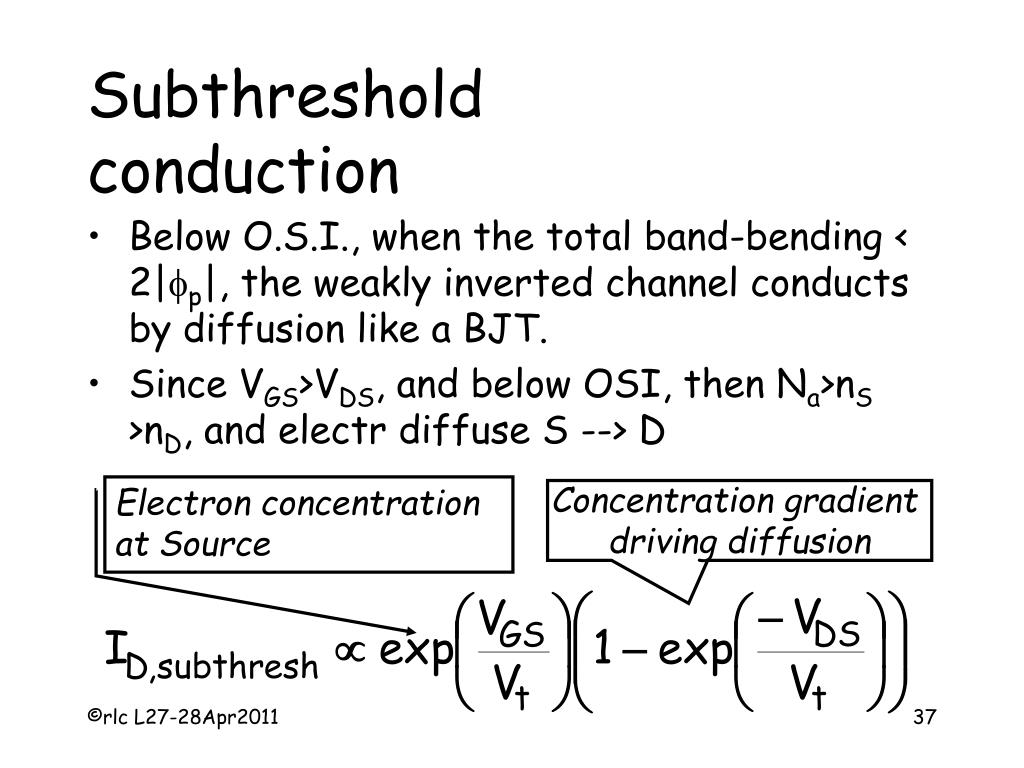

  37. Subthresholdconduction • Below O.S.I., when the total band-bending < 2|fp|, the weakly inverted channel conducts by diffusion like a BJT. • Since VGS>VDS, and below OSI, then Na>nS>nD, and electr diffuse S --> D Electron concentration at Source Concentration gradient driving diffusion

  38. Band diagram along the channel region of an n-channel MOSFET under bias, indicating that the barrier qΦB at the source depends on the gate voltage. M&K Fig.9.10 (p.443)

  39. Measured subthreshold characteristics of an MOS transistor with a 1.2 μm channel length. The inverse slope of the straight-line portion of this semilogarithmic plot is called the drain-current subthreshold slope S (measured in mV/decade of drain current). M&K Fig. 9.11 (p.444)

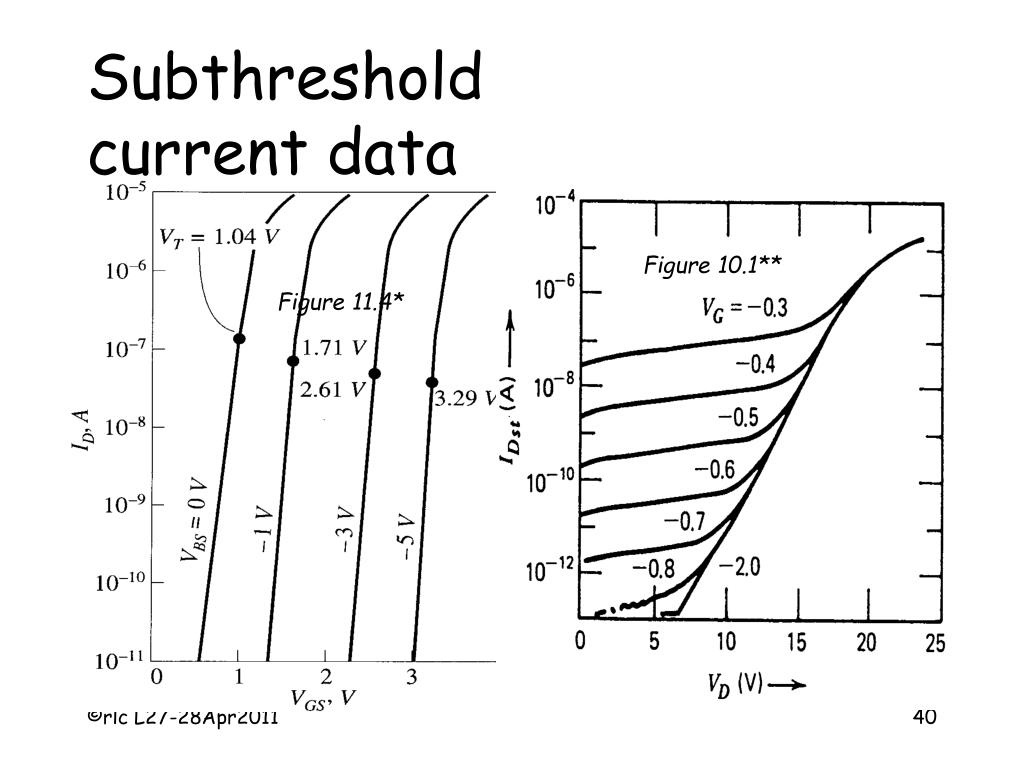

  40. Subthresholdcurrent data Figure 10.1** Figure 11.4*

  41. Mobility variationdue to Edepl Figures 11.7,8,9*

  42. Velocity saturationeffects Figure 11.10*

  43. References * Semiconductor Physics & Devices, by Donald A. Neamen, Irwin, Chicago, 1997. **Device Electronics for Integrated Circuits, 2nd ed., by Richard S. Muller and Theodore I. Kamins, John Wiley and Sons, New York, 1986
