Reversible Reactions

Reversible Reactions. A + B <=> C + D In a reversible reaction as soon as some of the products are formed they react together, in the reverse reaction, to form the reactant particles. Example As soon as A + B react forming C + D, some C+ D react together to produce A + B. Equilibrium.

george-keith
Télécharger la présentation

Reversible Reactions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

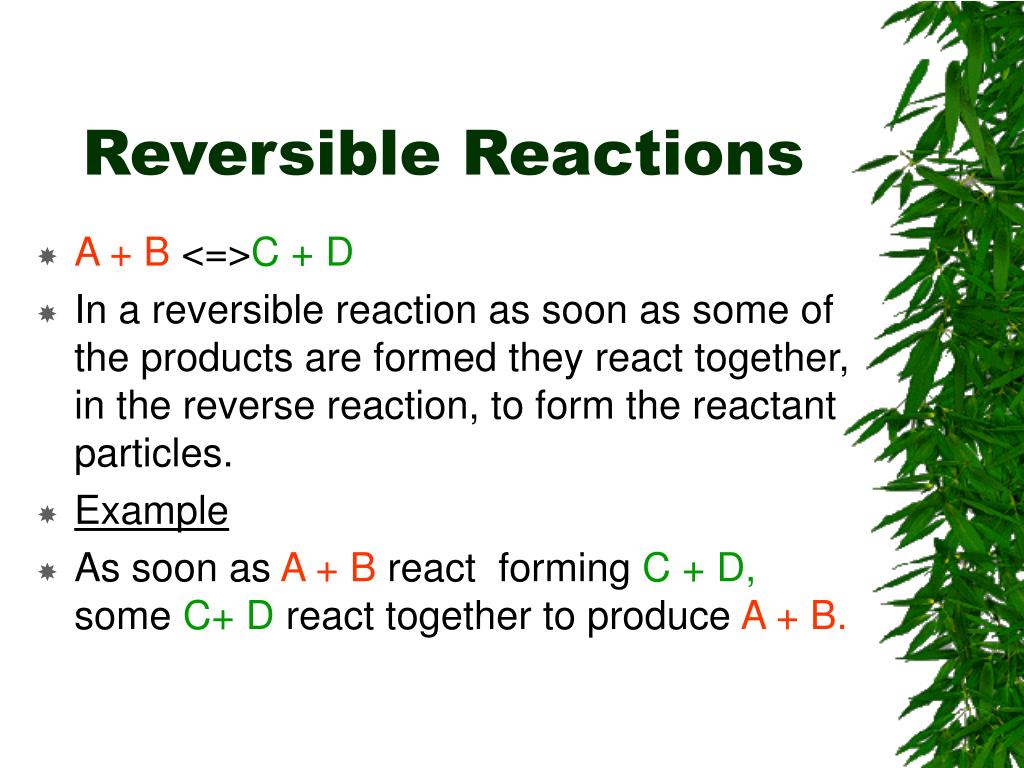

  1. Reversible Reactions • A + B<=>C + D • In a reversible reaction as soon as some of the products are formed they react together, in the reverse reaction, to form the reactant particles. • Example • As soon as A + B react forming C + D, some C+ D react together to produce A + B.

  2. Equilibrium • In a reversible reaction the forward and backward reactions occur at the same time. • Therefore the reaction mixture will contain some reactant and product particles. • When the rate of the forward reaction is equal to the rate of the reverse reaction – we say they are at EQUILLIBRIUM. • Dynamic Equilibrium is when the conditions are balanced and the reaction appears to have stopped.

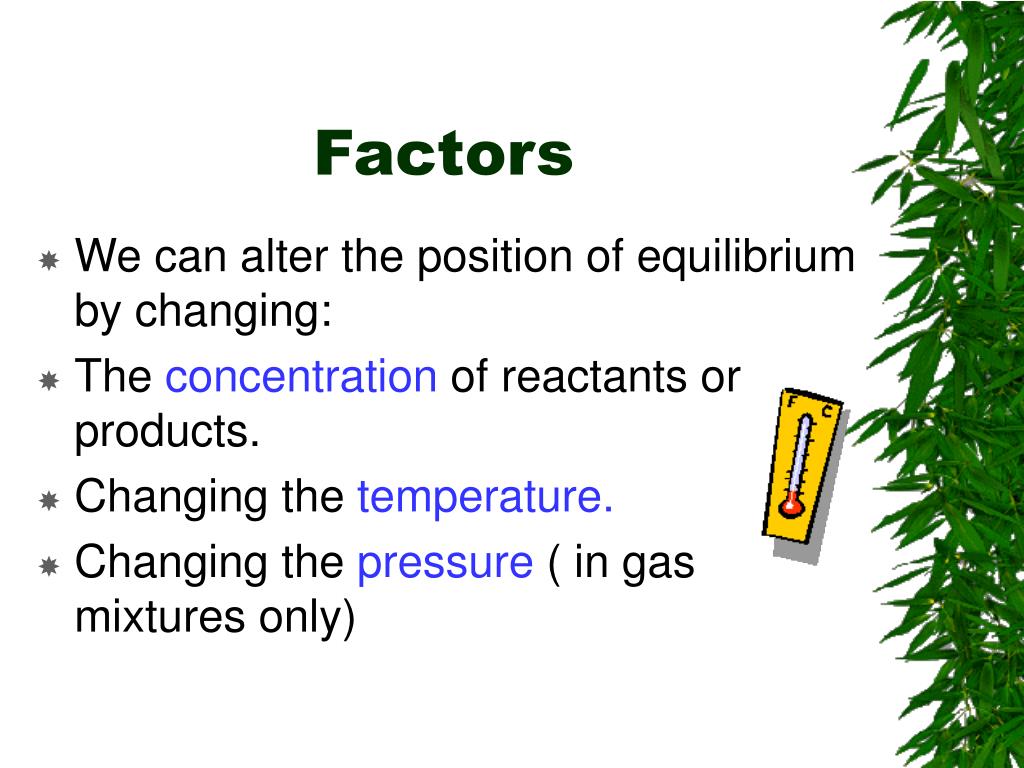

  3. Factors • We can alter the position of equilibrium by changing: • The concentration of reactants or products. • Changing the temperature. • Changing the pressure ( in gas mixtures only)

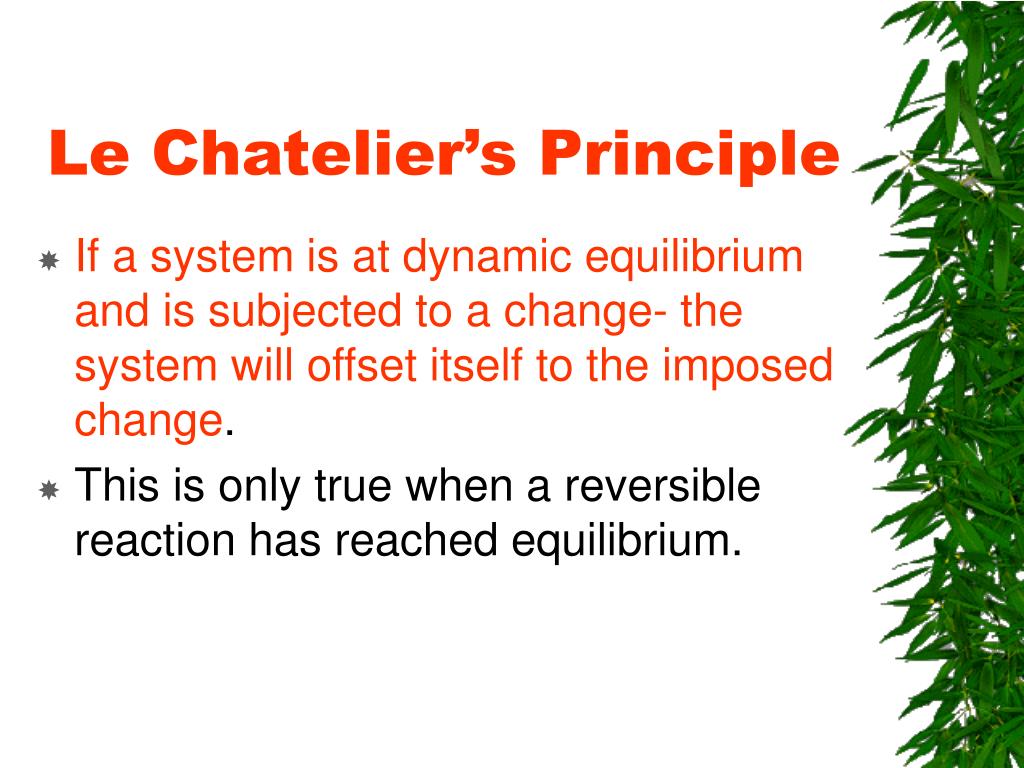

  4. Le Chatelier’s Principle • If a system is at dynamic equilibrium and is subjected to a change- the system will offset itself to the imposed change. • This is only true when a reversible reaction has reached equilibrium.

  5. Catalysts • Catalysts will lower the activation energy of the forward and reverse reaction by the same rate. • A catalyst increase the rate of the reaction but has no effect on equilibrium position.

  6. Concentration • A+B <=> C + D • If we add more A or B we speed up the forward reaction and so more C and D are produced. Equilibrium shifts to RHS • If reduce the amount of C and D – then more A and B will react producing more C and D. Equilibrium shifts to RHS • If we add add more C or D then the reverse reaction will happen – more A and B will be produced. The same will happen if remove some A or B. In both cases equilibrium shifts to LHS.

  7. Temperature • In a reversible reaction – one will be exothermic and the other will be endothermic. • A rise in temperature favours the reaction which absorbs heat – the endothermic reaction. • A drop in temperature favours the reaction that releases heat – the exothermic reaction.

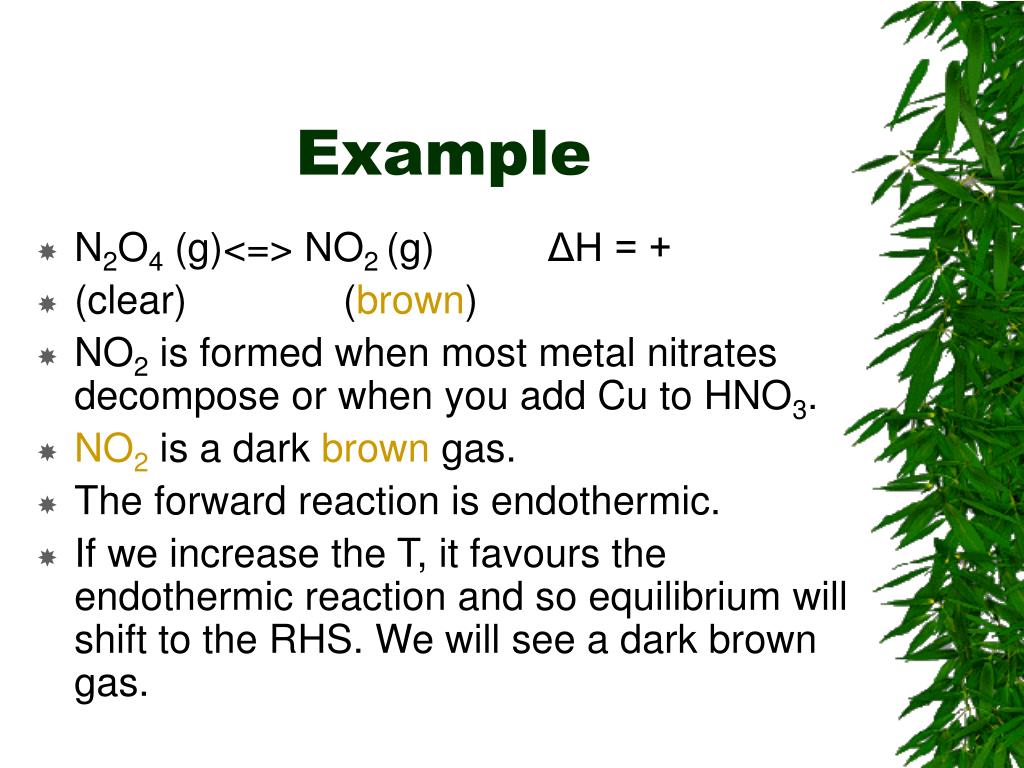

  8. Example • N2O4 (g)<=> NO2 (g) ΔH = + • (clear) (brown) • NO2 is formed when most metal nitrates decompose or when you add Cu to HNO3. • NO2 is a dark brown gas. • The forward reaction is endothermic. • If we increase the T, it favours the endothermic reaction and so equilibrium will shift to the RHS. We will see a dark brown gas.

  9. If we decrease the T, it favours the exothermic reaction – the reverse reaction – and so N2O4 will be produced. A colourless gas!

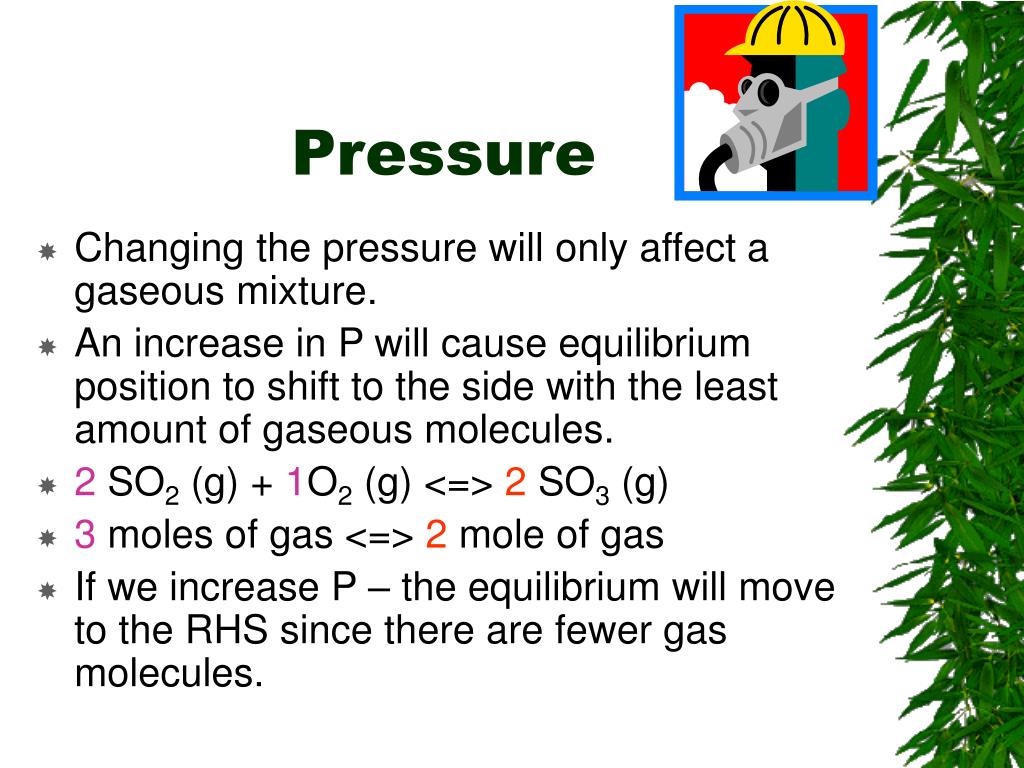

  10. Pressure • Changing the pressure will only affect a gaseous mixture. • An increase in P will cause equilibrium position to shift to the side with the least amount of gaseous molecules. • 2 SO2 (g) + 1O2 (g) <=> 2 SO3 (g) • 3 moles of gas <=> 2 mole of gas • If we increase P – the equilibrium will move to the RHS since there are fewer gas molecules.

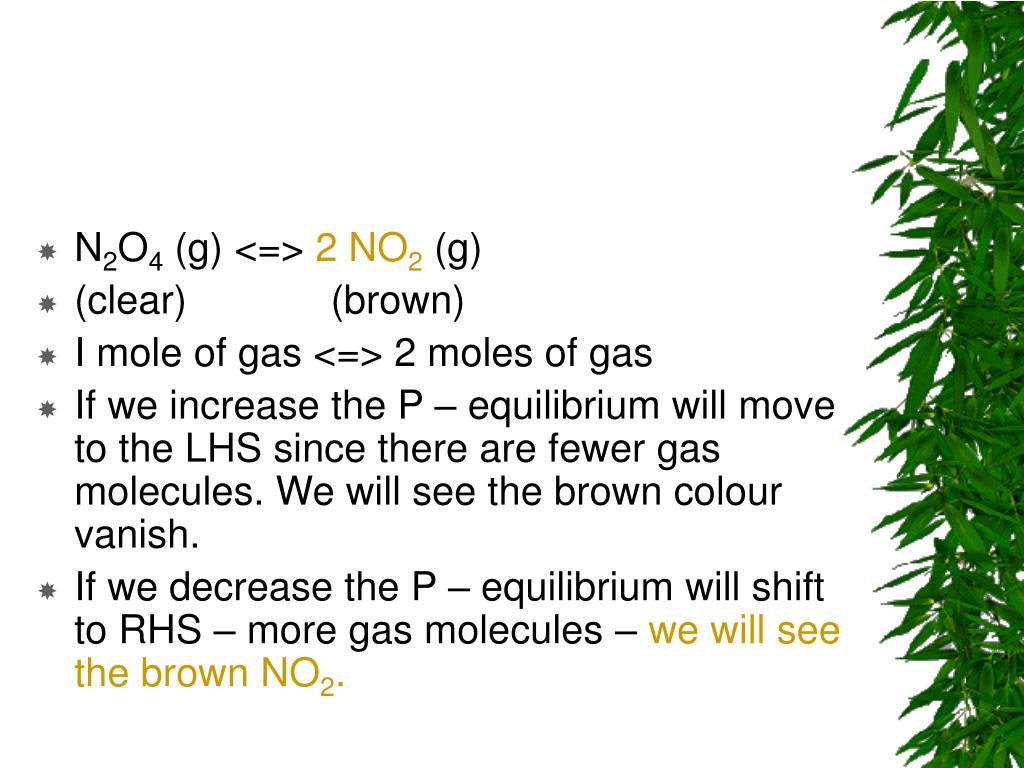

  11. N2O4 (g) <=> 2 NO2 (g) • (clear) (brown) • I mole of gas <=> 2 moles of gas • If we increase the P – equilibrium will move to the LHS since there are fewer gas molecules. We will see the brown colour vanish. • If we decrease the P – equilibrium will shift to RHS – more gas molecules – we will see the brown NO2.

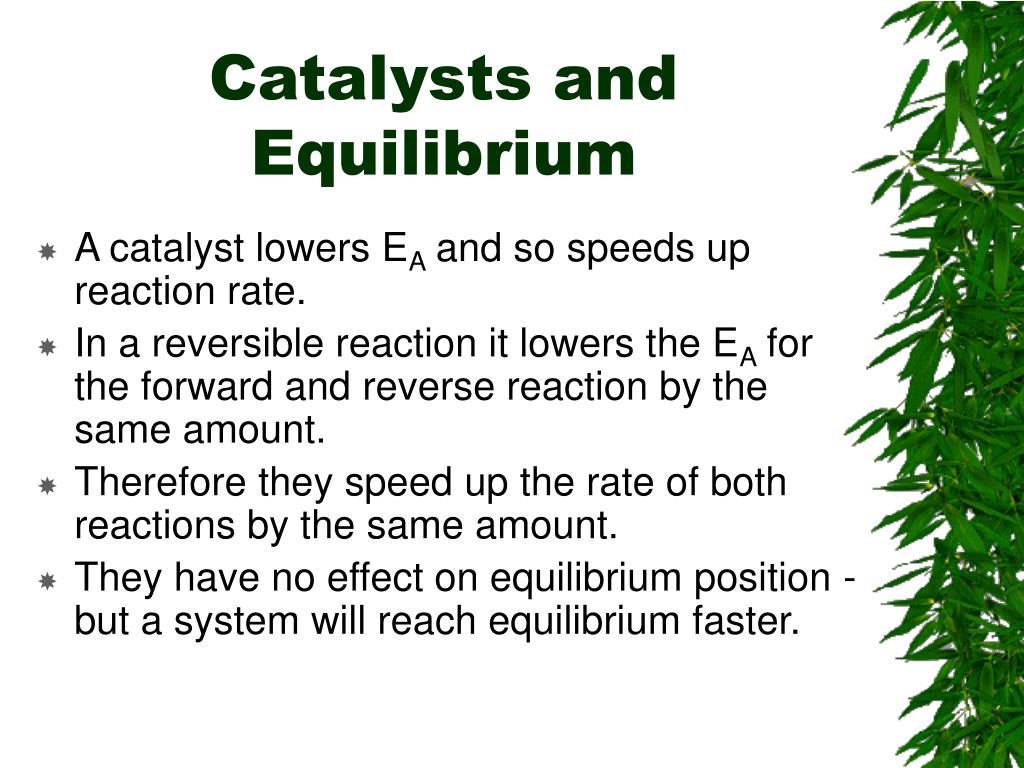

  12. Catalysts and Equilibrium • A catalyst lowers EA and so speeds up reaction rate. • In a reversible reaction it lowers the EA for the forward and reverse reaction by the same amount. • Therefore they speed up the rate of both reactions by the same amount. • They have no effect on equilibrium position -but a system will reach equilibrium faster.

  13. Equilibrium in Industry • The Haber Process • Manufacture of NH3 • N2(g) +3H2(g)<=>2NH3(g) ΔH=-92kJ • The forward reaction is exothermic. Therefore a low T will move equilibrium to the RHS. ( If T is too low reaction will be slow) • Increasing P will favour equilibrium to shift to the RHS since fewer gas molecules on that side. ( 4moles – 2 moles) • Conditions actually used = 200 atmospheres (P), T = 380 – 400 o C. In continuous processor. • NH3 is condensed – un reacted N2 and H2 recycled.

  14. Acids and Bases • The pH scale is a measure of the concentration of Hydrogen ions. • The pH stands for the negative logarithm: • pH = - log10 [H+(aq)] ([ ] = concentration) • The pH scale is continuous – (below 1 and above 14)

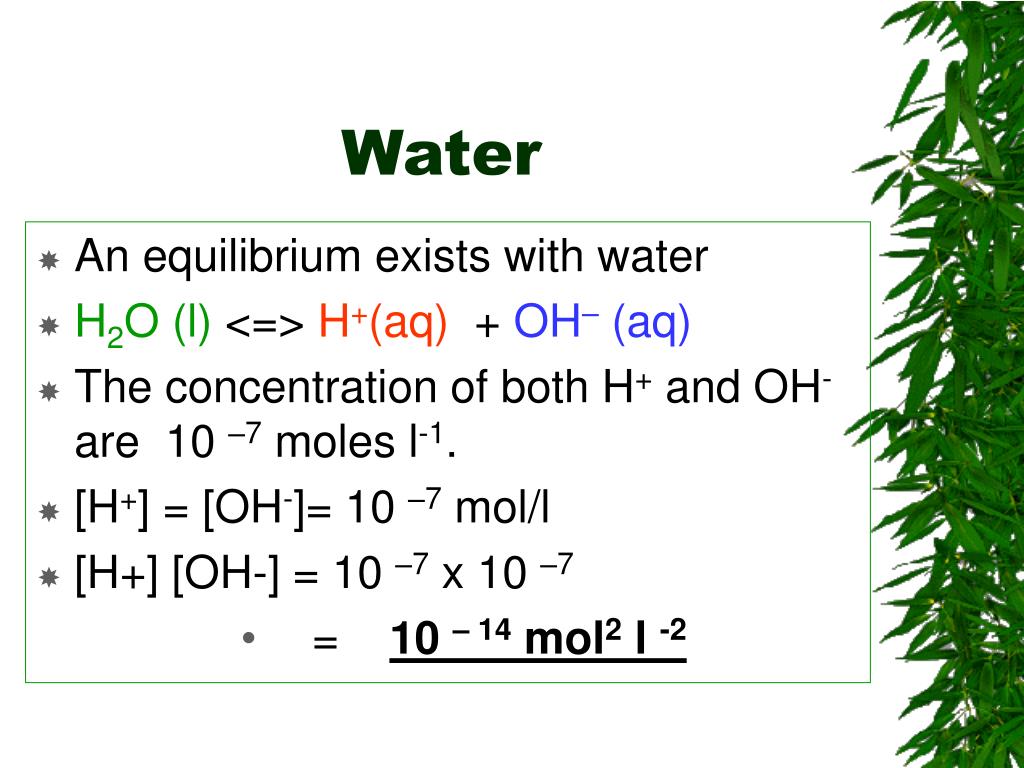

  15. Water • An equilibrium exists with water • H2O (l)<=> H+(aq) + OH– (aq) • The concentration of both H+ and OH- are 10 –7 moles l-1. • [H+] = [OH-]= 10 –7 mol/l • [H+] [OH-] = 10 –7 x 10 –7 • = 10 – 14 mol2 l -2

  16. Calculating concentration • [H+] = 10 –14 / [OH-] • [OH-] = 10 –14 / [H+] • Example • Calculate the concentration of OH- ions is a solution contains 0.01 moles of H+ • [OH-] = 10 –14 / [H+] • = 10 –14/ 10 –2 ( 0.01 = 10 –2) • = 10 –12 mol/l.

  17. More examples • Calculate the pH of a solution that contains 0.1 moles of OH- ions. • [H+] = 10 –14 / 10 –1 = 10 –13 mol/l pH = - log10 [H+] = - log 10 –13 = 13

  18. Strong/Weak Acids • A strong acid is one where all the molecules have dissociated (changed into ions) • Example • HCl(g) + (aq) —> H+ (aq) + Cl- (aq) • (molecules) ( ions) • Other strong acids – Sulphuric, Nitric, phosphoric.

  19. Weak Acids • These are acids that have only partially dissociated ( ionised) in water. • Example – carboxylic acids, carbonic acid, sulphurous acid. • The majority of the particles lie at the molecule side of the equilibrium. • CH3COOH (aq) <=> CH3COO- (aq) (molecules) + H+ (aq) ( ions)

  20. Strong and weak acids differ in: • Conductivity, pH and reaction rate. • If comparing we must use equimolar solutions I.e. both same mol/1.

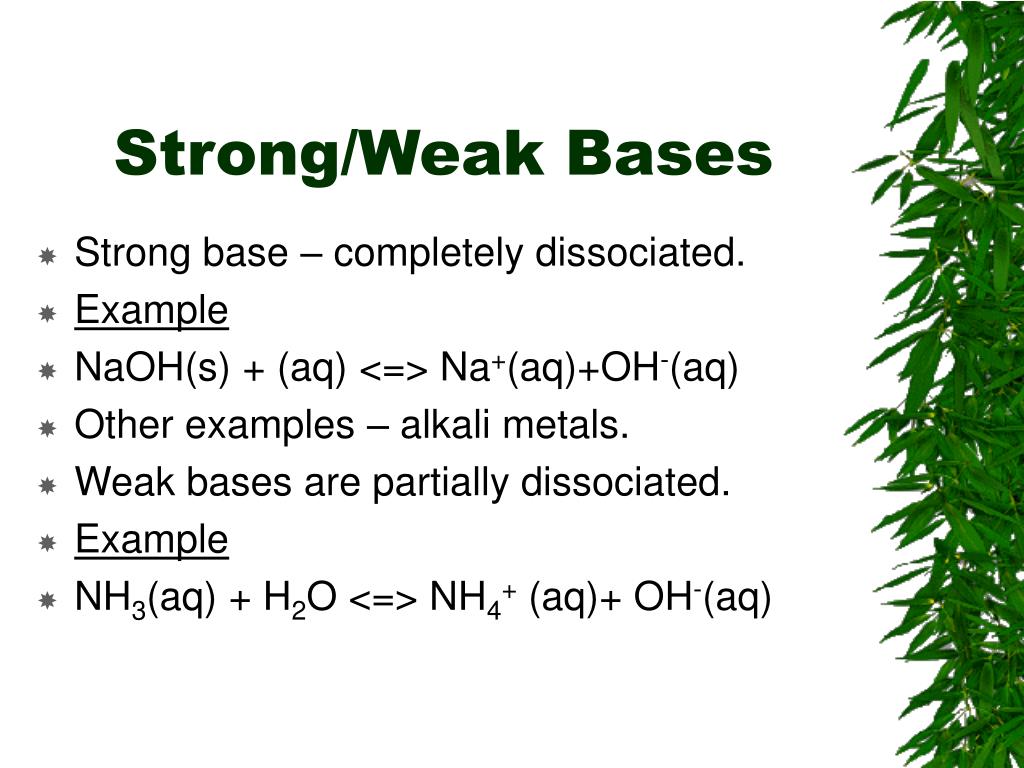

  21. Strong/Weak Bases • Strong base – completely dissociated. • Example • NaOH(s) + (aq) <=> Na+(aq)+OH-(aq) • Other examples – alkali metals. • Weak bases are partially dissociated. • Example • NH3(aq) + H2O <=> NH4+ (aq)+ OH-(aq)

  22. Affect on equilibrium • If we add Sodium ethanoate to Ethanoic Acid – • CH3COOH(aq) <=>CH3COO-(aq) + H+(aq) • NaCH3COO(s)+(aq) <=>Na+(aq)+CH3COO- (aq) • We have increased the concentration of the ethanoate ions (in the system) – equilibrium will shift to the LHS to offset this. Therefore there will be less H+ ions and so pH will rise.

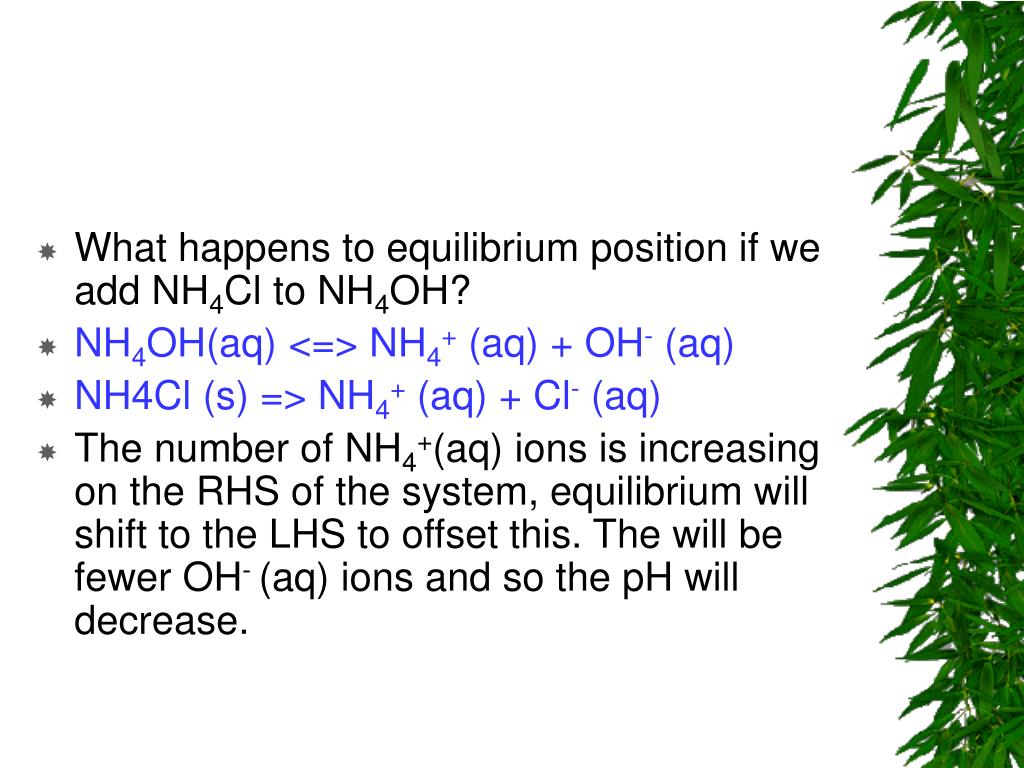

  23. What happens to equilibrium position if we add NH4Cl to NH4OH? • NH4OH(aq) <=> NH4+ (aq) + OH- (aq) • NH4Cl (s) => NH4+ (aq) + Cl- (aq) • The number of NH4+(aq) ions is increasing on the RHS of the system, equilibrium will shift to the LHS to offset this. The will be fewer OH- (aq) ions and so the pH will decrease.

  24. Salts • General Rule

  25. Explanation! • NH4Cl • This is the salt of a weak alkali ( NH4OH) and a strong acid ( HCl). • When we add it to water: • NH4Cl(s) + (aq) <=> NH4+(aq) + Cl-(aq) • H2O (l) <=> H+ (aq) + OH-(aq) • The NH4+ ions and the OH- ions in the system react • NH4+(aq) + OH-(aq) <=> NH3 (aq) + H2O(l) • The concentration of OH- ions in the water equilibrium goes down – the equilibrium shifts to the RHS to offset this – producing more H+ ions and so pH goes down.(acidic!)

  26. NaCH3COO • This is the salt of astrong alkali ( NaOH) and a weak acid (CH3COOH). • When we add it to water: • NaCH3COO(s) + (aq) <=> CH3COO-(aq) + H+ (aq) • H2O (l) <=> H+ (aq) + OH-(aq) • The CH3COO(aq) reacts with the H+ (aq) ion. • CH3COO-(aq) + H+(aq) <=> CH3COOH(aq) • The water equilibrium then moves to RHS to offset this – there are now more OH-(aq) ions and so the pH will increase • ( alkaline!)

  27. Soaps • Soaps are formed when we hydrolyse fats and oils using an alkali. • They are the salts of weak acids and strong bases – ph of soaps will be slightly alkaline. CH2 – OCO R CH2 –OH R – COO-Na+ I I CH - OCO R* <=> CH – OH + R* - COO – Na+ I I CH2 -OCO R** CH2 – OH R** - COO – Na+ Fat/Oil Glycerol Sodium salts Soaps
