  1. Crystal Linux. Open. Enterprise Solution General Course (March, 2014)

  2. Agenda • Crystal Introduction • Crystal Target Segment • Key Benefits and Features www.nuuo.com

  3. Section 1 Crystal Introduction

  4. Once upon a time… When you have a site with 1000chcameras to setup… … Log vlx;ain 32 units of DVRor NVR When a new member joins….. • - Add cameras • Set up recording schedule • Other configuratiodadfns “separately” on 32 DVR/NVR … … Add users x 32

  5. Time is money

  6. Once upon a time… When you need to monitor a 1000ch system… … Monitor x 64 ! ! ! ! ! When 10 events happen at the same time….. … NuClient login x 16 … Keyboard & mouse x 16

  7. How Can Crystal Help?

  8. All Crystal servers are Linux-based, which is stable and immune to virus attack. Crystal System Structure Management Server One single portal to manage all cameras and devices NuMatrix NuClient + NuMatrix The clean, simple, intuitive interface to monitor 1000 cameras Compatible with more than 2000 IP camera models from over 80 brands Recording Server The powerful server where high-profile video data is safely stored and efficiently streamed out Modular means system stability. Every process is modularized and can work independently of each other. When a process fails, the rest of the system will function normally. Metadata Server The flexible open-platform for third party solutions www.nuuo.com

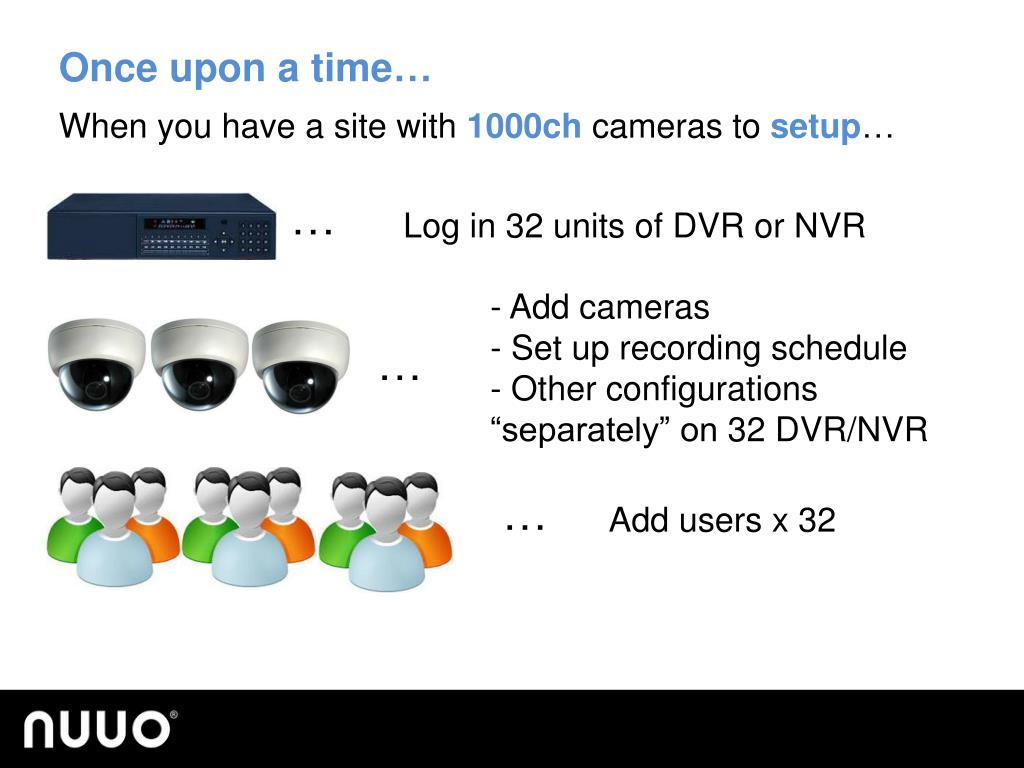

  9. Once upon a time… When you have a site with 1000chcameras to setup… … Log in 32 units of DVRor NVR • - Add cameras • Set up recording schedule • Other configurations “separately” on 32 DVR/NVR … … Add users x 32

  10. In Crystal Era… When you have a site with 1000chcameras to setup… Assign Management Server from Recording Servers One interface, one time Activate licenses, add cameras and users from Management Server

  11. Once upon a time… When you need to monitora1000ch system… Monitor x 64 ! ! ! ! … … NuClient login x 16 … Keyboard & mouse x 16

  12. NuMatrix (video wall) In Crystal Era… When you need to monitora 1000ch system… ! ! ! ! … Single control point, efficient management Use NuClient to log in to the Management Server to monitor all videos from all your Recording Servers

  13. Open. Enterprise Solution : Linux. Crystal Management Server One single portal to manage all cameras and devices NuMatrix NuClient + NuMatrix The clean, simple, intuitive interface to monitor 1000 cameras Recording Server The powerful server where high-profile video data is safely stored and efficiently streamed out Metadata Server The flexible open-platform for third party solutions www.nuuo.com

  14. Section 2 Crystal Target Segment

  15. Crystal Target Segment • Single site, multi servers CT-4000R: recommended for under 32ch or 180Mbps per Recording Server CT-8000R/8000RP: recommended for 32~64ch or 250~550Mbps per Recording Server

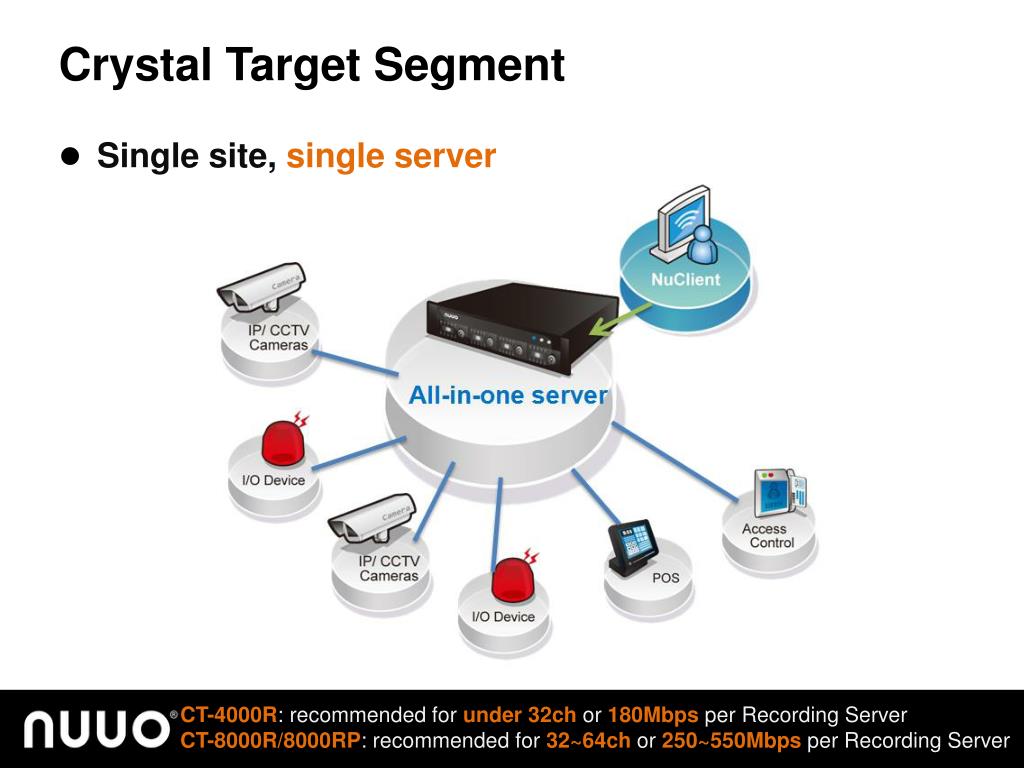

  16. Crystal Target Segment • Single site, single server CT-4000R: recommended for under 32ch or 180Mbps per Recording Server CT-8000R/8000RP: recommended for 32~64ch or 250~550Mbps per Recording Server

  17. Crystal Two license levels: Ultimate and Enterprise

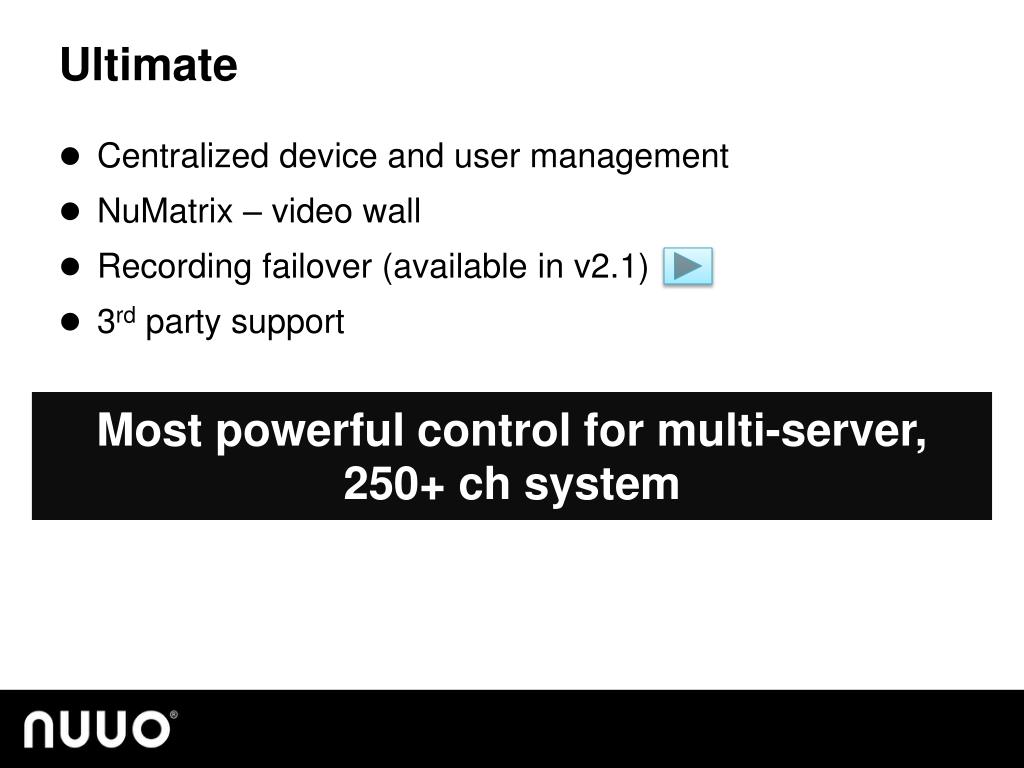

  18. Ultimate • Centralized device and user management • NuMatrix – video wall • Recording failover (available in v2.1) • 3rd party support Most powerful control for multi-server, 250+ ch system

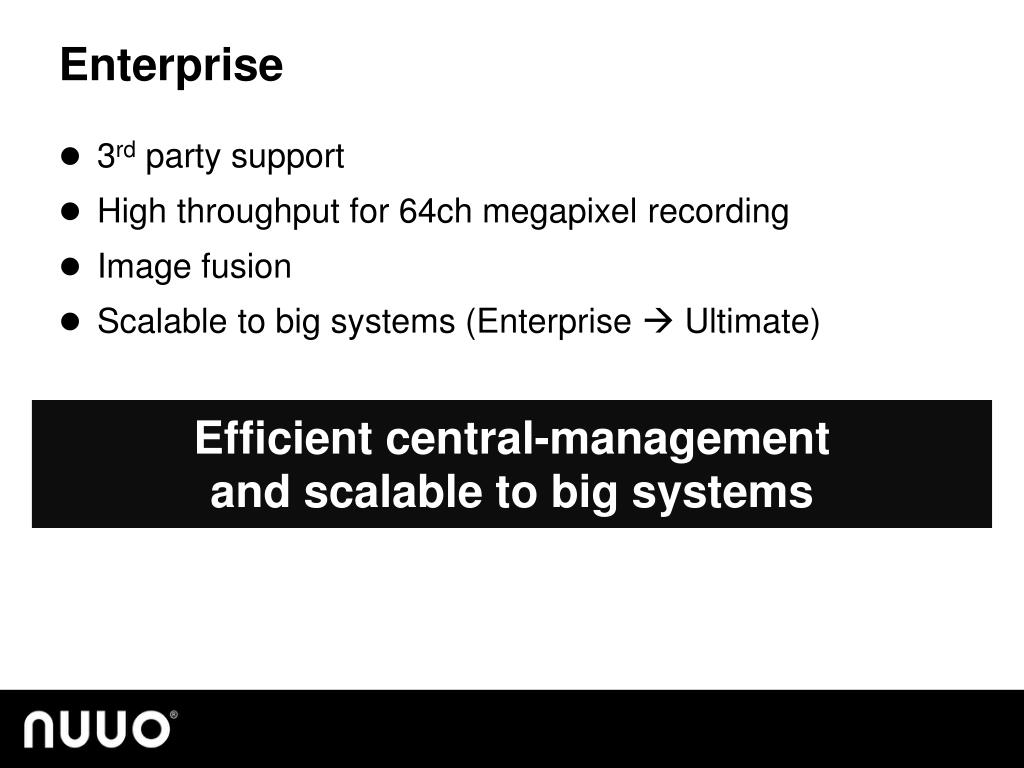

  19. Enterprise • 3rd party support • High throughput for 64ch megapixel recording • Image fusion • Scalable to big systems (Enterprise  Ultimate) Efficient central-management and scalable to big systems

  20. Feature Comparison

  21. When dealing with high network complexity, or any project involving WAN solutions, please feel free to contact NUUO sales. Application • Multiple sites: • Multiple individual site monitoring Ultimate Level 3: Global Hypermarket • Single site, multiple servers: • Centralized management • Video wall • Recording failover Ultimate Level 2: Airport Enterprise • Single server, 32+ ch: • 3rd party integration with video • Volume group for higher throughput and risk management based on its importance Level 1: Hostel

  22. Section 3 Key Benefits and Features

  23. Key Benefits and Features Volume Group Assign cameras to Volume Groups by their importance to have different capabilities of data protection and higher the recording throughput. CT-8000R/8000RP: 250Mbps (1 volume) 400Mbps (2 volumes) 550Mbps (3 volumes) *CT-4000/4000R is not able to increase the total throughput via volume group due to CPU limitation Benefit • Open third party platform via SDK and TCP Client • Compatible with more than 2000 IP cameras from 80 brands • Monthly device pack release IRC – Independent Retention Condition Assign different retention time for each camera by its importance. Network Time Protocol Sync system time on LAN and WAN via Management Server. NuMatrix – Video Wall Powerfully centralized viewing, efficiently managed by NuClient. • File Ring • Ensure high and constant recording throughput by • Dividing video data into fixed-size blocks to save data in a stable and organized format onto hard drives • Overwriting instead of deleting the oldest files, to avoid the sudden intensive resource usage which leads to throughput drops • Boosting Recording • Boost recording by changing frame rate on certain cases to save storage space. • Schedule-based • Event I/O trigger NTP server Delete Remain WAN • Centralized device and user management • High megapixel recording by Volume Group and File Ring technology • NuMatrix* – video wall • Cross-platform NuClient – Windows and Mac • Metadata Server – 3rd party integration • IRC – independent retention time per camera • NTP – sync system time on LAN and WAN • Boosting recording by schedule and event • Image Fusion – stitch views to form a consecutive single view • Layout Wizard – customized layout • Generic fisheye dewarp Feature Assigned days Management Server LAN Writing data... Image Fusion Stitch views to form a consecutive single view for easier viewing. Overwriting data... NTP Server 5 1 2 3 4 10 7 6 8 9 Recording Server Recording Server Metadata Server RAID volume (hard drives) Go to feature details *NuMatrix is available on Ultimate only

  24. Open. Enterprise Solution : Linux. Crystal • Recalling the scenario of the 1000ch system, • you need… *License purchased separately, not embedded in the Crystal server www.nuuo.com

  25. Thank you! www.nuuo.com
