  1. CRUD Matrix Presented by Trisha Cummings

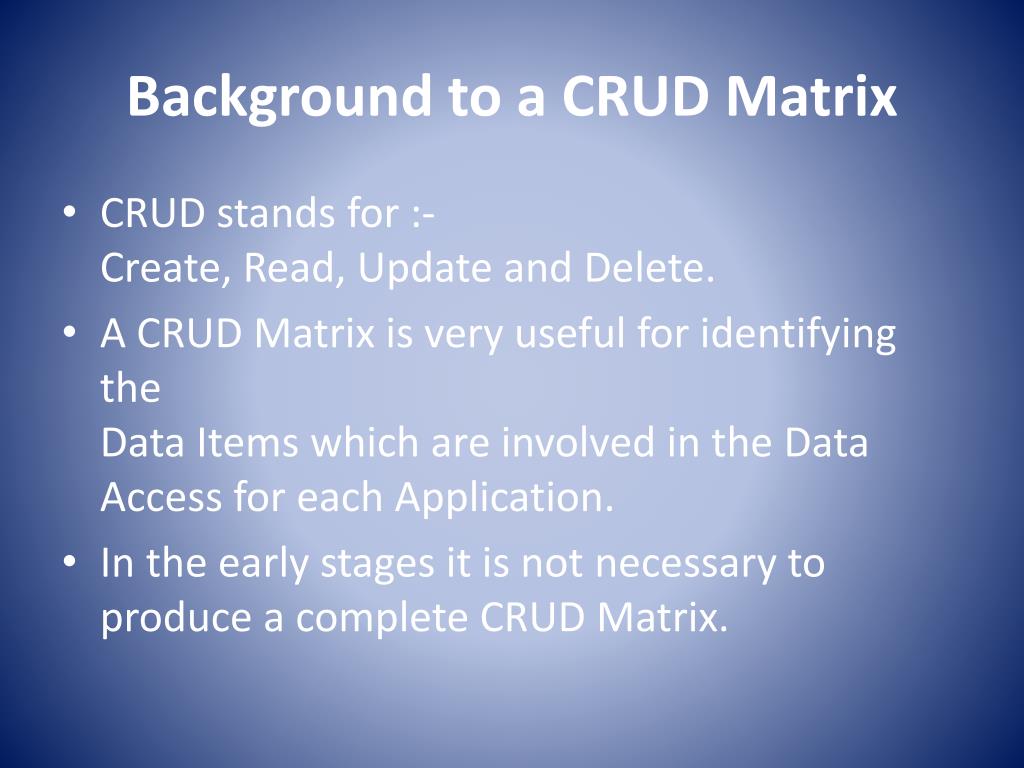

  2. Background to a CRUD Matrix • CRUD stands for :- Create, Read, Update and Delete. • A CRUD Matrix is very useful for identifying the Data Items which are involved in the Data Access for each Application. • In the early stages it is not necessary to produce a complete CRUD Matrix.

  3. A CRUD Matrix • A CRUD matrix is a table showing the Functions in an application containing SQL statement affecting parts of a database. • SQL consists of only 4 statements, sometimes referred to as CRUD :- • Create - INSERT - to store new data • Read - SELECT - to retrieve data • Update - UPDATE - to change or modify data. • Delete - DELETE - delete or remove data

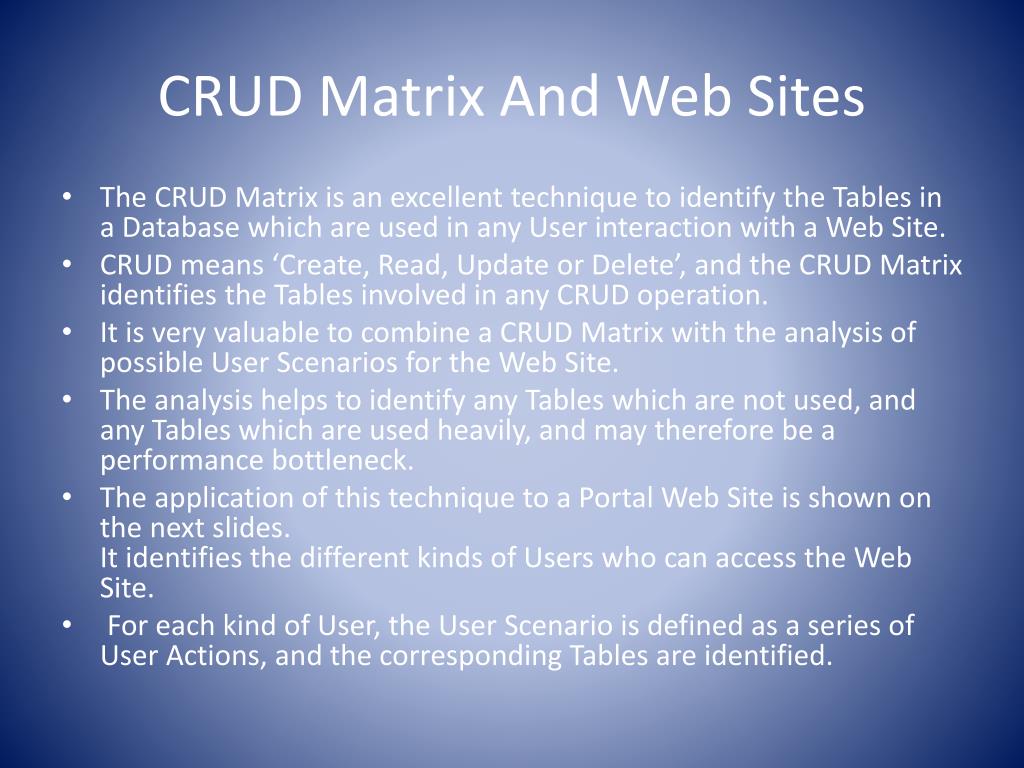

  4. CRUD Matrix And Web Sites • The CRUD Matrix is an excellent technique to identify the Tables in a Database which are used in any User interaction with a Web Site. • CRUD means ‘Create, Read, Update or Delete’, and the CRUD Matrix identifies the Tables involved in any CRUD operation. • It is very valuable to combine a CRUD Matrix with the analysis of possible User Scenarios for the Web Site. • The analysis helps to identify any Tables which are not used, and any Tables which are used heavily, and may therefore be a performance bottleneck. • The application of this technique to a Portal Web Site is shown on the next slides. It identifies the different kinds of Users who can access the Web Site. • For each kind of User, the User Scenario is defined as a series of User Actions, and the corresponding Tables are identified.

  5. Here is a typical CRUD Matrix for a Business Intellignece Data Architecture :- Here is a simple CRUD Matrix for a CRM Data Architecture :-

  6. Resources • http://www.databaseanswers.org/data_arch/crm/crud_matrix.htm
