Simultaneous Ion-Neutral Trapping: Advances and Applications in Antihydrogen Production

This study explores simultaneous ion-neutral trapping techniques, focusing on their potential applications in antihydrogen production and three-body recombination studies. We investigate the dynamics of high angular momentum states and reevaluate conventional Penning trap principles. Our experimental results demonstrate successful ion-neutral trapping with a remarkable confinement time of approximately 50 seconds at low electron densities (~10^5 e-/cm³) and a sample temperature of ~4K. The research aims to enhance understanding of antihydrogen properties by confining a small number of antihydrogen atoms in neutral particle traps.

gerek
Télécharger la présentation

Simultaneous Ion-Neutral Trapping: Advances and Applications in Antihydrogen Production

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Simultaneous Ion-Neutral Trapping and Applications Alex Povilus Jae Choi Eberhard Hansis Georg Raithel REU-2004 – 7/28/2004

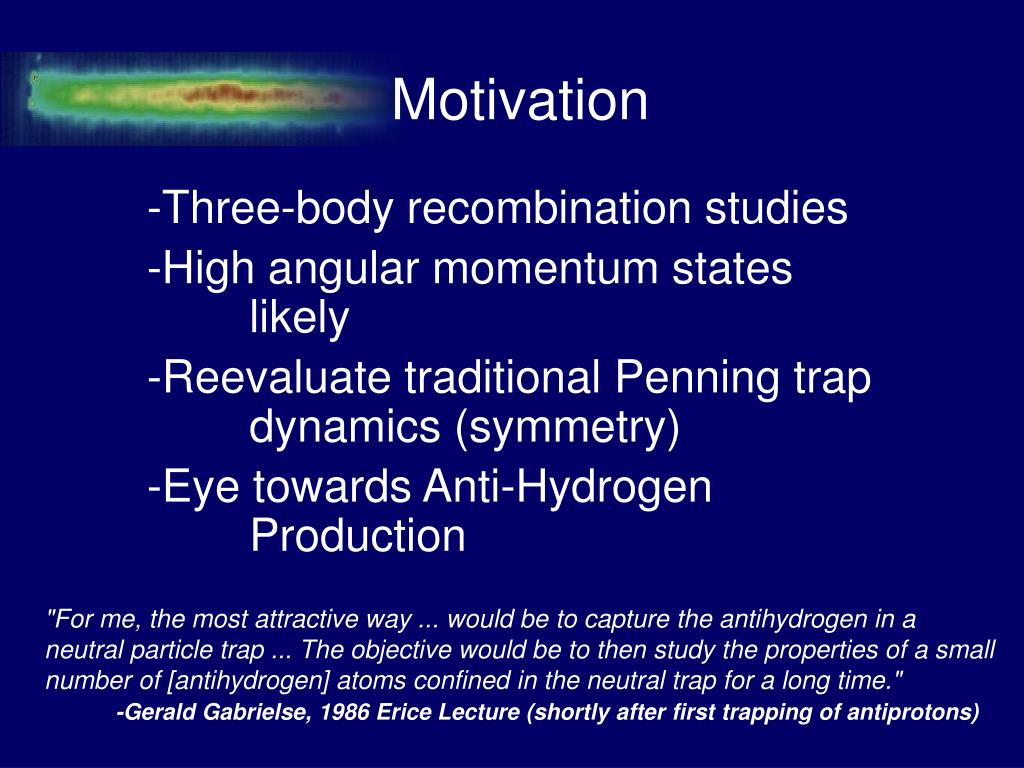

  2. Motivation -Three-body recombination studies -High angular momentum states likely -Reevaluate traditional Penning trap dynamics (symmetry) -Eye towards Anti-Hydrogen Production "For me, the most attractive way ... would be to capture the antihydrogen in a neutral particle trap ... The objective would be to then study the properties of a small number of [antihydrogen] atoms confined in the neutral trap for a long time." -Gerald Gabrielse, 1986 Erice Lecture (shortly after first trapping of antiprotons)

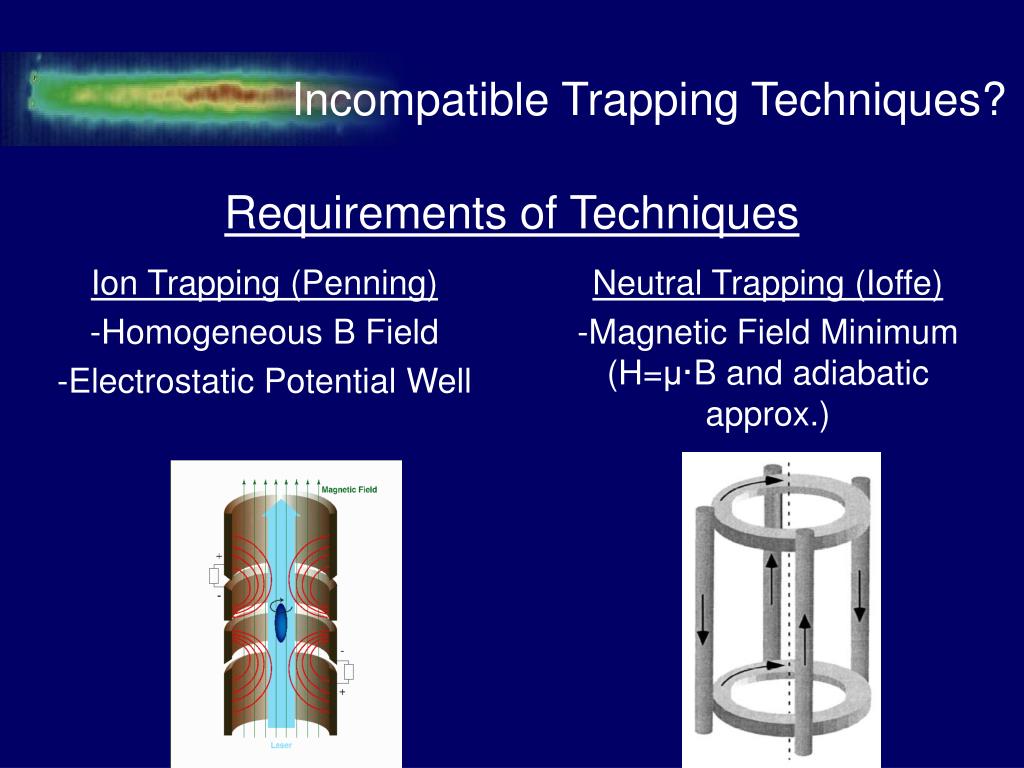

  3. Incompatible Trapping Techniques? Ion Trapping (Penning) -Homogeneous B Field -Electrostatic Potential Well Neutral Trapping (Ioffe) -Magnetic Field Minimum (H=μ·B and adiabatic approx.) Requirements of Techniques

  4. Internal Electrodes Apparatus Superconducting Atom Trap (2.9 Tesla) Cryo-chamber at 4K Optical Trapping Techniques

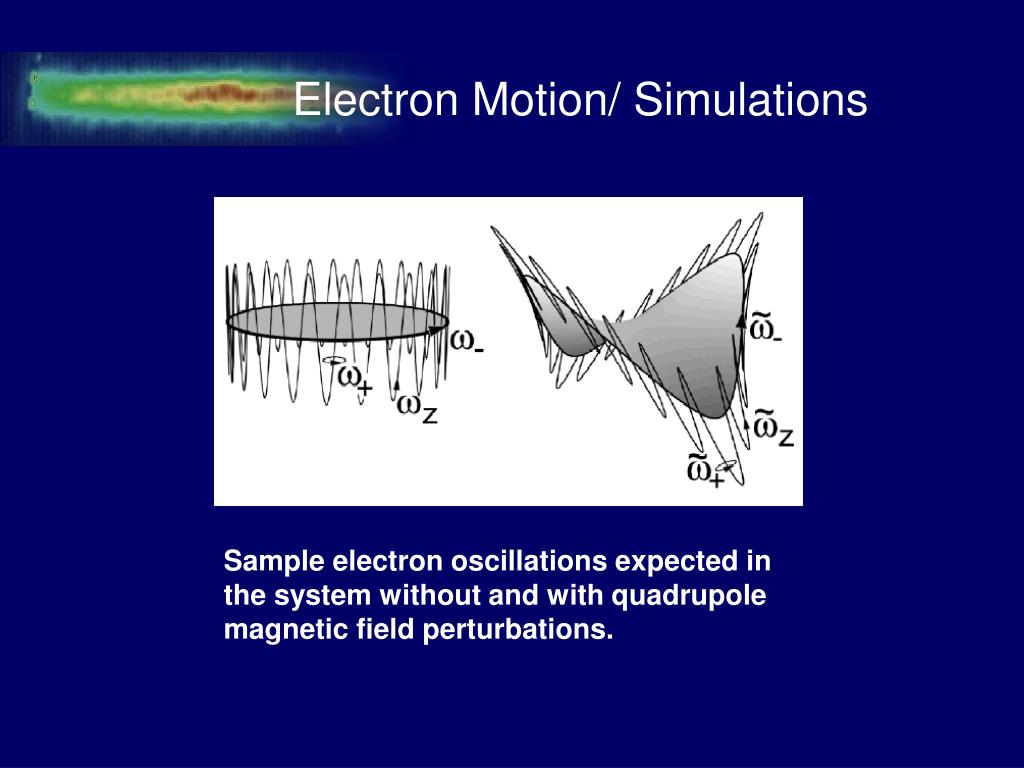

  5. Electron Motion/ Simulations Sample electron oscillations expected in the system without and with quadrupole magnetic field perturbations.

  6. Experimental Results Ion-Neutral Trapping Observed ( ≈ 50 sec) at Low Density (105 e-/cm3) Temperature of Sample Measurement: ~4K

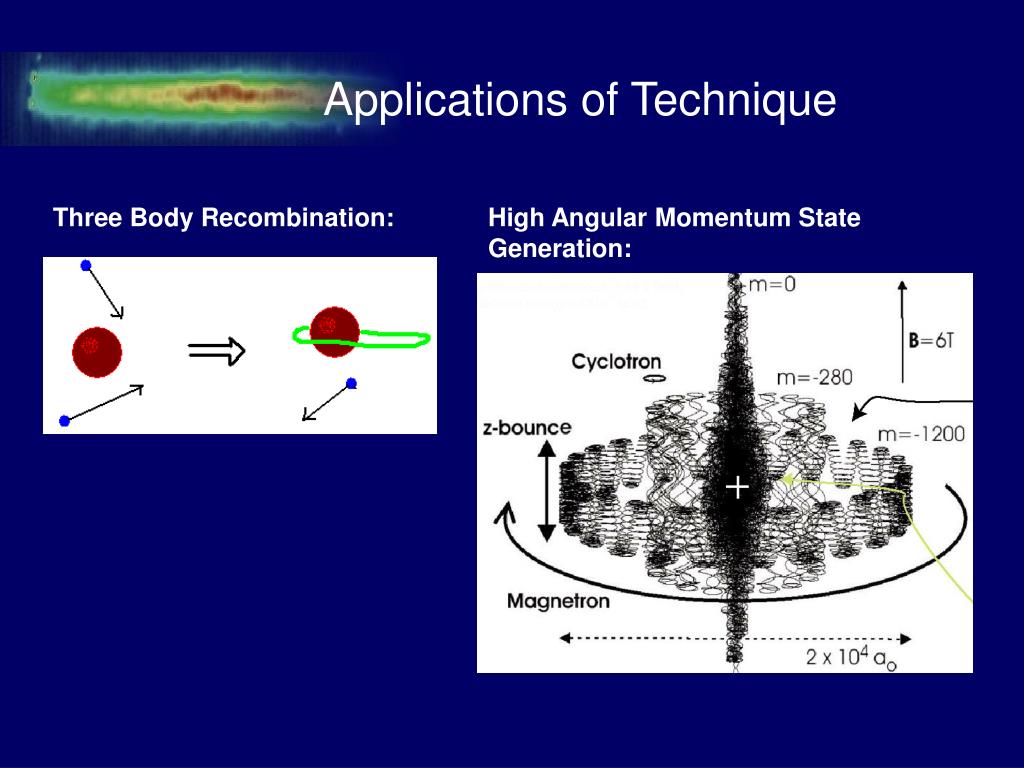

  7. Applications of Technique Three Body Recombination: High Angular Momentum State Generation:

  8. Haiku and References Ions and Neutrals My fields can contain them both Maybe together (1) Squires, Yesley, and Gabrielse, Phys Rev Letters86, 5266 (2) Bagnato, Lafyatis, Martin, Raab, Ahmad-Bitar, and Pritchard, Phys Rev Letters58, 2194 (3) Brown and Gabriese, Geonium theory: Physics of a single electron or ion in a Penning trap (4) Gilson and Fajans, Phys. Rev. Letters90, 15001-1
