Understanding mRNA Formation and Protein Production: Transcription to Translation

gerry avatar
gerry
7 diapositives · 247 Views · Oct 22, 2014

This overview details the intricate processes of mRNA formation and protein production through transcription and translation. It begins with transcription, where chemical messengers trigger RNA polymerase to split DNA, creating a template strand for mRNA synthesis. Pre-mRNA is then processed and spliced, removing non-coding introns and preserving coding exons. Following this, translation occurs when ribosomes utilize the mRNA code to assemble amino acids into a protein. The protein's structure is defined in four levels: primary, secondary, tertiary, and quaternary, illustrating its complexity.

#understanding mrna formation and protein production: transcription to translation #understanding mrna formation and protein production: transcription to translation ppt #powerpoint #presentation
Understanding mRNA Formation and Protein Production: Transcription to Translation - slide 1
01 / 7Understanding mRNA Formation and Protein Production: Transcription to Translation
1 / 17

Télécharger la présentation

Understanding mRNA Formation and Protein Production: Transcription to Translation
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

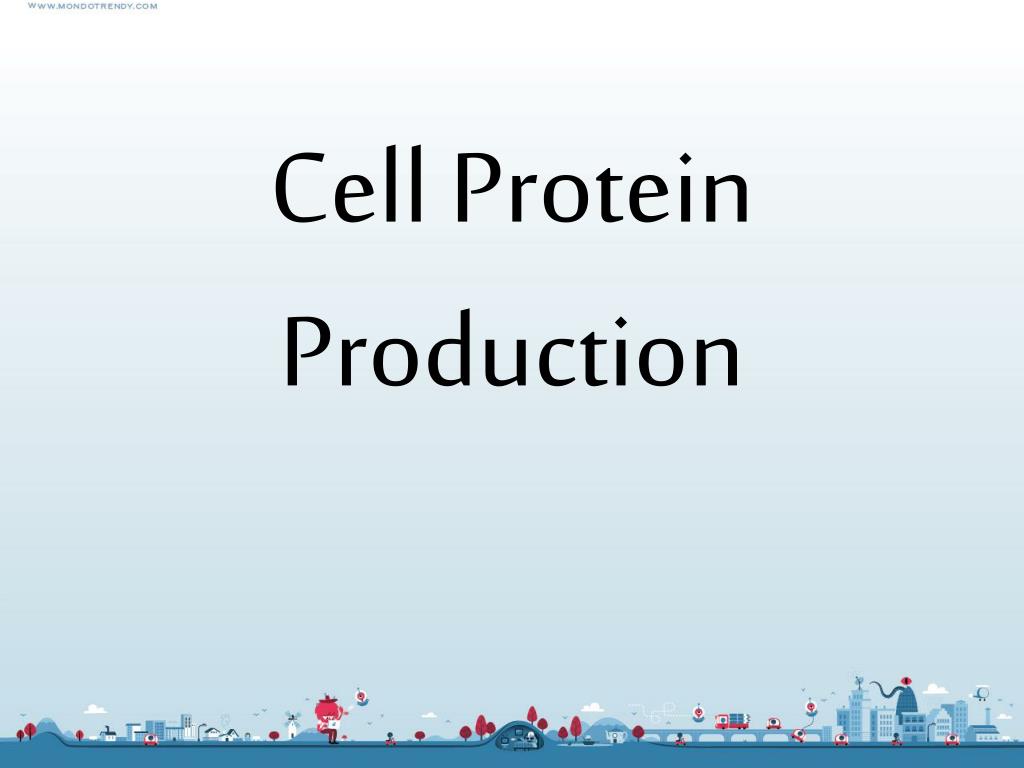

  1. Cell Protein Production

  2. Transcription:process of mRNA formation.1. Triggered by chem. messengers from cytoplasm which bind to DNA2. This causes release of RNA polymerase (enzyme) which splits DNA apart (Generally 17 base pairs at a time) into a ‘template’ and ‘coding’ strand (RNA will mimic the coding strand)3. There are ‘start’ and ‘stop’ triplets so the RNA polymerase knows where mRNA chain begins and ends.

  3. Processing & Splicing - Once pre-mRNA has been formed (a direct copy of the coding strand) it must be modified before it can leave the nucleus - Not all triplets created from DNA are codons as some do not code for a specific amino acid. - These are described as ‘Introns’. - Introns: regions of mRNA which have no particular function and need to be removed - Exons: regions of mRNA which code for a specific amino acid. (codons)

  4. Translation - This involves the actual production of the protein using info from mRNA. - A ribosome attaches itself to the mRNA and will being to piece together the amino acid chain based on the code from the mRNA. - The ribosome will being at the ‘start’ codon (AUG) and will end at the ‘stop’ codon (UAA, UAG or UGA) - Small segments of tRNA (transfer RNA) have a specific amino acid attached to them. These segments of tRNA are structured in such a way that they have a sharp ‘loop’ at one end which has a specific codon called the ‘anticodon’ which will correspond to a specific codon on the mRNA strand.

  5. Translation -- The tRNA molecules line up and the amino acids attached will then form a bond with each other (requiring energy of one ATP conversion)

  6. Translation Protein Structure Four levels of complexity: 1. Primary structure: sequence of amino acids (one protein may have 10 000 amino acids) 2. Secondary structure: coiled/folded shaped due to bonds between diff parts of chain 3. Tertiary structure: further bending/folding into globular/fibrous shape 4. Quaternary structure: two or more amino acid chains interact
