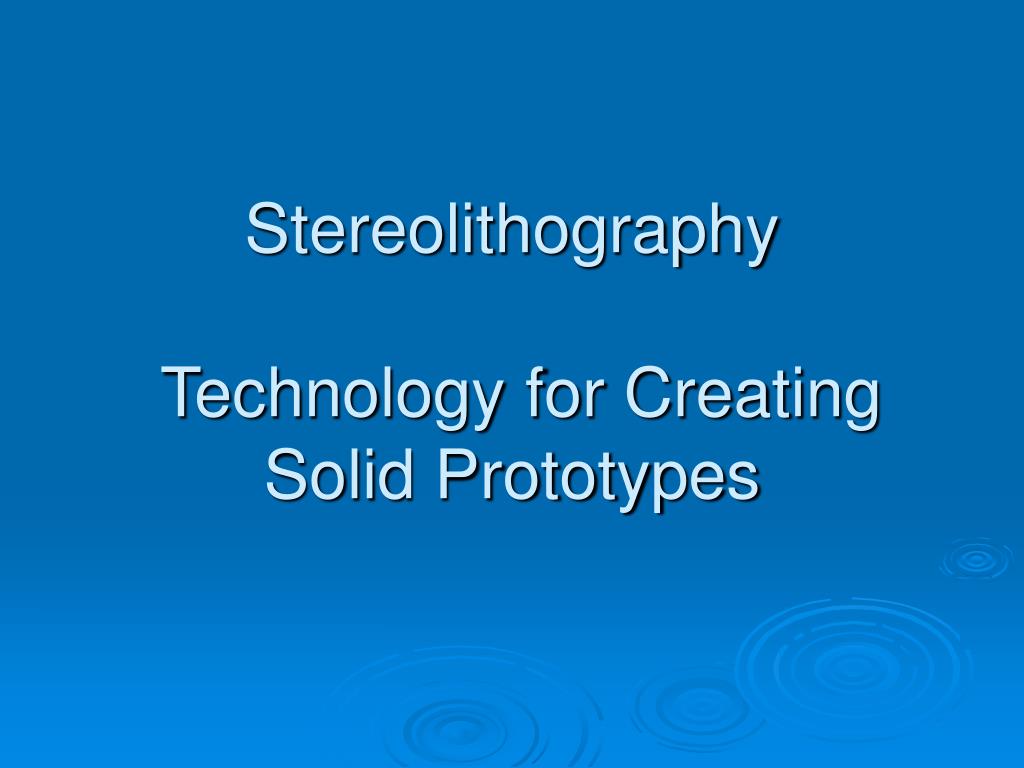

  1. Stereolithography Technology for Creating Solid Prototypes

  2. Rapid Prototypes What are they used for? • Manufacturability • Quality • Production Parts • Production Tooling • Unique Applications • Experiments • Optical analysis • Material properties

  3. Basic System Layout

  4. A Full Scale Model

  5. Prototype Installed

  6. Fluid Flow Cell

  7. System Capabilities • Standard resolution build volume is a 10 inch cube. • Layer depth will be 0.004 inch. • Laser Beam Diameter 0.010 inch • High resolution build volume is a 5 inch square 10 inches tall. • Layer depth will be 0.002 inch. • Laser Beam Diameter 0.003 inch

  8. Detailed part with small features

  9. Nasal Passage • Original data source from 3mm section of human MRI. • Each adjacent section connected in Mech. Desktop and Gambit (a CFD analysis package)

  10. assembled model with solid “cavity”

  11. Individual cross sections

  12. Bone Structure • STL Data produced from Micro-CT scan data • Multiple specimens of identical structure can be made, reducing samples variations.
