  1. AT91 Embedded Peripherals

  2. SYSTEM and USER PERIPHERALS Overview • System Peripherals • External Bus Interface • Advanced Interrupt Controller • Parallel I/O Controller • Watchdog • Peripheral Data Controller • System Timer • Power Management Controller • Real Time Clock • User Peripherals • USART • Serial Peripheral Interface • Timer Counter • Analog to Digital Converter • Digital to Analog Converter

  3. PIO Controller : Features • Up to 32 Programmable Input Output lines • I/O lines may be multiplexed with an on-chip peripheral signal to optimize the use of available package pins managed by the PIO controller • Input Change Detection Interrupt on each line • Available even in Peripheral mode • Multi Driver (Open-Drain) • Allows multiple devices to drive the PIO lines • Reset state : all PIO configured as PIO in input • PIO Multiplexed with EBI signals do not respect this rule

  4. PIO Controller : Block Diagram

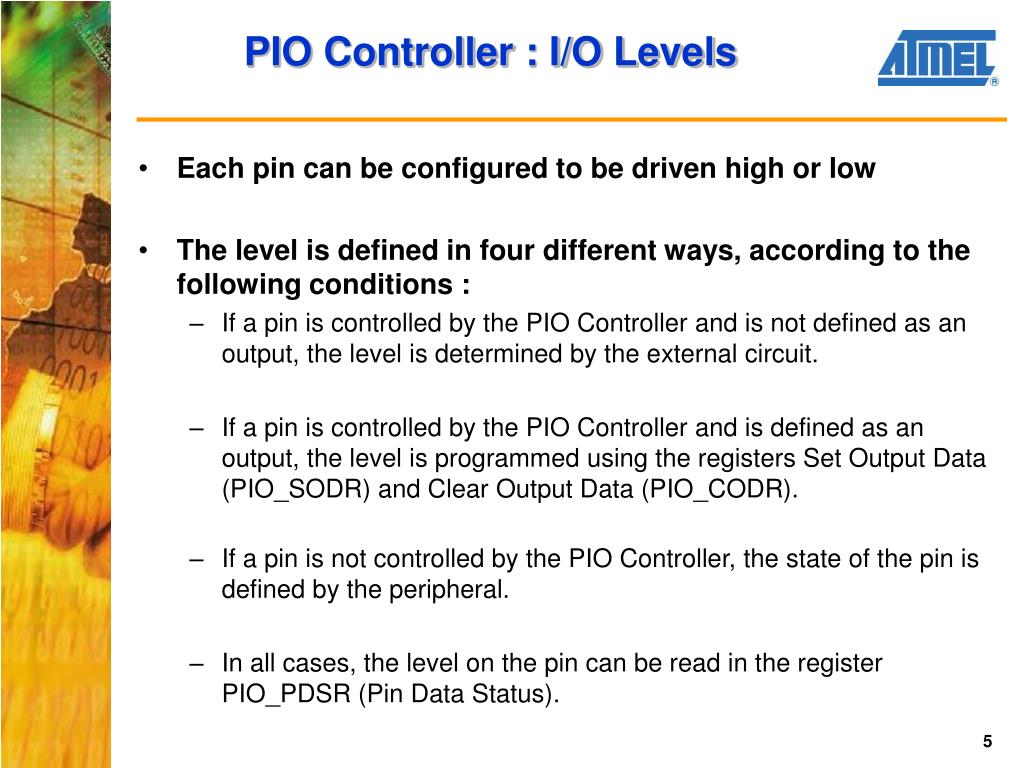

  5. PIO Controller : I/O Levels • Each pin can be configured to be driven high or low • The level is defined in four different ways, according to the following conditions : • If a pin is controlled by the PIO Controller and is not defined as an output, the level is determined by the external circuit. • If a pin is controlled by the PIO Controller and is defined as an output, the level is programmed using the registers Set Output Data (PIO_SODR) and Clear Output Data (PIO_CODR). • If a pin is not controlled by the PIO Controller, the state of the pin is defined by the peripheral. • In all cases, the level on the pin can be read in the register PIO_PDSR (Pin Data Status).

  6. AIC : Features • 8-level Priority • Up to 32 Interrupt sources • Individually maskable • Hardware interrupt vectoring • Internal Interrupt sources • Level sensitive or edge triggered • External Interrupt sources • Low/High level sensitive or positive/negative edge triggered

  7. AIC : Block Diagram

  8. WD : Features • 16-bit Down Counter • Programmable Time-out Period • 4ms to 8s, with 33MHz system clock • 4 Clock sources • MCK/32, MCK/128, MCK/1024 and MCK/4096 • 3 Independent Outputs • Internal Reset • Internal Interrupt • Low level on Watchdog overflow signal for a duration of 8 MCK cycles • Control access keys

  9. WD : Block Diagram

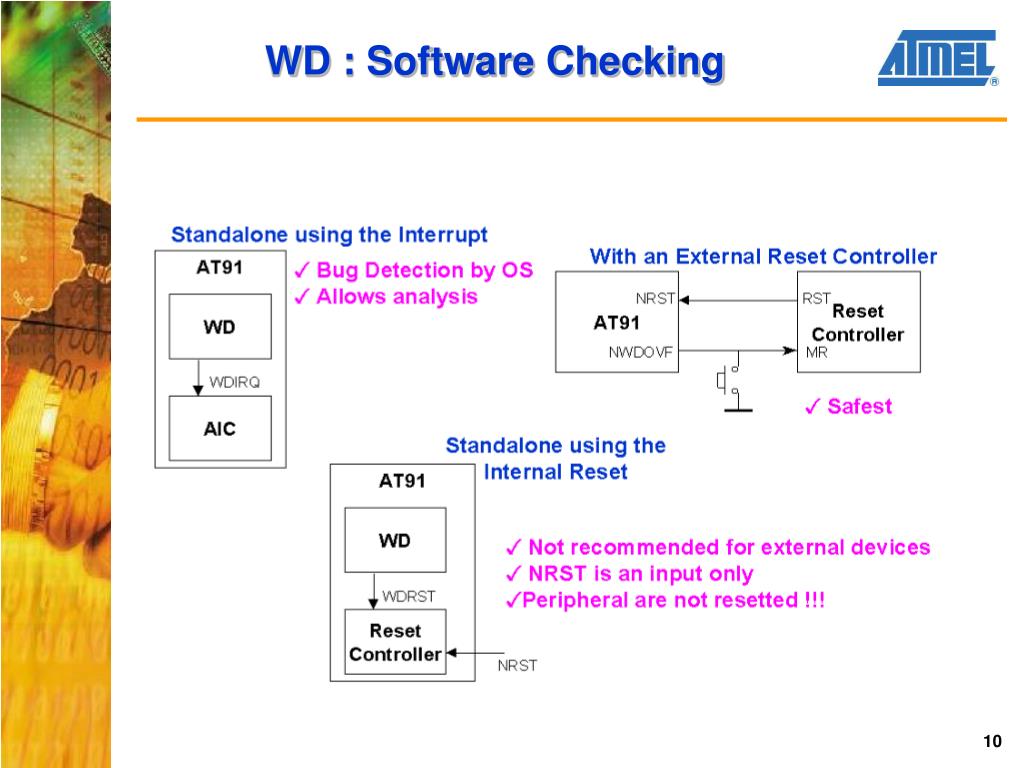

  10. WD : Software Checking

  11. ST : Features • One Period Interval Timer (PIT) • 16-bit programmable counter • periodic interrupt, useful for OS • One Watchdog Timer (WD) • 16-bit programmable counter • maximum watchdog period of 256s with a typical slow clock of 32.768kHz • One Real Time Timer (RTT) • 20-bit free-running counter • count elapsed seconds • 1s increment with a typical slow clock of 32.768kHz • count up to 1048576s (12 days) • Alarm to generate an interrupt

  12. ST : Block Diagram

  13. TC : Features • Three 16-bit Timer/Counter channels • Wide range of functions: • Frequency measurement • Event counting • Interval measurement • Pulse generation • Delay timing • Pulse Width Modulation • Clock inputs • 3 External and 5 Internal • Two configurable Input/Ouput signals • Internal interrupt signal

  14. TC : Block Diagram

  15. TC : Clock Selection • Internal clock signals: MCK/2, MCK/8, MCK/32, MCK/128, MCK/1024 • External clock signals: XC0, XC1, XC2 • Selected clock can be inverted • Burst Function

  16. TC : Clock Control • Counter clock can be enabled/disabled and started/stopped • Software Enabling Commands by Control Register : CLKEN and CLKDIS • Loading RB in Capture Mode or RC Compare in Waveform Mode can stop or disable the counter clock

  17. TC : Operating Modes • Two different modes: • Capture Mode allows measurement on signals, • Waveform Mode allows wave generation. • Timer Counter Mode programmed with the WAVE bit in the TC Mode Register.

  18. A trigger resets the counter and starts the counter clock. The following triggers are common to both modes: Software Trigger Each channel has a software trigger, available by setting SWTRG in TC_CCR. SYNC Each channel has a synchronization signal SYNC. When asserted, this signal has the same effect as a software trigger. The SYNC signals of all channels are asserted simultaneously by writing TC_BCR (Block Control) with SYNC set. Compare RC Trigger RC is implemented in each channel and can provide a trigger when the counter value matches the RC value if CPCTRG is set in TC_CMR. External triggers: TIOA or TIOB in Capture Mode TIOB, XC0,XCC1 or XC2 in Waveform Mode TC : Triggers

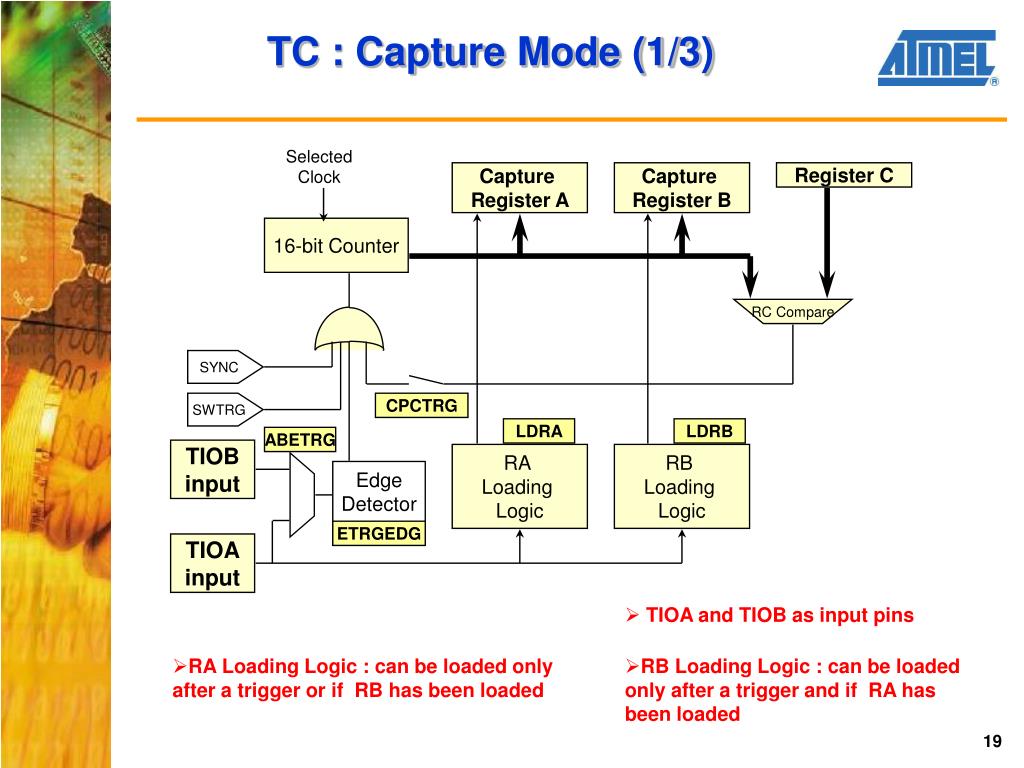

  19. TC : Capture Mode (1/3) Selected Clock Capture Register A Capture Register B Register C 16-bit Counter RC Compare SYNC SWTRG CPCTRG LDRA LDRB ABETRG TIOB input RA Loading Logic RB Loading Logic Edge Detector ETRGEDG TIOA input • TIOA and TIOB as input pins • RA Loading Logic : can be loaded only after a trigger or if RB has been loaded • RB Loading Logic : can be loaded only after a trigger and if RA has been loaded

  20. TC : Capture Mode (2/3) • Examples: • Measure the phase between TIOB and TIOA and the duration of the TIOA pulse • TIOB rising edge resets and starts the counter • TIOA rising edge loads RA and a falling edge loads RB • RA contains the phase between TIOB and TIOA • (RB-RA) is the duration of the TIOA pulse

  21. TC : Capture Mode (3/3) • Measure the duration of a TIOA pulse or period • TIOA falling edge resets and starts the counter and loads RB if RA is already loaded • TIOA rising edge loads RA • RA contains the duration of a TIOA pulse (low level) • RB contains the duration of the TIOA period

  22. TC : Waveform Mode (1/2) Register A Register B Register C 16-bit Counter Selected Clock RA Compare RB Compare RC Compare ASWTRG SYNC AEEVT TIOA output SWTRG CPCTRG ACPC ACPA ENETRG EEVT BSWTRG XC0 Edge Detector BEEVT TIOB output XC1 XC2 BCPC EEVTEDG BCPB TIOB input • TIOA is an output • TIOB can be input or output depending on EEVT programming ( default is input ) • Output controllers can set, clear or toggle outputs in function of events

  23. TC : Waveform Mode (2/2) • Examples: • Dual Pulse Width Modulation (PWM) generation • TIOA is toggled by RA and RC, TIOB by RB and RC • A trigger starts the counter and initializes TIOA and TIOB • The PWM frequency must be stored in the compare register RC • The duty cycles on TIOA and TIOB are defined by RA and RB respectively

  24. USART : Features • Programmable Baud Rate Generator with External or Internal Clock • Up to 1Mbits/s in Asynchronous Mode and up to 16Mbits/s in Synchronous Mode at 32MHz • Parity, Framing and Overrun Error Detection • Line Break generation and detection • Automatic Echo, Local Loopback and Loopback Channel Modes • Multi Drop Mode : Address Detection and Generation • Interrupt Generation • 2 Dedicated PDC Channels • 5,6,7,8 and 9-bit Character Length • Transmitter Time Guard

  25. USART : Block Diagram

  26. USART : Baud Rate Generator • Asynchronous Mode • Baud rate = MCK period / 16 / CD • Synchronous Mode • Baud Rate = MCK period / CD

  27. USART : Reception • Asynchronous: 8 bit 1 start and 1 stop • Synchronous: 8 bit 1 start and 1 stop

  28. USART : Transmission • Asynchronous and Synchronous : 8 bit, parity and 1 stop

  29. USART : PDC Channels • PDC shares the ASB bus with the ARM Core • External or Internal Memories Access • ARM Core stopped during 3 cycles min. • Each PDC channel is dedicated to a peripheral and a transfer direction • PDC Registers mapped in User Interface • End of Transfer in the Status Register • Typical Application • Code download • Packet Exchange • Receiver Timeout Helps to Support Variable Length Packets • Transmitter Time Guard helps to Support Slow Remote Devices PDC Channel ARM Core ASB Arbiter RXRDY USART PDC Receive Channel RXEND Size = Byte TXRDY PDC Transmit Channel TXEND Size = Byte

  30. SPI : Features • Serial Interface between CPU and External Peripherals • Master or Slave Mode • Full duplex 3 wires synchronous transfer • MISO: Master In Slave Out • MOSI: Master Out Slave In • SPCK: SPI Clock • Maximum SPI baud rate clock: MCK/4 • 4 External Slave chip selects • 8 to 16-bit Programmable Data Length • Mode Fault Detection in Master Mode • 2 Dedicated PDC Channels

  31. SPI : Block Diagram

  32. SPI : Bus Implementations Up to 4 Peripherals Up to 15 Peripherals with Decoding AT91 AT91 SPI SPI 4 to 16 Decoder NPCS3 Q14 Serial Peripheral NPCS2 Serial Peripheral Q13 Serial Peripheral NPCS1 Serial Peripheral Q12 Serial Peripheral NPCS0 Serial Peripheral Q11 Serial Peripheral Serial Peripheral Q10 Serial Peripheral Q1 Serial Peripheral Q0 Serial Peripheral • 4 different protocols possible • First Bit set in NPCS field • 4 different protocols possible • 0-3, 4-7, 8-11, 12-14 • Peripheral 15 is reserved for no selection

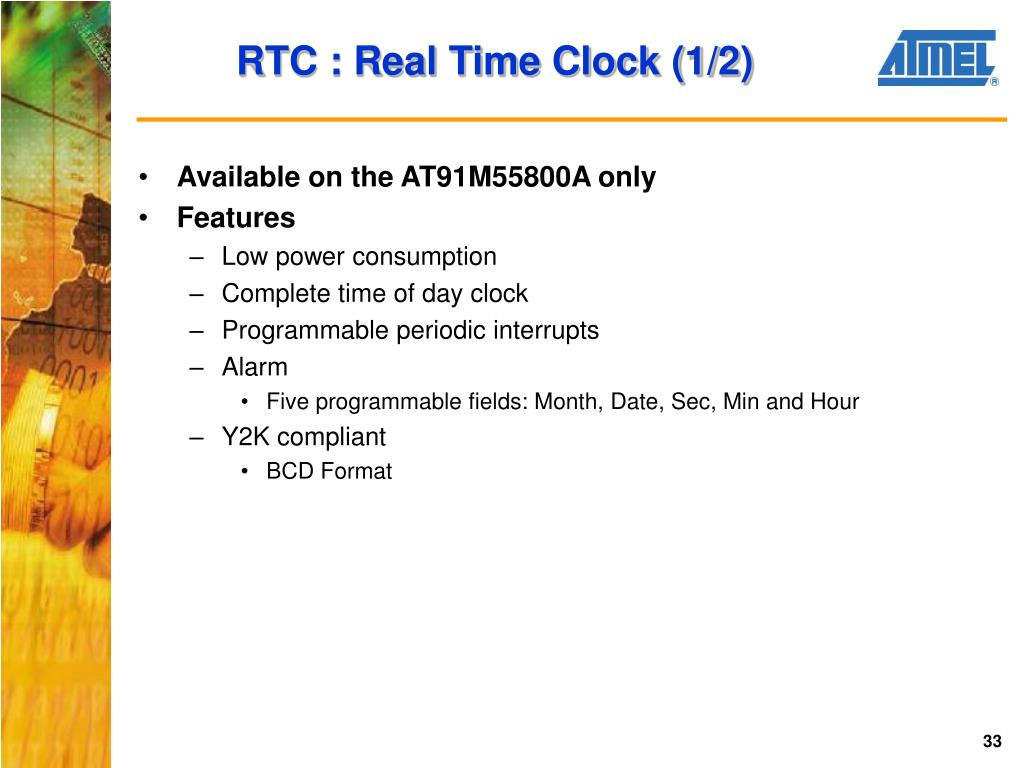

  33. RTC : Real Time Clock (1/2) • Available on the AT91M55800A only • Features • Low power consumption • Complete time of day clock • Programmable periodic interrupts • Alarm • Five programmable fields: Month, Date, Sec, Min and Hour • Y2K compliant • BCD Format

  34. RTC : Real Time Clock (2/2) • Block Diagram

  35. ADC : Analog to Digital Converter (1/2) • Available on the AT91M55800A only • Features • Two identical 4-channel ADC • 10-bit resolution • Successive Approximation Register (SAR) approach • Settable analog input conversion range (dedicated VREF) • 11 ADC clock cycles conversion time including 1 ADC clock cycle for sample and hold (e.g. 10µs for one channel at maximum clock rate) • 4 LSB Maximum Integral Non-linearity • Sleep mode (energy saving) • Starting modes: • Software trigger • External input (A/D trigger) • Timers on-chip event signal • Dedicated analog power supply pins (VDDA and GNDA) • Improve noise rejection • End of conversion interrupt

  36. ADC : Analog to Digital Converter (2/2) • Block Diagram

  37. DAC : Digital to Analog Converter (1/2) • Available on the AT91M55800A only • Features • Two identical 1-channel DAC • 10-bit resolution • 6µs maximum settling time • Settable analog output range (dedicated VREF) • 4 LSB Maximum Integral Non-linearity • Starting modes: • software trigger • Timers on-chip event signal • Dedicated analog power supply pins (VDDA and GNDA) • Improve noise rejection • Data ready interrupt

  38. DAC : Digital to Analog Converter (2/2) • Block Diagram
