Vector Moment Analysis (4.2 - 4.4)

Vector Moment Analysis (4.2 - 4.4). M O = F d. M O ┴ F ┴ d. d. Magnitude of moment is still given by product of force and perpendicular distance. Direction is perpendicular to line of F and d. Can be difficult to determine in 3D using scalars. Vector (Cross) Product. C = A x B.

gilon
Télécharger la présentation

Vector Moment Analysis (4.2 - 4.4)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Vector Moment Analysis (4.2 - 4.4) MO = F d MO┴ F ┴d d • Magnitude of moment is still given by product of force and perpendicular distance. • Direction is perpendicular to line of F and d. • Can be difficult to determine in 3D using scalars.

  2. Vector (Cross) Product C = A x B A x B = − (B x A) • Vector product of two vectors Aand Bis vector C: • Line of action of Cis perpendicular to plane of Aand B. • Magnitude of Cis • Direction of Cis obtained from the right-hand rule.

  3. Cartesian Unit Vectors

  4. MO = r x F Magnitude of MO MO = r F sinq MO = F d Any position vector r that connects O to line of F gives same result.

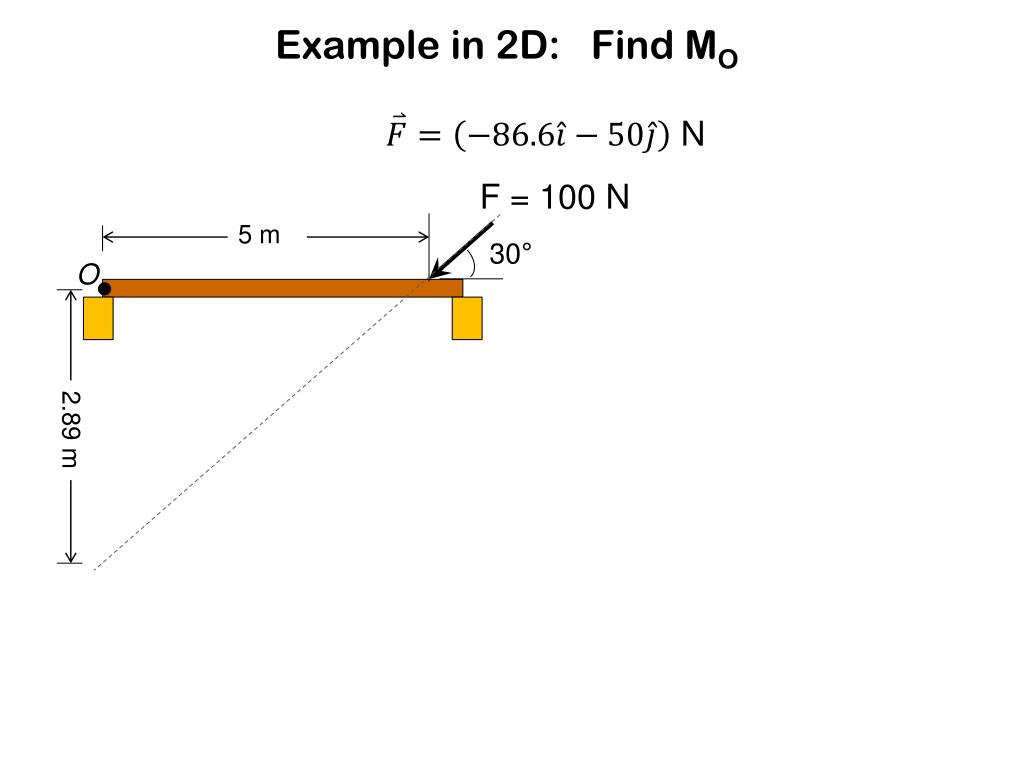

  5. Example in 2D: Find MO N 2.89 m F = 100 N 5 m 30° O

  6. Evaluating Cross Products

  7. Example 2a: Find moment of F about point O

  8. Example 2a’: Find moment of F about point O

  9. Example 2b: Find perpendicular distance from O to line of F

  10. Example 2c: Find moment of F about OA axis(Projection of MO along line of OA)

  11. EXAMPLE # 3 Given: a = 3 in, b = 6 in and c = 2 in. Find: Moment of F about point O. Plan: 1) Find rOA. 2) Determine MO = rOA F. o SolutionrOA= {3 i + 6 j– 0 k} in i j k MO = = [{6(-1) – 0(2)} i– {3(-1) – 0(3)} j + {3(2) – 6(3)} k] lb·in = {-6 i + 3 j – 12 k} lb·in 3 6 0 3 2 -1
