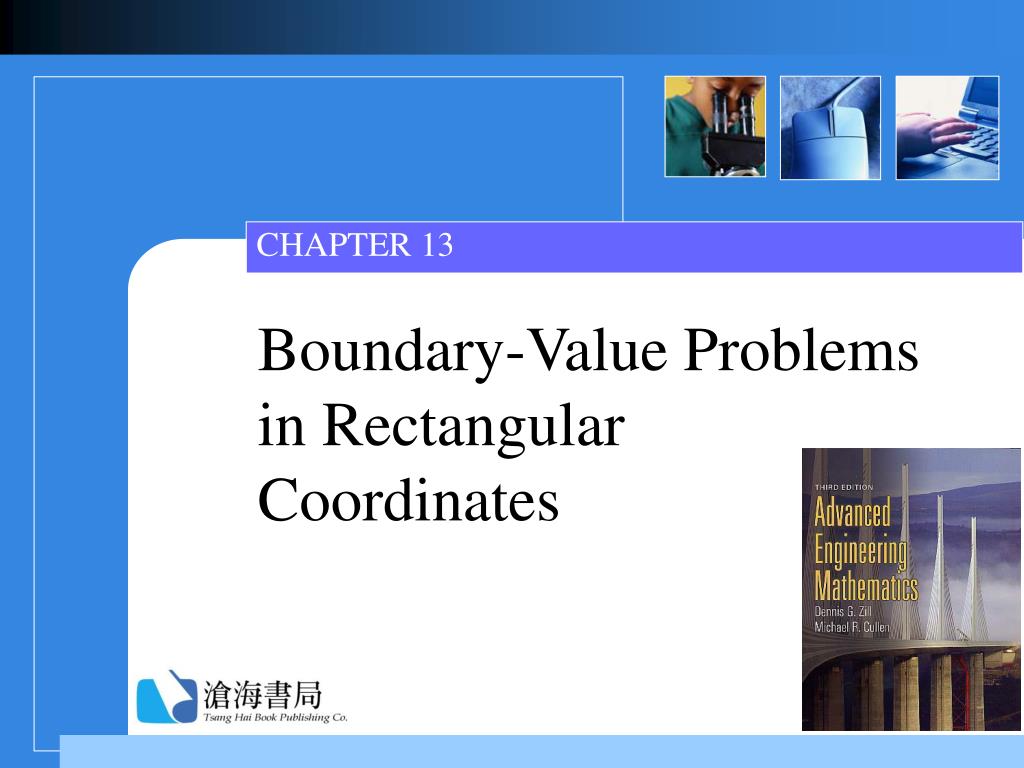

CHAPTER 13. Boundary-Value Problems in Rectangular Coordinates. Contents. 13.1 Separable Partial Differential Equations 13.2 Classical Equations and Boundary-Value Problems 13.3 Heat Equation 13.4 Wave Equation 13.5 Laplace’s Equation 13.6 Nonhomogeneous Equations and Boundary Conditions

giolla
Télécharger la présentation

Boundary-Value Problems in Rectangular Coordinates

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CHAPTER 13 Boundary-Value Problems in Rectangular Coordinates

  2. Contents • 13.1 Separable Partial Differential Equations • 13.2 Classical Equations and Boundary-Value Problems • 13.3 Heat Equation • 13.4 Wave Equation • 13.5 Laplace’s Equation • 13.6 Nonhomogeneous Equations and Boundary Conditions • 13.7 Orthogonal Series Expansions • 13.8 Fourier Series in Two Variable

  3. 13.1 Separable Partial Differential Equations • Linear PDEIf we let udenote the dependent variable and x, y are independent variables, the general form of a linear second-order PDE is given by (1)When G(x, y) = 0, (1) is homogeneous; otherwise it is nonhomogeneous.

  4. Separation of Variables • If we assume that u = X(x)Y(y), then

  5. Example 1 Find product solution of SolutionLet u = X(x)Y(y) and thenWe introduce a real separation constant as −.

  6. Example 1 (2) Thus For the three cases: = 0: X” = 0, Y’ = 0 (3) = −2 > 0, > 0 X” – 42X = 0, Y’ − 2Y = 0 (4) = 2 > 0, > 0 X” + 42X = 0, Y’ + 2Y = 0 (5)

  7. Example 1 (3) Case I: ( = 0) The solutions of (3) are X = c1 + c2x and Y = c3. Thus (6)where A1 = c1c3 , B1 = c2c3. Case II: ( = −2) The solutions of (4) areX = c4 cosh 2x + c5 sinh 2x and Thus (7)where A2 = c4c6, B2 = c5c6.

  8. Example 1 (4) Case III: ( = 2) The solutions of (5) areX = c7 cos 2x + c8 sin 2x and Thus (8)where A3 = c7c9, B3 = c8c9.

  9. THEOREM 13.1 If u1, u2, …, uk are solution of a homogeneous linear partial differential equation, then the linear combination u = c1u1 + c2u2 + … + ckuk where the ci= 1, 2, …, k are constants, is also a solution. Superposition Principles

  10. DEFINITION 13.1 If linear second-order differential equation where A, B, C, D, E, and F are real constants, is said to be hyperbolic if parabolic if elliptic if Classification of Equations

  11. Example 2 Classify the following equations: Solution (a)

  12. Example 2 (2)

  13. 13.2 Classical Equations and Boundary-Value Problems • Introduction Typical second-order PDEs: (1) (2) (3)They are known as one-dimensional heat equation, one-dimensional wave equation, and Laplace’s equations in two dimensions, respectively.

  14. Note: • Laplace’s equation is abbreviated 2u = 0, whereis called the two-dimensional Laplacian of u. In three dimension the Laplacian of u is

  15. Boundary-Value Problems • Solve:Subject to: (BC) (11)(IC)

  16. and Solve:Subject to:(BC) (12)

  17. 13.3 Heat Equation • IntroductionThe heat equation can be described by the following (1) (2) (3)

  18. Solution of the BVP • Using u(x, t) = X(x)T(t), and − as the separation constant: (4) (5) (6)

  19. Now the boundary conditions in (2) become u(0, t) = X(0)T(t) = 0 and u(L, t) = X(L)T(t) = 0. Then we can have X(0) = X(L) = 0 and (7)From the previous discussions, we have

  20. When the boundary conditions X(0) = X(L) = 0 are applied to (8) and (9), these solutions are only X(x) = 0. Applying the first condition to (10) gives c1 = 0. Therefore X(x) = c2 sin x. The condition X(L) = 0 implies that (11)We have sin L = 0 for c2  0 and  = n/L, n = 1, 2, 3, … The values n = n2 = (n/L)2, n = 1, 2, 3, … and the corresponding solutions (12)

  21. are the eigenvalues and eigenfunctions, respectively. The general solution of (6) is and so (13)where An = c2c3.

  22. Now using the initial conditions u(x, 0) = f(x), 0 < x < L, we have (14)By the superposition principle the function (15)must satisfy (1) and (2). If we let t = 0, then

  23. It is recognized as the half-range expansion of f in a sine series. If we let An = bn, n = 1, 2, 3, … thus (16)We conclude that the solution of the BVP described by (1), (2) and (3) is given by infinite series (17)

  24. For example, u(x, 0) = 100, L = , and k = 1, then

  25. 13.4 Wave Equation • Introduction Consider the wave equations (1) (2) (3)

  26. Solution of the BVP • Assuming u(x, t) = X(x)T(t), then (1) givesso that (4) (5)

  27. Using X(0) = 0 and X(L) = 0, we have (6)Only  = 2 > 0,  > 0 leads to nontrivial solutions. Thus the general solution of (4) isX(0) = 0 and X(L) = 0 imply that c1= 0 and c2sin L = 0. Thus we have  = n/L, n = 1, 2, 3, …

  28. The eigenvalues and eigenfunctions are

  29. Let An = c2c3,Bn = c2c4, solutions that satisfy (1) and (2) are (7)and (8)

  30. Setting t = 0 in (8) and using u(x, 0) = f(x) givesSince it is a half-range expansion of f in a sine series, we can write An = bn: (9)

  31. To determine Bnwe differentiate (8) w.r.t. t and set t = 0:Thus we obtain (10)

  32. Standing Wave • It is easy to transform (8) into

  33. When n = 1, u1(x, t) is called the first standing wave, the first normal mode or the fundamental mode of vibration. The frequency f1 = a/2L of the first normal mode is called the fundamental frequency or first harmonic. See Fig 13.9.

  34. Fig 13.9

  35. 13.5 Laplace’s Equation • Introduction Consider the following boundary-value problem (1) (2) (3)

  36. Solution of the BVP • With u(x, y) = X(x)Y(y), (1) becomes The three homogeneous boundary conditions in (2) and (3) translate into X’(0) = 0, X’(a) = 0, Y(0) = 0.

  37. Thus we have the following equation (6)For  = 0, (6) becomes X” = 0, X’(0) = 0, X’(a) = 0The solution is X = c1 + c2x. X’(0) = 0 implies c2 = 0 and X = c1also satisfies the condition X’(a) = 0. Thus X = c1, c1  0 is a nontrivial solution. • For  = −2 < 0,  > 0, (6) possesses no nontrivial solutions.

  38. For  = 2 > 0,  > 0, (6) becomes X” + 2X = 0, X’(0) = 0, X’(a) = 0Applying X’(0) = 0 to the solution X = c1 cos x + c2 sin x, implies c2 = 0 and so X = c1 cos x . The condition X’(a) = 0 gives −c1  sin a = 0, and we must have  = n/a, n = 1, 2, 3, …. The eigenvalues of (6) are n= (n/a)2, n = 1, 2, … • By corresponding 0 with n = 0, the eigenfunctions of (6) areFor Y” – Y = 0, when 0 = 0, the solution is Y = c3 +c4y. Y(0) = 0 implies c3 = 0 and so Y = c4y.

  39. For n = (n/a)2, n = 1, 2, …, the solution isY = c3 cosh (ny/a) + c4 sinh (ny/a)Y(0) = 0 implies c3 = 0 and so Y = c4 sinh (ny/a). • The solutions un = XY are

  40. The superposition principle yields (7)Set y = b, then is a half-range expansion of f in a Fourier cosine series.

  41. If we let A0b = a0/2 and Ansin (nb/a)= an, n = 1, 2, …., we have

  42. Dirichlet Problem • Please verify that the solution of the following Dirichlet Problem

  43. is

  44. Superposition Principle • We want to break the following problem (11)into two problems, each of which has homogeneous boundary conditions on parallel boundaries, as shown in the following tables.

  45. Problem 1:

  46. Problem 2:

  47. Suppose that u1 and u2 are solutions of problem 1 and problem 2, respectively. If we define u = u1 + u2, then and so on. See Fig 13.15.

  48. Fig 13.15

  49. It is an exercise that the solution of problem 1 is

  50. The solution of problem 2 is
