Understanding Various Rock Formations and Textures

DESCRIPTION

Learn about the formation processes of igneous, sedimentary, and metamorphic rocks, along with their unique textures, through detailed explanations and illustrations.

1 / 20

Télécharger la présentation

Understanding Various Rock Formations and Textures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

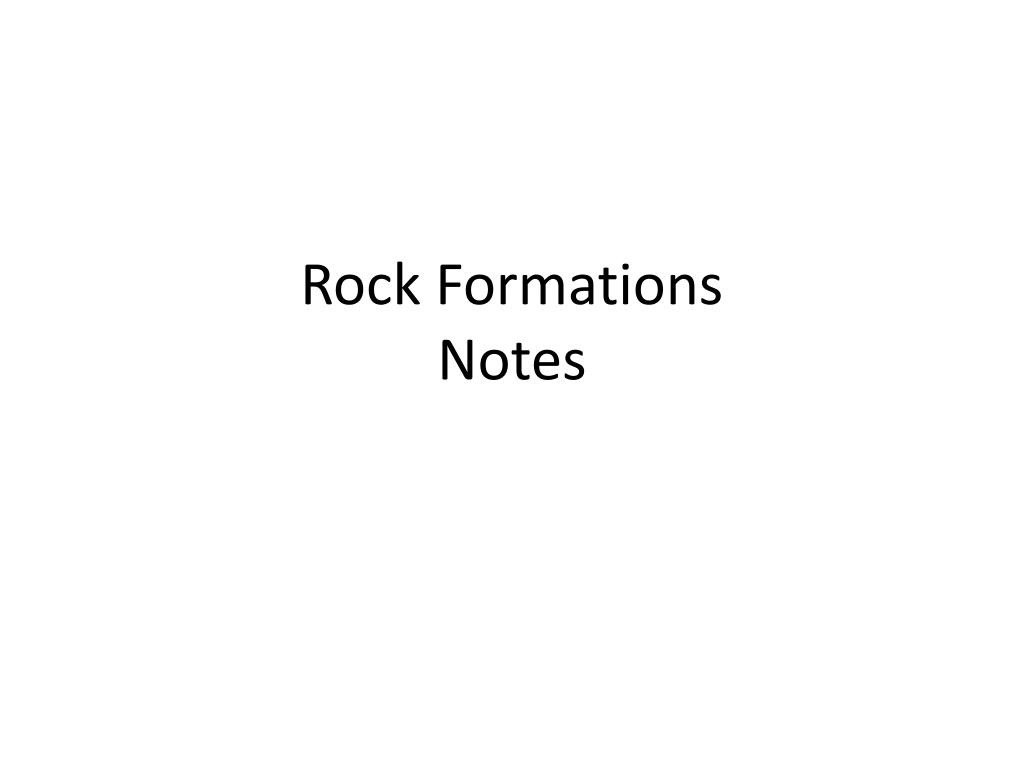

  1. Rock Formations Notes

  2. Rocks • Three types of rocks: • Igneous - formed from molten rock (i.e.,magmaor lava) • Sedimentary - formed from the debris of other rocks • Metamorphic - rocks that have been subjected to great stresses and have changed their texture or chemical state from their original form

  3. Igneous Rock Formation • Magma (molten rock) originates deep within the interior of the Earth • Rises to surface because it is less dense than surrounding rock • As the magma rises, it cools and begins to crystallize • Similar to water freezing into ice

  4. Igneous Rock Formation • Magma – molten rock below Earth’s surface • Lava - Molten rock at Earth’s surface • Both cool to form crystals called igneous rock.

  5. Igneous Textures • The rate at which the magma (or lava) cools determines the texture, or crystal sizes, of the igneous rock • The texture also yields clues to the type of geologic setting in which the igneous rocks formed

  6. Igneous Textures • Fine-grained • Grains (crystals)usually too small to be seen with naked eye • Indicative of a fast cooling lava or magma.

  7. Igneous Textures • Coarse-grained • Grains (crystals) can be seen with the naked eye • Indicative of slow cooling history

  8. Igneous Textures • Porphyritic (Fine and Coarse grain together) • Rock composed of both large and small crystals • Indicative of both slow and fast cooling history • Shows large and small crystals

  9. Igneous Textures • Glass • No identifiable crystals • Indicative of instantaneous cooling • Example: Obsidian

  10. Textures of Igneous Rocks

  11. Sedimentary Rocks • Two types of sedimentary rocks • Detrital- formed from the debris of other rocks • Chemical - formed through chemical processes

  12. Processes involved in the formation ofsedimentary rocks • Weathering - The breaking down of rocks to form sediment • Erosion - The transport of sediment (rock debris) • via wind, rivers, animals, etc. • Deposition - The settling of rock debris in some depositional basin (low-lying area where sedimenttransportation stops • Generally a lake, ocean, or swamp.

  13. Processes involved in the formation ofsedimentary rocks • Compaction - as sediment accumulates on ocean floor, the gradually increasing weight of overlying sediment reducing the amount of pore space between grains • Cementation - liquids can flow through the pore spaces between loose sediment. As this occurs, minerals may precipitate(form) from the liquid and “cement” sediments together. • Common cements include silica and calcite.

  14. Fossils only found in sedimentary rock.

  15. Metamorphic Rocks • Occurs when rocks are subjected to conditions unlike those when the rock first formed • Causes a change in the texture and/or composition of the original rock

  16. Agents of Metamorphism • Heat • Very important because heat drives chemical reactions that result in recrystallization • Increased heat can be caused by • The contact of a magma • The subduction(lowering) of rocks to greater depths • Pressure • Increased pressure caused by • Subductionof rock to greater depths • Forces of mountain building • Hydrothermal Fluids

  17. Types of Metamorphism • Contact • Native rock comes into contact with magma • Heat is the primary metamorphic agent • Regional • Associated with large-scale mountain building • Heat and pressure are primary metamorphic agents
