Biometrics and Security

Biometrics and Security. Tutorial 3. 1 (a) What is the scatter matrix (P4: 21)? Understand what about eigenvector and eigenvalue as well as their functions? (P4: 22). Step 1. Step 2. Step 3. Step 4. Step 5. Step 6.

giselle-whitaker
Télécharger la présentation

Biometrics and Security

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

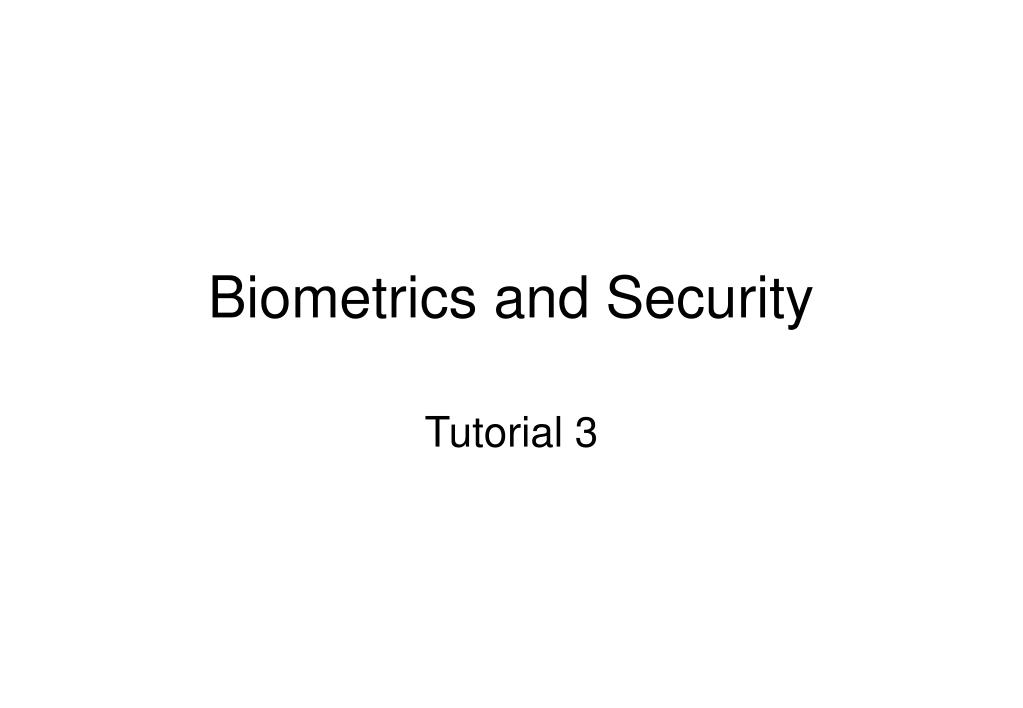

  1. Biometrics and Security Tutorial 3

  2. 1 (a) What is the scatter matrix (P4: 21)? Understand what about eigenvector and eigenvalue as well as their functions? (P4: 22)

  3. Step 1

  4. Step 2

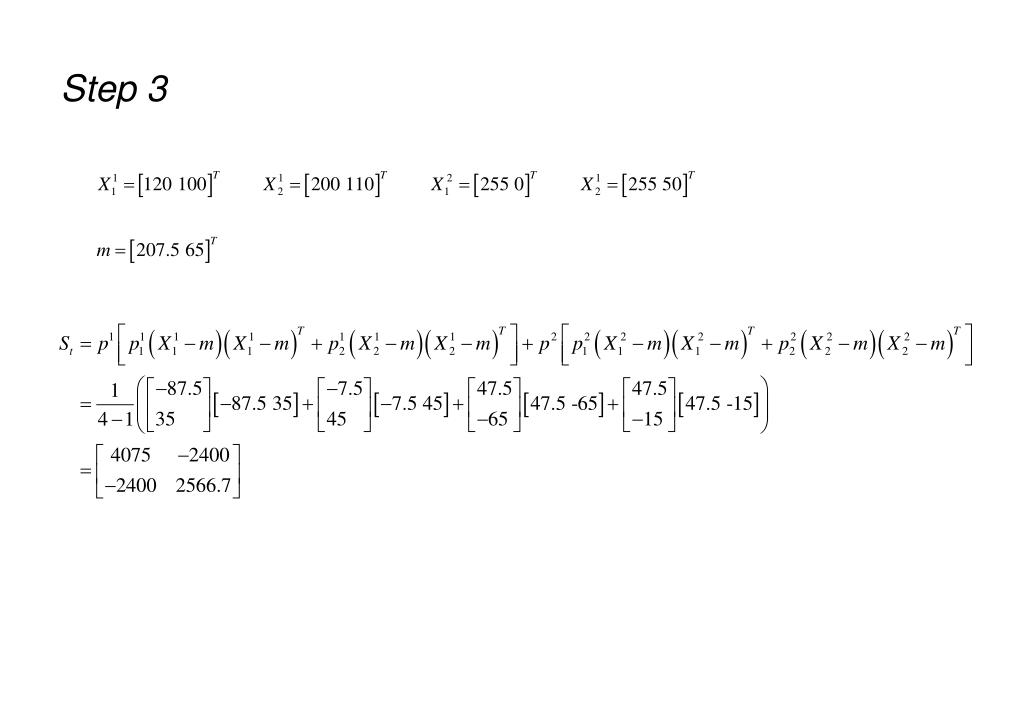

  5. Step 3

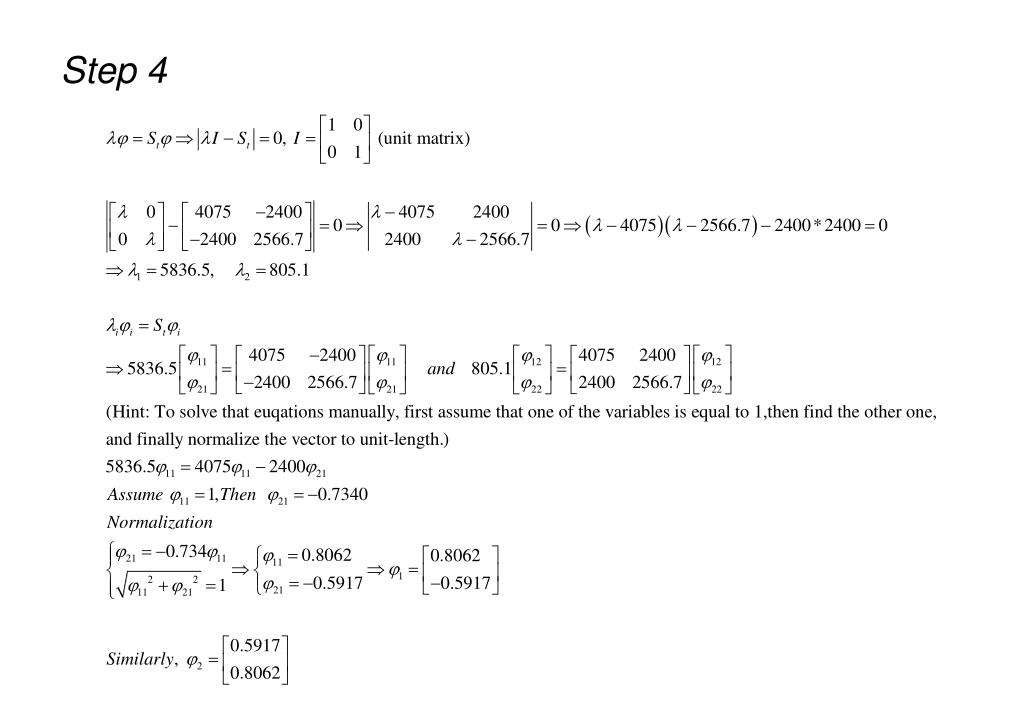

  6. Step 4

  7. Step 5

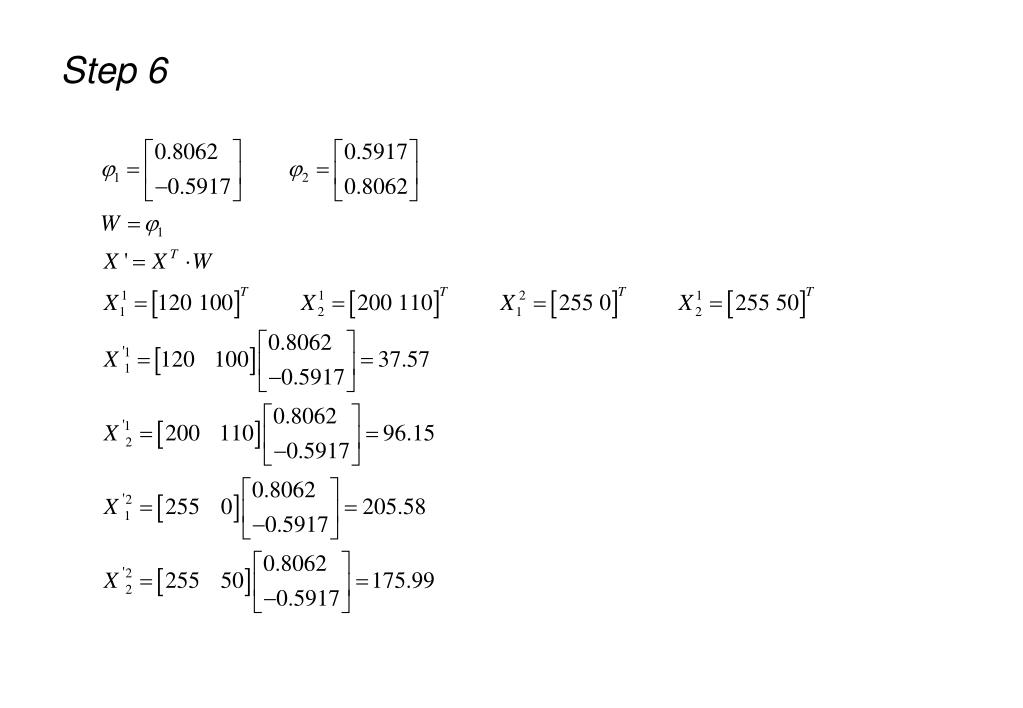

  8. Step 6

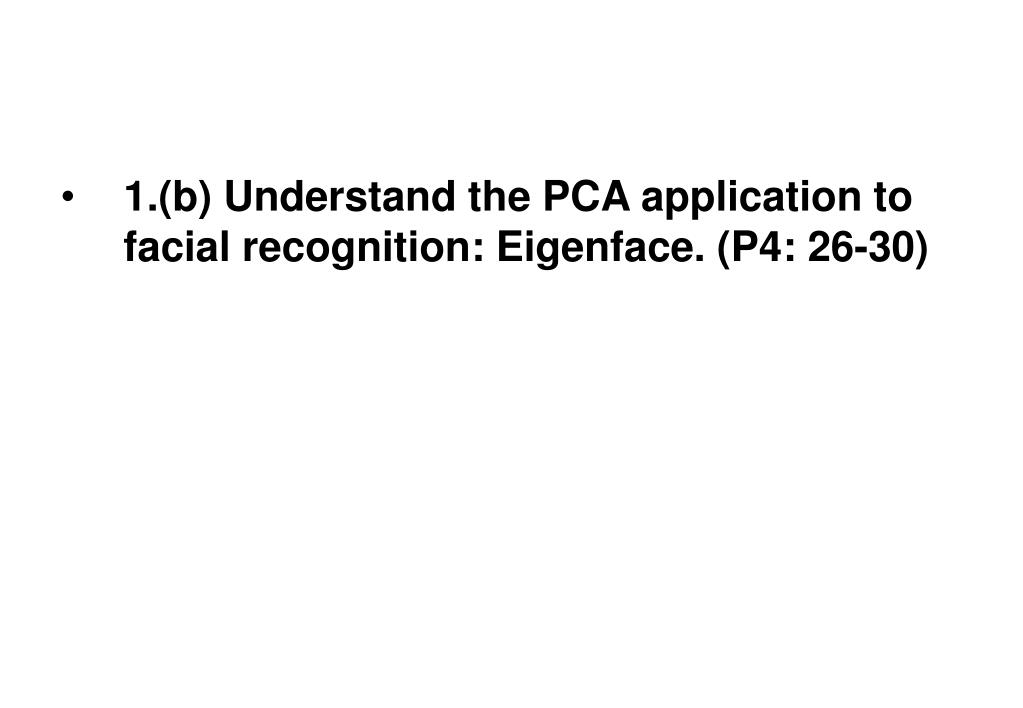

  9. 1.(b) Understand the PCA application to facial recognition: Eigenface. (P4: 26-30)

  10. 1. (c) Compare two StatPR techniques, PCA and LDA (P4: 13) and point out their main difference (P4: 42-45) • 1. (d) Linear discrimination analysis (LDA) is introduced in P5:37-40. Please understand the two steps in P5:37 and compare within-class scatter matrix with between-class scatter matrix.

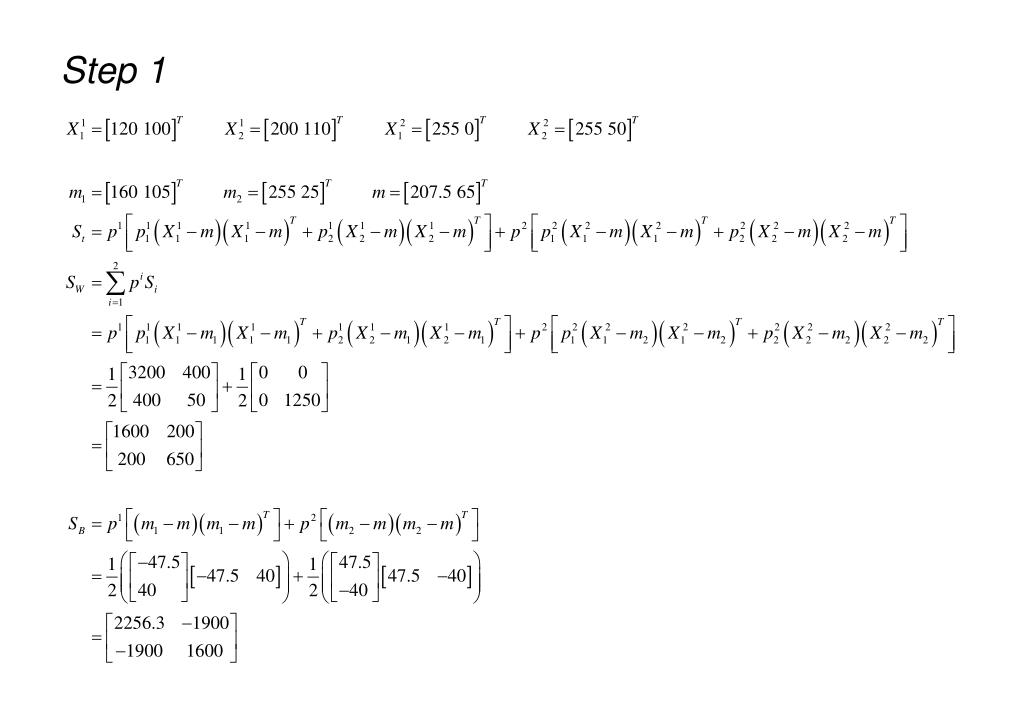

  11. Step 1

  12. Step 2

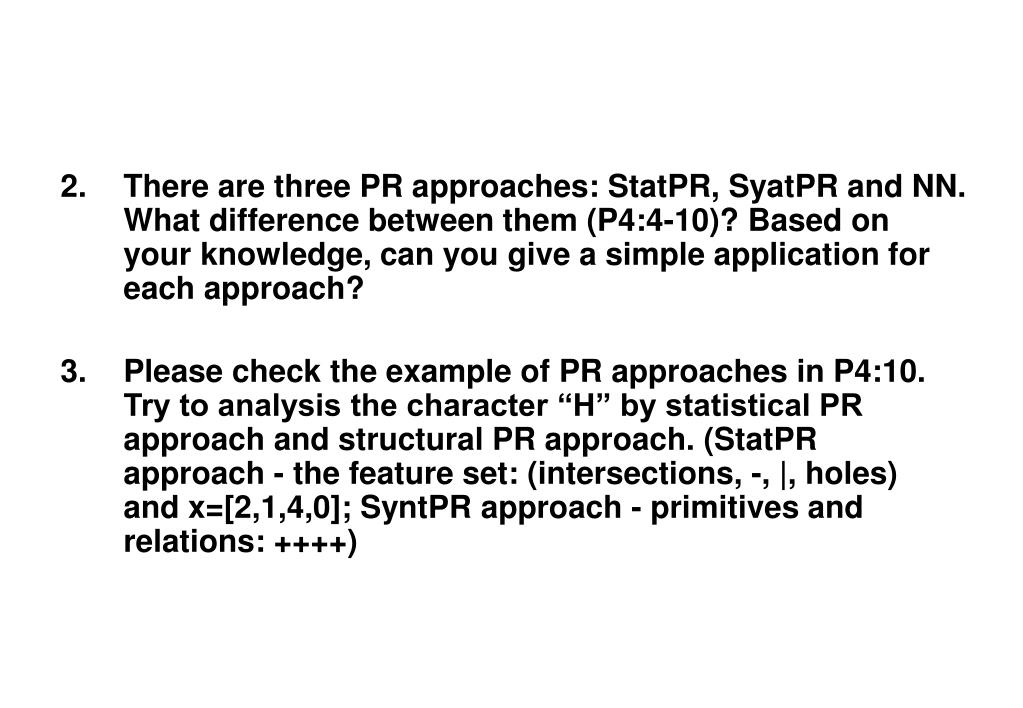

  13. There are three PR approaches: StatPR, SyatPR and NN. What difference between them (P4:4-10)? Based on your knowledge, can you give a simple application for each approach? • Please check the example of PR approaches in P4:10. Try to analysis the character “H” by statistical PR approach and structural PR approach. (StatPR approach - the feature set: (intersections, -, |, holes) and x=[2,1,4,0]; SyntPR approach - primitives and relations: ++++)

  14. From P4:19-25, PCA method given by using image data is defined, which projects an image space with 644 dimension into 6 dimension eigenvector space. Please understand each step. • According to the figure in P4: 24, how to find its minimum λ if we hope to get rλ > 60? (λ = 3)
