ACTIVE SENSING. Lecture 4: Motor systems III. Summary of Motor Systems I-II: Basic motor control loops. PID control. Present. q ’. q. Past. q ’’. Future. Negative feedback loop. Dq ’ (t+ D t) = -f [ Dq ’ ( t )] , f is monotonic increasing. Positive feedback loop.

gita
Télécharger la présentation

ACTIVE SENSING

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ACTIVE SENSING Lecture 4: Motor systems III Motor systems

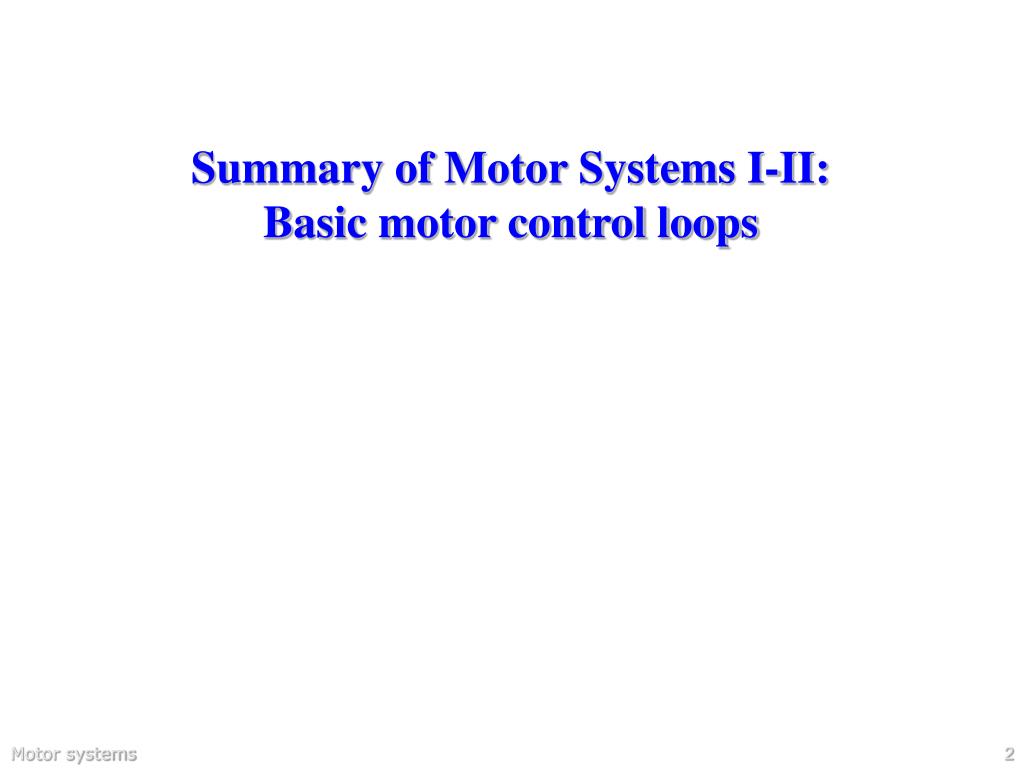

  2. Summary of Motor Systems I-II:Basic motor control loops Motor systems

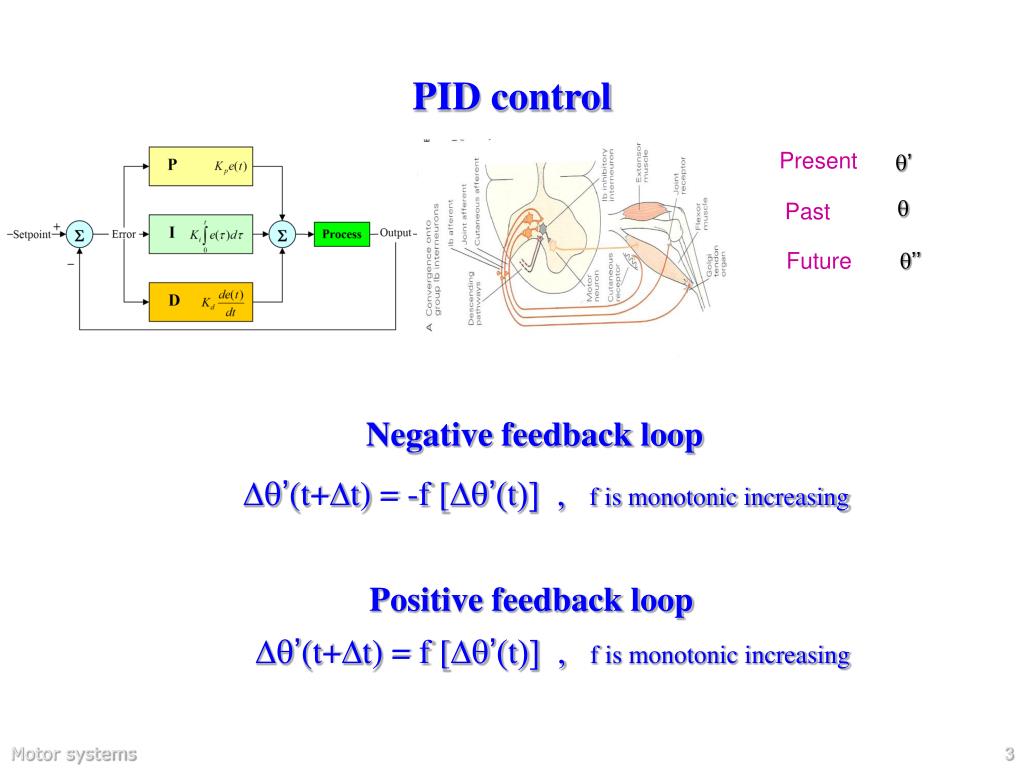

  3. PID control Present q’ q Past q’’ Future Negative feedback loop Dq’(t+Dt) = -f [Dq’(t)] , f is monotonic increasing Positive feedback loop Dq’(t+Dt) = f [Dq’(t)] , f is monotonic increasing Motor systems

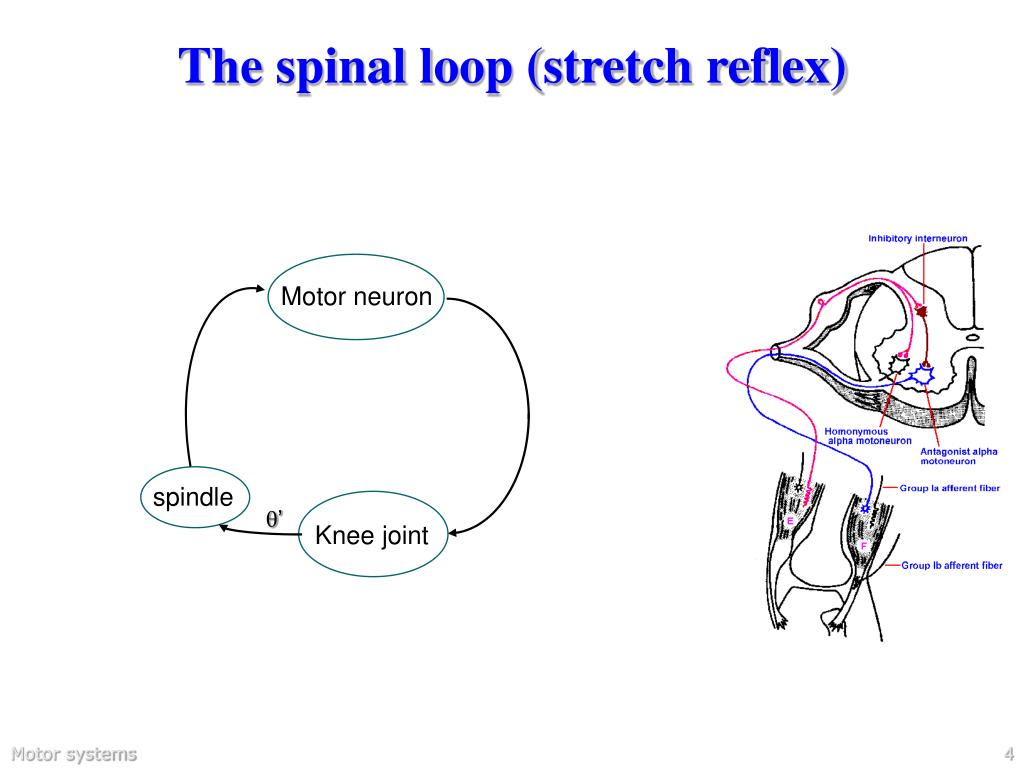

  4. Motor neuron spindle q’ Knee joint The spinal loop (stretch reflex) Motor systems

  5. The spinal loop (stretch reflex) Motor neuron KM -Ksq’ -KsKMq’ spindle Knee joint Ks q’ dt Motor systems

  6. Pain reflex Positive or negative? What is the underlying circuit? Motor systems

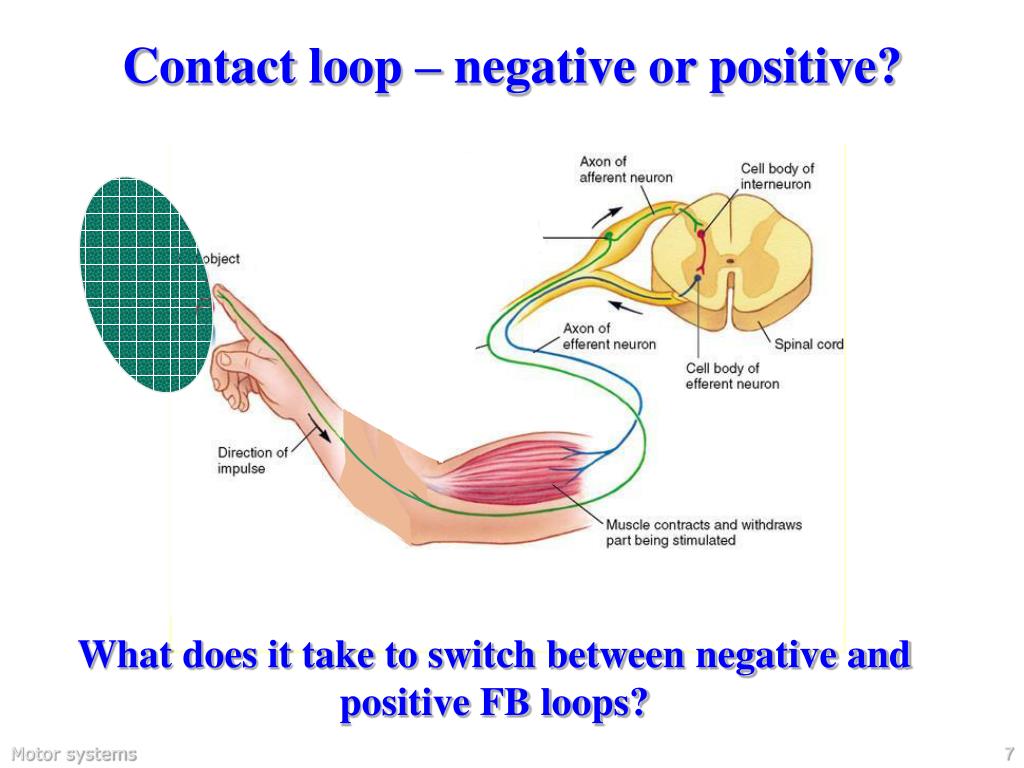

  7. Contact loop – negative or positive? What does it take to switch between negative and positive FB loops? Motor systems

  8. Basic motor control of other sensory organs • visual • Vibrissal Motor systems

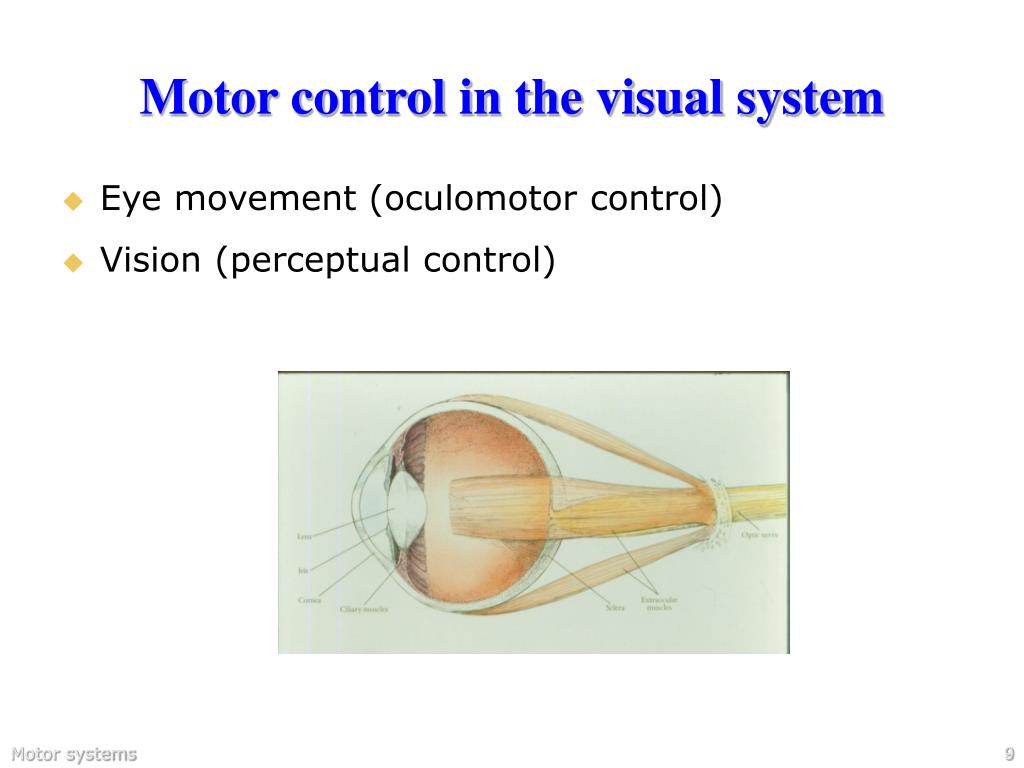

  9. Motor control in the visual system • Eye movement (oculomotor control) • Vision (perceptual control) Motor systems

  10. The extra-ocular muscles (EOMs) Motor systems From Bear’s Neuroscience text book

  11. Axes of eye movement control Motor systems

  12. Donder’s and Listing’s laws Valid when looking with the head fixed • Donder’s law states that the orientation of the eye when looking in a specific direction is always the same. • Listing's law specifies what this orientation is. • It refers to the axes (the bars protruding from the eyes) used to rotate from center to various eccentric positions. • Listing found that all these axes are confined to a common plane. • This plane is called Listing's plane. Motor systems

  13. How does the system keep Listing’s plane? • Ocular mechanics? • Neuronal mechanisms? Motor systems

  14. Special design of extra-ocular muscles Orbital pulleys system Motor systems

  15. Demmer JL, Ann. N.Y. Acad. Sci. 956: 17-32 (2002) Motor systems

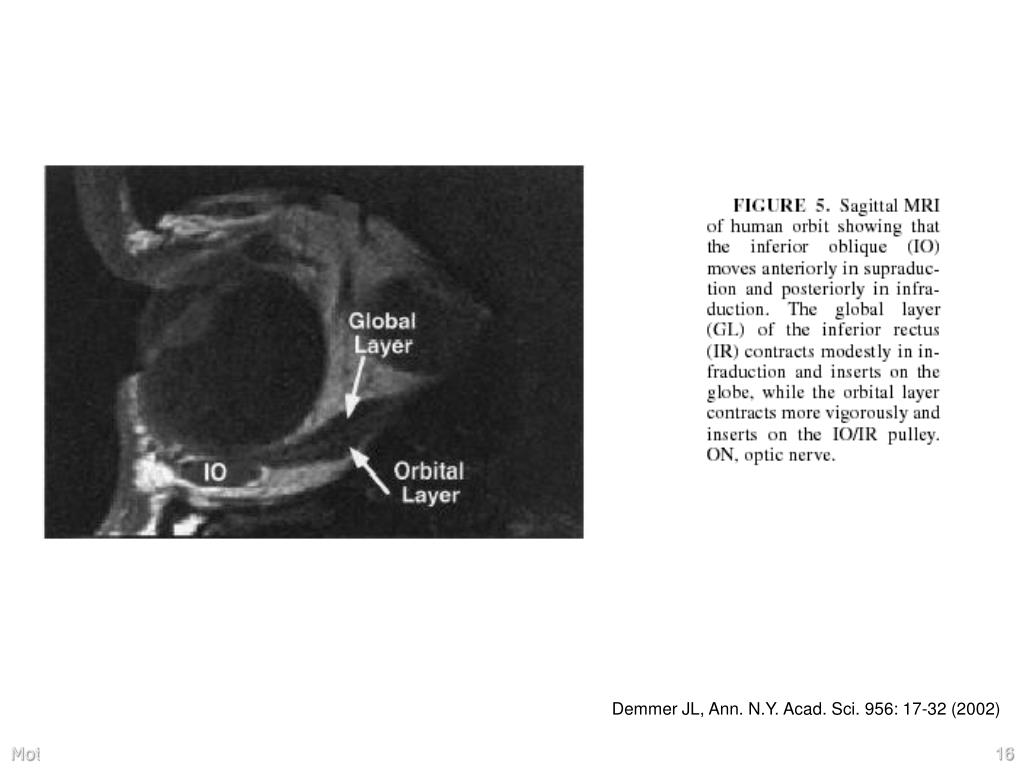

  16. Demmer JL, Ann. N.Y. Acad. Sci. 956: 17-32 (2002) Motor systems

  17. Demmer JL, Ann. N.Y. Acad. Sci. 956: 17-32 (2002) Motor systems

  18. Demmer JL, Ann. N.Y. Acad. Sci. 956: 17-32 (2002) Motor systems

  19. Special design of extra-ocular muscles proprioceptors Motor systems

  20. Special design of extra-ocular muscles Proprioceptive loop Motor systems

  21. Targets of proprioceptive info • EOM proprioceptors run with the motor fibers of the muscle nerves EOM -> Gasserian ganglion -> trigeminal nuclei (pars interpolaris and pars caudalis). EOM proprioceptive information -> • brain stem structures • the superior colliculus • Thalamic nuclei (LGN, LP, Pulvinar) • the cerebellum • cortical areas: 17,18, frontal cortex. Most of these structures are involved in either vision or oculomotorcontrol. Motor systems

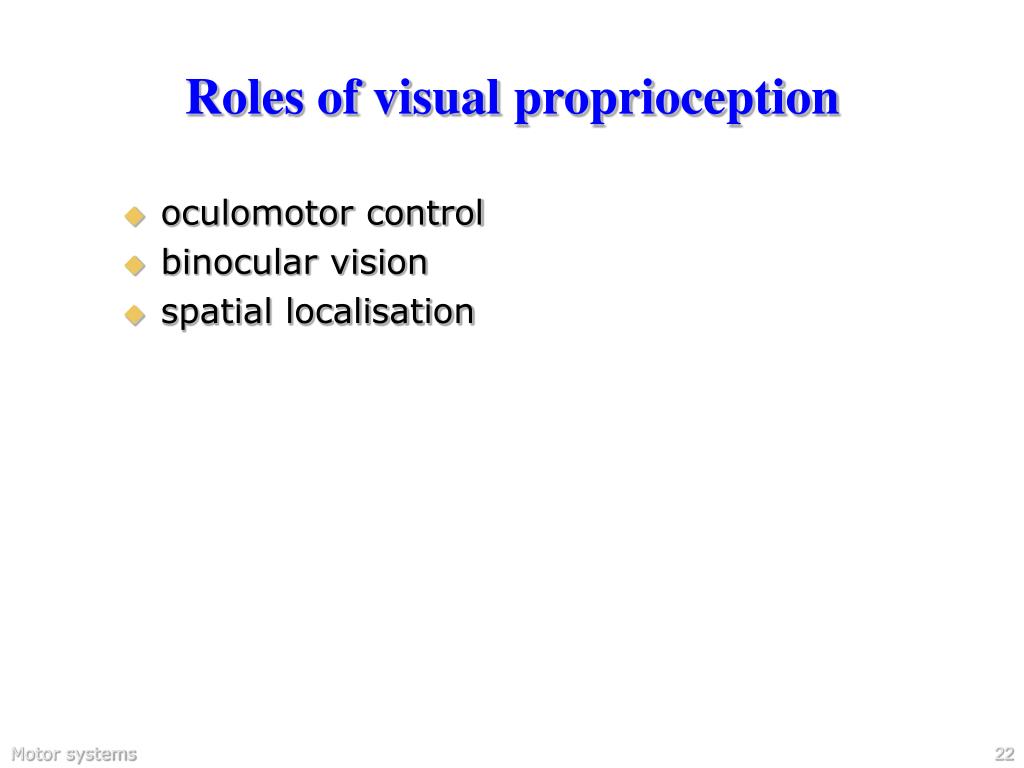

  22. Roles of visual proprioception • oculomotor control • binocular vision • spatial localisation Motor systems
