Rules for Reasoning about MVDs

Rules for Reasoning about MVDs. Use to identify the MVDs (e.g., from FD to MVD) which are necessary for the decomposition of a relation into 4NF. V W is X Y with X=V W and XY=W.

gitel
Télécharger la présentation

Rules for Reasoning about MVDs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Rules for Reasoning about MVDs • Use to identify the MVDs (e.g., from FD to MVD) which are necessary for the decomposition of a relation into 4NF

  2. V W is X Y with X=VW and XY=W • V W implies that every instance of R can be losslessly decomposed into two relations R1=(V,F1) and R2=(W,F2) • X Y implies that for every value of X are independent of the value of Y

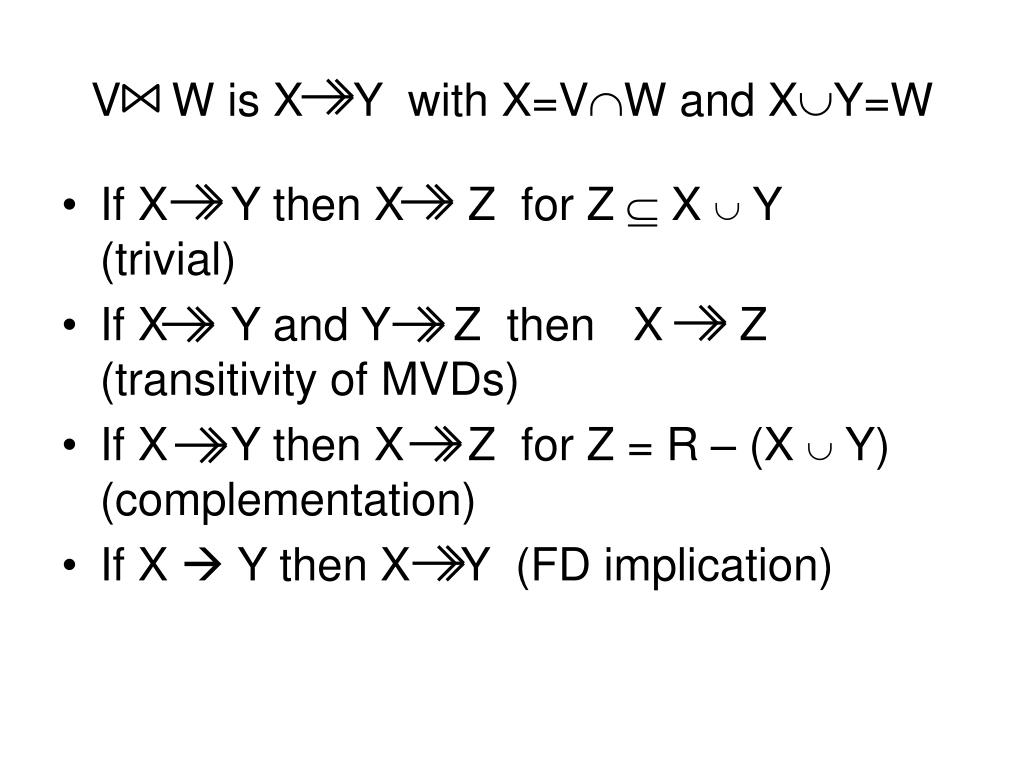

  3. V W is X Y with X=VW and XY=W • If X Y then X Z for Z  X  Y (trivial) • If X Y and Y Z then X Z (transitivity of MVDs) • If X Y then X Z for Z = R – (X  Y) (complementation) • If X  Y then X Y (FD implication)

  4. Algorithm for 4NF decomposition Similar to BCNF decomposition: Given R = (R, D) where D contains FDs and MVDs • Take X Y violates the 4NF condition • Decompose R into R1=(X,D1) and R2=(X(R-Y),D2) where the FDs in D1 and D2 are computed in the same way as in the BCNF decomposition, see note for the computation of the MVDs
