Creating a High-Performance Gravity-Powered Racer

DESCRIPTION

In "Speed Demons" by Tommy Davis, our goal was to design a gravity-powered racer that could travel a minimum distance of 3 meters. The final gravity cruiser achieved an impressive 6 meters! Key design features included two large rear wheels, two smaller front wheels, and a symmetrical structure fortified with clever weight distribution. We faced troubleshooting challenges like a misaligned fulcrum and equipment failures, but through modifications and support enhancements, we ultimately met our distance goals, showcasing the importance of engineering resilience.

1 / 6

Télécharger la présentation

Creating a High-Performance Gravity-Powered Racer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Speed Demons By: Tommy Davis

  2. Our goal • Our goal is to have a gravity powered racer to go at a very minimum of 3 meters • The gravity cruiser eventually went six meters

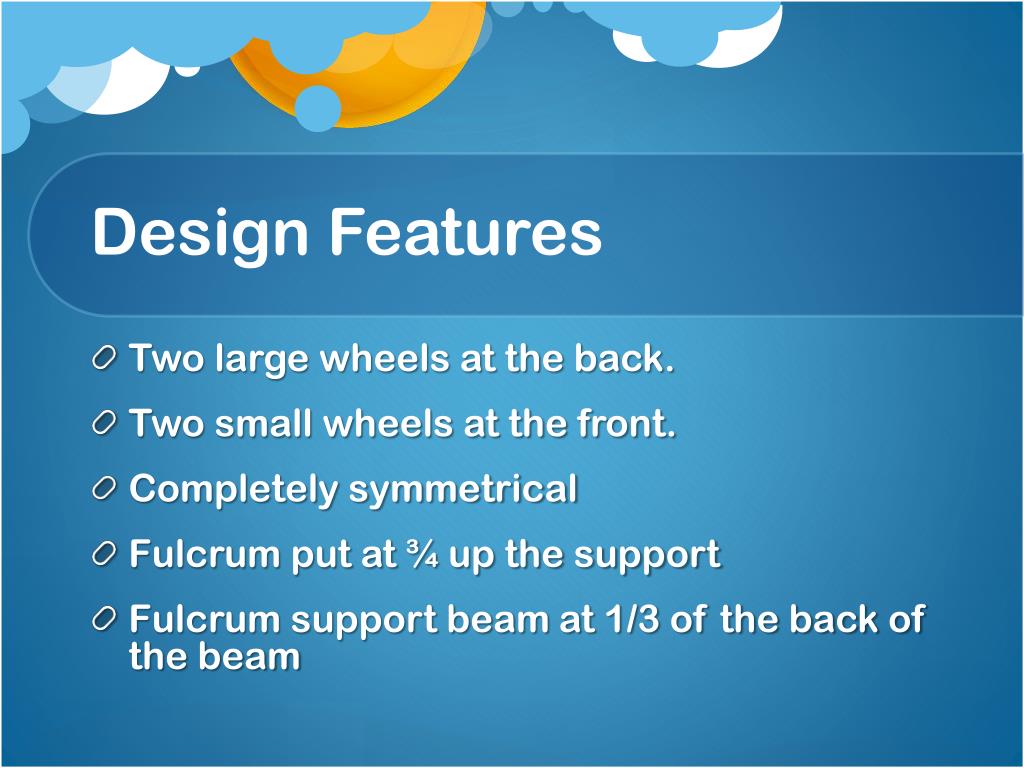

  3. Design Features • Two large wheels at the back. • Two small wheels at the front. • Completely symmetrical • Fulcrum put at ¾ up the support • Fulcrum support beam at 1/3 of the back of the beam

  4. Helping to meet the goals • We used extra weight to make sure that it would pull the string as fast as it can. • The weight made it front-heavy so we put two symmetrical penny containers on the back. • Three containers of pennies as the weight on the fulcrum. • Support beams made out of leftover materials

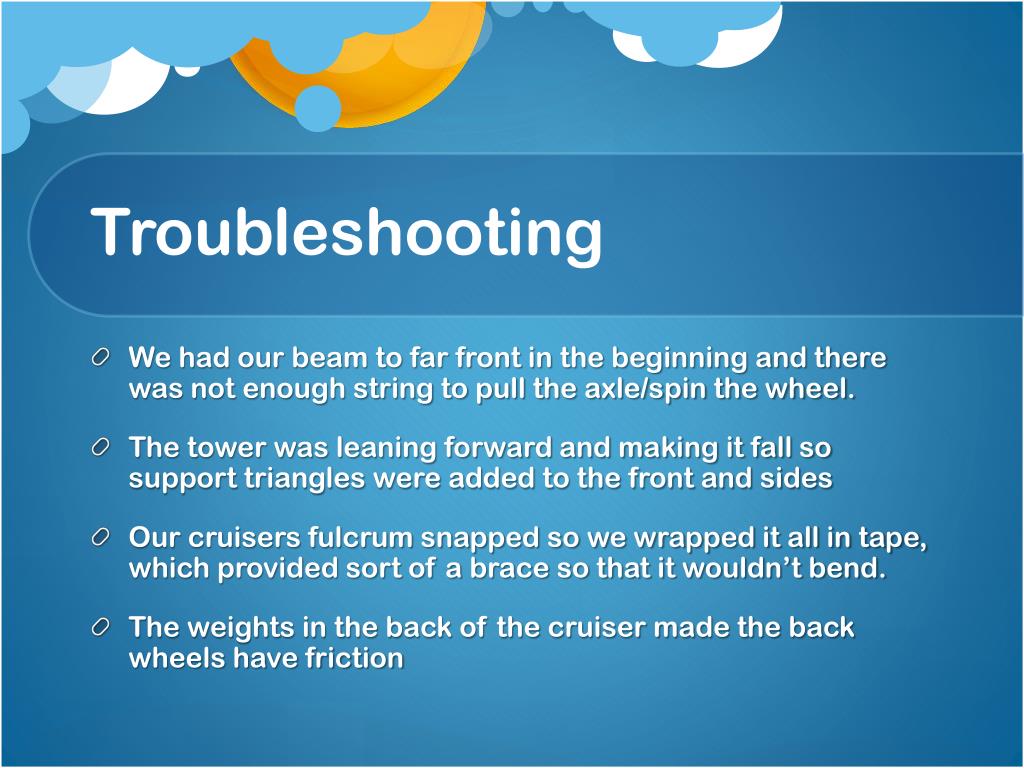

  5. Troubleshooting • We had our beam to far front in the beginning and there was not enough string to pull the axle/spin the wheel. • The tower was leaning forward and making it fall so support triangles were added to the front and sides • Our cruisers fulcrum snapped so we wrapped it all in tape, which provided sort of a brace so that it wouldn’t bend. • The weights in the back of the cruiser made the back wheels have friction

  6. Meeting Our Goals • In the end the modifications allowed it to go 6 meters. However at the last minute the bracing failed halfway and we had to entirely replace the fulcrum and did not have time to fine tune it to its original 6 meter distance
