  1. Dimensioning in Solidworks Lecture Dimensioning

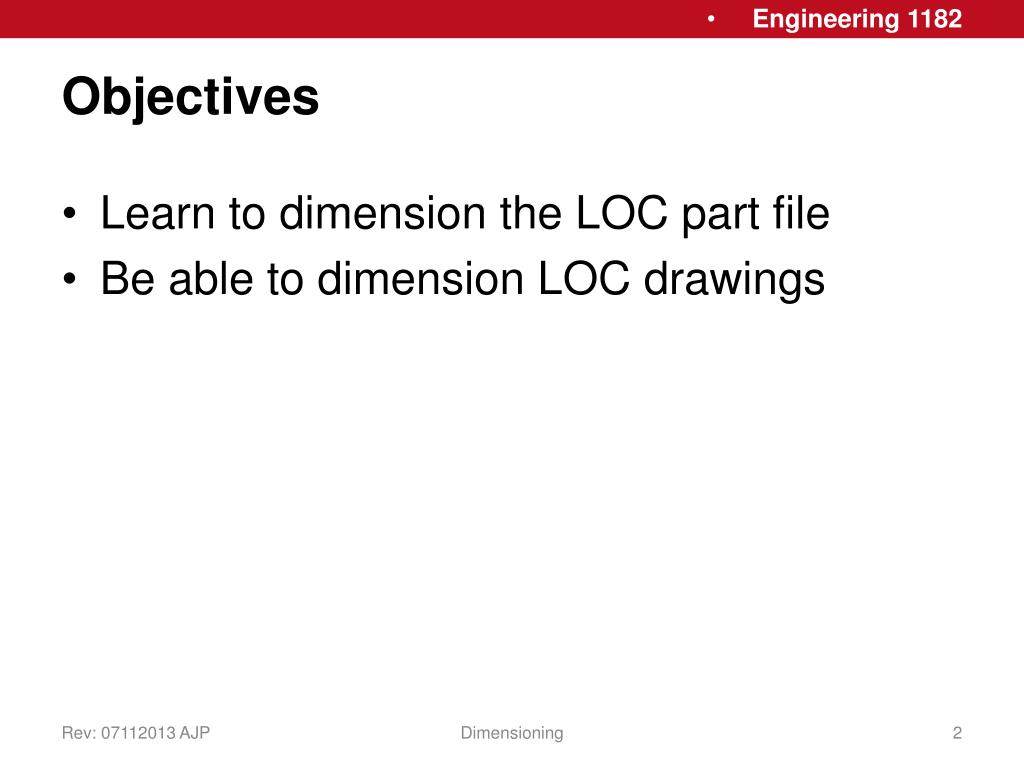

  2. Objectives • Learn to dimension the LOC part file • Be able to dimension LOC drawings Dimensioning

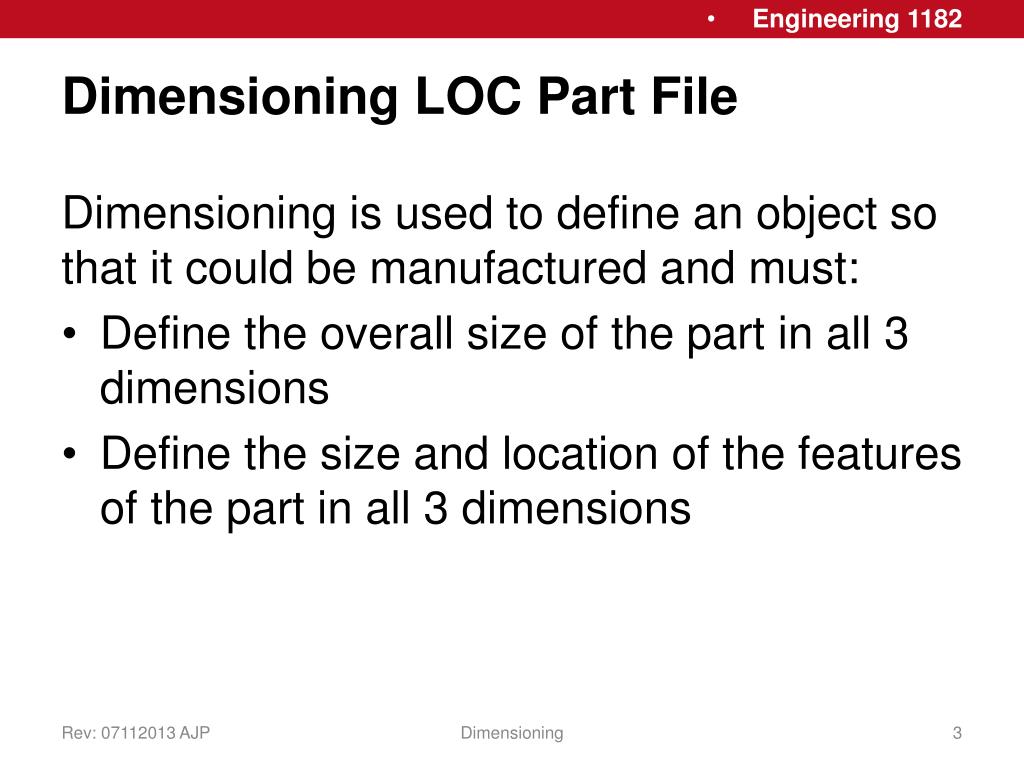

  3. Dimensioning LOC Part File Dimensioning is used to define an object so that it could be manufactured and must: • Define the overall size of the part in all 3 dimensions • Define the size and location of the features of the part in all 3 dimensions Dimensioning

  4. Dimensioning • Click on Smart Dimension on the Dimensions/Relations toolbar • Select the item to dimension; click and place the dimension Dimensioning

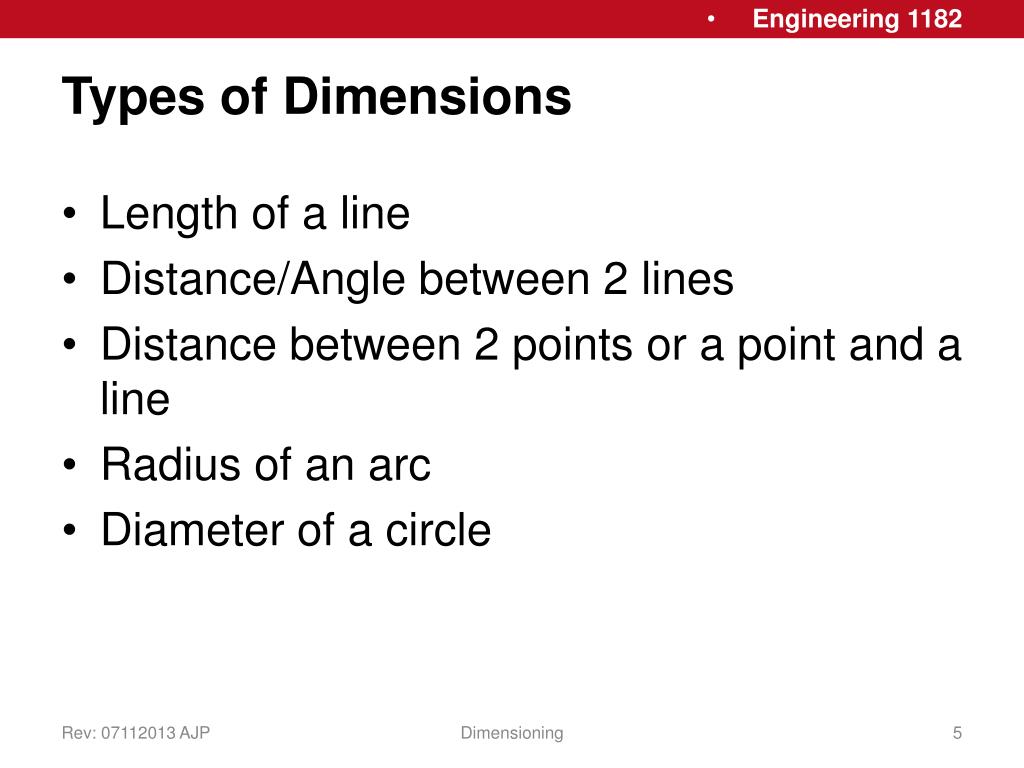

  5. Types of Dimensions • Length of a line • Distance/Angle between 2 lines • Distance between 2 points or a point and a line • Radius of an arc • Diameter of a circle Dimensioning

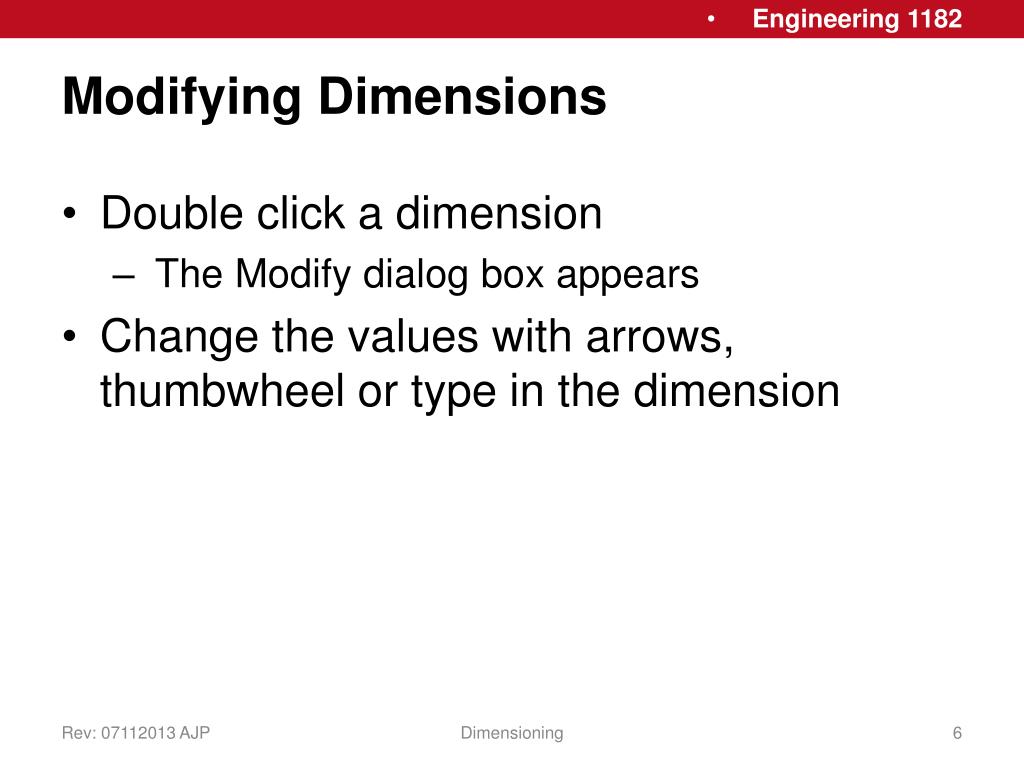

  6. Modifying Dimensions • Double click a dimension • The Modify dialog box appears • Change the values with arrows, thumbwheel or type in the dimension Dimensioning

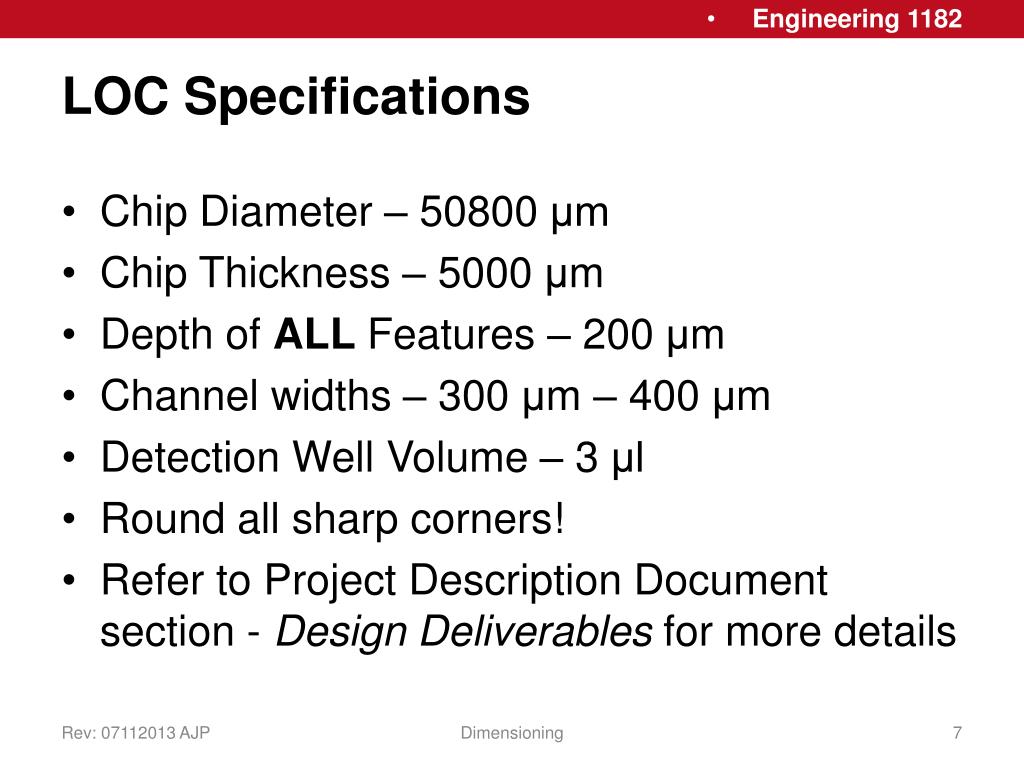

  7. LOC Specifications • Chip Diameter – 50800 μm • Chip Thickness – 5000 μm • Depth of ALL Features – 200 μm • Channel widths – 300 μm – 400 μm • Detection Well Volume – 3 μl • Round all sharp corners! • Refer to Project Description Document section - Design Deliverables for more details Dimensioning

  8. Dimensioning • Use this time to practice dimensioning the LOC part file using the chipholder template Dimensioning
