  1. Manual for Wireless Connectionin Kyoto University For Visitors - • 28 Dec, 2011

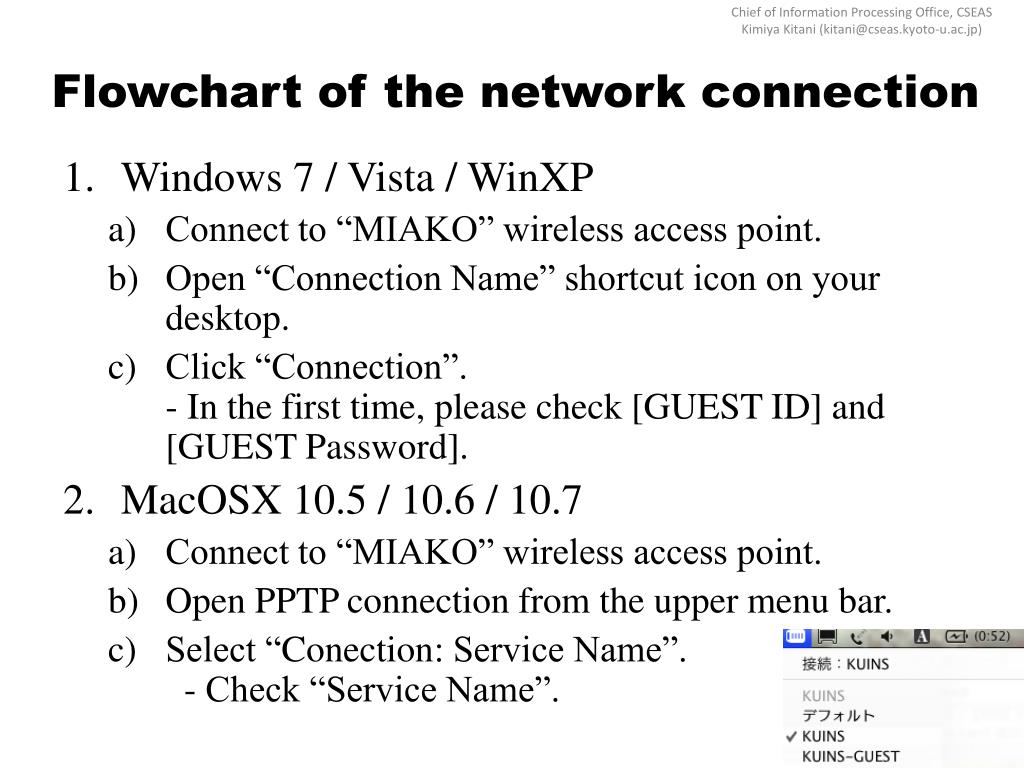

  2. Flowchart of the network connection • Windows 7 / Vista / WinXP • Connect to “MIAKO” wireless access point. • Open “Connection Name” shortcut icon on your desktop. • Click “Connection”.- In the first time, please check [GUEST ID] and [GUEST Password]. • MacOSX 10.5 / 10.6 / 10.7 • Connect to “MIAKO” wireless access point. • Open PPTP connection from the upper menu bar. • Select “Conection: Service Name”. - Check “Service Name”.

  3. Manuals for setting up “PPTP” connection Windows 7, Vista, XP MacOSX 10.7 (Lion) / 10.6 (Snow Leopard) / 10.5 (Leopard)

  4. Setting up “PPTP” for Visitors- Windows 7 / Vista (English) - • From the “Start” Menu, select “Control Panel”. • Select the link to “View network status and tasks” in the category of “Network and Internet”. • Select “Set up a connection or network” in the left sidebar of “Network and Sharing Center”. • Select “Connect to a workplace.” and click “Next”. • Select “Use my Internet connection (VPN)” and double click it. • Select “I’ll set up an Internet Connection later”. • Check the following Settings and click “Next”. • Internet address: pptpg.kuins.kyoto-u.ac.jp • Destination name: Understandable name like KUINS-PPTP (GUEST) • Check off “Allow other people to use this connection” • Check on “Don’t connect now”. • Check the following Settings and click “Create”. • Username: [Your Guest ID] • Password: [Your Guest Password] • Click on Close. • Select “Manage network connections” in the left sidebar of “Network and Sharing Center”. • Right click on “KUINS-PPTP (GUEST)” (Destination name) and select “Create Shortcut”. • Click on “Yes” on the alert of “Windows cannot create a shortcut here”. * In case of Windows7, please check the following settings. • Right click on “KUINS-PPTP (GUEST)” (Destination name) and Select “Properties“. • Click on “Security” tab and select “Point to Point Tunneling Protocol (PPTP)” in “Type of VPN:” menu.

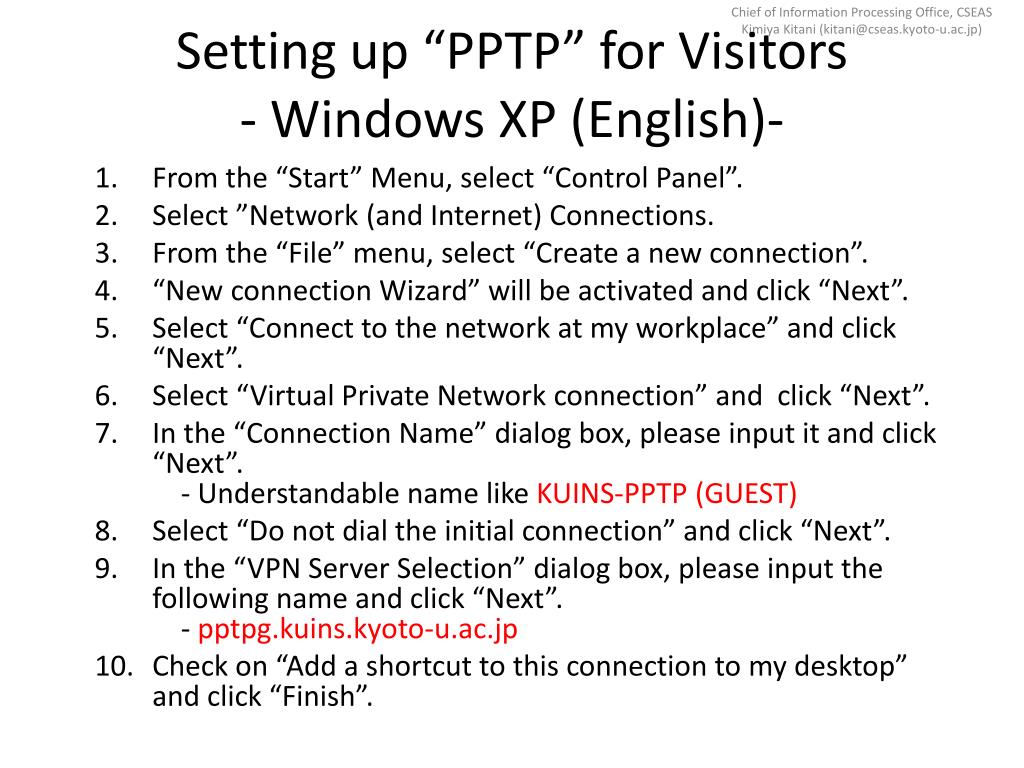

  5. Setting up “PPTP” for Visitors- Windows XP (English)- • From the “Start” Menu, select “Control Panel”. • Select ”Network (and Internet) Connections. • From the “File” menu, select “Create a new connection”. • “New connection Wizard” will be activated and click “Next”. • Select “Connect to the network at my workplace” and click “Next”. • Select “Virtual Private Network connection” and click “Next”. • In the “Connection Name” dialog box, please input it and click “Next”. - Understandable name like KUINS-PPTP (GUEST) • Select “Do not dial the initial connection” and click “Next”. • In the “VPN Server Selection” dialog box, please input the following name and click “Next”. - pptpg.kuins.kyoto-u.ac.jp • Check on “Add a shortcut to this connection to my desktop” and click “Finish”.

  6. Setting up “PPTP” for Visitors- MacOS 10.5/10.6 / 10.7 (English) - • From the “Apple” Menu, select “System Preferences”. • Select “Network”. • Click ”+” button. - If this button is disabled, please click “Key” icon and apply the administrator authorization. • Select the following new network. - Interface: VPN - VPN type: PPTP - Service Name: Understandable name like KUINS-PPTP (GUEST) • Check the following network setting.- Server Address: pptpg.kuins.kyoto-u.ac.jp - Account name: [GUEST ID] - Check on “Show VPN status in menu bar”. • Select “Authorization settings” option and check the following setting. - Check on “Password”. - Input [GUEST Password] in the dialog box. • Select “Advanced” option and check the following setting. - Check on “Send all traffic over VPN connection”. • Then, click “Apply”.

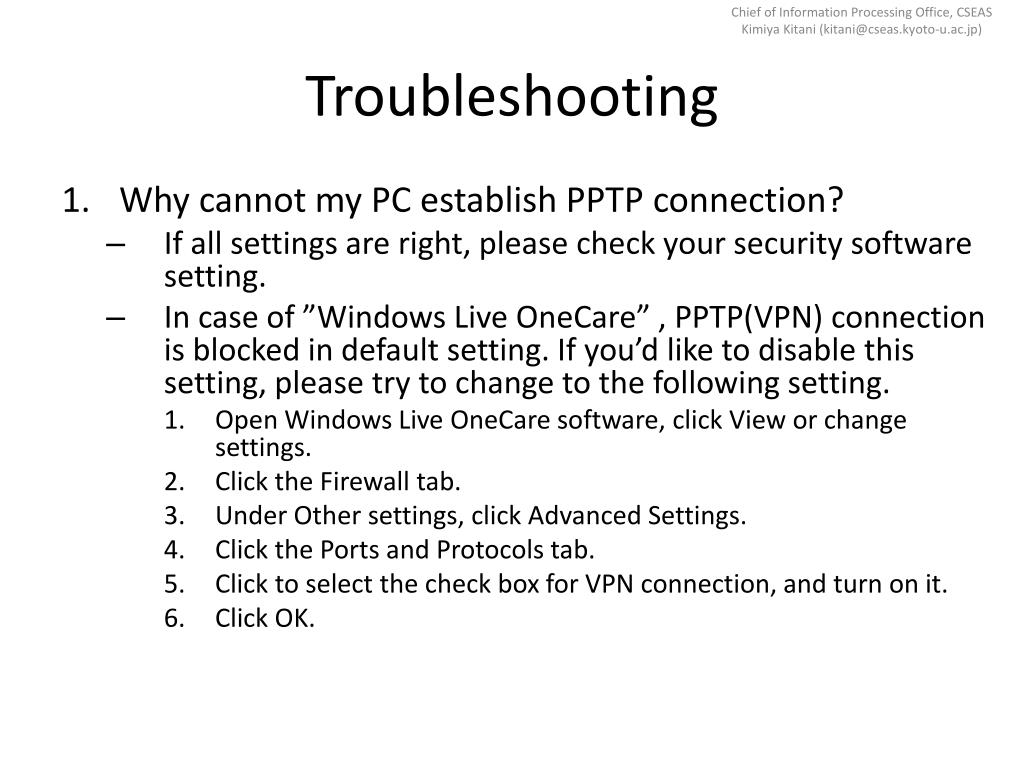

  7. Troubleshooting • Why cannot my PC establish PPTP connection? • If all settings are right, please check your security software setting. • In case of ”Windows Live OneCare” , PPTP(VPN) connection is blocked in default setting. If you’d like to disable this setting, please try to change to the following setting. • Open Windows Live OneCare software, click View or change settings. • Click the Firewall tab. • Under Other settings, click Advanced Settings. • Click the Ports and Protocols tab. • Click to select the check box for VPN connection, and turn on it. • Click OK.
