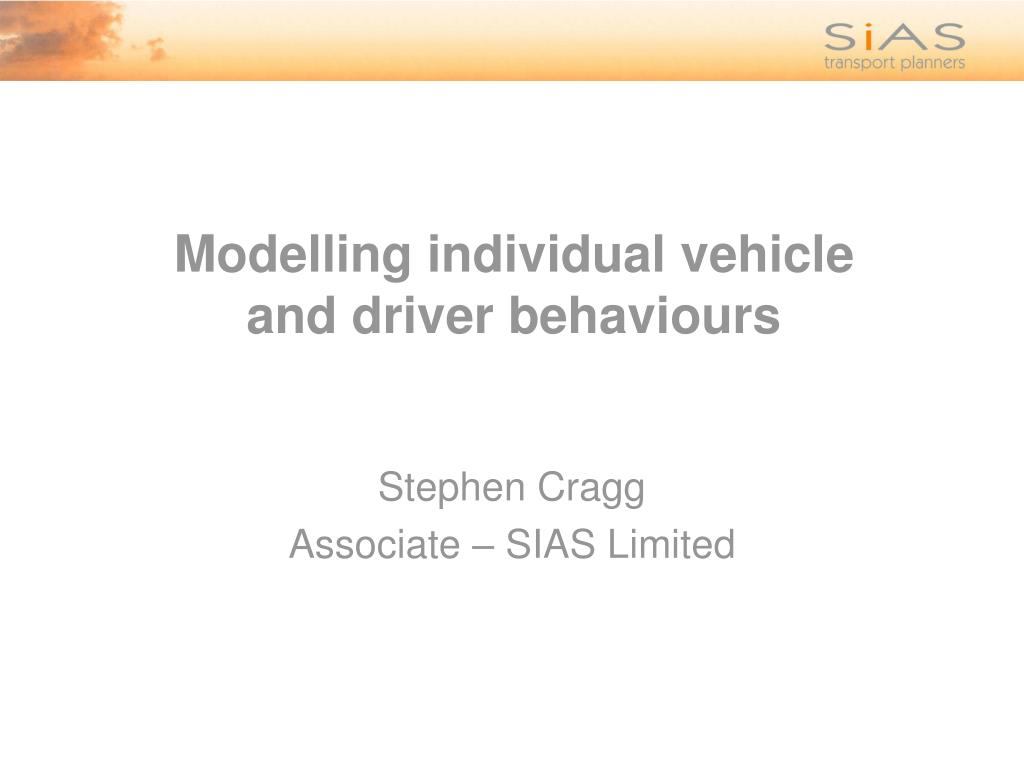

  1. Modelling individual vehicleand driver behaviours Stephen Cragg Associate – SIAS Limited

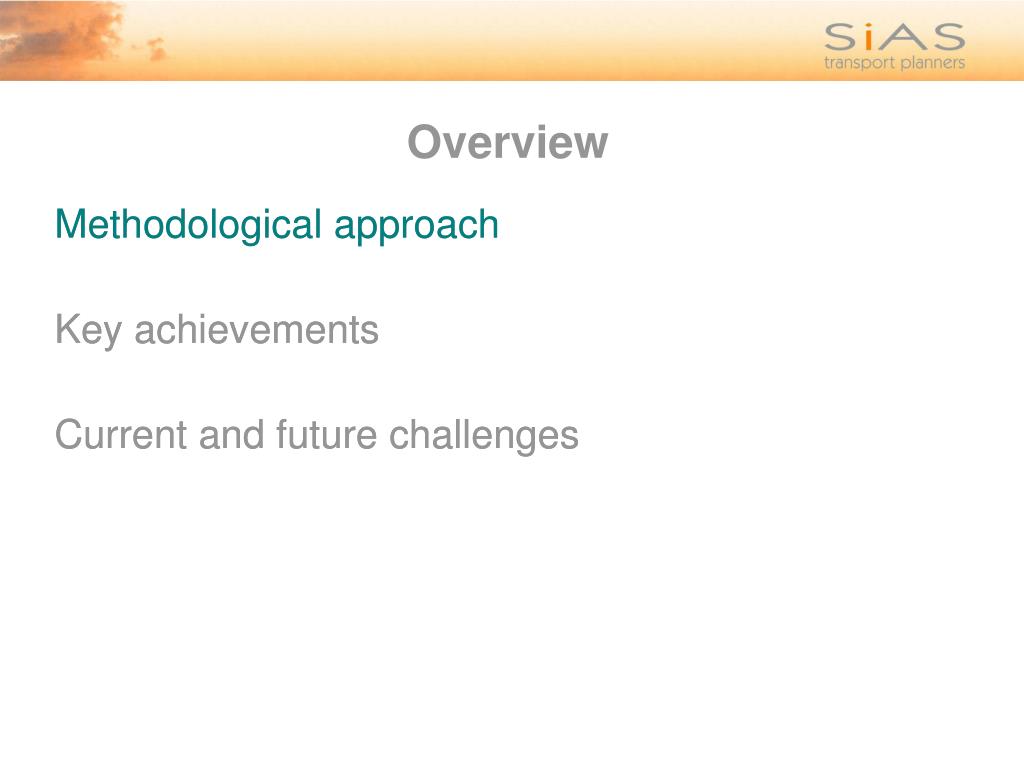

  2. Overview • Methodological approach • Key achievements • Current and future challenges • Methodological approach • Key achievements • Current and future challenges

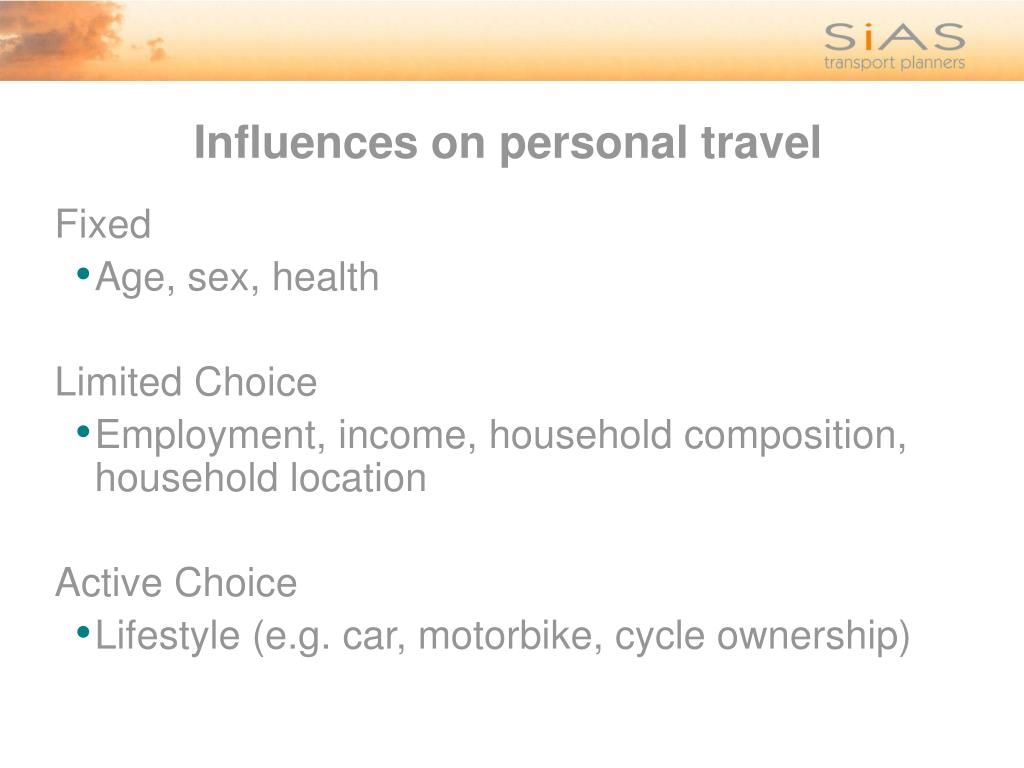

  3. Influences on personal travel • Fixed • Age, sex, health • Limited Choice • Employment, income, household composition, household location • Active Choice • Lifestyle (e.g. car, motorbike, cycle ownership)

  4. Influences on travel • Where am I? • Where am I going? (should I go?) • How often? (or not at all?) • How will I get there? (what’s available?) • When can / should I go? • What route to take?

  5. Life, the Universe and Everything Traffic Models Traffic Models Transport Models Driver & Vehicle Behaviour

  6. A model NOT in S-Paramics!

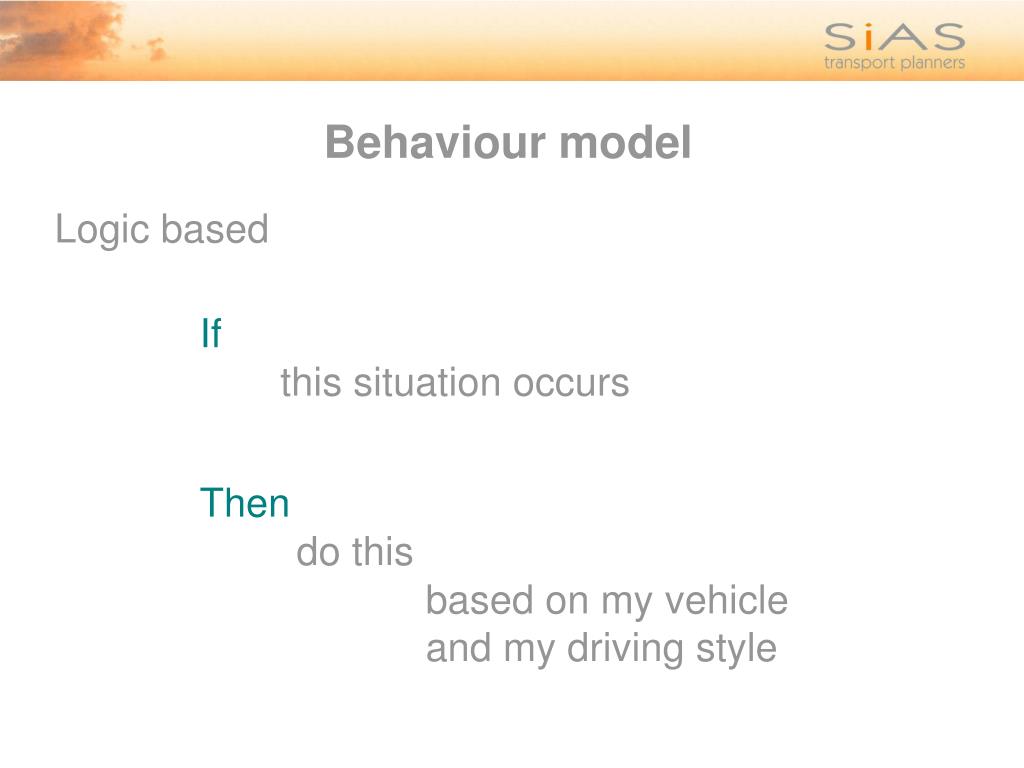

  7. Behaviour model • Logic based If this situation occurs Then do this based on my vehicle and my driving style

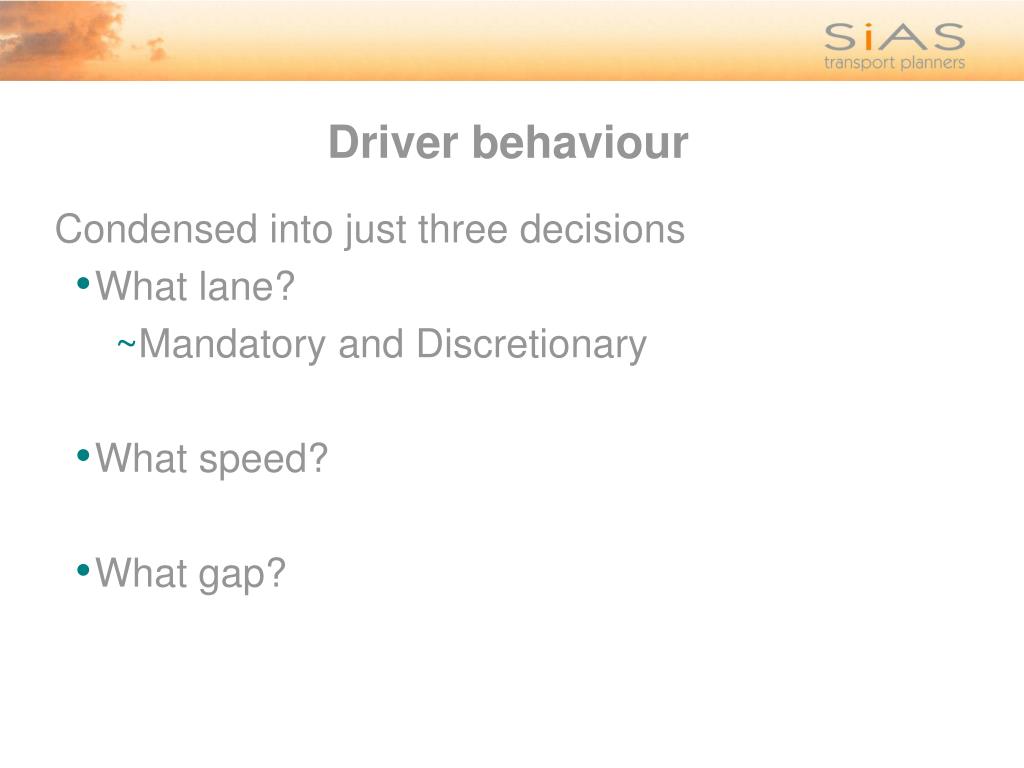

  8. Driver behaviour • Condensed into just three decisions • What lane? • Mandatory and Discretionary • What speed? • What gap?

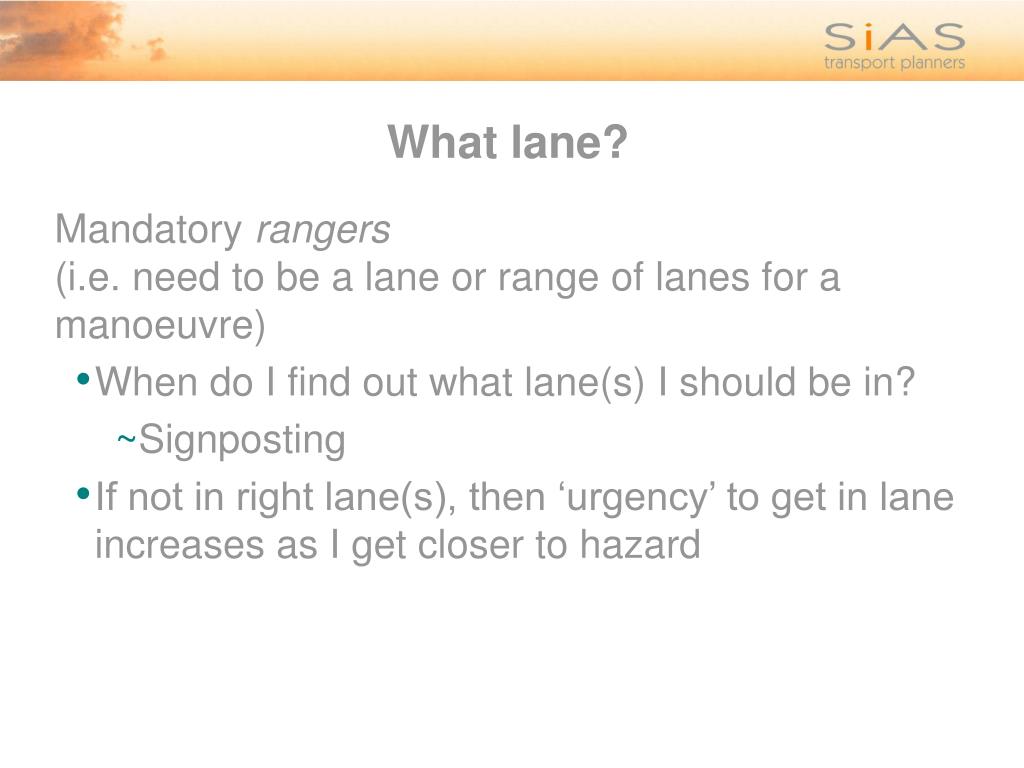

  9. What lane? • Mandatory rangers(i.e. need to be a lane or range of lanes for a manoeuvre) • When do I find out what lane(s) I should be in? • Signposting • If not in right lane(s), then ‘urgency’ to get in lane increases as I get closer to hazard

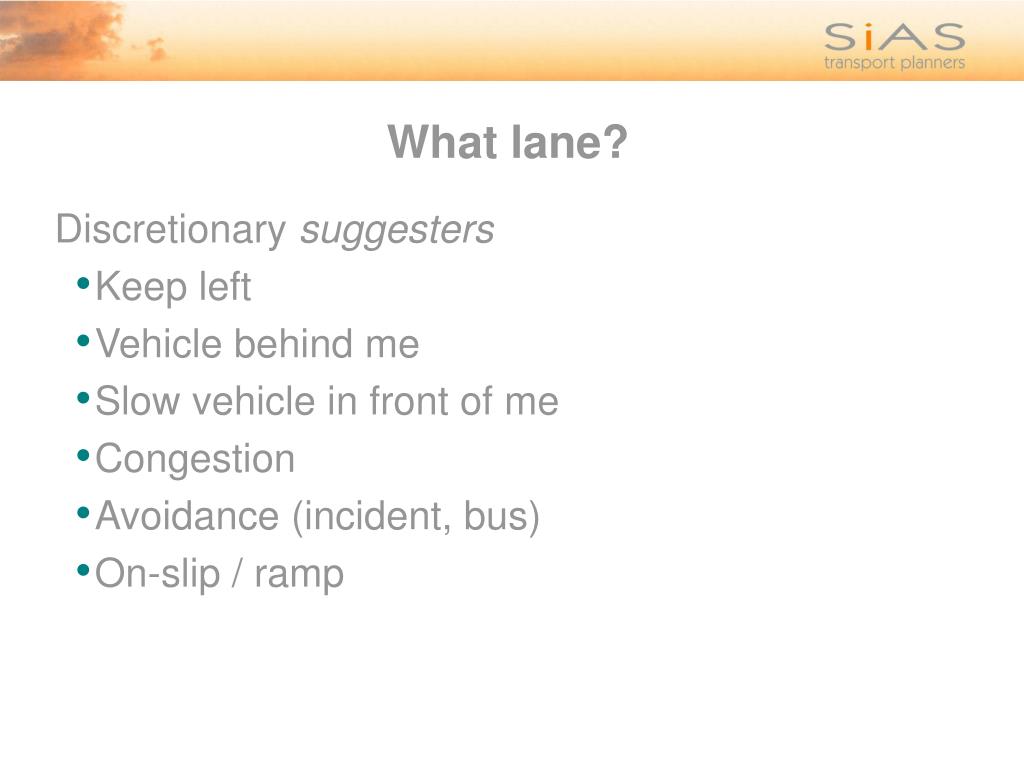

  10. What lane? • Discretionary suggesters • Keep left • Vehicle behind me • Slow vehicle in front of me • Congestion • Avoidance (incident, bus) • On-slip / ramp

  11. What lane? • Lane weightings applied • Seniority can be applied

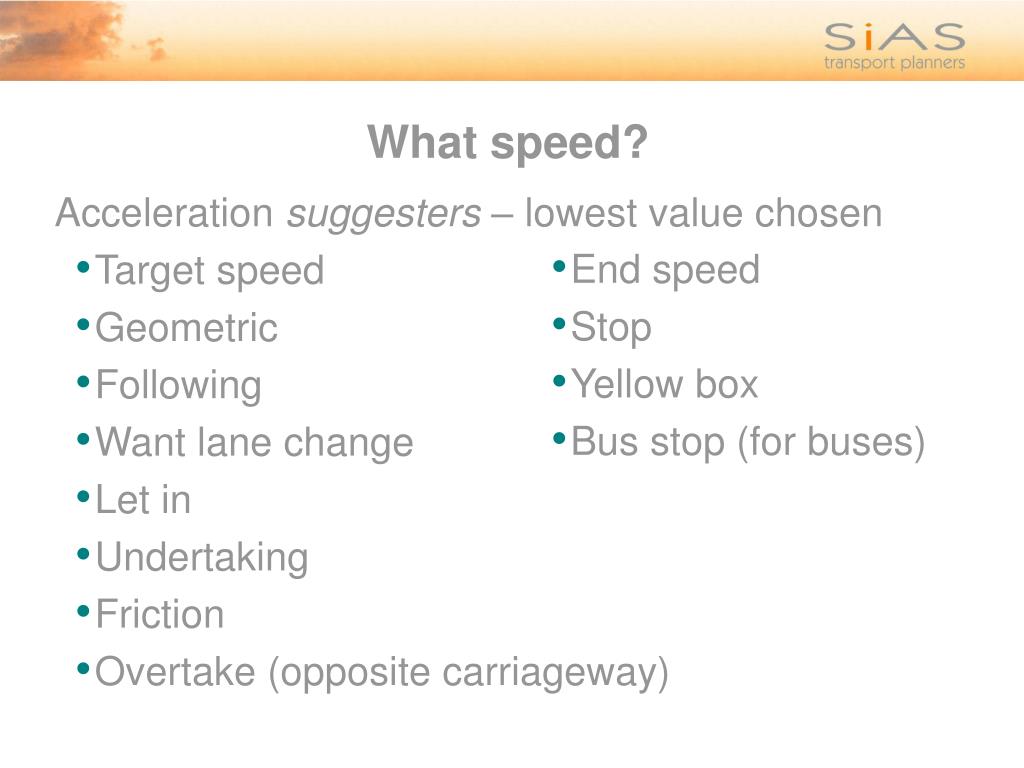

  12. What speed? • Acceleration suggesters – lowest value chosen • Target speed • Geometric • Following • Want lane change • Let in • Undertaking • Friction • Overtake (opposite carriageway) • End speed • Stop • Yellow box • Bus stop (for buses)

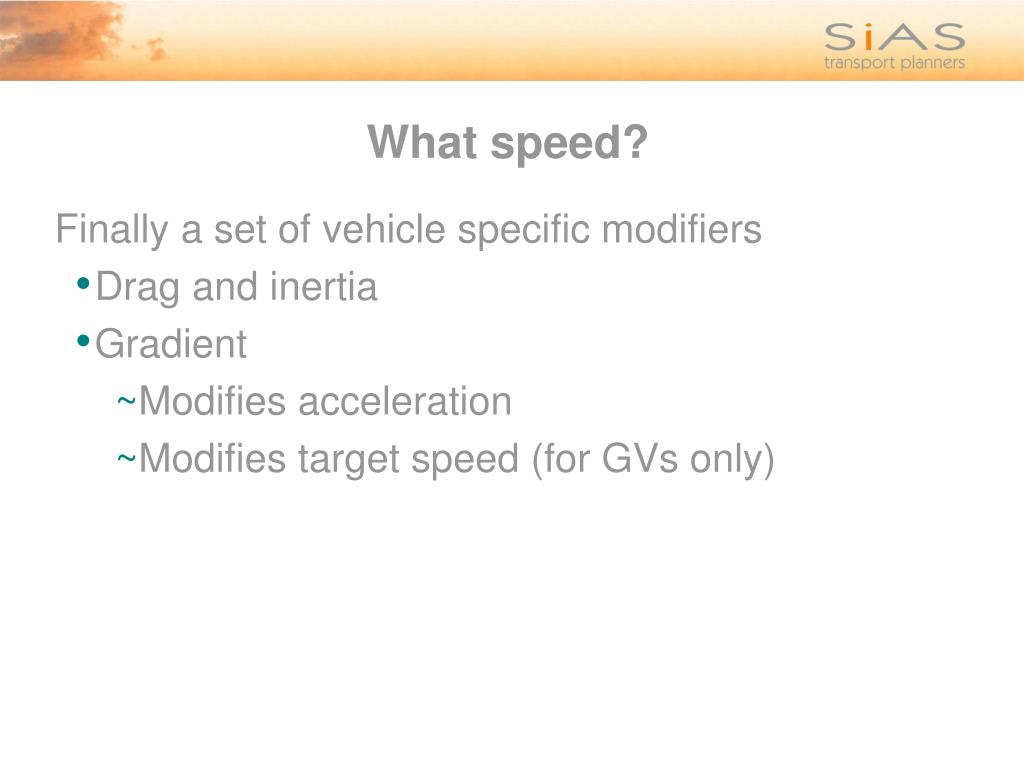

  13. What speed? • Finally a set of vehicle specific modifiers • Drag and inertia • Gradient • Modifies acceleration • Modifies target speed (for GVs only)

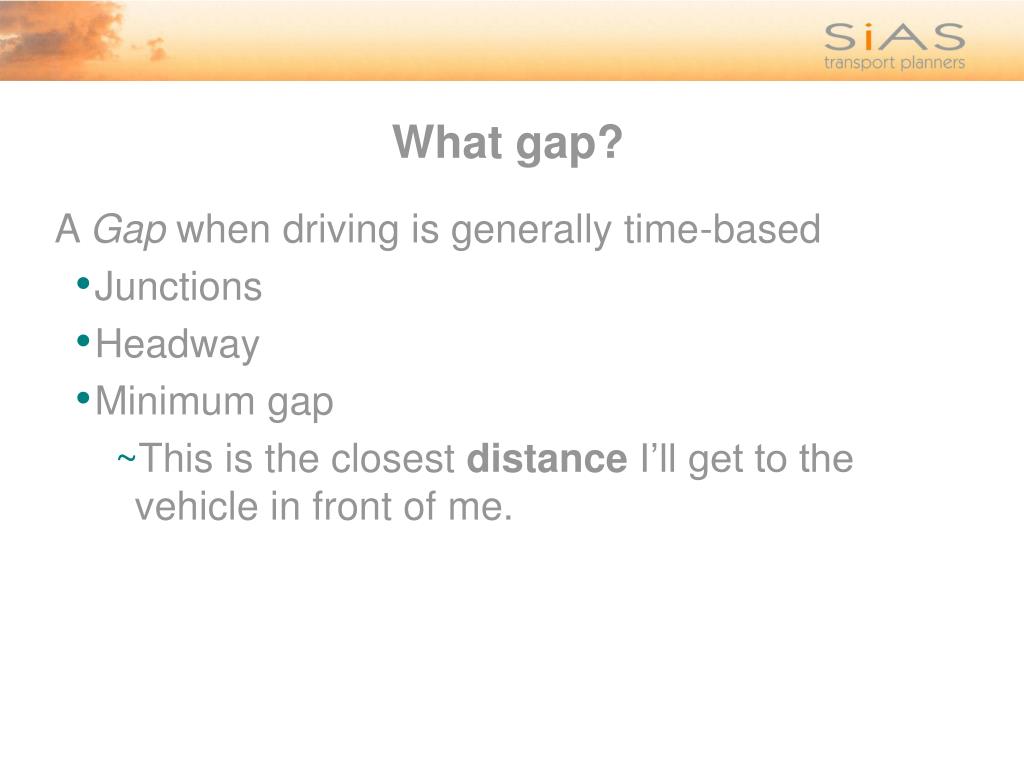

  14. What gap? • A Gap when driving is generally time-based • Junctions • Headway • Minimum gap • This is the closest distance I’ll get to the vehicle in front of me.

  15. Behaviour model • Logic based If this situation occurs Then do this based on my vehicle and my driving style

  16. Driver characteristics • Aggression • This determines how I behave • Awareness • This determines how I respond to others • Default is Normal Distribution • Apply a spread

  17. Distribution modification • Not all distributions are normal • Apply a skew

  18. Vehicle characteristics • Top speed • Physical rather than legal • Bounds of acceleration / braking • Dimensions • Length, width, height and mass

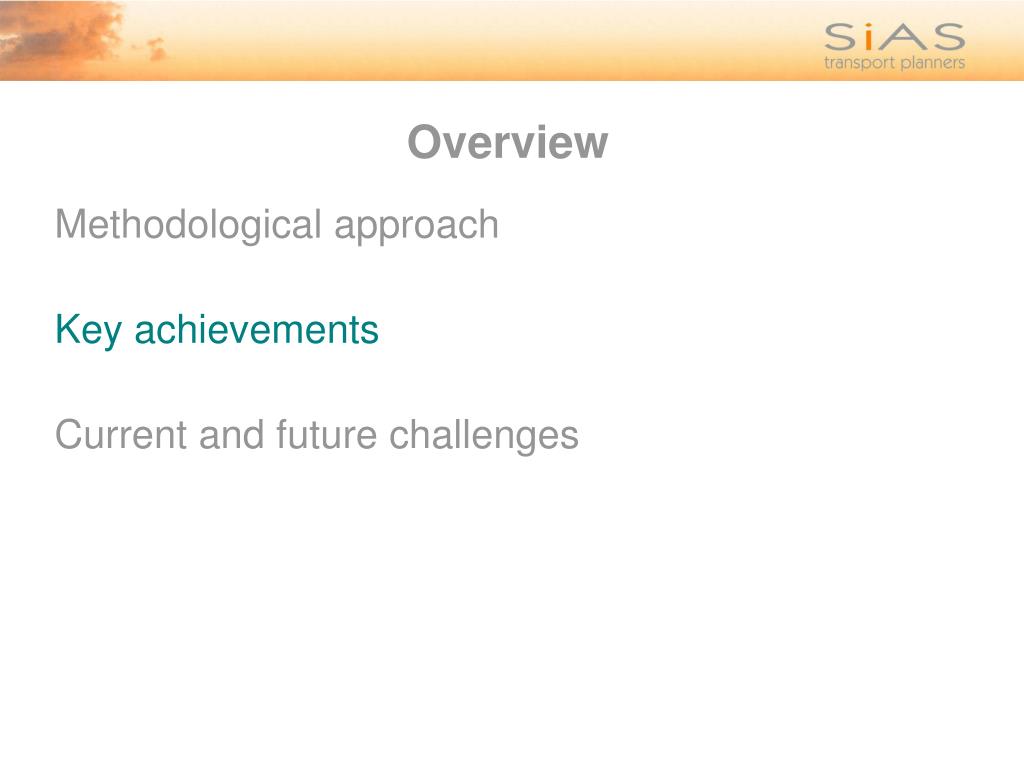

  19. Overview • Methodological approach • Key achievements • Current and future challenges

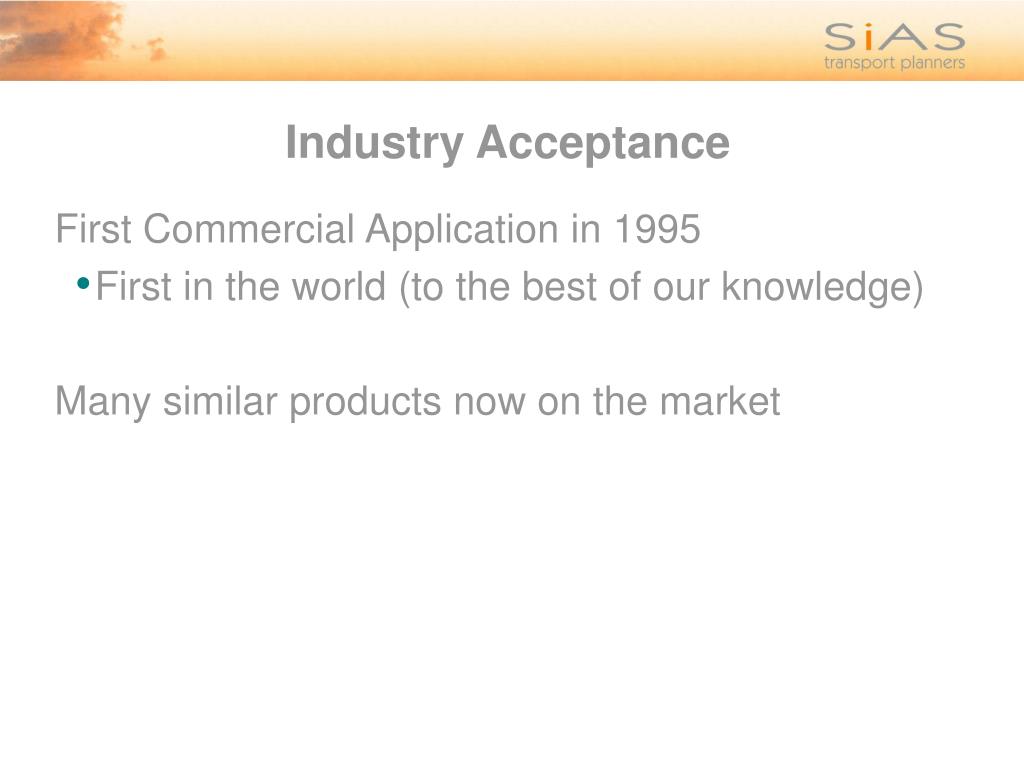

  20. Industry Acceptance • First Commercial Application in 1995 • First in the world (to the best of our knowledge) • Many similar products now on the market

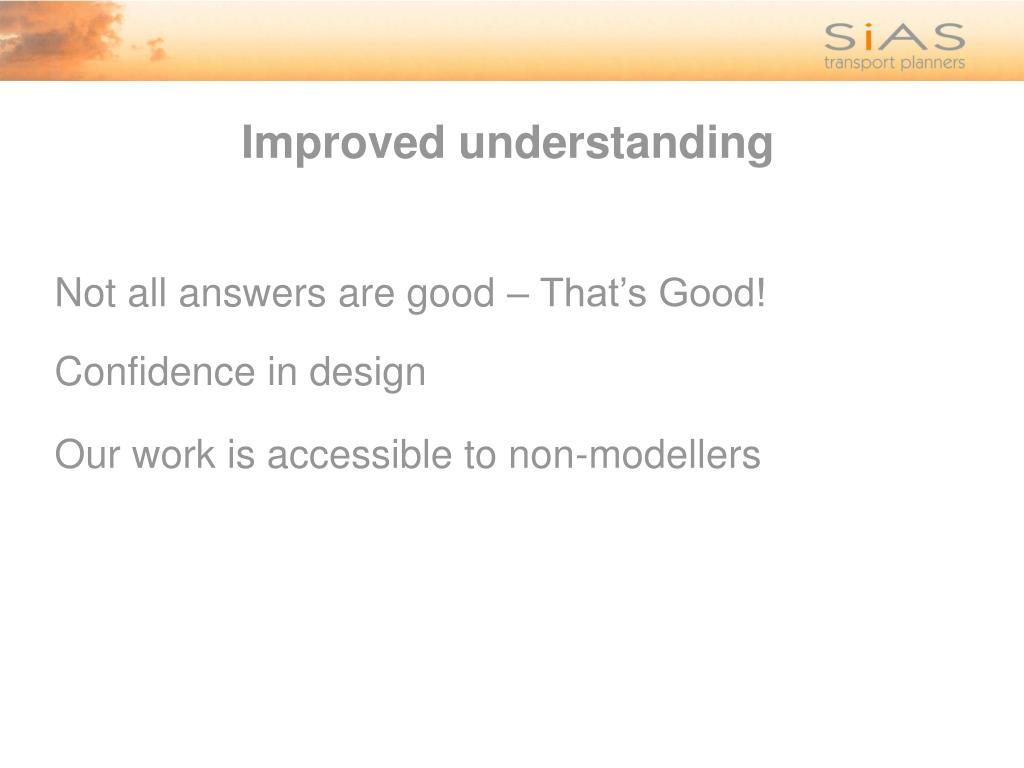

  21. Improved understanding • Not all answers are good – That’s Good! • Confidence in design • Our work is accessible to non-modellers

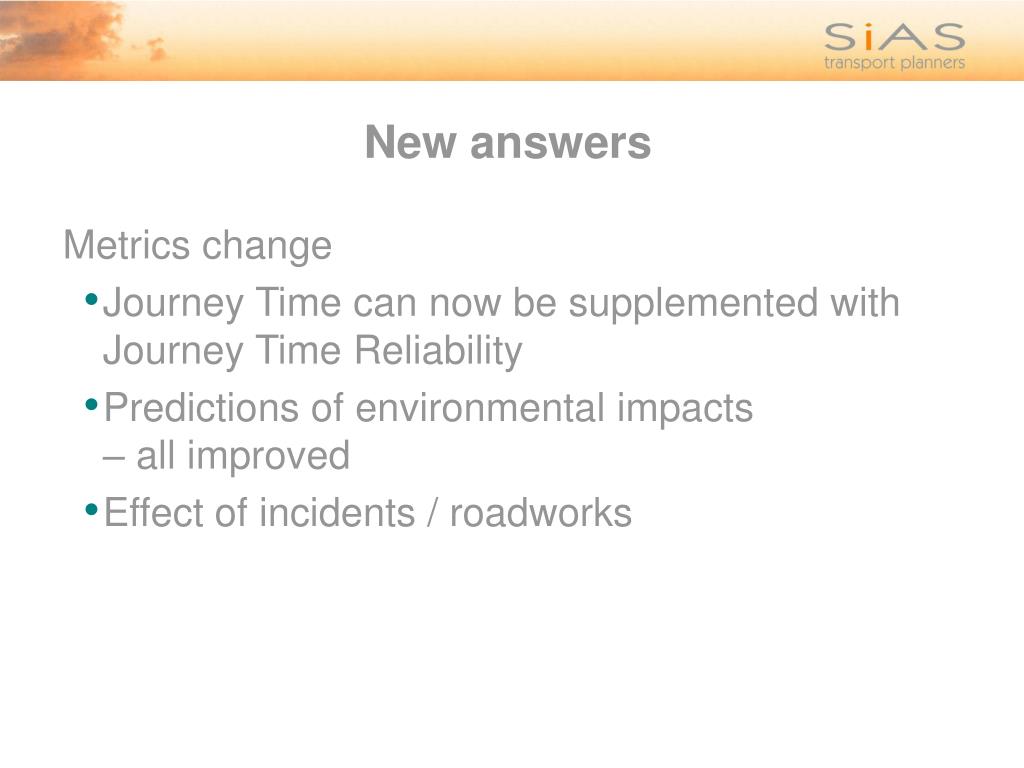

  22. New answers • Metrics change • Journey Time can now be supplemented with Journey Time Reliability • Predictions of environmental impacts– all improved • Effect of incidents / roadworks

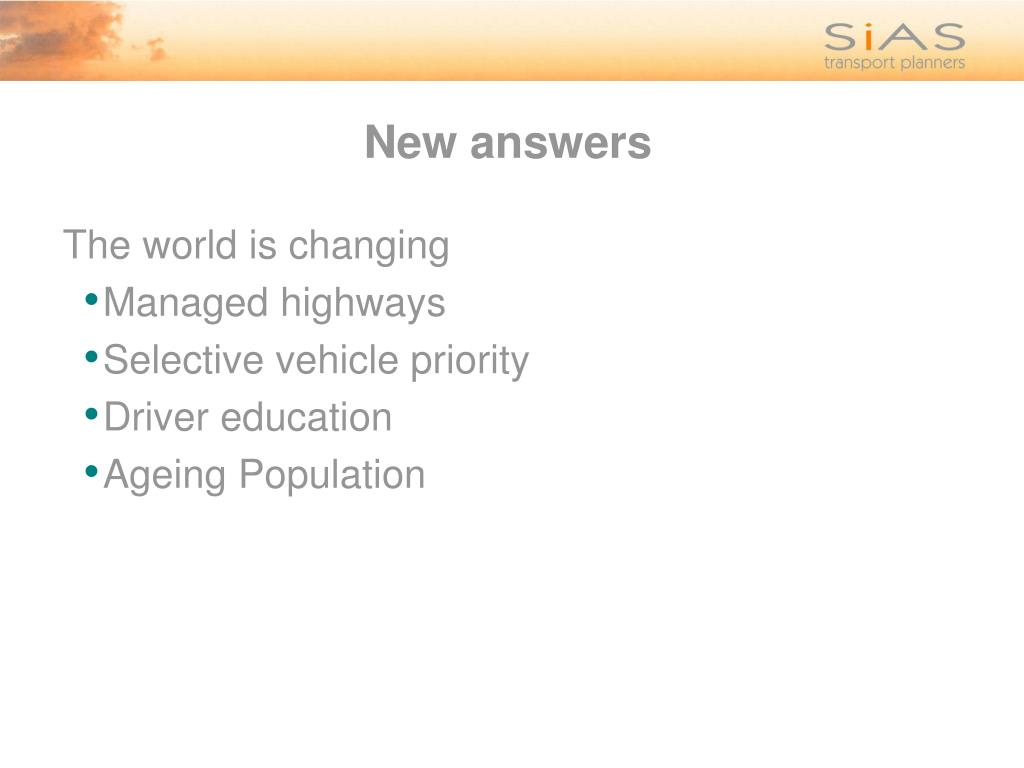

  23. New answers • The world is changing • Managed highways • Selective vehicle priority • Driver education • Ageing Population

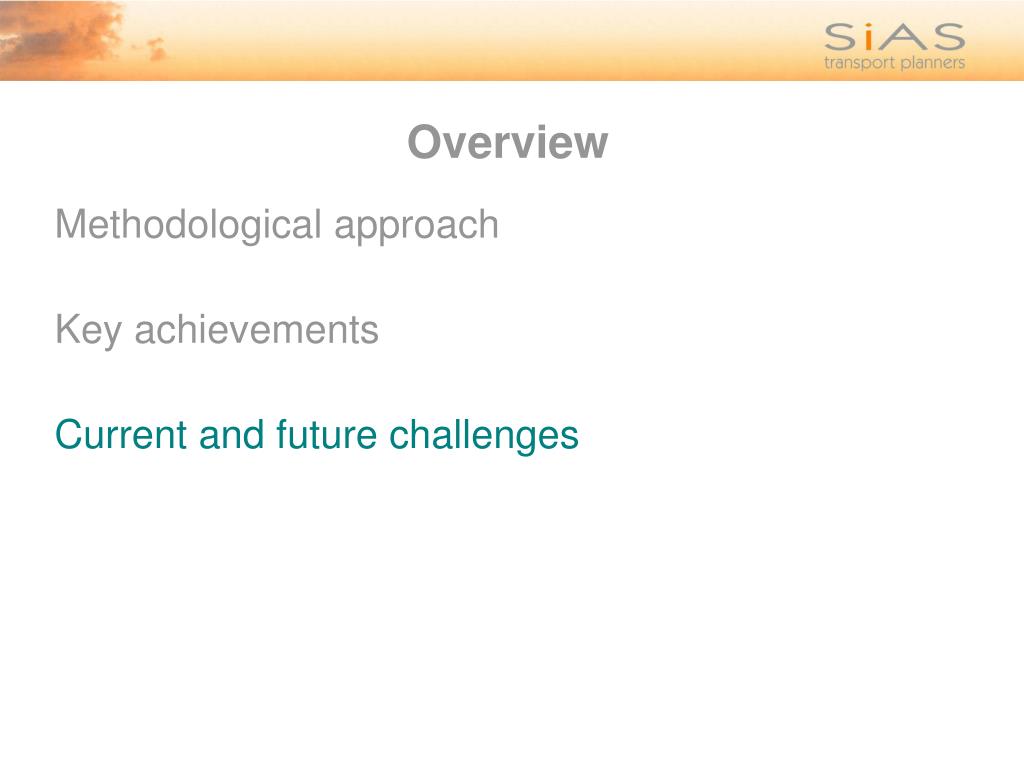

  24. Overview • Methodological approach • Key achievements • Current and future challenges

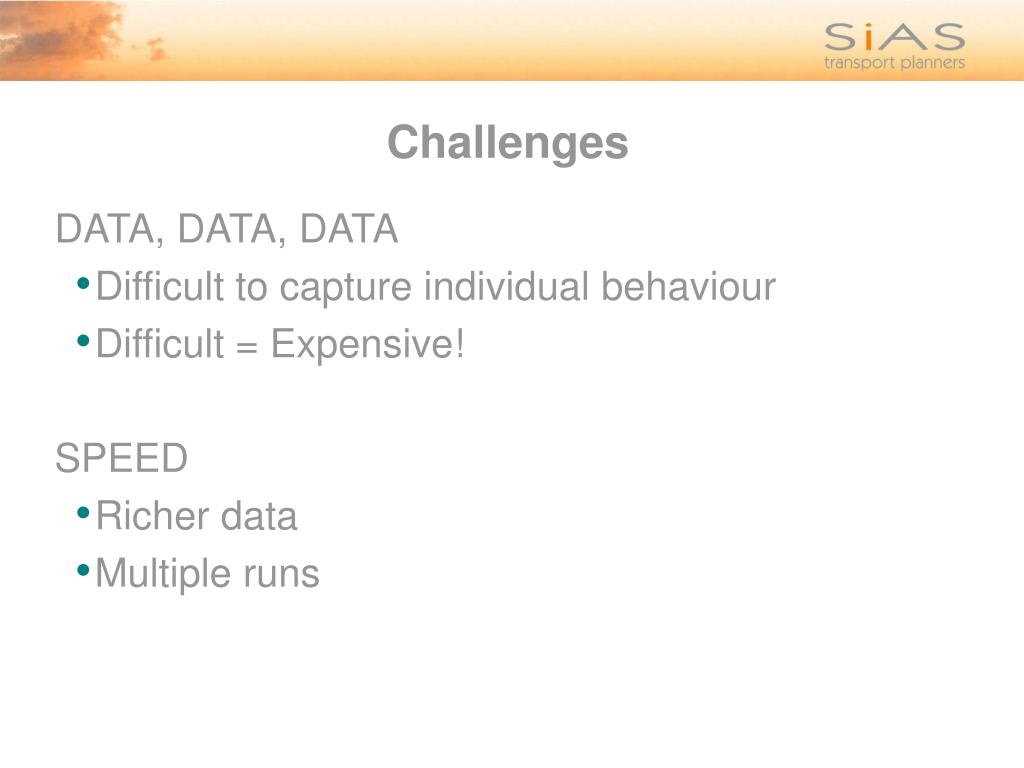

  25. Challenges • DATA, DATA, DATA • Difficult to capture individual behaviour • Difficult = Expensive! • SPEED • Richer data • Multiple runs

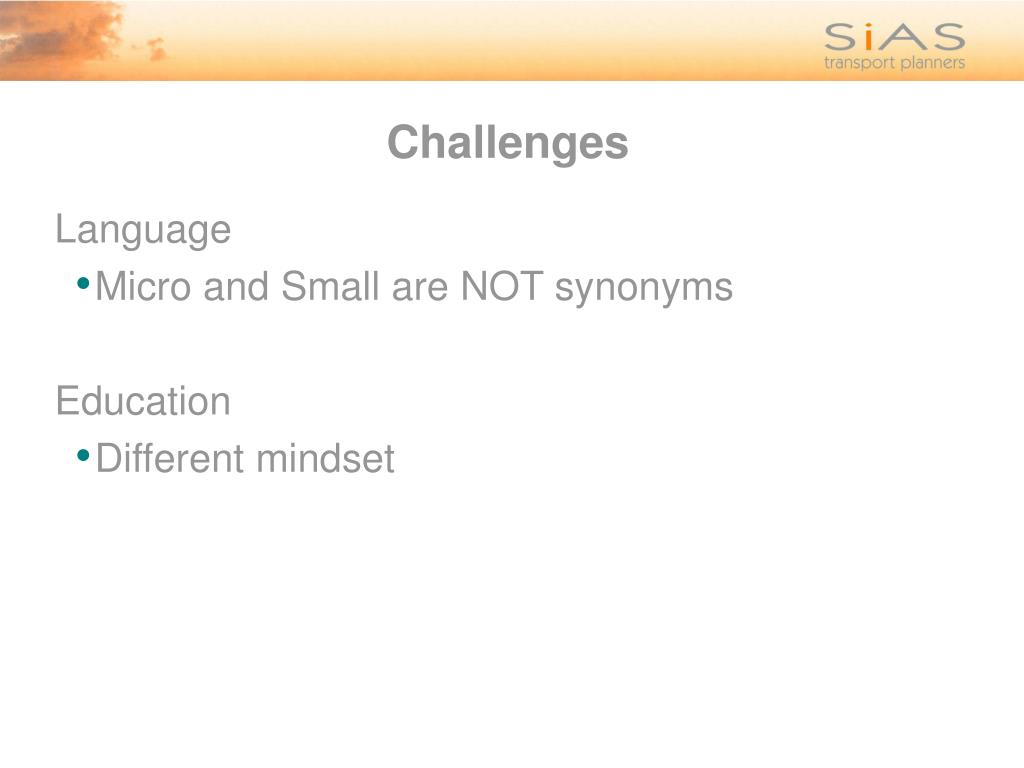

  26. Challenges • Language • Micro and Small are NOT synonyms • Education • Different mindset

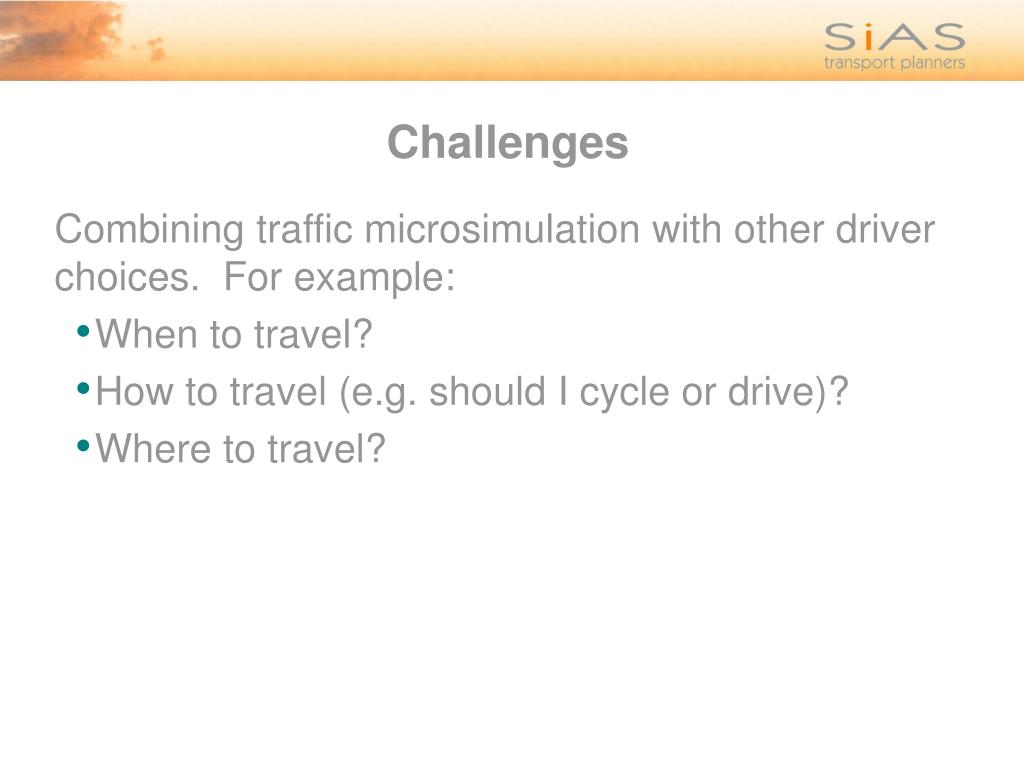

  27. Challenges • Combining traffic microsimulation with other driver choices. For example: • When to travel? • How to travel (e.g. should I cycle or drive)? • Where to travel?
