Measures of Relative Standing in Statistics

graybrobert avatar
graybrobert
11 diapositives · 189 Views · Jan 07, 2020

Learn about percentiles, Z-scores, density curves, and calculations in statistics to understand distribution characteristics. Practice using Normal Distribution and Empirical Rule for probability calculations.

#measures of relative standing in statistics #measures of relative standing in statistics ppt #powerpoint #presentation
Measures of Relative Standing in Statistics - slide 1
01 / 11Measures of Relative Standing in Statistics
1 / 17

Télécharger la présentation

Measures of Relative Standing in Statistics
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

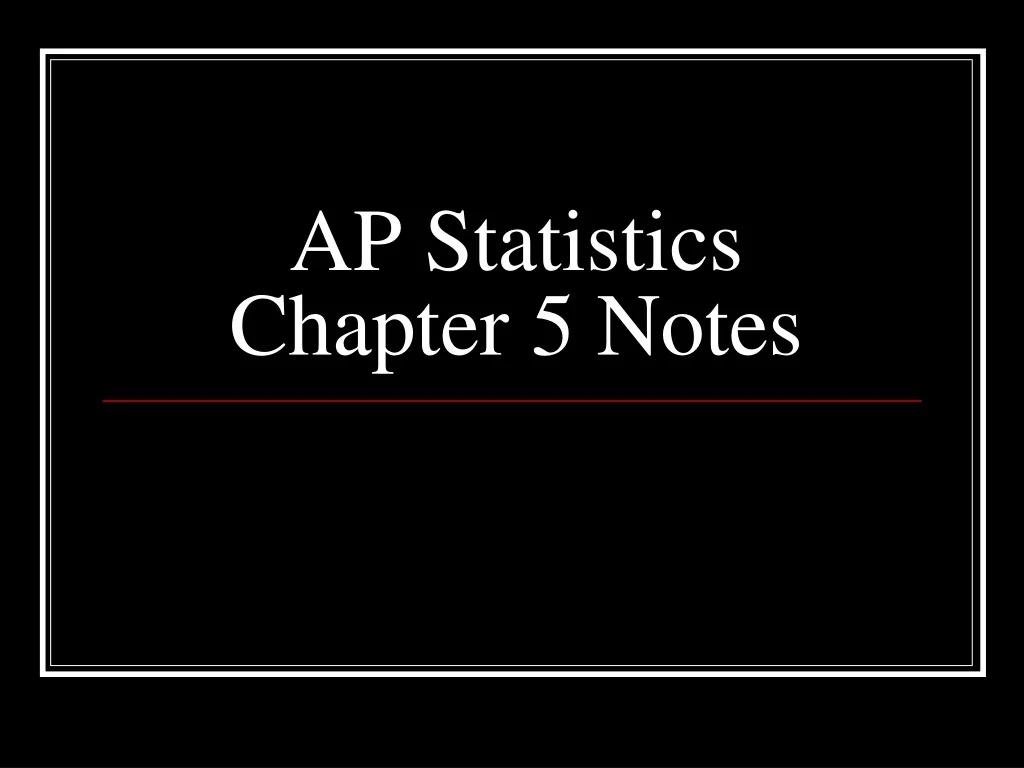

  1. AP StatisticsChapter 5 Notes

  2. Measures of Relative Standing • Percentiles • The percent of data that lies at or below a particular value. • e.g. standardized test score reports • baby weight/height/head size. • Standardized value (z-score)

  3. Z-score • Z-score tells you how many standard deviations away from the mean a given observation is. • Z-scores are more useful with symmetric distributions.

  4. Density Curve • An idealized mathematical model used to represent a distribution. • Always on or above the horizontal axis. • Has an area of exactly 1 underneath it. • The area under the curve for any given interval is equal to the proportion of all observations that fall in that interval. • median: equal areas point • Mean: balance point

  5. Notation used for density curves • Observed data Idealized Data • (Sample) (population) • Statistics Parameters • MEAN μ • standard deviation σ

  6. Always symmetric, but the exact shape depends upon μ and σ. Change in curvature (point of inflection) shows where 1 standard deviation from the mean is located. Normal Distribution

  7. Empirical Rule (68-95-99.7 Rule)

  8. Example • IQ scores are Normally distributed with a mean of 100 and a std dev of 15. • What % of people have IQ scores… • Between 70 and 130? • Less than 85? • Greater than 145? • Less than 115? • Between 55 and 70?

  9. Probability Calculations • We define a Normal distribution by its mean and standard deviation. • N(μ, σ) • If we standardize the distribution by calculating z-scores, we create the distribution: N(0,1). • The z-table provides the percentiles associated with various z-scores. • When performing a calculation, be sure to draw a sketch of the region under the Normal curve that you are working with, and answer the question in context.

  10. Examples • IQ scores are Normally distributed with a mean of 100 and a std dev of 15. • What percent of people have IQ scores less than 82? Less than 121? • What percent of people have IQ scores greater than 107? • What percent of people have IQ scores between 88 and 104? • A person is considered a genius if they are in the top 3% in terms of IQ. What IQ score does a person need to be considered a genius?

  11. Using the calculator • To calculate the % of observations within a certain interval, use the z-table or the graphing calculator. • 2nd Vars (Dist), choose option 2. • Normalcdf (min, max, μ, σ) • To calculate raw data scores from percentiles: • 2nd Vars (Dist), choose option 3. • invNorm(%, μ, σ)
